120W Full Cut-off LED Wall Pack Lights,,13,500 Lumens,IP65 waterproof
  • 120W Full Cut-off LED Wall Pack Lights,,13,500 Lumens,IP65 waterproof
  • 120W Full Cut-off LED Wall Pack Lights,,13,500 Lumens,IP65 waterproof
120W Full Cut-off LED Wall Pack Lights,,13,500 Lumens,IP65 waterproof120W Full Cut-off LED Wall Pack Lights,,13,500 Lumens,IP65 waterproof

120W Full Cut-off LED Wall Pack Lights,,13,500 Lumens,IP65 waterproof

●   Watt: 120W

●   Lumens: 13,500

●   Light Source: Philips SMD 3030

●   Input Volt: 100-277VAC

●   Size: 9.25*14.17*11.8 in

●   CCT (Color Temp): 3000-6500K

●   5 years warranty

●   Certification: CE RoHS ETL DLC

Inquire Now Next Product

120W Full Cut-off LED Wall Pack Lights,,13,500 Lumens,IP65 waterproof

Name:

Tel:

E-mail:

Country:

CAPTCHA:

Submit the information to obtain product spec sheet,Please make sure that your email address is absolutely correct!

Specification Sheet
  • Data Sheets
  • Beam Angle
  • Options/Accessories
  • Package details

Specifications

ModelLSFWP-120W
Watt120W
Lumen13,500
Efficiency112LM/W±3%
Driver PowerUL Approved
Dimension9.25*14.17*11.8 in
CCT3000K 4000K 5000K 5700K 6500K
Input Voltage100-277VAC and 347-480VAC
Power Factor>0.95
ConstructionHigh pressure die-casting aluminum external
Installation MethodWall installation
CRI>80
Working Tempe / Humidity-45 to + 50 Deg C / @Ta=25 Deg C
Warranty5 year Warranty
Rated Lifespan50,000+hours
IP RatingIP65
Equivalent400W metal halide / HID wall pack Equivalent
CertifiedCE RoHS ETL DLC


120W LED Wall Pack Light

120W LED wall pack lights

The LED wall pack lights uses High strength and die-cast aluminium casing, printing static and thermoplastic external surface which is corrosion resistant, shock resistant, hard and durable. The use of high-strength shell of aluminum die-casting, with good heat dissipation, the characte.

And there are a number of authoritative certification, quality assurance.

LED wall pack light certificate.jpg

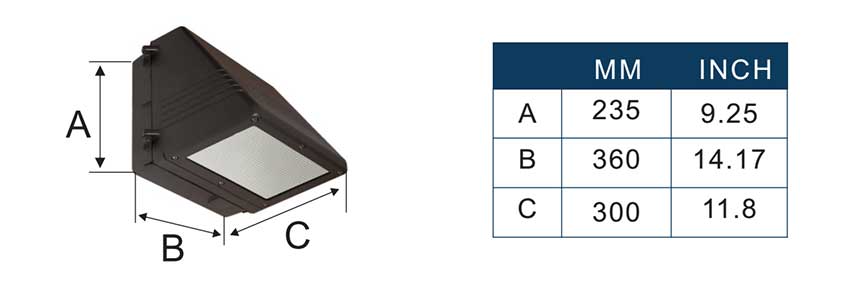

Size

120W LED wall pack light size.jpg


Main Feature

1.5 years warranty

2.Original Philips SMD 3030 which up to 110Lm/W to 120Lm/W

3.With the best quality UL driver.

4.They are assembled by module light weight aluminum fin.

5.IP65 waterproof ,dust-proof ,explosion-proof and anti-corrosion.

6.Using aluminum fin heat sink which heat transfer faster than die cast.

7.Tiny package and lighter,lower freight cost,more competitive in the market.

8Avaialble for warehouse,tunnel lighting,advertisement ,gas station and factory lighting etc.


CCT

3000K/4000K/4500K/5000K/5700K/6500K

LED light Color temperature diagram.jpg


Application

AvaiaBle for warehouse,tunnel lighting,advertisement,gas station and factory lighting etc.

LED wall pack light case.jpg

LED wall pack light case.jpg


Accessories

Extended wires with plus
Photo cell


Package Details


1pc/carton carton size: 42*33*29cm  (20ft container=690pcs 40ft container=1300pcs)
