● Watt: 100W
● Lumens: 11,000
● Light Source: Lumileds 3030
● Input Volt: 100-277VAC
● IP Rating: IP65 - IK10
● Size: 675*280mm
● Arm Diameter: 2'' & 3''
● Lamp Weight: 5.3kg
● CCT (Color Temp): 3000,4000,5000,5700k
● 5 years warranty
● Beam Angle: 90/ 120 degree
Specifications
| Model | LSPT-100W(XXK) |
| Watt | 100W |
| Lumens | 11,000 |
| Efficiency(with arm) | 110Lm/W±3% |
| Efficiency(without arm) | 130Lm/W±3% |
| Input Volt | 100-277VAC |
| LED Brand | Lumileds 3030 |
| Driver | Meanwell XLG-100-H-A |
| IP & IK Rating | IP65* IK10 |
| Beam Angle | 90/ 120 degree |
| Arm Diameter | 2"& 3" |
| IP Rating | IP65 |
| Color Temp | 3000K,4000K,5000K,5700K |
| Heat dissipation | Aluminum heat dissipation system |
| Lifetime | Rated Life of 50,000 Hours |
| Dimension | 675*280mm |
| Certification | ETL cETL DLC TUV CE SAA CB RoHS |

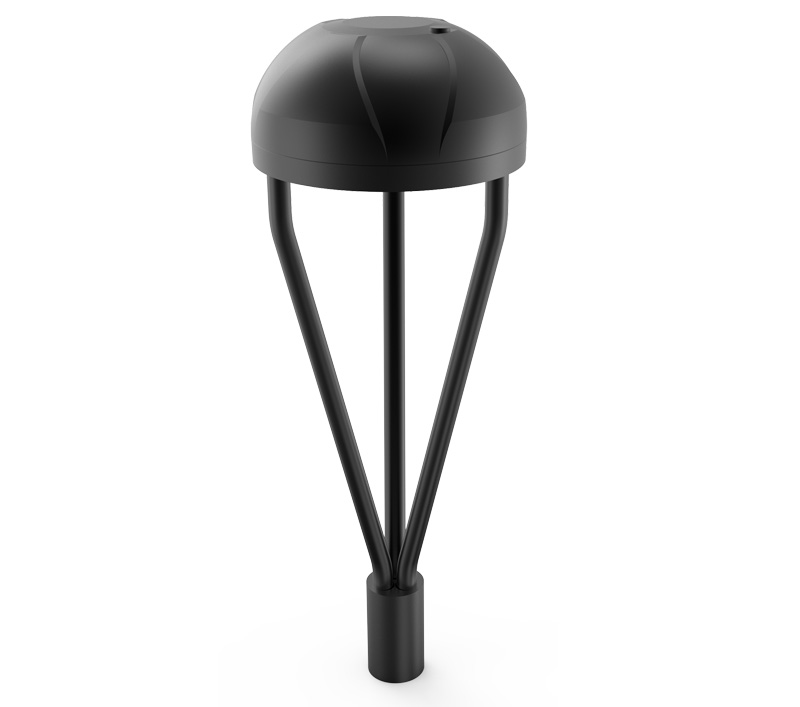

100W DLC CE RoHS LED Post Top Light
Size
Features and benefits
1.5 year warranty
2.No camera flickering
3.Photocell sensor available
4.Available in tempered glass or LENS
5.Long life span and less brightness degradation
6.Efficiency of power supply is more than 90%
7.NO UV and near-IR radiation in the light beam
Certification
The 100W LED Post Top Light has passed DLC, ETL, TUV, SAA, CE, IECEE, CB RoHS certification.
Light source
The 100W LED Post Top Light uses High quality Philips SMD 3030 Light source.
Waterproof IP65
1.Anti-dust design, able to be with flushable cleaning
2.IP65(TUV report available)
3.Can't be immersed into the water
IK10
IK10: blow with a baseball bat, projectiles, kicks.
Application
Ordering Guide
If you want to know more details about the product, or need to provide lighting design for your venue, please feel free to contact us.
Beam Angle
60/ 90 degree
Accessories
| Photocell sensor |  |
Package
Package details (Packed in accessorries) | 60W-100W: 1pc/ 66 x 36 x 21cm GW: 5.3Kg 20ft container: 560pcs 40ft container: 1120pcs |
Package details (Packed in finished unit) | 60W-100W: 1pc/ 75X36X36cm GW: 5.3Kg 20ft container: 280pcs 40ft container: 580pcs |
