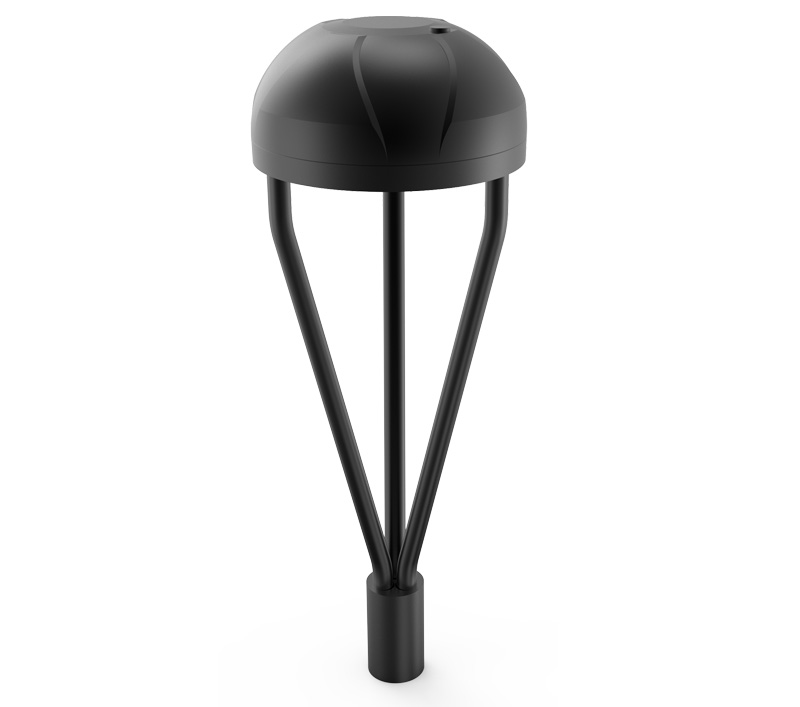

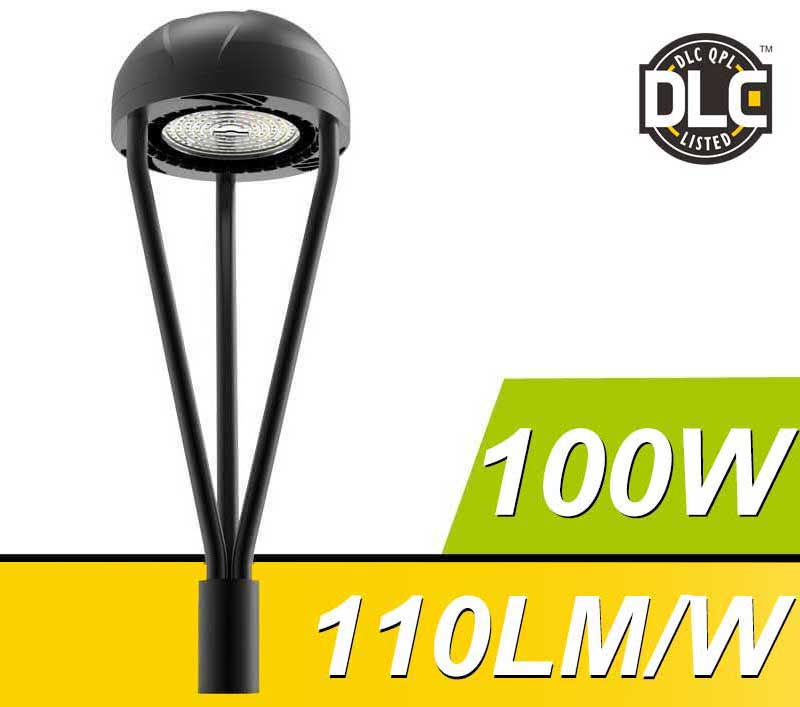

100W DLC CE RoHS LED Post Top Light Equal 250 HPS, Landscape Park lighting
  • 100W DLC CE RoHS LED Post Top Light Equal 250 HPS, Landscape Park lighting
  • 100W DLC CE RoHS LED Post Top Light Equal 250 HPS, Landscape Park lighting
  • 100W DLC CE RoHS LED Post Top Light Equal 250 HPS, Landscape Park lighting
  • 100W DLC CE RoHS LED Post Top Light Equal 250 HPS, Landscape Park lighting
  • 100W DLC CE RoHS LED Post Top Light Equal 250 HPS, Landscape Park lighting
100W DLC CE RoHS LED Post Top Light Equal 250 HPS, Landscape Park lighting 100W DLC CE RoHS LED Post Top Light Equal 250 HPS, Landscape Park lighting 100W DLC CE RoHS LED Post Top Light Equal 250 HPS, Landscape Park lighting 100W DLC CE RoHS LED Post Top Light Equal 250 HPS, Landscape Park lighting 100W DLC CE RoHS LED Post Top Light Equal 250 HPS, Landscape Park lighting

100W DLC CE RoHS LED Post Top Light Equal 250 HPS, Landscape Park lighting

Item NO.           : LSPT-100W(XXK)

Lumens              : 11,000Lm (110Lm/W)

Light Source     : Philips 3030

Beam Angle      : 60/90/120 degree

Input Voltage   : 100-277VAC, 50/60Hz

Driver                  : Meanwell HLG-100H-48A

IP Rating            : IP65 (TUV Report Available)

Equivalent         : 250W HPS / MH

Color Temp        : 3000K,4000K,5000K,5700K

Lifetime              : Rated Life of 50,000 Hours

ETL cETL DLC TUV CE SAA CB RoHS Certied

  • Data Sheets
  • Features/Benefits
  • Options/Accessories
  • Lighing Layout

Features and benefits

1.5 year warranty

2.No camera flickering

3.Photocell sensor available

4.Available in tempered glass or LENS

5.Long life span and less brightness degradation

6.Efficiency of power supply is more than 90%

7.NO UV and near-IR radiation in the light beam


LED Post Top Light Fixtures 60w 100w


Product Specifications

Model
LSPT-100W(XXK)Arm Diameter
2"& 3"
Wattage100WattIP Rating
IP65
Lumens11000LMColor Temp
3000K,4000K,5000K,5700K
Efficiency110 LM/W

Aluminum heat dissipation system

Light SourcePhilips 3030LifetimeRated Life of 50,000 Hours
DriverMeanwell HLG-100-48ADimensiondia11.02" * L 26.57"
Beam Angle60 / 90 / 120 degreeETL cETL DLC TUV CE RoHS SAA CB certified


Dimension

LED Post Top Light Fixtures 60w 100w size.jpg


Certification

The 100W LED Post Top Light has passed DLC, ETL, TUV, SAA, CE, IECEE, CB RoHS certification.


100W led top post light DLC IECEE TUV SAA CE RoHS CB certification


Light source

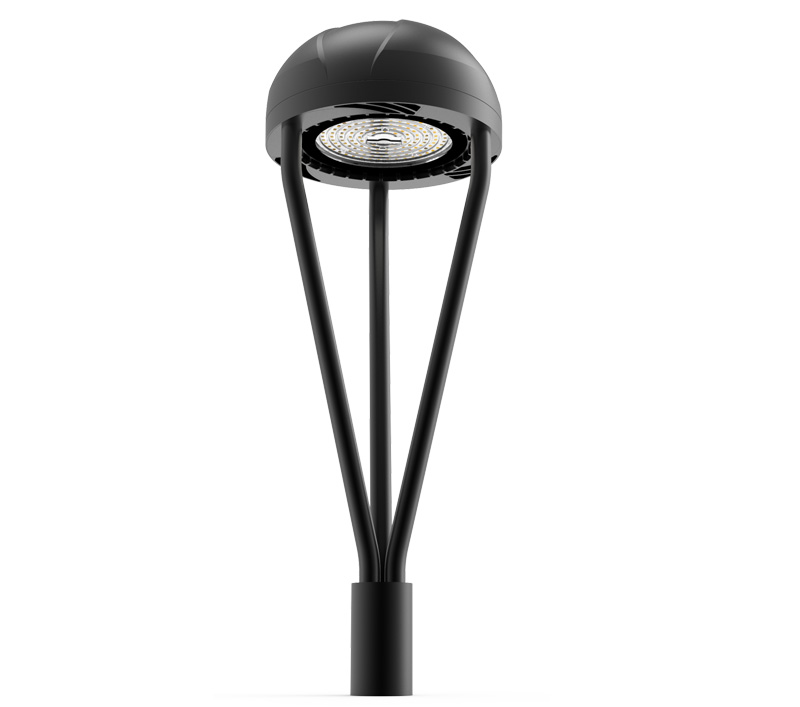

The 100W LED Post Top Light uses High quality Philips SMD 3030 Light source.


100w led top post light uses philips smd 3030 light source


Waterproof IP65

1.Anti-dust design, able to be with flushable cleaning

2.IP65(TUV report available)

3.Can't be immersed into the water


100w led top post light with waterproof ip65


IK10

IK10: blow with a baseball bat, projectiles, kicks.


100w led top post light IK10 protection


Ordering Guide


Show

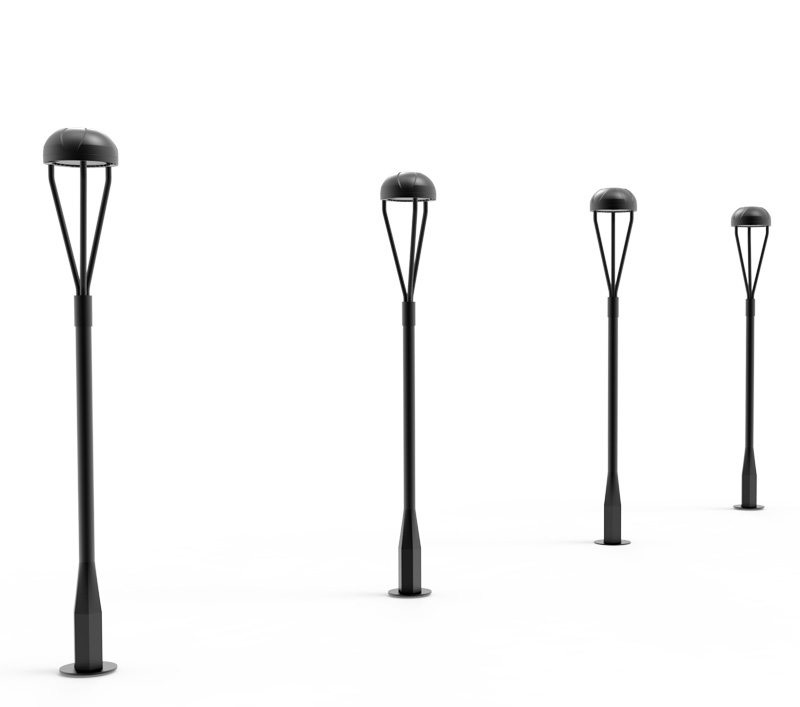

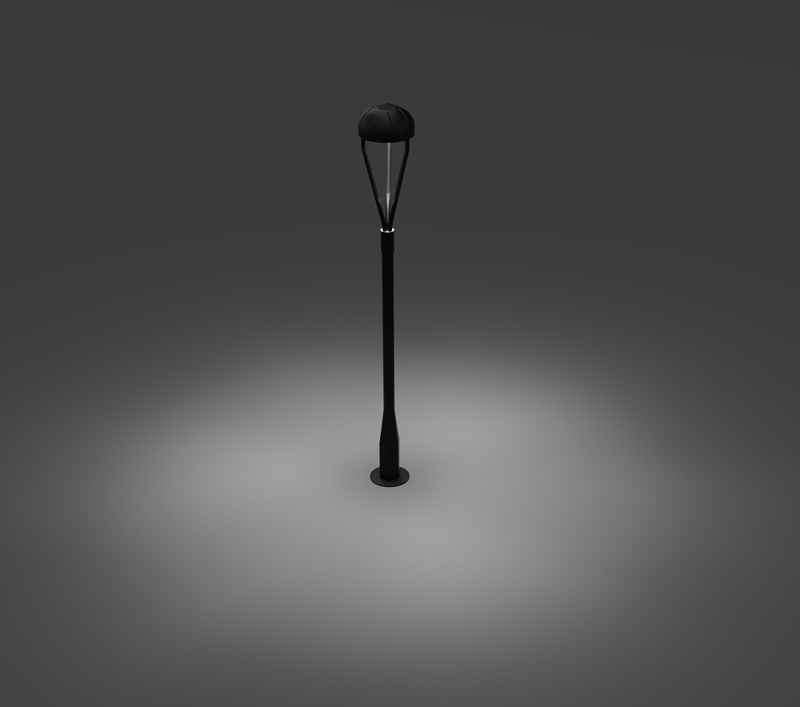

LED Post Top Light Fixtures application.jpg

LED Post Top Light Fixtures application.jpg

Features and benefits

1.5 year warranty

2.No camera flickering

3.Photocell sensor available

4.Available in tempered glass or LENS

5.Long life span and less brightness degradation

6.Efficiency of power supply is more than 90%

7.NO UV and near-IR radiation in the light beam

Package


Package details

(Packed in accessorries)

60W-100W: 1pc/ 66 x 36 x 21cm   GW: 5.3Kg

20ft container: 560pcs  40ft container: 1120pcs


Package details

(Packed in finished unit)

60W-100W: 1pc/ 75X36X36cm   GW: 5.3Kg

20ft container: 280pcs  40ft container: 580pcs
