Our LED Conveyor Light can perfectly solve the lighting on industrial conveying system, no matter how harsh environment and high intensity of vibration, high temperature can operate normally.
● Watt: 30W-70W
● Lumens: 4950lm-10500lm
● Light Source: Lumileds 3030
● Input Volt: 100-277VAC
● IK Rating: IK08
● CCT (Color Temp): 3000K-6000K
● 5 years warranty
Model | LSCVL-30W(XXK) |
| Watt | 30W |
| Lumen | 4,950 |
| Efficiency | 165Lm/W±3% |
| Input Volt | 100-277VAC/ 12-24VDC |
| Chip Brand | Lumileds 3030 |
| Driver | Moso Driver |
| SPD | 10KV |
| Arm diameter | 32-42mm |
| Material | ADC12 Aluminum+Tempered Glass and Polycarbonate Optical Lens |
| Control | Nodim, 1-10V Dim control/ Emergency function/ Photocell control/ DC input |
| Cover | Tempered glass+ PC Optic |
| Emergency lighting | Emergency Battery 5W 180minutes |
| CCT | 3000-6000K |
| Beam Angle | Customized Angle |
| Fixture Color | Black |
| Finish | Powder Coating |
| IK Rating | IK08 |
| Certifications | ENEC, TUV, CE, SAA, CB, RoHS, LM79, LM80, Salt Spay |
Model | LSCVL-36W(XXK) |
| Watt | 36W |
| Lumen | 5,832 |
| Efficiency | 162Lm/W±3% |
| Input Volt | 100-277VAC/ 12-24VDC |
| Chip Brand | Lumileds 3030 |
| Driver | Moso Driver |
| SPD | 10KV |
| Arm diameter | 32-42mm |
| Material | ADC12 Aluminum+Tempered Glass and Polycarbonate Optical Lens |
| Control | Nodim, 1-10V Dim control/ Emergency function/ Photocell control/ DC input |
| Cover | Tempered glass+ PC Optic |
| Emergency lighting | Emergency Battery 5W 180minutes |
| CCT | 3000-6000K |
| Beam Angle | Customized Angle |
| Fixture Color | Black |
| Finish | Powder Coating |
| IK Rating | IK08 |
| Certifications | ENEC, TUV, CE, SAA, CB, RoHS, LM79, LM80, Salt Spay |
Model | LSCVL-42W(XXK) |
| Watt | 42W |
| Lumen | 6,636 |
| Efficiency | 158Lm/W±3% |
| Input Volt | 100-277VAC/ 12-24VDC |
| Chip Brand | Lumileds 3030 |
| Driver | Moso Driver |
| SPD | 10KV |
| Arm diameter | 32-42mm |
| Material | ADC12 Aluminum+Tempered Glass and Polycarbonate Optical Lens |
| Control | Nodim, 1-10V Dim control/ Emergency function/ Photocell control/ DC input |
| Cover | Tempered glass+ PC Optic |
| Emergency lighting | Emergency Battery 5W 180minutes |
| CCT | 3000-6000K |
| Beam Angle | Customized Angle |
| Fixture Color | Black |
| Finish | Powder Coating |
| IK Rating | IK08 |
| Certifications | ENEC, TUV, CE, SAA, CB, RoHS, LM79, LM80, Salt Spay |
Model | LSCVL-62W(XXK) |
| Watt | 62W |
| Lumen | 9,610 |
| Efficiency | 155Lm/W±3% |
| Input Volt | 100-277VAC/ 12-24VDC |
| Chip Brand | Lumileds 3030 |
| Driver | Moso Driver |
| SPD | 10KV |
| Arm diameter | 32-42mm |
| Material | ADC12 Aluminum+Tempered Glass and Polycarbonate Optical Lens |
| Control | Nodim, 1-10V Dim control/ Emergency function/ Photocell control/ DC input |
| Cover | Tempered glass+ PC Optic |
| Emergency lighting | Emergency Battery 5W 180minutes |
| CCT | 3000-6000K |
| Beam Angle | Customized Angle |
| Fixture Color | Black |
| Finish | Powder Coating |
| IK Rating | IK08 |
| Certifications | ENEC, TUV, CE, SAA, CB, RoHS, LM79, LM80, Salt Spay |
Model | LSCVL-70W(XXK) |
| Watt | 70W |
| Lumen | 10,500 |
| Efficiency | 150Lm/W±3% |
| Input Volt | 100-277VAC// 12-24VDC |
| Chip Brand | Lumileds 3030 |
| Driver | Moso Driver |
| SPD | 10KV |
| Arm diameter | 32-42mm |
| Material | ADC12 Aluminum+Tempered Glass and Polycarbonate Optical Lens |
| Control | Nodim, 1-10V Dim control/ Emergency function/ Photocell control/ DC input |
| Cover | Tempered glass+ PC Optic |
| Emergency lighting | Emergency Battery 5W 180minutes |
| CCT | 3000-6000K |
| Beam Anlge | Customized Angle |
| Fixture Color | Black |
| Finish | Powder Coating |
| IK Rating | IK08 |
| Certifications | ENEC, TUV, CE, SAA, CB, RoHS, LM79, LM80, Salt Spay |
LED Converor Light
Our LED Conveyor Light can perfectly solve the lighting on industrial conveying system, no matter how harsh environment and high intensity of vibration, high temperature can operate normally;
We provide a 5-year warranty for this lamp, which means that you can run it 24 hours a day, and you can always contact us if you have any problems;
LED Converor Light is a perfect lighting solution for conveyors, walkways, stairwells, tunnels,etc;
30W-70W
Lumileds 3030
150-165Lm/W
ENEC, TUV, CE, SAA, CB, RoHS, LM79, LM80
High quility LED Brand
High-efficiency lighting allows you to use the lowest possible power but provide brighter lighting. Our LED Conveyor Light has an ultra-high luminous efficiency of 150-160Lm/W. Replacing MH/HID lamps can save up to 75% of energy costs .
Lumileds 3030
Tempered glass
ADC12 die-cast aluminum
Adopts ADC12 high-density die-cast aluminum housing,Robust unibody arc-shaped design which not only plays the role of tructure waterproof but also prevents the accumulation of debris. Rain and wind automatic cleaning, reduce the dust accumulation brought about by poor radiator effect light decay situation.
ADC12 die-cast aluminum
Salt Spay
30 degree tilt body
30 degree tilt body designed to push the light further than ever before.
30 degree tilt body
Mounting Options
The inclination angle can be adjusted on-site for both post-top (0 to +15degree) and side-entry (O to -15degree) configurations.
±15 degree
Vertical
Horizontal
Waterproof IP66 & IK08
High IP66 and IK08 rating, IP66 and 10KV surge protection.
IP66
IK08
10KV
Professional Optic Design
Type I asymmetrical optical is designed to achieve a uniform quality of light, more than 50 lux when pole spacing within 14 meters.
Type I

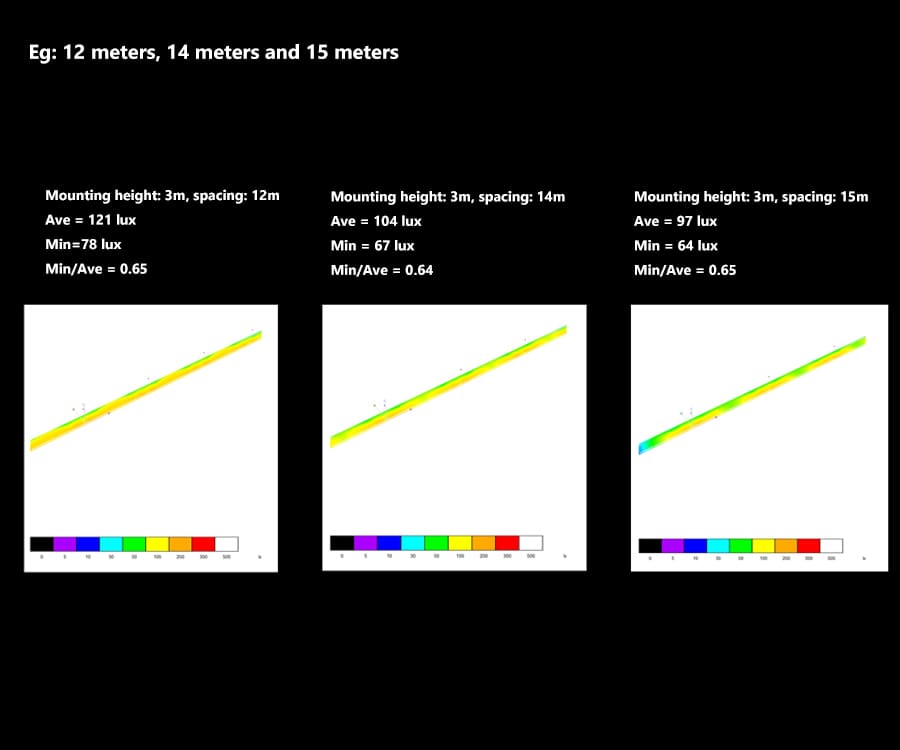

Calculation Summary
Customized optical angleasymmetrical optical is designed to achieve a uniform quality of light, more than 40 lux when pole spacing within 15 meters.
40 lux
Application
Industrial conveyor/area lights, lighting industrial conveyors, platforms and walkways
