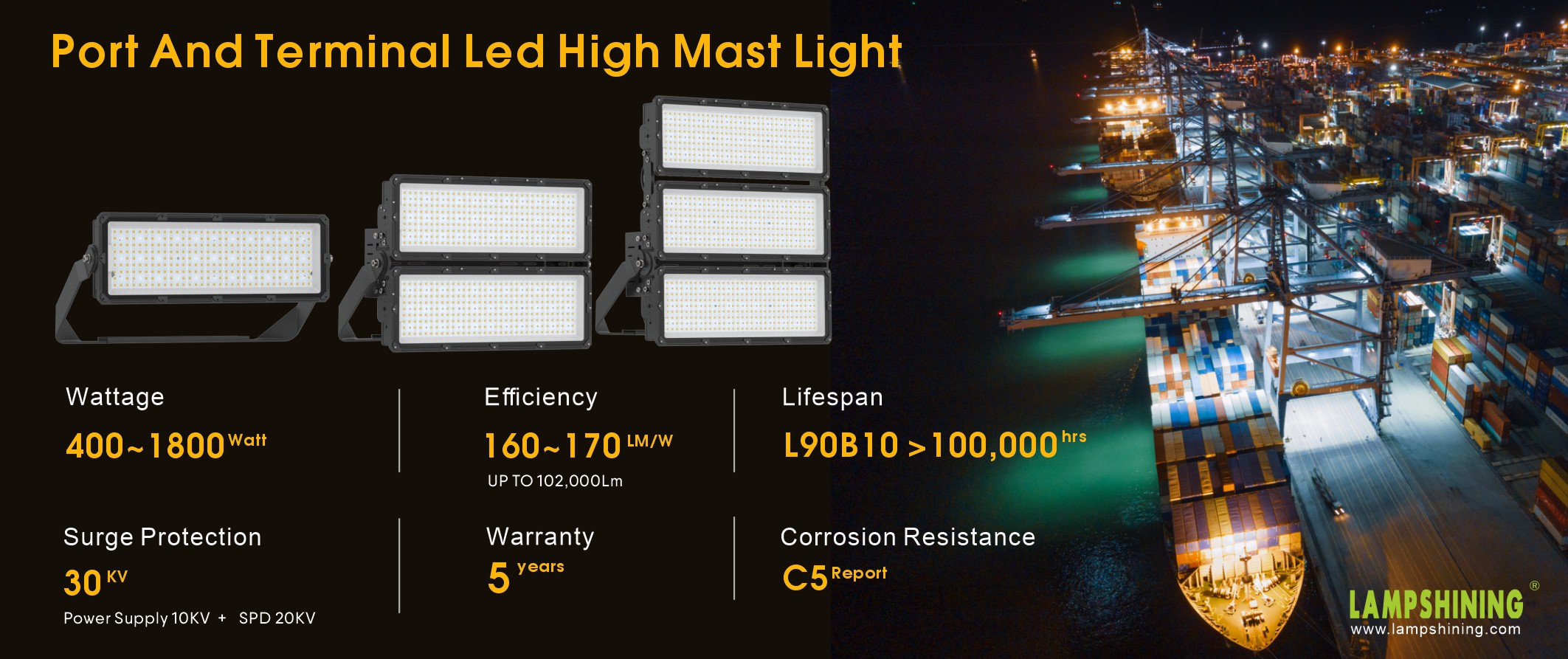

MAX-T LED HIGH MAST LIGHT 400W-1800W PORT AND TERMINAL BOR CRANE LED LIGHTING

As a leading outdoor marine-grade LED high mast light supplier, Lampshining presents the MAX-T series, built for extreme maritime environments such as port terminals, dockyards, offshore drilling platforms, and heavy-duty crane operations. With construction specified to C5 salt-spray resistance class, IP66/IP67 rating, IK09 impact protection and a durable marine-grade aluminum housing treated with Zinc-rich primer and Akzo Nobel powder coating, these luminaires deliver long-life performance even under constant sea-spray, high-wind and humid conditions.

Key Benefits

Corrosion proof for harsh marine environments: Our MAX-T luminaires are built with marine-grade aluminium, stainless steel fasteners and are tested to C5-class salt-spray standards.

Robust for high mast applications: Designed for ultra-high mounting heights (40m +), pole spans and expansive cargo yards, delivering up to 175,000 lm output in 1000 W+ variants.

High IP & IK protection: Often exceeding IP66/IP67 ingress protection and IK09 impact resistance to survive wind, rain and mechanical stress typical at port sites.

Energy-saving and low-maintenance: Up to 170 lm/W efficacy, replacing 2000W HID equivalents, while reducing maintenance cycles thanks to long L70 or L90 lifespans (>100,000 h) and modular driver/LED design.

Application

Large container ports and terminals

Wharf crane lighting and gantry yards

Offshore drilling platforms and marine rigs

Heavy-duty industrial yards with salt-fog and coastal exposure

High mast lighting for airports and large logistics hubs

Selection Tips

Mounting height & coverage: For pole heights of 30-50 m choose 800-1200 W models; for lesser heights 400-600 W may suffice.

Beam angle & optics: Choose symmetrical 22°–120° or asymmetrical patterns (T2M/T3M) depending on yard layout.

Finish & corrosion class: Ensure C5 rating, zinc-rich primer + powder coat finish, and stainless hardware for coastal or salt-spray environments.

Control options: Consider dimmable driver modules (0-10 V, DALI, Zhaga) for energy management in 24/7 operations.

Lampshining exports to over 130 countries and holds ISO 9001:2015 & ISO 14001:2015 certifications. Our MAX-T marine-grade high mast lights are backed by a 5-year warranty and extensive salt-spray and wind-load testing, ensuring trusted performance in the most demanding outdoor conditions.
