● Watt: 400W/500W/600W
● Light Source: SMD 5050
● Input Volt: 120-277Vac or 247-528Vac
● SPD: Power Supply 10KV + SPD 20KV
● IP &IK Rating: IP66 & IK09
● Wattage Adjustable
● CCT (Color Temp): 3000K~6000K
● Beam Angle: (Symmetrical) 22° / 25° / 45° / 60° / 90° / 120°
● Beam Angle: (Asymmetrical) 90*120° / P45 / T2S / T2M / T3S / T3M / T5
● Cover : 5mm tempered glass
● Bracket Materials: Anodized + Powder coating Iron bracket
● Painting: Zinc Rich primer + Akzo Nobel Power painting
● Lifespan: L90B10>100,000hrs
● Certification: ENEC,ENEC+,TUV,CE,CB,RoHS,LM79,LM80,IK09,Salt Spray,C5 class
Model | LSHM-400W(XXK)MAX-T | LSHM-500W(XXK)MAX-T | LSHM-600W(XXK)MAX-T |
| Watt | 400W | 500W | 600W |
| Wattage Adjustable | 200W-300W-400W | 300W-400W-500W | 400W-500W-600W |
| Chip Brand | SMD 5050 | ||
| Lumen | 66,000Lm | 82,500Lm | 96,000Lm |
| Efficiency | 165lm/w±5% | 165lm/w±5% | 160lm/w±5% |
| Driver | Inventronics / MOSO / Powerland / Sosen | ||
| Input Volt | 120-277Vac or 247-528Vac | ||
| Power Factor | >0.95 | ||
| CRI | Defaul RA>70, RA>80 and RA>90 are available too,RA80 has 5-8% less lumen,RA90 has 20% less lumen | ||
| Bracket Materials | Anodized + Powder coating Iron bracket (Optional with Aluminum die casting) | ||
| Materials | Marine Grade Aluminum Housing And Special Painting Available. | ||
| Painting | Zinc Rich primer + Akzo Nobel Power painting | ||
| SPD | Power Supply 10KV + SPD 20KV | ||
| Fixtures Color | Black | ||
| CCT | 3000K~6000K | ||
| Lifespan | L90B10>100,000hrs | ||
| IP & IK Rating | IP66 & IK09 | ||
| Cover | 5mm tempered glass + PC Optical lens | ||
| Control | Non-Dimmable +Wattage Adjustable (Optional : 0-10V, Zhaga, D4i, DALI, DMX ) | ||
| Beam Angle(Symmetrical) | 22° / 25° /45° /60° / 90° / 120° / 90*120° / P45 / T2S / T2M / T3S / T3M / T5 | ||
| Certifications | ENEC,ENEC+,TUV,CE,CB,RoHS,LM79,LM80,IK09,Salt Spray,C5 Class | ||
| Warranty | 5 Years | ||
Model | LSHM-400W(XXK)MAX-T | LSHM-500W(XXK)MAX-T | LSHM-600W(XXK)MAX-T |
| Watt | 400W | 500W | 600W |
| Wattage Adjustable | 200W-300W-400W | 300W-400W-500W | 400W-500W-600W |
| Chip Brand | SMD 5050 | ||
| Lumen | 70,000Lm | 87,500Lm | 99,000Lm |
| Efficiency | 175lm/w±5% | 175lm/w±5% | 165lm/w±5% |
| Driver | Inventronics / MOSO / Powerland / Sosen | ||
| Input Volt | 120-277Vac or 247-528Vac | ||
| Power Factor | >0.95 | ||
| CRI | Defaul RA>70, RA>80 and RA>90 are available too,RA80 has 5-8% less lumen,RA90 has 20% less lumen | ||
| Bracket Materials | Anodized + Powder coating Iron bracket (Optional with Aluminum die casting) | ||
| Materials | Marine Grade Aluminum Housing And Special Painting Available. | ||
| Painting | Zinc Rich primer + Akzo Nobel Power painting | ||
| SPD | Power Supply 10KV + SPD 20KV | ||
| Fixtures Color | Black | ||
| CCT | 3000K~6000K | ||
| Lifespan | L90B10>100,000hrs | ||
| IP & IK Rating | IP66 & IK09 | ||
| Cover | 5mm tempered glass + PC Optical lens | ||
| Control | Non-Dimmable +Wattage Adjustable (Optional : 0-10V, Zhaga, D4i, DALI, DMX ) | ||
| Beam Angle(Symmetrical) | 22° / 25° /45° /60° / 90° / 120° / 90*120° / P45 / T2S / T2M / T3S / T3M / T5 | ||
| Certifications | ENEC,ENEC+,TUV,CE,CB,RoHS,LM79,LM80,IK09,Salt Spray,C5 Class | ||
| Warranty | 5 Years | ||

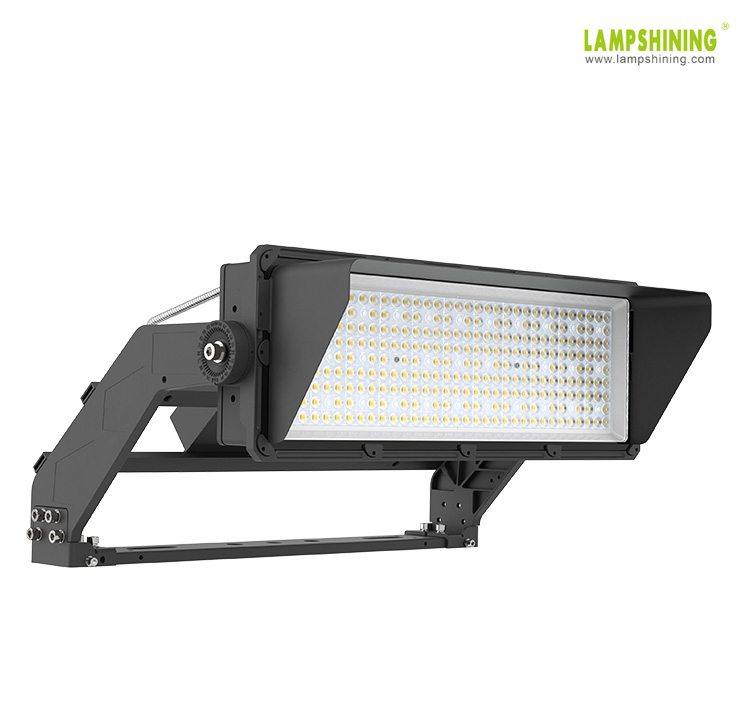

MAX-T LED High Mast Lights 400W-1800W
Marine grade Aluminum housing and special painting available for seaside,wharf application.
IP66 and IK09 protection rate. Zinc Rich primer + Akzo Nobel Power painting,

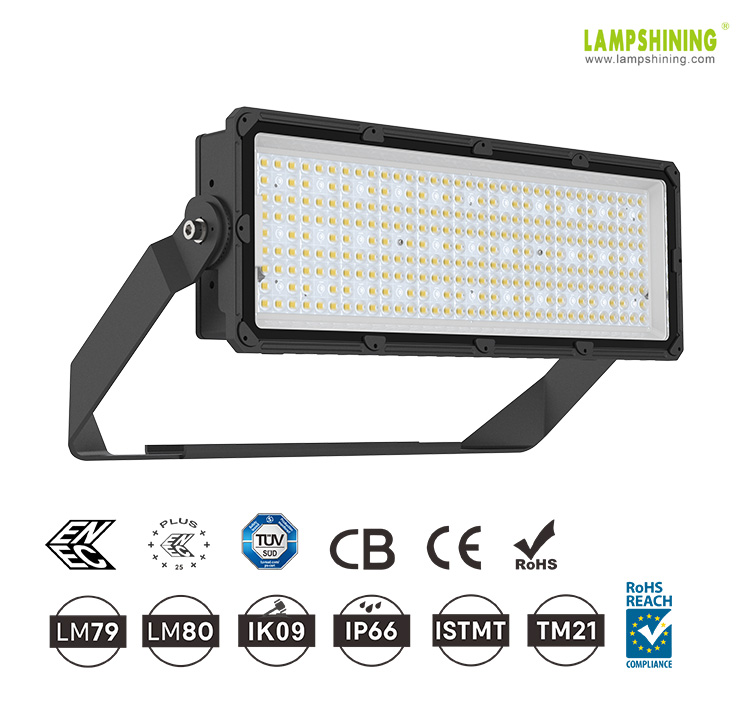

ENEC,ENEC+,TUV,CE,CB,RoHS,LM79,LM80,IK09,Salt Spray,C5 Class.
1 Module：400W 500W 600W
2 Module：800W 1000W 1200W

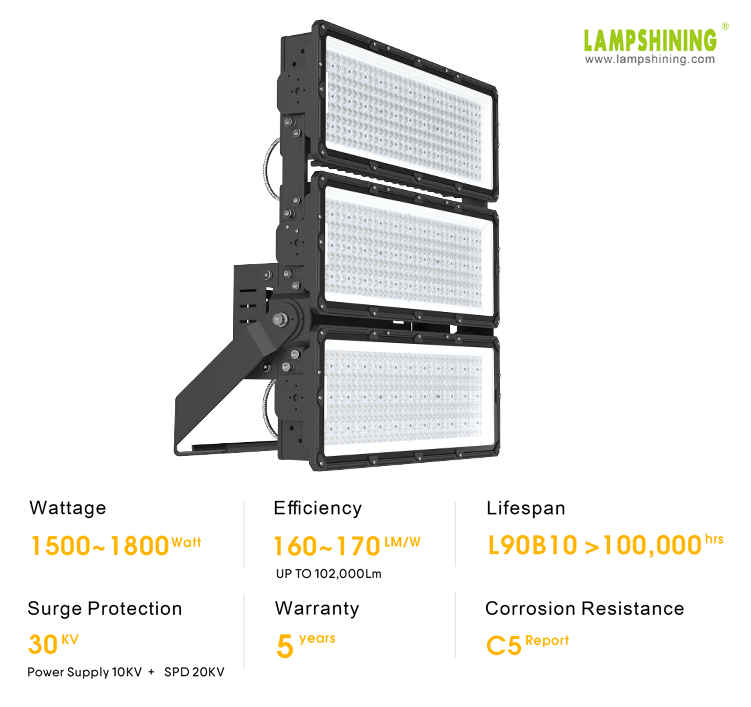

3 Module：1500W 1800W
Port LED Lighting
Terminal LED Lighting
Crane LED Lighting
Industrial lighting
Marine-grade lighting
Harsh environment lighting

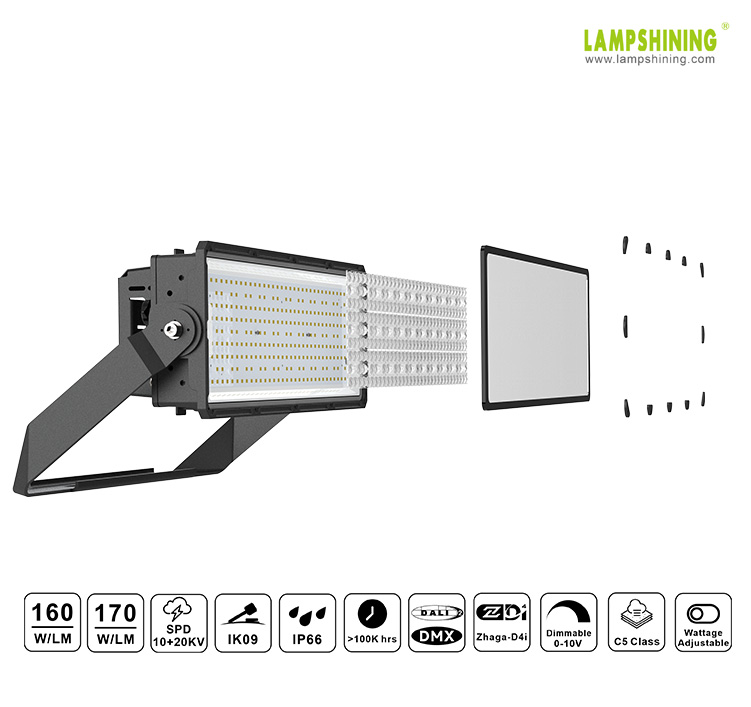

5mm tempered Glass + PC Optical Lens
Extreme weather – with high wind and rain levels, extreme weather conditions at ports is a regular occurrence.
A luminaire with a high IP&IK rating is essential to prevent water ingress which could damage internal components.
While the majority of hazardous area fittings will be rated to at least IP65, we would recommend specifying
to IP66 & IK09 for port applications.
IP & IK Rating: IP66 & IK09

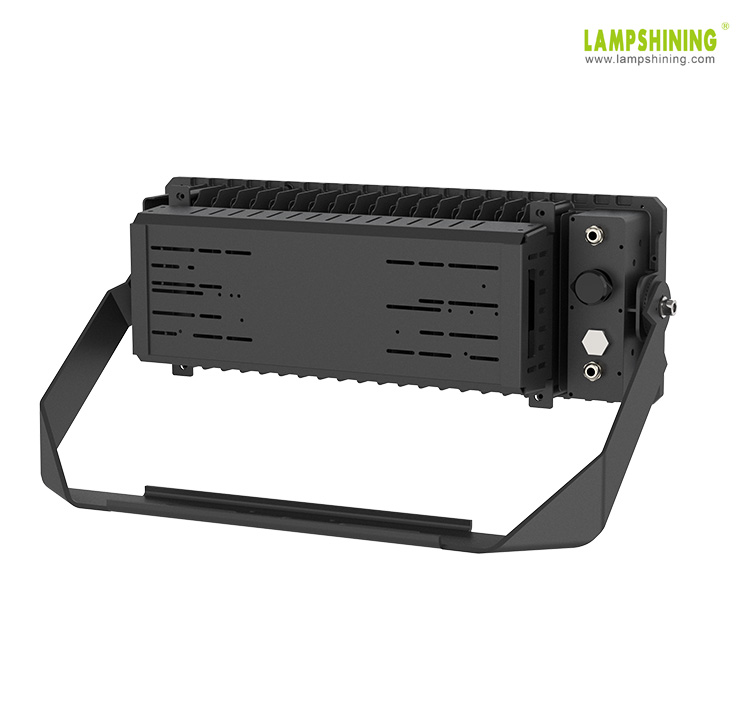

Marine grade aluminum housing and special painting available
Designed for harsh marine environments, featuring a marine-grade aluminum enclosure with zinc-rich primer and Akzo Nobel powder coating for superior corrosion resistance.
Zinc Rich primer + Akzo Nobel Power painting
C5 Report
MAX-T LED High Mast Lights Controls
MAX-T LED High Mast Supports the following Controls
Wattage Adjustable
0-10V Dimmable
Zhaga
D4i
DALI
DMX
Application
Marine-Grade LED Lighting Solutions for Ports, Docks, and Cranes.
We provide high-performance LED lighting tailored for harsh marine environments,
including port terminals, wharfs, and gantry cranes.Ports serve as critical hubs for
cargo and passenger transfer, requiring reliable infrastructure to support 24/7 operations.
Gantry cranes, as primary loading and unloading equipment, depend on consistent,
high-quality illumination—especially during nighttime operations.
Our industrial-grade, marine-certified LED systems ensure optimal visibility, safety,
and efficiency under demanding conditions.
