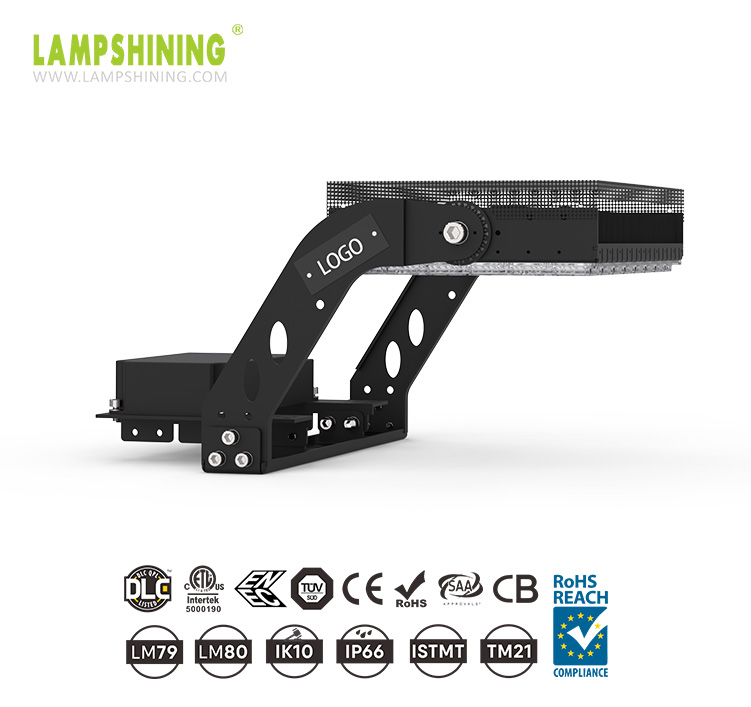

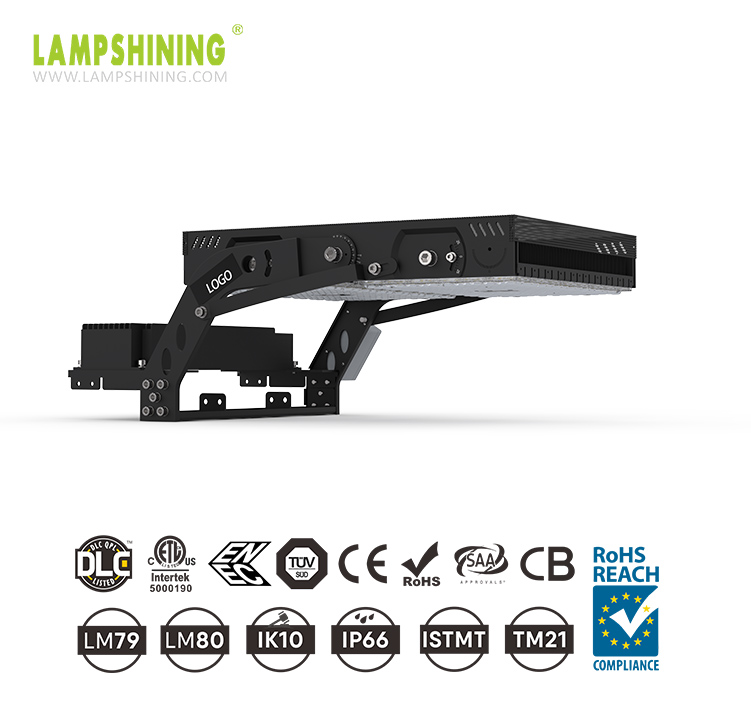

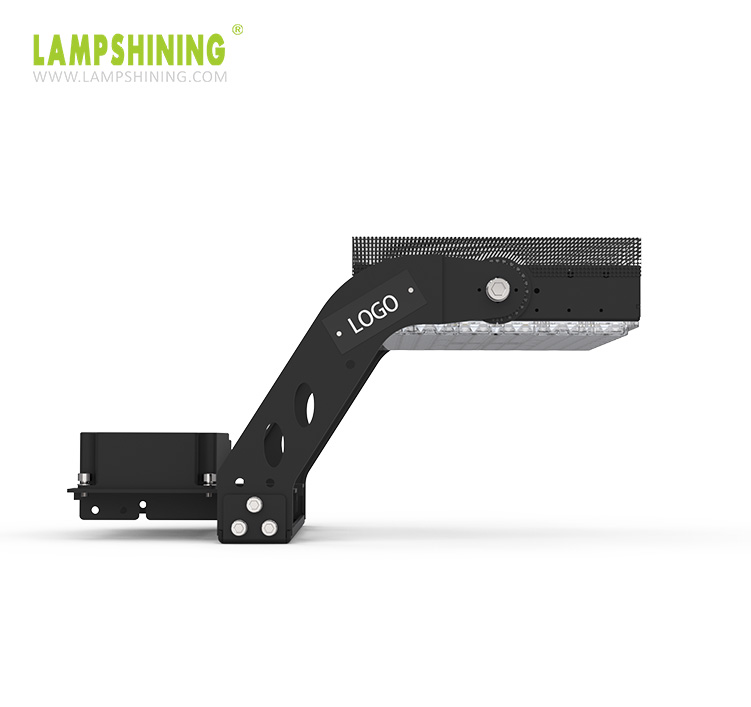

500W 600W Ultra-Z LED High Mast Lights Stadium Lights LED Sports Lights NO Spill Light and Glare

●   Watt: 500W/600W

●   Light Source: Lumileds 5050

●   Input Volt: 198~528Vac

●   IP &IK Rating: IP66 & IK10

●   Fuction: Dali2.0 & DMX

●   Modules: Rotatable 88°

●   Beam Angle: (Symmetrical) 10° / 20°/ 40° / 60°

●   Beam Angle: (Asymmetrical) P50-L / P60-L

●   Without backward net cover: Module rotatable ± 25°

●   With backward net cover: Module rotatable ± 10°

●   With/Without backward

●   5 years warranty


Inquire Now

500W 600W Ultra-Z LED High Mast Lights Stadium Lights LED Sports Lights NO Spill Light and Glare

Name:

Tel:

E-mail:

Country:

CAPTCHA:

Submit the information to obtain product spec sheet,Please make sure that your email address is absolutely correct!

Specification Sheet

Model

LSHM-500W(XXK)Ultra-ZLSHM-600W(XXK)Ultra-Z
Watt500W600W
Chip BrandLumileds 5050
Lumen85,000Lm99,000Lm
Efficiency170lm/w±5%165lm/w±5%
P50-L Lumen efficiency155lm/w±5%152lm/w±5%
Driver

Moso Driver

Gross Weight14kg
Input Volt198~528Vac
Power Factor>0.9
CRIRa80
FuctionDali2.0 & DMX
SPD10KV
Size367*307*167.5mm
ModulesRotatable 88°
CCT3000K~6000K
IP RatingIP66
IK RatingIK10
Control0-10V, 1-10V dim control, Motion sensor, DALI, Zigbee
Beam Angle(Symmetrical)10°  20°  40°  60°
Beam Angle(Asymmetrical)P50-L
CertificationsENEC TUV CE CB SAA RoHS LM79 LM80 IK10 IP66 Salt Spray
Warranty5 Years


Model

LSHM-500W(XXK)Ultra-ZLSHM-600W(XXK)Ultra-Z
Watt500W600W
Chip BrandLumileds 5050
Lumen92,500Lm108,000Lm
Efficiency185Lm/w±5%180Lm/w±5%
P50-L Lumen efficiency170Lm/w±5%165Lm/w±5%
P60-L Lumen efficiency150Lm/w±5%145Lm/w±5%
Driver

Moso Driver

Gross Weight14kg
Input Volt198~528Vac
Power Factor>0.9
CRIRa80
FuctionDali2.0 & DMX
SPD10KV
Size367x307x167.5mm
ModulesRotatable 88°
CCT3000K~6000K
IP RatingIP66
IK RatingIK10
Control0-10V, 1-10V dim control, Motion sensor, DALI, Zigbee
Beam Angle(Symmetrical)10°  20°  40°  60°
Beam Angle(Asymmetrical)P50-L & P60-L
CertificationsENEC TUV CE CB SAA RoHS LM79 LM80 IK10 IP66 Salt Spray
Warranty5 Years

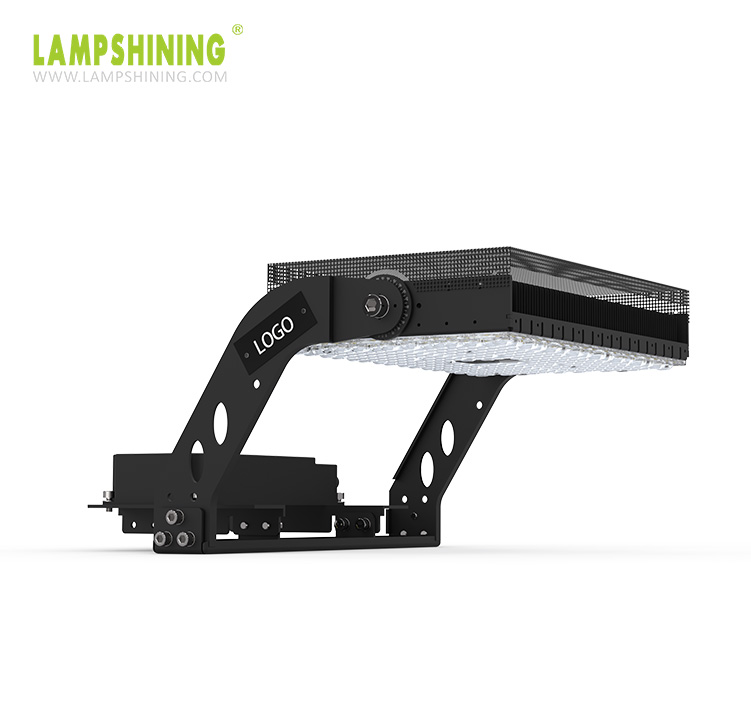

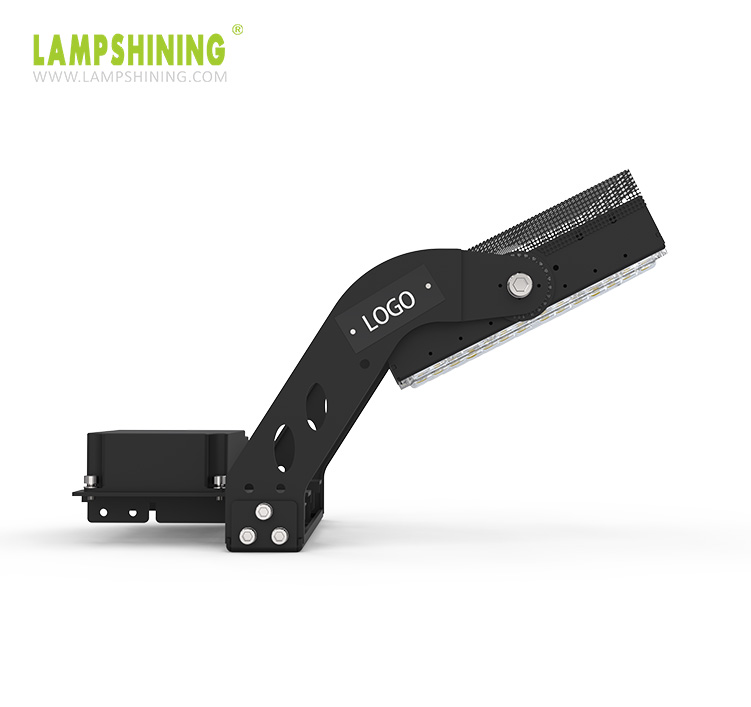

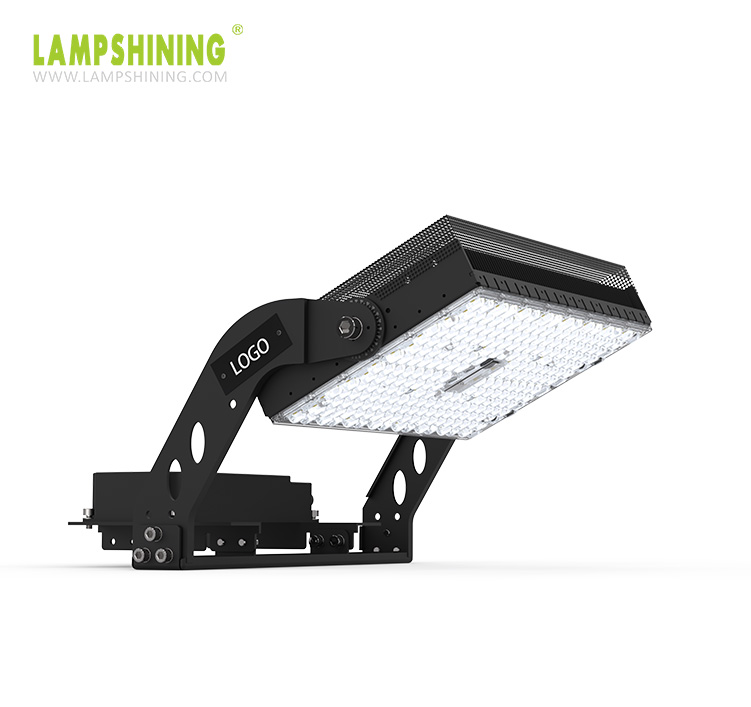

500W 600W Ultra-Z LED High Mast Lights

500W 600W Ultra-Z LED High Mast Lights

500W 600W Ultra-Z Series LED High Mast Lights NO Spill-glare LED Sports Lighting Glare Free Asymmetric Stadium Lights.


The 500W and 600W Ultra-Z Series LED High Mast Lights are powerful and efficient lighting solutions for sports stadiums and other large outdoor areas. These lights are designed to provide excellent illumination while minimizing spill-glare and creating a glare-free experience for players and spectators.

The Ultra-Z Series lights feature an asymmetric design that directs the light precisely where it is needed, providing uniform illumination across the entire playing surface. This helps to reduce shadows and improve visibility, making it easier for players to track the ball and for fans to follow the action.

In addition to their superior lighting performance, the Ultra-Z Series lights are also energy-efficient and long-lasting. LED technology consumes less energy than traditional lighting sources, which can help to lower energy bills and reduce the carbon footprint of a stadium or outdoor facility. The lights are also designed to last for many years, reducing the need for frequent replacements and maintenance.



No overflow upward lights

No light pollution to sky

No light pollution to audiences or neighbors’ space

Low Glare Rating GR<45

Uniformity(U0) up to 0.8

ENEC TUV CE CB SAA RoHS

LM79 LM80 IK10 IP66 Salt Spray

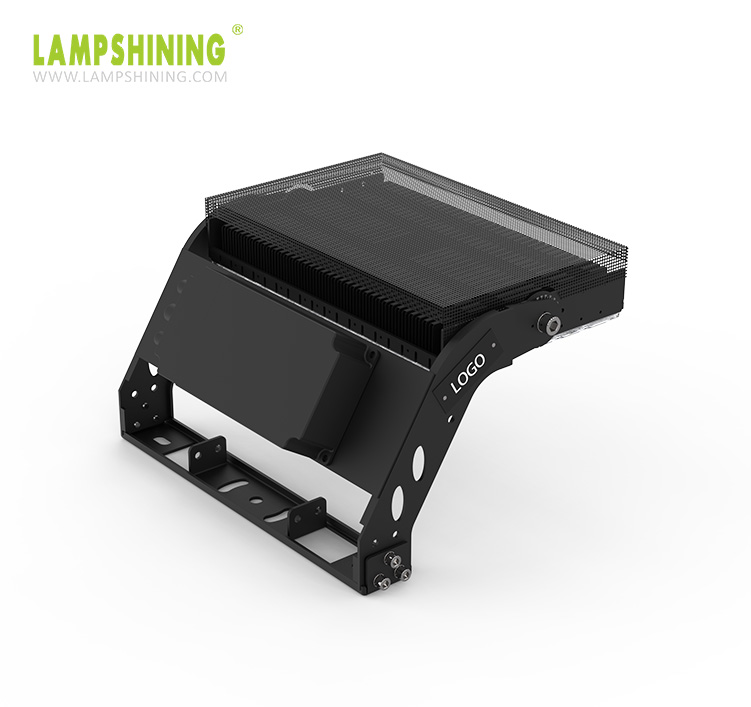

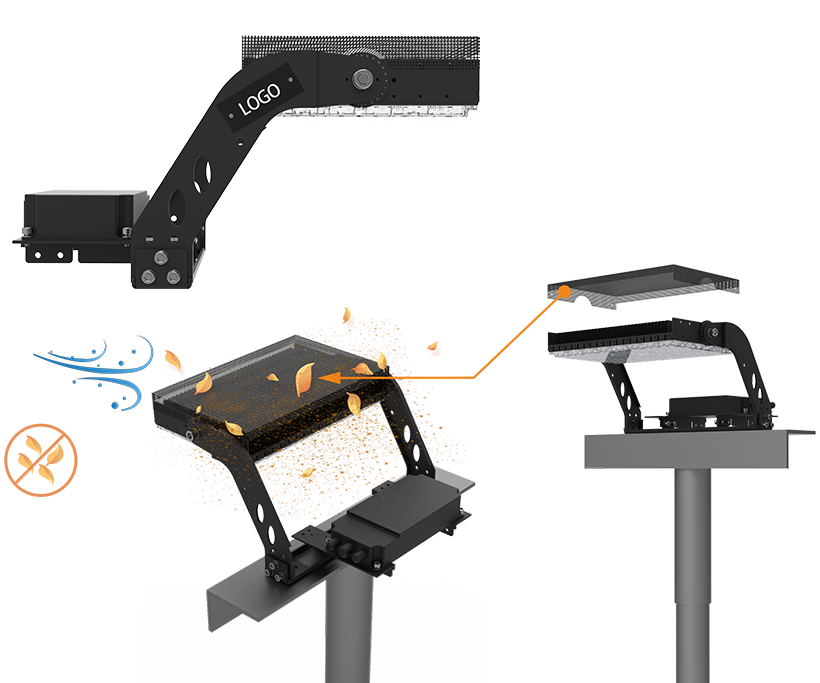

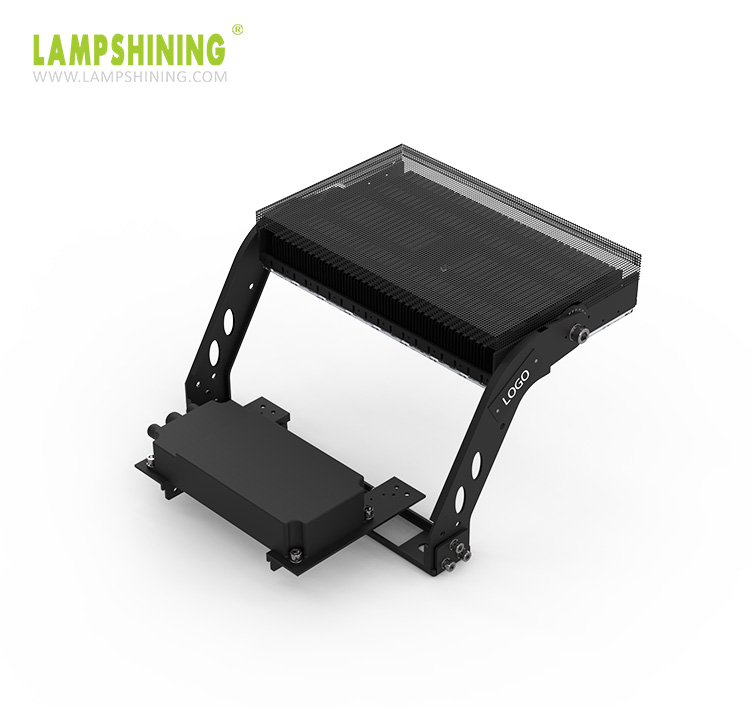

Backward rear net cover to prevent damage from bird nesting

Backward rear net cover to prevent damage from bird nesting

The Ultra-Z LED High Mast Lights feature a backward rear net cover that helps to prevent damage from bird nesting. Birds can sometimes build nests in the nooks and crannies of outdoor lighting fixtures, which can cause damage to the lights and potentially create a safety hazard.


The backward rear net cover is designed to prevent birds from accessing the inside of the light fixture, thereby reducing the risk of damage and improving the longevity of the lights. This feature is particularly important in outdoor settings where birds are prevalent, such as sports stadiums and parks.


In addition to its practical benefits, the backward rear net cover also helps to maintain the aesthetic appearance of the lights. By preventing birds from nesting inside the fixtures, the lights remain clean and free of debris, ensuring that they continue to provide excellent illumination without any unsightly accumulations of nesting material.


Remote driver can be located 300m away from luminaire

Remote driver can be located 300m away from luminaire

One of the notable features of the Ultra-Z LED High Mast Lights is that their remote driver can be located up to 300 meters away from the luminaire. This feature is particularly useful in large outdoor areas, where it may be difficult to access the light fixtures for maintenance or repairs.

By locating the driver remotely, maintenance personnel can easily access and service the driver without needing to physically access the luminaire itself. This can help to reduce downtime and maintenance costs, as well as improve safety for maintenance personnel.

In addition to its practical benefits, the remote driver feature also allows for greater flexibility in the installation and configuration of the lights. By being able to locate the driver at a distance from the luminaire, it may be possible to optimize the positioning of the lights to achieve the best possible illumination for a given area.

the ability to locate the remote driver up to 300 meters away from the luminaire is a valuable feature of the Ultra-Z LED High Mast Lights, providing greater flexibility, improved maintenance access, and increased safety for maintenance personnel.

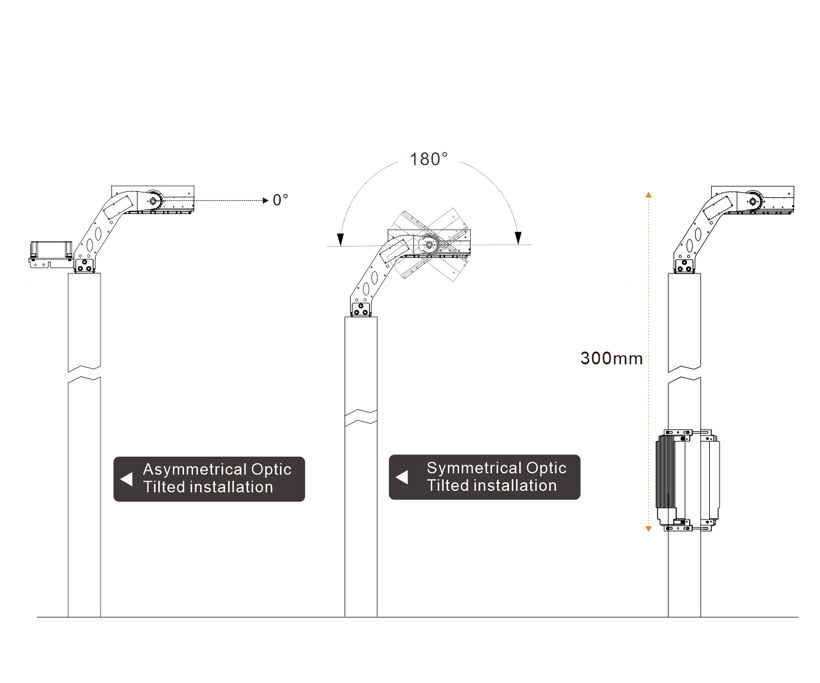

Asymmetrical Optic Tilted installation

Symmetrical Optic Tilted installation

Anti-Glare & Obtrusive Light Control No Overflow Upward Lights

Anti-Glare & Obtrusive Light Control No Overflow Upward Lights

Ultra-Z P50-L & P60-L asymmetric lens, 0° tilt installed with no obtrusive back light.Cut off the obtrusive light from the beam angle.

Asymmetricl P50-L P60-L Produce low Glare Rating GR<45 Lights were forwarded further away which produces a higher uniformity( U0) up to 0.8

Asymmetrical P50-L P60-L Optic allows lamp to be installed horizontally No overflow upward lights which emits no light pollution to sky,no light pollution to audiences or neighbors'space.


No overflow upward lights

No light pollution to sky

No light pollution to audiences or neighbors’ space

Low Glare Rating GR<45

Uniformity(U0) up to 0.8

Polarized Light Design Asymmetrical optic

Polarized Light Design Asymmetrical optic

The polarized light design with asymmetrical optic lenses like P50 and P60L in the Ultra-Z LED High Mast Lights is an effective solution to reduce light pollution and direct light where it's needed. This design minimizes overflow of upward lights that would otherwise emit light pollution to the sky and surrounding areas, including audience and neighbors' spaces.


The asymmetrical optical lenses provide a precise distribution of light, illuminating the playing field or specific areas of interest without creating excess glare or light spillage. This results in a more efficient and targeted illumination, which helps to reduce light pollution and create a more comfortable environment for players and spectators.


The polarized light design reduces glare and enhances contrast, making it easier for players to see and react to the game while minimizing eye strain. This feature is especially important for high-speed sports where quick reaction times are critical.


The combination of polarized light design and asymmetrical optic lenses like P50 and P60L in the Ultra-Z LED High Mast Lights is an effective way to reduce light pollution and create a comfortable, safe, and enjoyable environment for players and spectators.


No overflow upward lights

No light pollution to sky

No light pollution

At90° No direct uplighting

At90° No direct uplighting

The At90° no direct uplighting design in the Ultra-Z LED High Mast Lights is an effective way to minimize light pollution and create a comfortable, safe, and enjoyable environment for players and spectators. The absence of spill light and glare ensures that the illumination is focused on the desired areas, without any unnecessary disturbance to the surrounding areas.

At90° No direct uplighting

Lamp tilted up 10 degree

Application

For area lighting for interior and exterior applications:

Airport, golf course, factories, plants, warehouse, exhibition halls, gym, seaport, highway, high mast lighting and

bmx sportlighting etc.
