1440W LED High Mast Light,Rotatable Module,160Lm/W,223,200 Lumens,IP65,Stadium Light,Sports Lighting,Flood Lighting
  • 1440W LED High Mast Light,Rotatable Module,160Lm/W,223,200 Lumens,IP65,Stadium Light,Sports Lighting,Flood Lighting
  • 1440W LED High Mast Light,Rotatable Module,160Lm/W,223,200 Lumens,IP65,Stadium Light,Sports Lighting,Flood Lighting
  • 1440W LED High Mast Light,Rotatable Module,160Lm/W,223,200 Lumens,IP65,Stadium Light,Sports Lighting,Flood Lighting
  • 1440W LED High Mast Light,Rotatable Module,160Lm/W,223,200 Lumens,IP65,Stadium Light,Sports Lighting,Flood Lighting
  • 1440W LED High Mast Light,Rotatable Module,160Lm/W,223,200 Lumens,IP65,Stadium Light,Sports Lighting,Flood Lighting
1440W LED High Mast Light,Rotatable Module,160Lm/W,223,200 Lumens,IP65,Stadium Light,Sports Lighting,Flood Lighting1440W LED High Mast Light,Rotatable Module,160Lm/W,223,200 Lumens,IP65,Stadium Light,Sports Lighting,Flood Lighting1440W LED High Mast Light,Rotatable Module,160Lm/W,223,200 Lumens,IP65,Stadium Light,Sports Lighting,Flood Lighting1440W LED High Mast Light,Rotatable Module,160Lm/W,223,200 Lumens,IP65,Stadium Light,Sports Lighting,Flood Lighting1440W LED High Mast Light,Rotatable Module,160Lm/W,223,200 Lumens,IP65,Stadium Light,Sports Lighting,Flood Lighting

1440W LED High Mast Light,Rotatable Module,160Lm/W,223,200 Lumens,IP65,Stadium Light,Sports Lighting,Flood Lighting

●   Watt: 1440W

●   Lumens: 223,200

●   Light Source: Lumileds 5050

●   Input Volt: 100-277VAC

●   IP Rating: IP65 - IK08

●   Size: 860*650*132mm

●   Lamp Weight: 25kg

●   CCT (Color Temp): 3000,4000,5000,5700k

●   5 years warranty

●   Beam Angle: 10/ 20/ 40/ 60/ 90/ 140*100/ 135*60(P50)/ 30*70

Inquire Now Next Product

1440W LED High Mast Light,Rotatable Module,160Lm/W,223,200 Lumens,IP65,Stadium Light,Sports Lighting,Flood Lighting

Name:

Tel:

E-mail:

Country:

CAPTCHA:

Submit the information to obtain product spec sheet,Please make sure that your email address is absolutely correct!

Specification Sheet
  • Data Sheets
  • Beam Angle
  • Options/Accessories
  • Package details

Specifications

ModelLSHM-B1440W-LV(XXK)
Watt1440W
Lumen223,200
Efficiency155Lm/W±3%
DriverMeanwell Driver 6*ELG-240-48A
Input Volt100-277VAC
Chip BrandLumileds 5050
Color Temp3000K / 4000K / 5000K / 5700K
Weight

25kg

Size860*650*132mm
Beam Angle10 /20/ 40 / 60 / 90/ 140*100 degree
ModulesModule rotatable up & down 15 degree
DimmingDimmable/ Non-dimmable
Wind rating51.0-56.0m/s
Lifespan>50,000 Hours
IP RatingIP65 & IK08
CertficatesENEC, REACH, ETL, cETL, DLC,CB,Salt Spray test

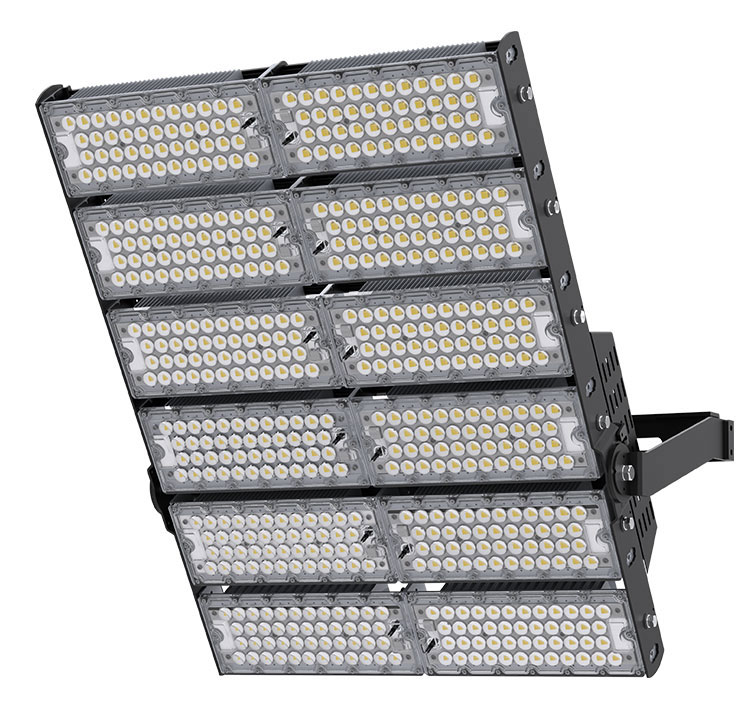

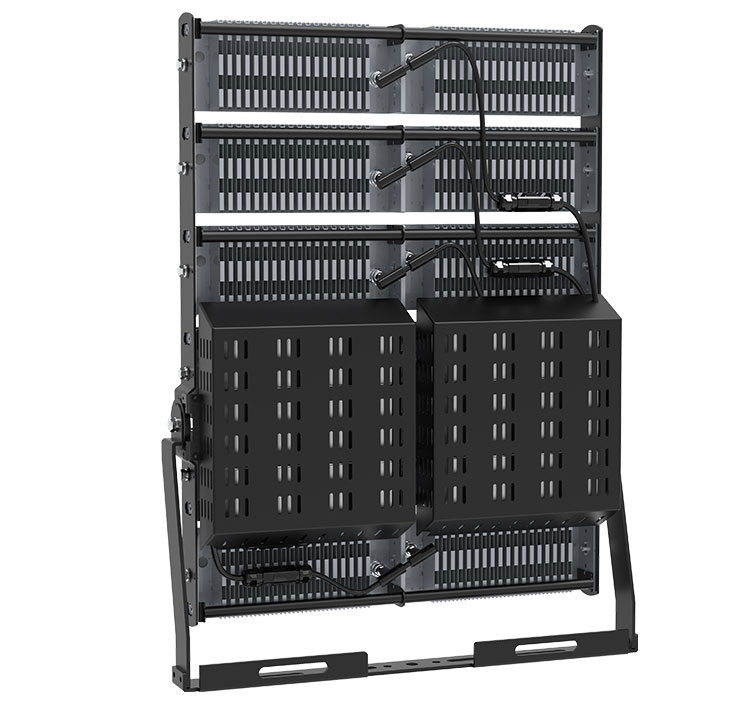

1440W LED High Mast Light

1440W airport led flood high mast lighting fixtures show

This Series LED High Mast Light features adoption of Lumileds 5050 Light source and Power Supply with high quality, energy conservation, high luminance and long service life.And there are multiple certifications of the US authoritative ENEC, REACH, ETL, cETL, DLC,CB,Salt Spray test.


It adopts Marine grade aluminum shell for aesthetics and good heat dissipation, with a long service life of 50000h. The products emits soft and well-distributed light along with brighter effect and great color rendering. With illumination equivalent to 3000 watt metal halide fixtures you'll enjoy an instant-on,flicker-free cold start,and industry-leading 160Lm/W.


And it adopts TUV certification power supply with high efficiency along with low heat and high accuracy of constant current. It also features unique structure, high efficiency and green technology.Widely used in stadiums, golf courses, tennis courts, docks, parking lots, airports and other lighting venues

ENEC, REACH, ETL, cETL, DLC,CB,Salt Spray test certification icon

Size

1440W LED high mast light size.jpg

Features

  • IP65 rated LED floodlight

  • Rotatable modules offering maximum customisation

  • Heavy duty stirrup mounting bracket

  • Multiple optics available

  • Can be installed as a floodlight or high bay

  • With illumination equivalent to 3000 watt metal halide fixtures you'll enjoy an instant-on, flicker-free cold start, and industry-leading 160Lm/W.

  • Protractor scale for easier aiming

  • 50,000-hour operating life means years of maintenancefree operation.

  • Unique design extracts heat from the light source, thereby extending component life and ultimately prolonging the useful life of the fixture.

  • Lightweight design provides easy retrofitting of existing HID installations,along with quick mounting on all new installations.


Characteristic

1.Fin cooling design 2.Optional with multiple optical angles 3.>50000 hours of life 4.Module angle adjustable 5.Lightweight design 6.High efficiency up to 160lm/W


High power LED Airport High Mast Flood Lighting Pole Lights characteristic


Lightweight

1.Weight of folding fin heat sink is 50% ligher than die costing, extrution etc.

2.1070 aluminum, thickness 0.5mm. structure on heat dissipation, the heat dissipation area is larger, and the heat dissipation effect is better, it's with Lighter weight, which is 1/3 of weight of die-casting, proximate matter and cold forging.


1440w High power LED Airport High Mast Flood Lights uses 1070 aluminum lightweight heat sink material


Our led high mast uses aluminum fins for heat dissipation, which has good heat dissipation performance and light weight, and it is 50% lighter than the weight of the die-cast high mast. There is a big advantage in installing our led high pole lights for aerial work. Lightweight design provides easy refurbishment of existing HID installations as well as quick installation


Adjustable angle

1.Rotatable module;

2.Replaceable optical lens;

3.Protractor scale for easier aiming;

4.Lengthened heavy duty mounting bracket allowing for 360 degree rotation;

5.Salt spray resistant, corrosive resistant,processed with dedicated treatments on the heat sink and other;

6.components,these fixtures can withstand corrosive and salt intensive environments;


1440w led high mast light Rotating angle description


Withstand wind

Install our High power LED Airport High Mast Flood Lighting Can withstand hurricanes of 51.0-56.0m/s.


high power led airport high mast flood lighting can withstand hurricanes


Waterproof IP65

1.Anti-dust design,able to be with flushable cleaning

2.IP65 (TUV report available)

3.can't be immersed into the water


1440w LED high mast light with waterproof IP65


Photometrics


Certification Testing


Installation

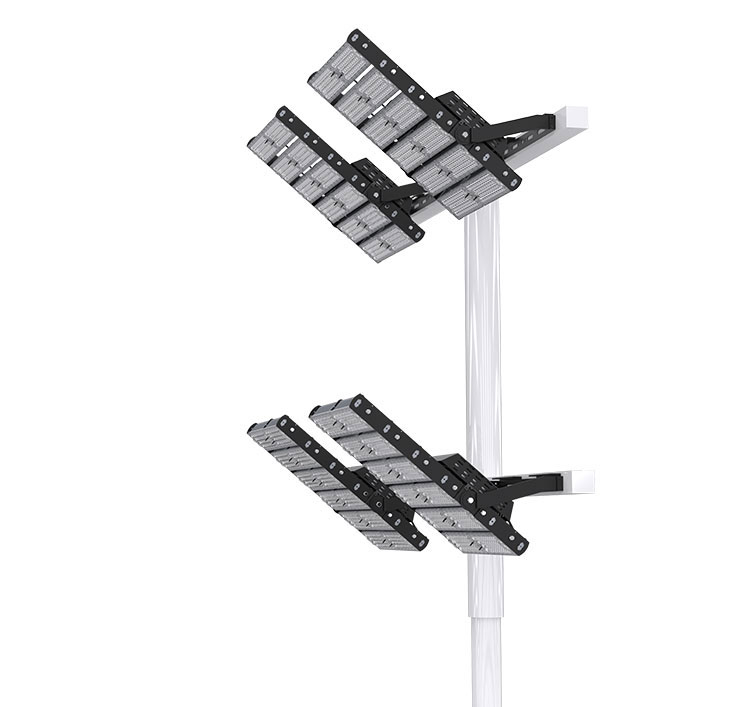

Applications

Applied in large sports field lighting, golf and tennis court,racetrack,

badminton, roads, football, basketball, tower lights, etc. Can also be applied in large square, airport, commercial building, construction engineering, farm, amusement parks, parking lots, harbor, industrial buildings, and other special lighting environment.


1440W LED Stadium light application.jpg


Cases show

Military base Lighting

Baseball Park Lighting

Photometrics

LED high mast light photometrics

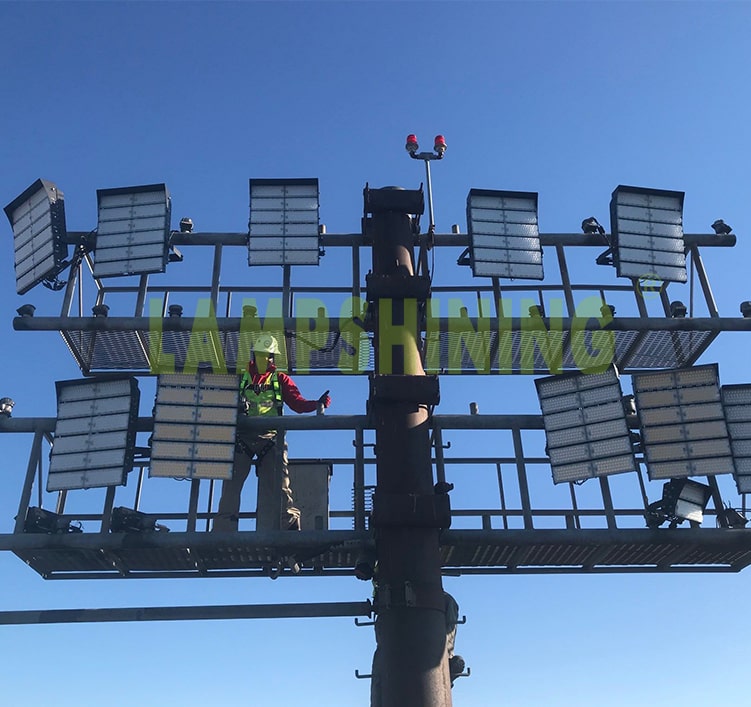

1440w led high mast light project

1440W LED flood high mast lights

High power LED High Mast Flood Lighting show

Accessories

347-480VAC Sosen driver
1-10V Dimmable
10KV or 20KV SPD
Hot-dip galvanizing bracket

Slip fitter
Slip fitter
Round installation plateRound installation plate

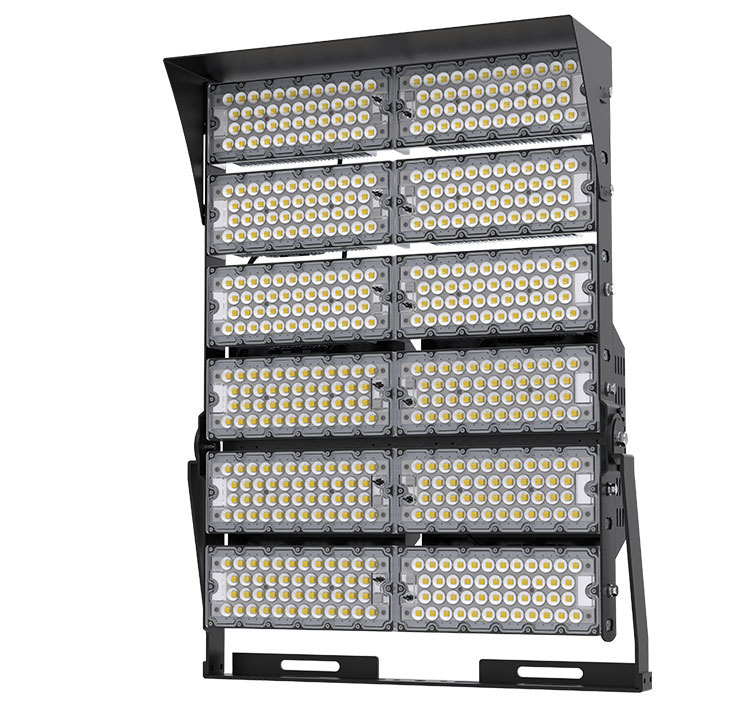

Anti-glared visorAnti-glared visor
Laser pointerLaser pointer


Accessories

1.Anti-glare accessories can avoid the effects of glare when the brightness of the light reaches a relatively large value.

2.Round installation plate enables the luminaire to rotate horizontally.


1440w led high mast light accessories

1440w led high mast light accessories installation

Packing Method Marking

96*76*23cm 1pc/ctn

GW: 28Kg


finished lamp packaging diagram

Packing Method Marking
