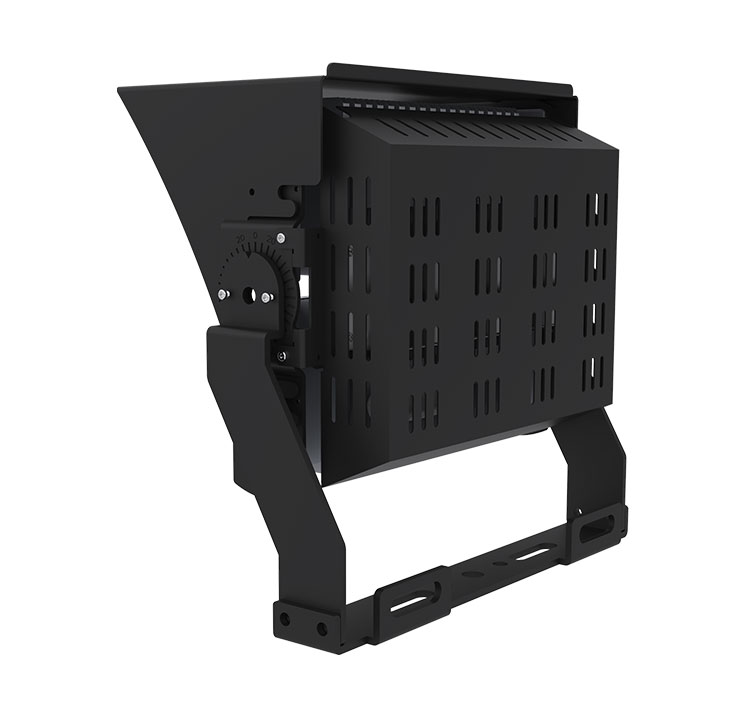

200W LED High Mast Light,Rotatable Module,160Lm/W,32000 Lumen,IP65,Stadium Light,Sports Lighting,Flood Lighting

LED High Mast Light

• IP65 rated LED floodlight

• Rotatable modules offering maximum customisation

• Heavy duty stirrup mounting bracket

• Multiple optics available

• Can be installed as a floodlight or high bay

• With illumination equivalent to 400 watt metal halide fixtures you'll enjoy an instant-on, flicker-free cold start, and industry-leading 160Lm/W.

• Protractor scale for easier aiming

• 50,000-hour operating life means years of maintenancefree operation.

• Unique design extracts heat from the light source, thereby extending component life and ultimately prolonging the useful life of the fixture.

• Lightweight design provides easy retrofitting of existing HID installations,along with quick mounting on all new installations.

Specifications

This Series LED High Mast Light features adoption of Lumileds 5050 Light source and Power Supply with high quality, energy conservation, high luminance and long service life. And there are multiple certifications of the US authoritative DLC, ETL, CB, and Salt spray test.It adopts Marine grade aluminum shell for aesthetics and good heat dissipation, with a long service life of 50000h. The products emits soft and well-distributed light along with brighter effect and great color rendering. With illumination equivalent to 400 watt metal halide fixtures you'll enjoy an instant-on,flicker-free cold start,and industry-leading 160Lm/W.And it adopts UL TUV certification power supply with high efficiency along with low heat and high accuracy of constant current. It also features unique structure, high efficiency and green technology.Widely used in stadiums, golf courses, tennis courts, docks, parking lots, airports and other lighting venues

Dimensions

Characteristic

1.Fin cooling design 2.Optional with multiple optical angles 3.50000 hours of life 4.Module angle adjustable 5.Lightweight design 6.High efficiency up to 160lm/W

Light weight

1.Weight of folding fin heat sink is 50% ligher than die costing, extrution etc.

2.1070 aluminum, thickness 0.5mm. structure on heat dissipation, the heat dissipation area is larger, and the heat dissipation effect is better, it's with Lighter weight, which is 1/3 of weight of die-casting, proximate matter and cold forging.

Our led high mast uses aluminum fins for heat dissipation, which has good heat dissipation performance and light weight, and it is 50% lighter than the weight of the die-cast high mast. There is a big advantage in installing our led high pole lights for aerial work. Lightweight design provides easy refurbishment of existing HID installations as well as quick installation

Withstand wind

Install our 200 watt LED High Mast Light Fixtures Can withstand hurricanes of 51.0-56.0m/s.

Adjustable angle

1.Rotatable module

2.Replaceable optical lens

3.Protractor scale for easier aiming

4.Lengthened heavy duty mounting bracket allowing for 360 degree rotation

5.Salt spray resistant, corrosive resistant,processed with dedicated treatments on the heat sink and other 6.components,these fixtures can withstand corrosive and salt intensive environments.

Waterproof IP65

1.Anti-dust design,able to be with flushable cleaning

2.IP65 (TUV report available)

3.can't be immersed into the water

Photometrics

Applications

Applied in large sports field lighting, golf and tennis court,racetrack, badminton, roads, football, basketball, tower lights, etc. Can also be applied in large square, airport, commercial building, construction engineering, farm, amusement parks, parking lots, harbor, industrial buildings, exhibition overhead and other special lighting environment.

Main Feature

• IP65 rated LED floodlight

• Rotatable modules offering maximum customisation

• Heavy duty stirrup mounting bracket

• Multiple optics available

• Can be installed as a floodlight or high bay

• With illumination equivalent to 400 watt metal halide fixtures you'll enjoy an "instant-on, flicker-free"cold start, and industry-leading 160Lm/W.

• Protractor scale for easier aiming

• 50,000-hour operating life means years of maintenancefree operation.

• Unique design extracts heat from the light source, thereby extending component life and ultimately prolonging the useful life of the fixture.

• Lightweight design provides easy retrofitting of existing HID installations,along with quick mounting on all new installations.

Accessories

1.Anti-glare accessories can avoid the effects of glare when the brightness of the light reaches a relatively large value

2.Round installation plate enables the luminaire to rotate horizontally

Packing Method Marking

1. Product packaging materials:

Carton: 40.7x38x17.2cm

Pearl cotton: 39.2x36.5x7.0cm

Block pearl cotton:20x7.0x5.0cm

Flat card: 35x15.6cm

finished lamp packaging diagram
