Alpha 600W LED Sports Light - No Glare, No Flicker Gray 4000-6000K Type4 Outdoor Stadium Lighting
  • Alpha 600W LED Sports Light - No Glare, No Flicker Gray 4000-6000K Type4 Outdoor Stadium Lighting
  • Alpha 600W LED Sports Light - No Glare, No Flicker Gray 4000-6000K Type4 Outdoor Stadium Lighting
  • Alpha 600W LED Sports Light - No Glare, No Flicker Gray 4000-6000K Type4 Outdoor Stadium Lighting
  • Alpha 600W LED Sports Light - No Glare, No Flicker Gray 4000-6000K Type4 Outdoor Stadium Lighting
  • 600W LED Sports Light - No Glare, No Flicker Gray 78,800lm 4000-6000K Type4 Outdoor Stadium Lighting
  • Alpha 600W LED Sports Light - No Glare, No Flicker Gray 4000-6000K Type4 Outdoor Stadium Lighting
Alpha 600W LED Sports Light - No Glare, No Flicker Gray 4000-6000K Type4 Outdoor Stadium LightingAlpha 600W LED Sports Light - No Glare, No Flicker Gray 4000-6000K Type4 Outdoor Stadium LightingAlpha 600W LED Sports Light - No Glare, No Flicker Gray 4000-6000K Type4 Outdoor Stadium LightingAlpha 600W LED Sports Light - No Glare, No Flicker Gray 4000-6000K Type4 Outdoor Stadium Lighting600W LED Sports Light - No Glare, No Flicker Gray 78,800lm 4000-6000K Type4 Outdoor Stadium LightingAlpha 600W LED Sports Light - No Glare, No Flicker Gray 4000-6000K Type4 Outdoor Stadium Lighting

Alpha 600W LED Sports Light - No Glare, No Flicker Gray 4000-6000K Type4 Outdoor Stadium Lighting

●   Watt: 600W

●   Lumens: 99,000

●   GA<40

●   Light Source: Lumileds 5050

●   Input Volt: 90-305VAC

●   IP Rating: IP66 - IK10

●   Size: 470*382*525mm

●   Lamp Weight: 16kg

●   CCT (Color Temp): 4000, 5000, 5700, 6000

●   Beam Angle: P70,P45,30,60,90 degree

●   5 years warranty

Inquire Now

Alpha 600W LED Sports Light - No Glare, No Flicker Gray 4000-6000K Type4 Outdoor Stadium Lighting

Name:

Tel:

E-mail:

Country:

CAPTCHA:

Submit the information to obtain product spec sheet,Please make sure that your email address is absolutely correct!

Specification Sheet
  • Data Sheets
  • Beam Angle
  • Options/Accessories
  • Package details

Specifications

Model

LSASL-600W-LV(XXK)

Watt600W
Lumen81,00099,000
Efficiency

135Lm/W±3%

165Lm/W±3%
Beam AngleP70(Anti-glare)P45(Anti-glare), 30, 60, 90 degree
Input Volt

90-305VAC 50/60HZ

Chip BrandLumileds 5050
CCT4000K 5000K 5700K 6000K
CRICRI>70 (CRI>80 optional)
Wind rating51.0-56.0m/s
Reflector driver boxIncluded
DimmingNon-dimmable (Dimmable Optional)
Weight16kg
Size

470*382*525mm

Driver

Inventronics EUD-600S280DV

CertificationENEC ERP TUV CE CB SAA RoHS LM79 LM80 TM21 IK08 Salt Spray test approved

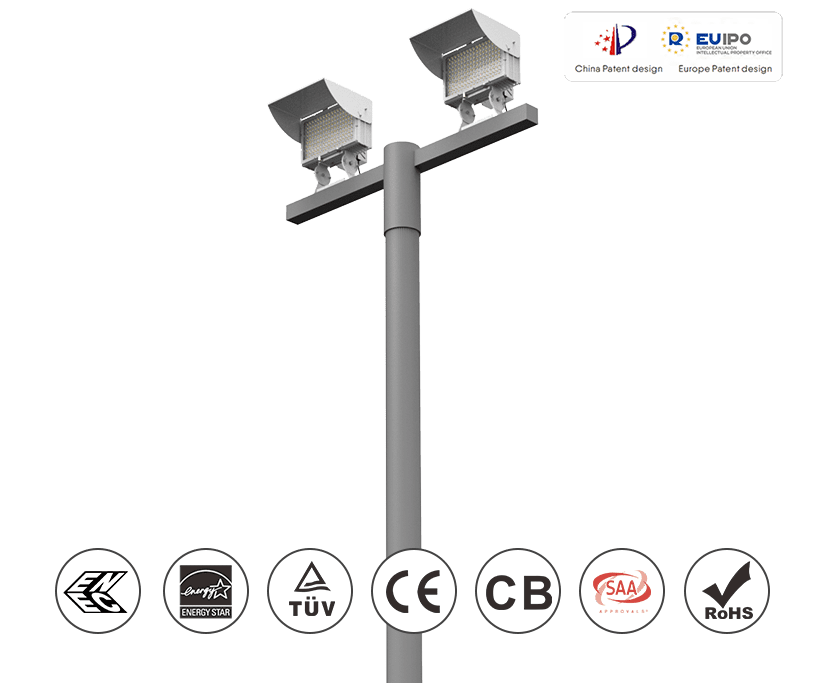

600W Alpha LED Stadium Light

Alpha 600W is a lighting fixture specially desined for use in stadiums, anti-glare, high power, easy installation pure aluminum design is its unique advantage.


LED stadium lighting has occupied the global lighting market. They are safe, consume less power, have a long life, lower the total cost of ownership and provide high-quality bright light. But the glare of stadium lighting is very unpleasant, which will directly affect the performance of the players and the enthusiasm of the audience. The alpha LED Stadium Light uses a uniquely designed beam angle of P70, which greatly reduces the glare from the lighting, and is very suitable for Stadium, Arena, football court and rugby court etc.


600W Alpha LED sports Light

ENEC ERP TUV CE CB SAA RoHS LM79 LM80 TM21 IK08 Salt Spray test approved certification icon

External driver box version Size

600W Alpha LED sports Light size

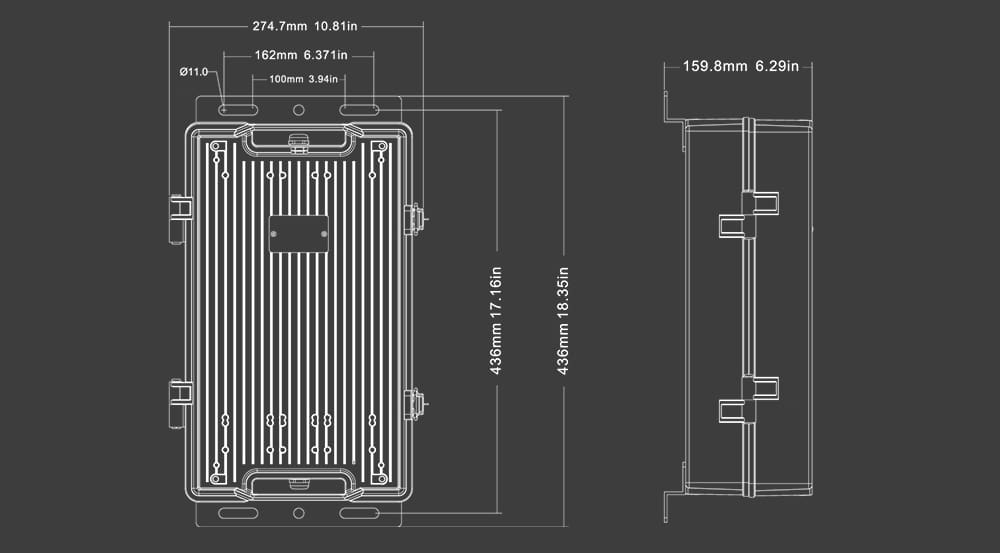

600W Alpha LED sports Light power box size

Internal driver version Size

Internal driver version 600w alpha led sports light size

Features

1. Lamp design with handle makes. installation more convenient;

2. The anti-glare design prevents the lighting from affecting the eyes of athletes and spectators;

3.High-quelity glass and lens make the light quality higher;


600W Alpha LED sports Light features


4.Using 1060 Pure aluminum heat sink.better heat dissipotion performance.more durable;

5.Aiming device can help calibrotethe lamp during instelletion;

6.The bracket can be rotated andadjusted;


600W Alpha LED sports Light features


Anti-Glare Beam Angle

1.P70 Beam Angle can only be installed straight to the pole no need to adjust the angle of the bracket,the direction of light perpendicular to the ground;

2.P45 Beam Angle can only be installed straight to the pole no need to adjust the angle of the bracket,the direction of light perpendicular to the ground;

p70 and p45 Anti-Glare Beam Angle

Low glare vs high glare


Optional separate or integrated power supply

1.External driver box version 2.Internal driver version

Optional separate or integrated power supply

Beam Angle

P70(Anti-glare), P45(Anti-glare), 30, 60, 90 degree;

P70(Anti-glare), P45(Anti-glare), 30, 60, 90 degree beam angle

Certification Testing

Alpha LED Stadium Light will undergo rigorous various tests before they leave the factory to ensure the quality of the lamps.


Including: 1.IPX6 Testing 2.IK08 Testing 3. Surge Testing 4. IED Testing 5. Temperature Testing 6. Drop Testing

Alpha 1200W LED Stadium Light Certification Testing

Installation

Alpha 600W LED Sports Light - No Glare, No Flicker Gray 4000-6000K Type4 Outdoor Stadium Lighting

600W Alpha LED sports Light Power box installation instructions


Application


application


If you want to know more details about the product, or need to provide lighting design for your venue, please feel free to contact us.


contact us

Beam Angle

P70(Anti-glare), P45(Anti-glare), 30, 60, 90 degree;

P70(Anti-glare), P45(Anti-glare), 30, 60, 90 degree beam angle

Accessories


Aiming deviceAiming device
Protection GridProtection Grid
2.5mm² DC cable2.5mm² DC cable


Aiming device

Aiming device can ensure that when installing, the position of the lamp can be in the most correct position to achieve the best lighting angle.

Aiming device installation

Protection Grid

Many times in sports fields, lighting fixtures may be hit by sports balls and cause damage, and the protective net solves this problem well.

alpha 600w led sports light with Protection Grid

Package details

600W: 89x48x61cm

1pc/ctn GW: 18KG


Driver Box:

52x38x32cm

GW: 11kg

Alpha 600W LED Sports Light package details
