Alpha 1200W High Power Square LED Stadium Light - Low-Glare 176-305V Outdoor Waterproof Sports Arena Flood Light
  • Alpha 1200W High Power Square LED Stadium Light - Low-Glare 176-305V Outdoor Waterproof Sports Arena Flood Light
  • Alpha 1200W High Power Square LED Stadium Light - Low-Glare 176-305V Outdoor Waterproof Sports Arena Flood Light
  • Alpha 1200W High Power Square LED Stadium Light - Low-Glare 176-305V Outdoor Waterproof Sports Arena Flood Light
  • Alpha 1200W High Power Square LED Stadium Light - Low-Glare 176-305V Outdoor Waterproof Sports Arena Flood Light
  • 1200W High Power Square LED Stadium Light - Low-Glare 180-277V Outdoor Waterproof Sports Arena Flood Light
  • Alpha 1200W High Power Square LED Stadium Light - Low-Glare 176-305V Outdoor Waterproof Sports Arena Flood Light
Alpha 1200W High Power Square LED Stadium Light - Low-Glare 176-305V Outdoor Waterproof Sports Arena Flood LightAlpha 1200W High Power Square LED Stadium Light - Low-Glare 176-305V Outdoor Waterproof Sports Arena Flood LightAlpha 1200W High Power Square LED Stadium Light - Low-Glare 176-305V Outdoor Waterproof Sports Arena Flood LightAlpha 1200W High Power Square LED Stadium Light - Low-Glare 176-305V Outdoor Waterproof Sports Arena Flood Light1200W High Power Square LED Stadium Light - Low-Glare 180-277V Outdoor Waterproof Sports Arena Flood LightAlpha 1200W High Power Square LED Stadium Light - Low-Glare 176-305V Outdoor Waterproof Sports Arena Flood Light

Alpha 1200W High Power Square LED Stadium Light - Low-Glare 176-305V Outdoor Waterproof Sports Arena Flood Light

●   Watt: 1200W

●   Lumens: 198,000

●   Light Source: Lumileds 5050

●   GA<40

●   Input Volt: 176-305VAC

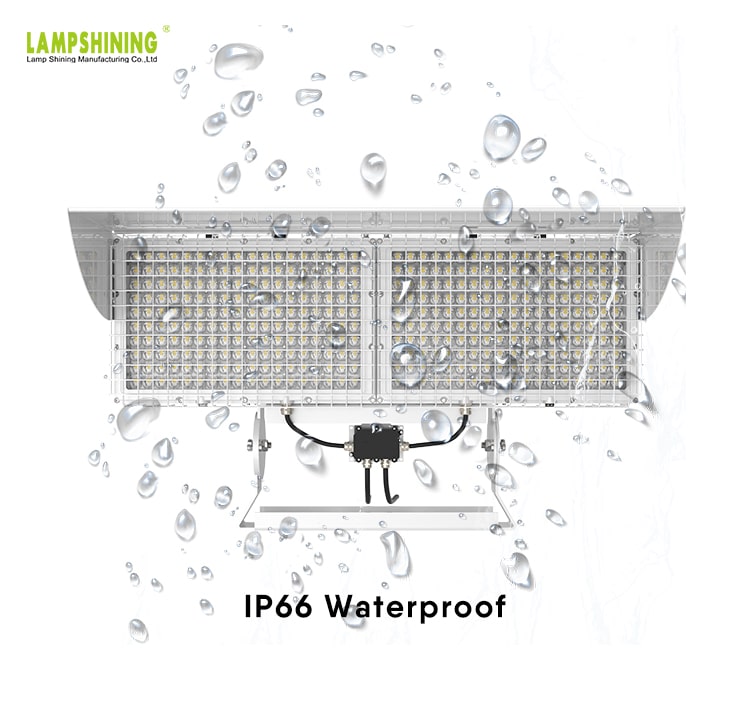

●   IP Rating: IP66 - IK08

●   Size: 920*382*545mm

●   Lamp Weight: 28kg

●   CCT (Color Temp): 4000, 5000, 5700, 6000

●   Beam Angle: P70,P45,30,60,90 degree

●   5 years warranty

Inquire Now Next Product

Alpha 1200W High Power Square LED Stadium Light - Low-Glare 176-305V Outdoor Waterproof Sports Arena Flood Light

Name:

Tel:

E-mail:

Country:

CAPTCHA:

Submit the information to obtain product spec sheet,Please make sure that your email address is absolutely correct!

Specification Sheet
  • Data Sheets
  • Beam Angle
  • Options/Accessories
  • Package details

Specifications

Model

LSASL-1200W-LV(XXK)

Watt1200W
Lumen162,000198,000
Efficiency

135Lm/W±3%

165Lm/W±3%
Beam AngleP70(Anti-glare)P45(Anti-glare), 30, 60, 90 degree
Input Volt

176-305VAC 50/60HZ

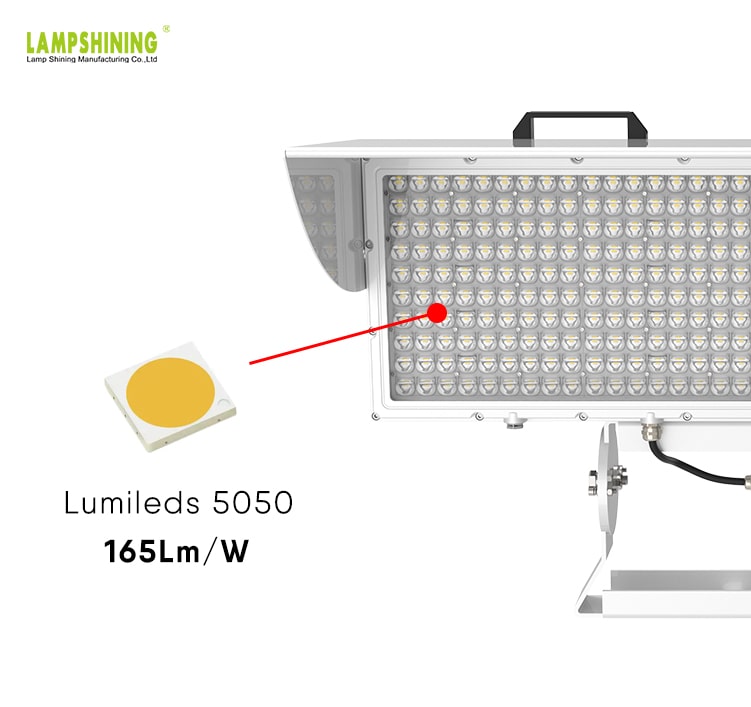

Chip BrandLumileds 5050
CCT4000K 5000K 5700K 6000K
CRICRI>70 (CRI>80 optional)
Wind rating51.0-56.0m/s
Reflector driver boxIncluded
DimmingNon-dimmable (Dimmable Optional)
Weight28kg
Size

920*382*545mm

Driver

Inventronics EBM-1K2S740MG

CertificationENEC ERP TUV CE CB SAA RoHS LM79 LM80 TM21 IK08 Salt Spray test approved


1200W LED Stadium & Arena Light

Alpha 1200W is a lighting fixture specially desined for use in stadiums, anti-glare, high power, easy installation pure aluminum design is its unique advantage.


LED stadium lighting has occupied the global lighting market. They are safe, consume less power, have a long life, lower the total cost of ownership and provide high-quality bright light. But the glare of stadium lighting is very unpleasant, which will directly affect the performance of the players and the enthusiasm of the audience. The alpha LED Stadium Light uses a uniquely designed beam angle of P70, which greatly reduces the glare from the lighting, and is very suitable for Stadium, Arena, football court and rugby court etc.

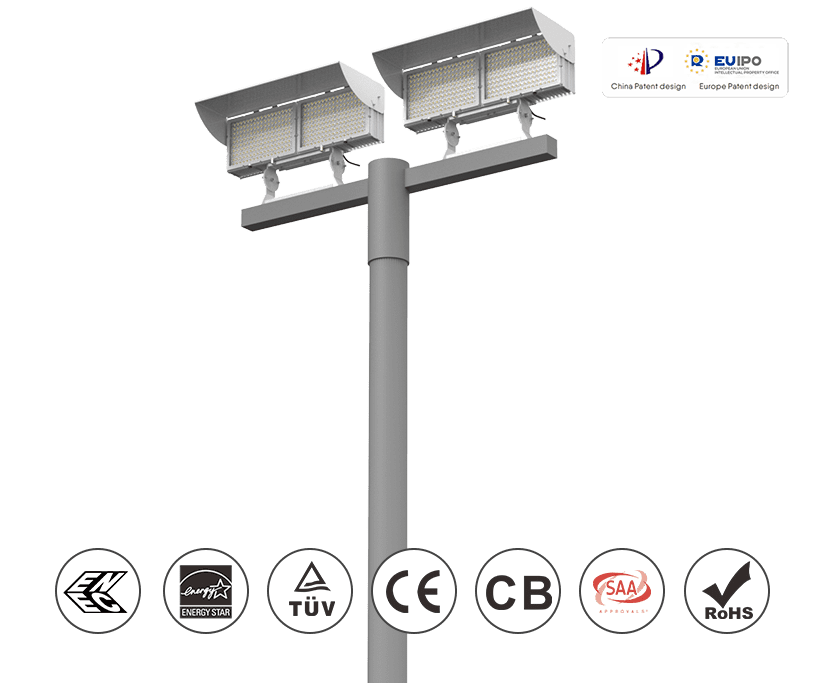

Alpha 1200W LED Stadium Light

ENEC ERP TUV CE CB SAA RoHS LM79 LM80 TM21 IK08 Salt Spray test approved certification

External driver box version Size

1200W Alpha LED Stadium Light Dimensioning

1200W Alpha LED Stadium Light power box size

Internal driver version Size

Internal driver version Alpha 1200W LED Stadium Light size

Features

1. Lamp design with handle makes. installation more convenient;

2. The anti-glare design prevents the lighting from affecting the eyes of athletes and spectators;

3.High-quelity glass and lens make the light quality higher;


Alpha 1200W LED Stadium Light features


4.Using 1060 Pure aluminum heat sink.better heat dissipotion performance.more durable;

5.Aiming device can help calibrotethe lamp during instelletion;

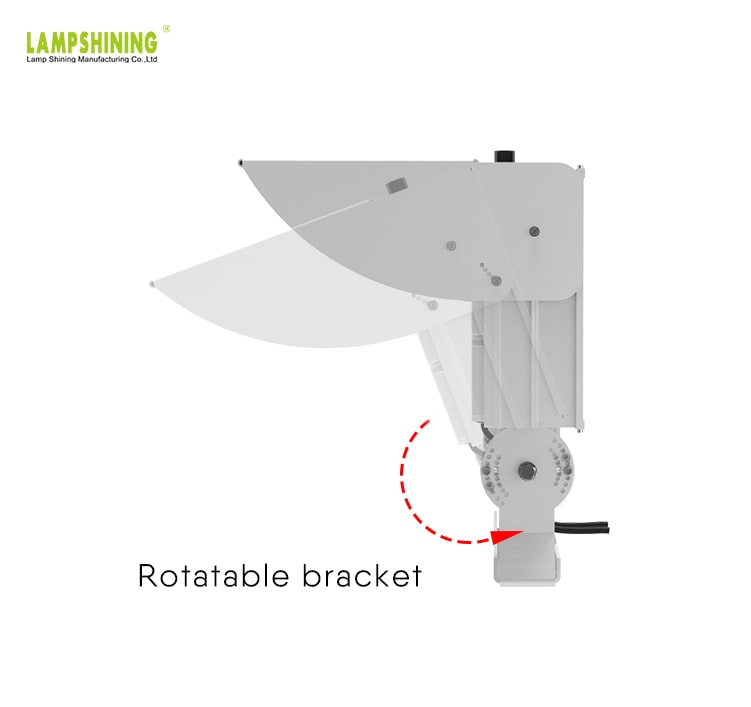

6.The bracket can be rotated andadjusted;


Alpha 1200W LED Stadium Light features

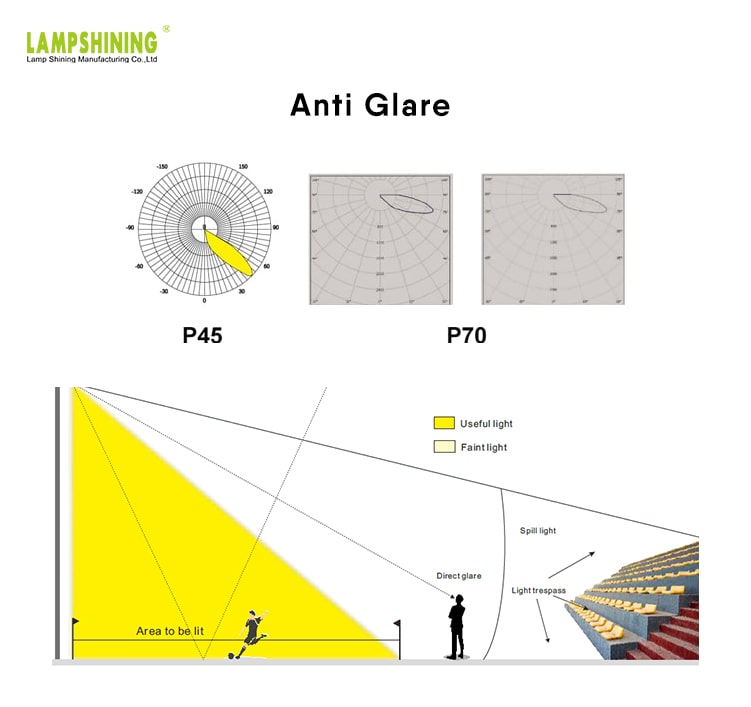

Anti-Glare Beam Angle

1.P70 Beam Angle can only be installed straight to the pole no need to adjust the angle of the bracket,the direction of light perpendicular to the ground;

2.P45 Beam Angle can only be installed straight to the pole no need to adjust the angle of the bracket,the direction of light perpendicular to the ground;

p70 and p45 Anti-Glare Beam Angle

Low glare vs high glare


Optional External or Internal driver box version

1.External driver box version

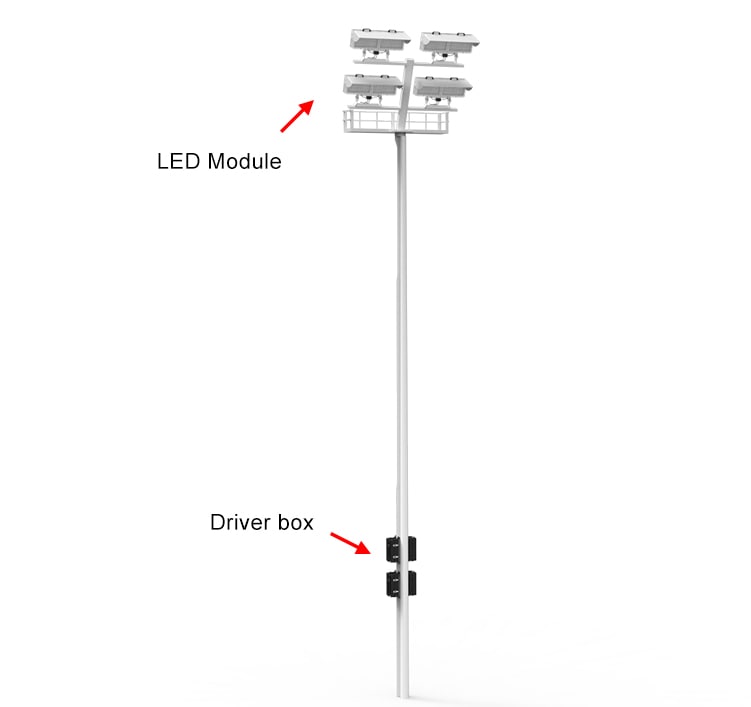

External driver box version is suitable for large sports venues. External driver box will be installed remotely from the lamp under the pole which lower the weight and easy for future maintanance;


2.Internal driver version

Internal driver version Internal driverversion, cost-effective, suitablefor small sports field lighting needs. Reduced installation time and fastinstallation;


Optional separate or integrated power supply

Beam Angle

P70(Anti-glare), P45(Anti-glare), 30, 60, 90 degree;

P70(Anti-glare), P45(Anti-glare), 30, 60, 90 degree beam angle

Certification Testing

Alpha LED Stadium Light will undergo rigorous various tests before they leave the factory to ensure the quality of the lamps.


Including: 1.IPX6 Testing 2.IK08 Testing 3. Surge Testing 4. IED Testing 5. Temperature Testing 6. Drop Testing

Alpha 1200W LED Stadium Light Certification Testing

Installation

light fixtures Installation

1200W Alpha LED Stadium Light Power box installation instructions

Application

Alpha series LED Stadium Light because of its unique advantages, anti-glare GA<40, the lamp can be installed separately from the power supply, reducing the weight of the pole. Therefore, it is very suitable for application in various large sports fields, arenas, central squares, etc.


application


If you want to know more details about the product, or need to provide lighting design for your venue, please feel free to contact us.


contact us

Beam Angle

P70(Anti-glare), P45(Anti-glare), 30, 60, 90 degree;

P70(Anti-glare), P45(Anti-glare), 30, 60, 90 degree beam angle

Accessories


Aiming deviceAiming device
Protection GridProtection Grid
2.5mm² DC cable2.5mm² DC cable


Aiming device

Aiming device can ensure that when installing, the position of the lamp can be in the most correct position to achieve the best lighting angle.

Aiming device installation

Protection Grid

Many times in sports fields, lighting fixtures may be hit by sports balls and cause damage, and the protective net solves this problem well.

Alpha 1200W High Power Square LED Stadium Light - Anti-Glare 180-277V Outdoor Waterproof Sports Arena Flood Light

Package details

1200W: 89x91x59cm

1pc/ctn GW: 30.5KG


Driver Box:

52x38x32cm

GW: 11kg

1200W LED Stadium Light package details
