Anti Corrosion Crown UFO LED High Bay Light - Moisture Resistant Industrial Ceiling LED Lamp

●   Wattage: 100W/ 150W/ 200W

●   Lumens: 15,500lm-29,000lm

●   Light Source: Lumileds 3030

●   Input Volts: 100-277VAC

●   IP Rating: IP69K - IK10

●   Moisture Resistant

●   Anti Corrosion

●   CCT (Color Temp): 3000K-6000K

●   Beam Angle:Tempered glass

●   NSF/ ETL/ DLC/ TUV/ CE/ CB/ SAA/ LM79/ LM80

●   3 years warranty

Inquire Now

Anti Corrosion Crown UFO LED High Bay Light - Moisture Resistant Industrial Ceiling LED Lamp

Name:

Tel:

E-mail:

Country:

CAPTCHA:

Submit the information to obtain product spec sheet,Please make sure that your email address is absolutely correct!

Specification Sheet

Model

LSCHB-100W(XXK)
Watt100W
Chip BrandLumileds 3030
Lumen15,500
Efficiency155Lm/W±3%
DriverMoso MNC-100V240
Gross Weight5.4kg
Input Volt100-277VAC
Power Factor>0.9
HID/ MH Equivalent300W-400W
CRIRa80
MeterialADC12 Die-casting Aluminum
FinishPowder Coating
Fixtures ColorBlack
CCT3000-6000K
IP RatingIK69K
IK RatingIK10
Control0-10V, 1-10V dim control, Motion sensor, DALI, Zigbee
Emergency LightingEmergency Battery 5W 180minutes
Beam AngleTempered glass
CertificationsNSF, ETL, DLC, TUV, CE, CB, SAA, LM79, LM80
Warranty3 Years


Model

LSCHB-150W(XXK)
Watt150W
Chip BrandLumileds 3030
Lumen22,500
Efficiency150Lm/W±3%
DriverMoso MNC-150V240
Gross Weight5.4kg
Input Volt100-277VAC
Power Factor>0.9
HID/ MH Equivalent300W-400W
CRIRa80
MeterialADC12 Die-casting Aluminum
FinishPowder Coating
Fixtures ColorBlack
CCT3000-6000K
IP RatingIK69K
IK RatingIK10
Control0-10V, 1-10V dim control, Motion sensor, DALI, Zigbee
Emergency LightingEmergency Battery 5W 180minutes
Beam AngleTempered glass
CertificationsNSF, ETL, DLC, TUV, CE, CB, SAA, LM79, LM80
Warranty3 Years


Model

LSCHB-200W(XXK)
Watt200W
Chip BrandLumileds 3030
Lumen29,000
Efficiency145Lm/W±3%
DriverMoso MNC-200V240
Gross Weight5.4kg
Input Volt100-277VAC
Power Factor>0.9
HID/ MH Equivalent400W-600W
CRIRa80
MeterialADC12 Die-casting Aluminum
FinishPowder Coating
Fixtures ColorBlack
CCT3000-6000K
IP RatingIK69K
IK RatingIK10
Control0-10V, 1-10V dim control, Motion sensor, DALI, Zigbee
Emergency LightingEmergency Battery 5W 180minutes
Beam AngleTempered glass
CertificationsNSF, ETL, DLC, TUV, CE, CB, SAA, LM79, LM80
Warranty3 Years


Anti Corrosion LED High Bay Light

Anti Corrosion LED High Bay Light

This anti-corrosion LED high bay Light is specially designed for industrial lighting, not only can withstand harsh environments, but also guarantees high efficiency and high quality lighting.

100W/ 150W/ 200W

145-155Lm/W

3000K-6000K

IP69K

Anti Corrosion

Moisture Resistant

NSF, DLC, ETL, TUV, SAA, CB, CE, LM79, LM80

High Quality Brand

High Quality Brand

Using high-quality lamp beads to reduce light waste, the utilization rate of light is higher, CRI>80, the light efficiency can reach 145-155Lm/W!

Lumileds 3030

Tempered glass

Anti Corrosion

Anti Corrosion

To ensure the Crown LED High Bay Lights will survive even the toughest of conditions we constructed it out of die casting aluminum ADC12,the rest are made of stainless steel and coated it with a high performance pure epoxy anti-corrosion protective coating.  For extra protection make sure you combine it with our 316 stainless steel.

Anti Corrosion

IP69K Protection

IP69K Protection

Crown LED High Bay Light with perfect weatherproof structure is no problem to reach IP69K, which was tested and verified at harshest environment.  The surface treatment is outdoor usage powder coating, to make the light corrosion-resistant and anti-aging.


Damaging moisture can cut an LED light's life short. Whether it's a food processing plant with frequent wash downs, wash bays, or a water park, Crown LED High Bay Lights has fixtures designed to keep moisture out.

IP69K

Dust & Debris Resistant

Dust & Debris Resistant

Contaminant build-up on fixtures acts as an insulator, causing internal temperatures to soar and LEDs to fail prematurely.   Pulp, paper and lumber mills, or any facility where dust, grit or debris accumulates can be particularly punishing.   Our latest pending-pending products are designed to shed debris to extend LED fixture life.

Dust & Debris Resistant

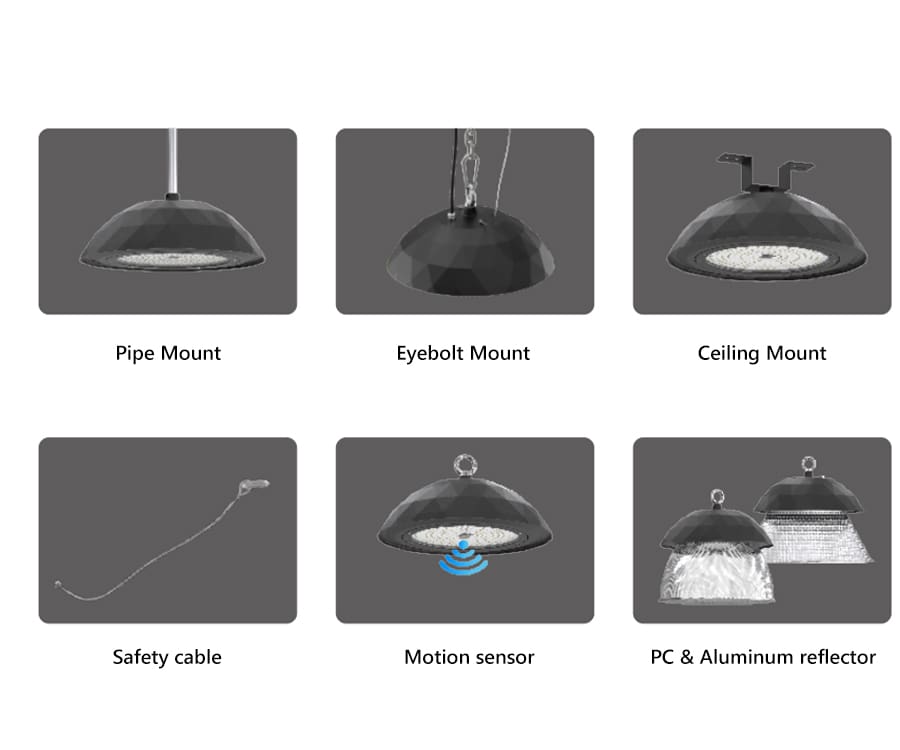

Mounting & Accessories Options

Mounting & Accessories Options

According to the different needs of the lighting area, we can choose different functions and installation methods for this LED High Bay Light.

Eyebolt Mount

Pendant Mount

Ceiling Mount

Safety Cable

Motion Sensor

PC & Aluminum Reflector

Application

Lighting for all types of industrial factory areas


WattSize
100W/ 150W/ 200W1pc/ 402mm*147mm
