400W Linear LED High Bay Light - High Powe Workshop, Shop, Exhibition, Indoor Sport Lighting

●   Watt: 400W

●   Lumens: 64,000/ 72,000

●   Light Source: Lumiled 2835

●   Input Volt: 100-277VAC

●   CCT (Color Temp): 3000-6500K

●   IP Rating: IP65 - IK10

●   Surge protection: 6Kv

●   Beam Angle: 40/ 60/ 90/ 120 /40*100 degree

●   5 years warranty

●   ETL DLC TUV CE CB SAA RoHS LM79 LM80 TM21 IK10

Inquire Now Next Product

400W Linear LED High Bay Light - High Powe Workshop, Shop, Exhibition, Indoor Sport Lighting

Name:

Tel:

E-mail:

Country:

CAPTCHA:

Submit the information to obtain product spec sheet,Please make sure that your email address is absolutely correct!

Specification Sheet
ModelLSLHBL-400W
Watt400W
Lumen64,000
Efficiency160Lm/W±3%
Chip BrandLumiled 2835
Input Volt100-277VAC
CCT3000K-6000K
Driver PowerMoso 2*MNC-240B240Meanwell 2*XLG-240-48A
Equivalent600W metal halide/ HID High Bay lamp Equivalent
Beam angle
60/ 90/ 120/ 30*70/ 80*155/ 90*140 degree
Power Factor>0.95
Cap TypeBase Options:US,Europe,UK,Australia plug
Installation MethodChain hanging style and Ceiling/ Wall Mount(rotatable)
CRI>80
Warranty5 years warranty
Rated Lifespan50000 hours
CertifiedETL DLC TUV CE CB SAA RoHS LM79 LM80 TM21 IK10
ModelLSLHBL-400W
Watt400W
Lumen72,000
Efficiency180Lm/W±3%
Chip BrandLumiled 2835
Input Volt100-277VAC
CCT3000K-6000K
Driver PowerMoso 2*MNC-240B240Meanwell 2*XLG-240-48A
Equivalent1000W metal halide/ HID High Bay lamp Equivalent
Beam angle
60/ 90/ 120/ 30*70/ 80*155/ 90*140 degree
Power Factor>0.95
Cap TypeBase Options:US,Europe,UK,Australia plug
Installation MethodChain hanging style and Ceiling/ Wall Mount(rotatable)
CRI>80
Warranty5 years warranty
Rated Lifespan50000 hours
CertifiedETL DLC TUV CE CB SAA RoHS LM79 LM80 TM21 IK10

400W Linear LED High Bay Light

400W Linear LED High Bay Light

Linear LED High Bay Light is a perfect indoor lighting solution for warehouse, workshop and industrial lighting.

400W

160-180Lm/W

3000K-6000K

ETL DLC TUV CE CB SAA RoHS

LM79 LM80 TM21 IK10

High Quality Brand

High Quality Brand

Using high-quality lamp beads to reduce light waste, the utilization rate of light is higher, CRI>70, the light efficiency can reach 160-180Lm/W!

Lumileds 2835

Heat Dissipation Design

Heat Dissipation Design

Adopt 6063 aluminum integrated heat dissipation design, larger heat dissipation area and better heat dissipation effect.

6063 aluminum integrated heat dissipation

IP65 Waterproof & IK10

IP65 Waterproof & IK10

Use high-quality aluminium case, waterproof grade IP65 and IK10 rating of anticollision.

IP65 Waterproof

IK10

Motion Sensor(Optional)

Motion Sensor(Optional)

Linear LED High Bay Light can optionally be fitted with motion sensors for smart lighting.

Motion Sensor

Beam Anlge

Beam Anlge

Linear LED High Bay Light can choose different lens and beam angle.Allows different areas to have better lighting.

Flexible Lighting

Other Watt

Linear LED High Bay Light is available in wattage from 50W to 500W, which is the best choice to replace the existing MH/HID street lights of 100W-1200W.

Beam Angle

Beam Angle

The beam angle can be selected from 40/60/90/120/40*100 degree/P50. Professional light distribution angle can better achieve uniform and efficient lighting effect.

40 degree

60 degree

90 degree

120 degree

40*100 degree

P50

Application

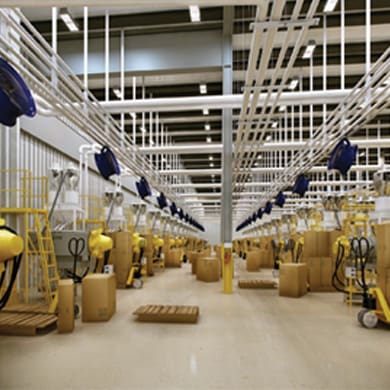

Used in factories, warehouses, workshops, stadiums, parking lots, logistics centers, large warehouses, supermarket lighting, underground garages, exhibition centers, stadium lighting, high-speed toll stations, etc.

WattSize
400W 1pc/ 1214*230*173mm


400W Linear LED High Bay Light size
