100W LED Flood Light 17000lm, Aluminium Efficeient 170Lm/W, 100-277V Work Security Garden Lawn Floodlight
  • 100W LED Flood Light 17000lm, Aluminium Efficeient 170Lm/W, 100-277V Work Security Garden Lawn Floodlight
  • 100W LED Flood Light 17000lm, Aluminium Efficeient 170Lm/W, 100-277V Work Security Garden Lawn Floodlight
  • 100W LED Flood Light 17000lm, Aluminium Efficeient 170Lm/W, 100-277V Work Security Garden Lawn Floodlight
  • 100W LED Flood Light 17000lm, Aluminium Efficeient 170Lm/W, 100-277V Work Security Garden Lawn Floodlight
  • 100W LED Flood Light 17000lm, Aluminium Efficeient 170Lm/W, 100-277V Work Security Garden Lawn Floodlight
  • 100W LED Flood Light 17000lm, Aluminium Efficeient 170Lm/W, 100-277V Work Security Garden Lawn Floodlight
  • 100W LED Flood Light 17000lm, Aluminium Efficeient 170Lm/W, 100-277V Work Security Garden Lawn Floodlight
  • 100W LED Flood Light 17000lm, Aluminium Efficeient 170Lm/W, 100-277V Work Security Garden Lawn Floodlight
100W LED Flood Light 17000lm, Aluminium Efficeient 170Lm/W, 100-277V Work Security Garden Lawn Floodlight100W LED Flood Light 17000lm, Aluminium Efficeient 170Lm/W, 100-277V Work Security Garden Lawn Floodlight100W LED Flood Light 17000lm, Aluminium Efficeient 170Lm/W, 100-277V Work Security Garden Lawn Floodlight100W LED Flood Light 17000lm, Aluminium Efficeient 170Lm/W, 100-277V Work Security Garden Lawn Floodlight100W LED Flood Light 17000lm, Aluminium Efficeient 170Lm/W, 100-277V Work Security Garden Lawn Floodlight100W LED Flood Light 17000lm, Aluminium Efficeient 170Lm/W, 100-277V Work Security Garden Lawn Floodlight100W LED Flood Light 17000lm, Aluminium Efficeient 170Lm/W, 100-277V Work Security Garden Lawn Floodlight100W LED Flood Light 17000lm, Aluminium Efficeient 170Lm/W, 100-277V Work Security Garden Lawn Floodlight

NEMO EKO 100W LED Flood Light 16500lm，Aluminium Efficeient 165Lm/W，100-277V Work Security Garden Lawn floodlight

●   Watt: 100W

●   Lumens: 16,500/ 14,500

●   Light Source: Lumileds 5050

●   Input Volt: 100-277VAC

●   IP Rating: IP66 - IK10

●   Tool-free open design

●   Size: 423*269*52mm

●   Lamp Weight: 3.8kg

●   CCT (Color Temp): 3000-6000K

●   5 years warranty

Inquire Now Next Product

NEMO EKO 100W LED Flood Light 16500lm，Aluminium Efficeient 165Lm/W，100-277V Work Security Garden Lawn floodlight

Name:

Tel:

E-mail:

Country:

CAPTCHA:

Submit the information to obtain product spec sheet，Please make sure that your email address is absolutely correct！

Specification Sheet
  • Data Sheets
  • Beam Angle
  • Options/Accessories
  • Package details

Specifications

Model

LSNFL-100W(XXK)
Watt100W
Lumen14,50016,500
Efficiency145Lm/W±3%165Lm/W±3%
Driver

Moso MNC-100V240

Meanwell XLG-100-H-A
Input Volt100-277VAC
Chip BrandLumileds 5050
CCT3000-5700K
Size423*269*52mm
Weight3.8kg
IP & IK RatingIP66 & IK08
Beam Angle10, 30, 60, 90, 120, P45(Anti-glare), Type II(115x150 degree),Type III(120X150 degree);
CRI>70
Power Factor>0.95 / 230VAC
Dimming Function

1-10V Continuous / PWM

DALI Optional

CertificationsENEC ETL DLC TUV CE CB SAA RoHS LM79 LM80 TM21 IK08 Salt Spray test approved

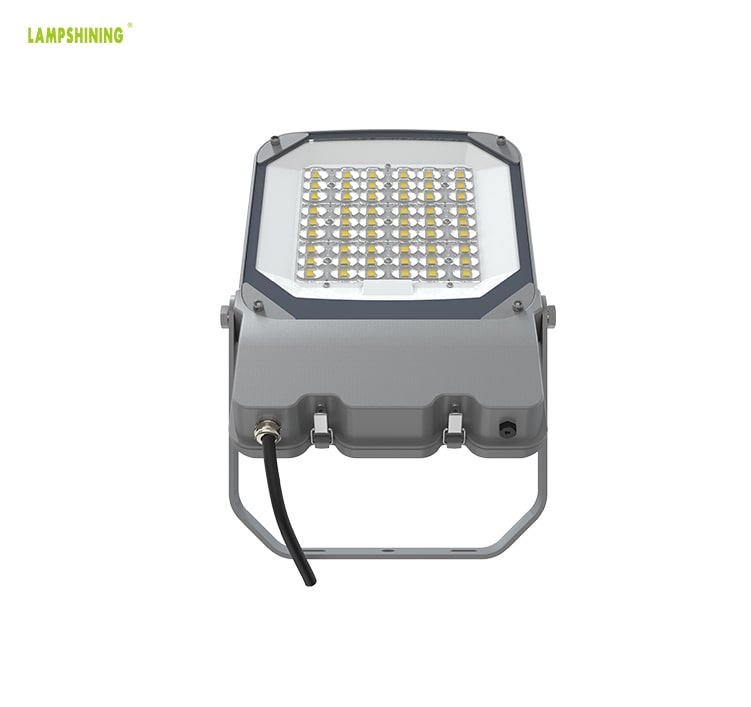

100W LED Flood Light

This high-quality NEMO EKO LED floodlight is designed with the latest technology, which is more convenient for installation and disassembly, and the light efficiency has reached 170Lm/W, which is compact and energy-saving. It is the best choice for signs, building facades, billboards, parking lots and landscape lighting.

Nemo EKO 100W LED Flood light


Size

Nemo EKO 100W LED Flood light size

Features

1.4mm thick installatior glass, impact resistance level reaches IK08;

2.The appearance of the wind resistance is small,and the heat dissipation is good;

3.Luminaires can be adjusted 270 degreesto meet a variet, of lighting needs;

Three characteristics of Nemo EKO 100W LED Flood light

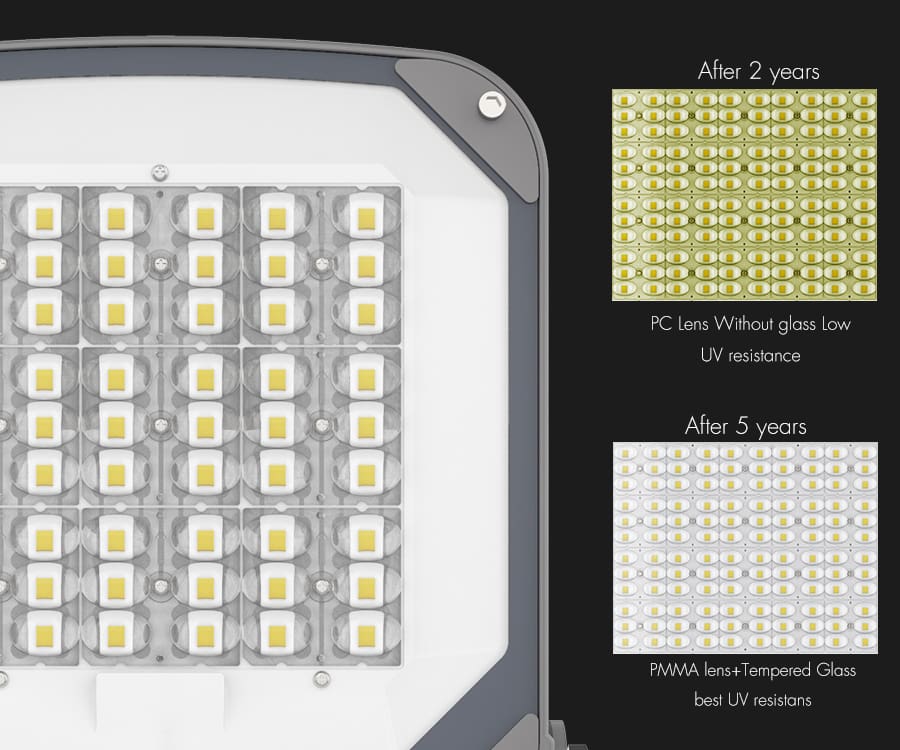

NEMO EKO LED floodlight uses Tempered Glass PMMA lens


NEMO EKO 100W LED floodlight uses Tempered Glass PMMA lens


Power box snap design, teolfree open, easy maintenance.


NEMO EKO 100W LED floodlight Power box snap design, teolfree open, easy maintenance


Photometrics

30, 60, 90, 120, P45(anti-glare), T2M, T3M

Nemo EKO LED Flood light 30, 60, 90, 120, P45, T2M, T3M beam angle

Installation

Optional plug wires and extended wires.

Installed plug is optional

Depending on the site, there are many ways to install lamps, the main ones are Wall Installation, Ceiling Installation, Pedestal Installot, and Pole Installation.


Nemo EKO 100W LED Flood light Wall,Ceiling,Pedestal,Pole Installation method


Application

The product has a wide range of applications, and can be used in External wall lighting, Billboard lighting, Area lighing, Dlandscape lighting, Shop sign lighting, Tunnel lighing.


Nemo EKO 100W LED Flood light can be applied to External wall, Bilboard, Area, landscape, Shop sign, Tunnel lighting


Photometrics

30, 60, 90, 120, P45(anti-glare), T2M, T3M

Nemo EKO LED Flood light 30, 60, 90, 120, P45, T2M, T3M beam angle

Accessories

Slip Fitter
Slip Fitter
Photocell sensorPhotocell sensor
1-10V Dimmable1-10V Dimmable
SPD 10KV or 20KVSPD 10KV or 20KV
NEMA 3pin PhotocellNEMA 3pin Photocell
Shorting CapShorting Cap


Packaging

100W:

1pc/CTN carton size: 47*30*12cm

GW: 5.0Kg
