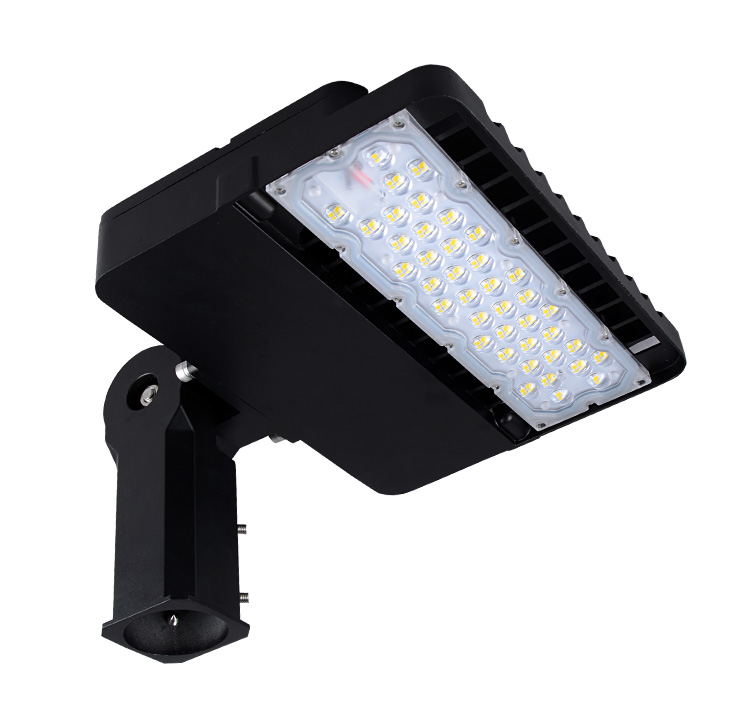

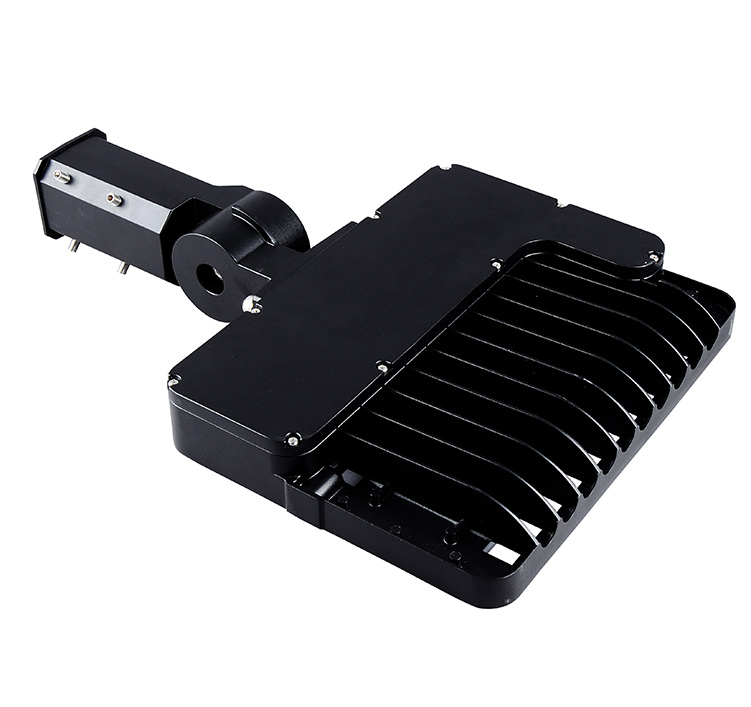

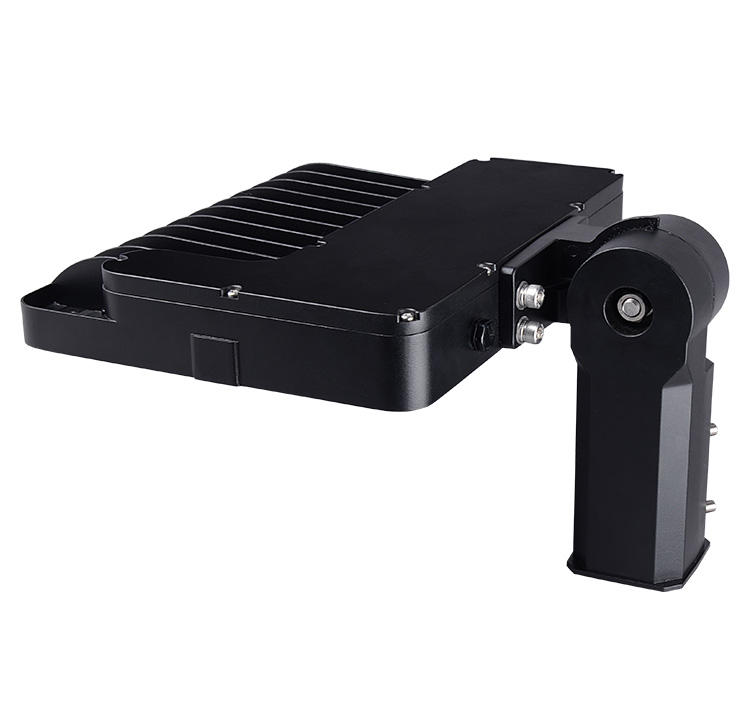

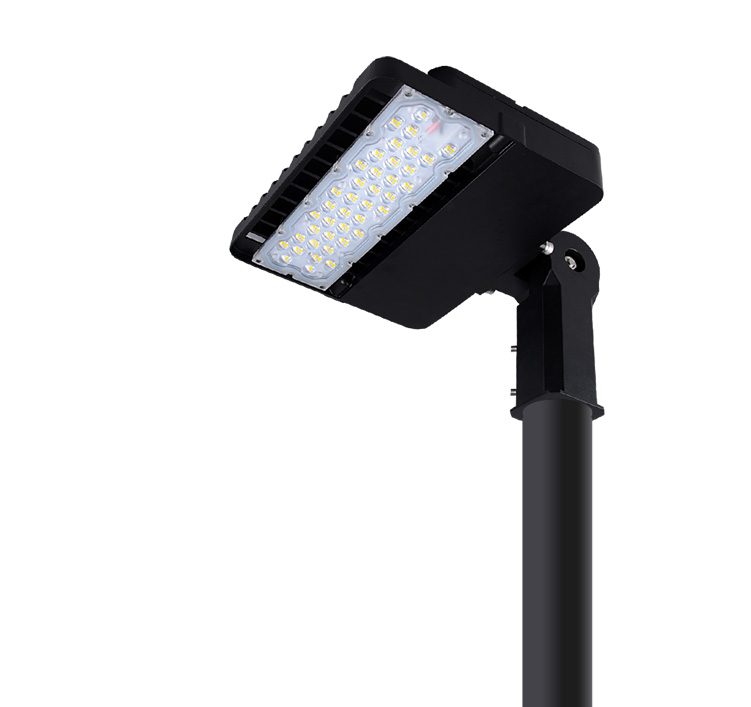

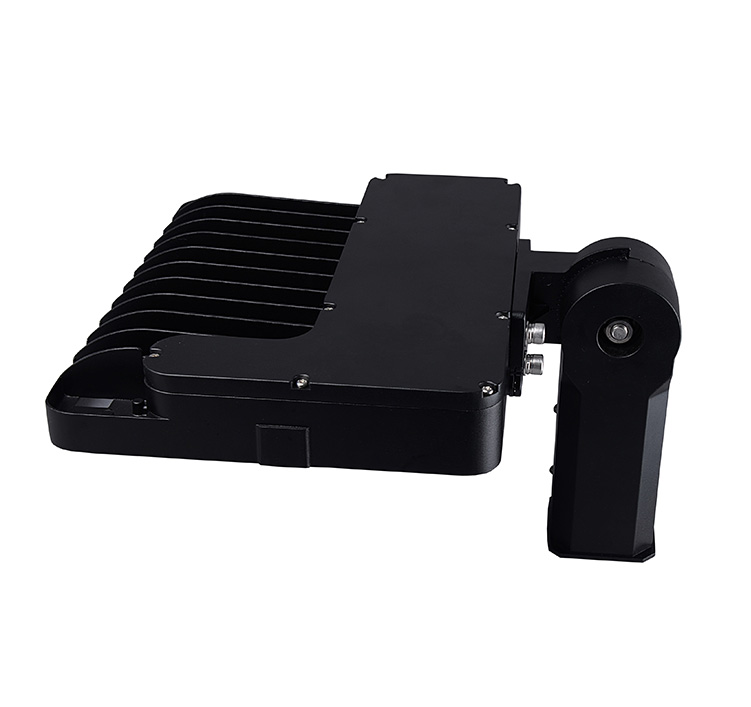

100W 347-480VAC LED Shoebox Light Fixtures Parking Lot Area Lighting
  • 100W 347-480VAC LED Shoebox Light Fixtures Parking Lot Area Lighting
  • 100W 347-480VAC LED Shoebox Light Fixtures Parking Lot Area Lighting
  • 100W 347-480VAC LED Shoebox Light Fixtures Parking Lot Area Lighting
  • 100W 347-480VAC LED Shoebox Light Fixtures Parking Lot Area Lighting
  • 100W 347-480VAC LED Shoebox Light Fixtures Parking Lot Area Lighting
  • 100W 347-480VAC LED Shoebox Light Fixtures Parking Lot Area Lighting
100W 347-480VAC LED Shoebox Light Fixtures Parking Lot Area Lighting100W 347-480VAC LED Shoebox Light Fixtures Parking Lot Area Lighting100W 347-480VAC LED Shoebox Light Fixtures Parking Lot Area Lighting100W 347-480VAC LED Shoebox Light Fixtures Parking Lot Area Lighting100W 347-480VAC LED Shoebox Light Fixtures Parking Lot Area Lighting100W 347-480VAC LED Shoebox Light Fixtures Parking Lot Area Lighting

100W 347-480VAC LED Shoebox Light Fixtures Parking Lot Area Lighting

●   Watt: 100W

●   Lumens: 14,000/ 17,000

●   Light Source: Cree 3030/ Lumileds 3030

●   Input Volt: 347-480VAC

●   IP Rating: IP65 - IK10

●   Size: 18.97*12.83*3.15''

●   Installation Hole: 2.5''

●   Lamp Weight: 5.5kg

●   CCT (Color Temp): 3000-6500K

●   5 years warranty

●   Beam Angle: 80*155 degree (TypeIII)

Inquire Now Next Product

100W 347-480VAC LED Shoebox Light Fixtures Parking Lot Area Lighting

Name:

Tel:

E-mail:

Country:

CAPTCHA:

Submit the information to obtain product spec sheet，Please make sure that your email address is absolutely correct！

Specification Sheet
  • Data Sheets
  • Beam Angle
  • Options/Accessories
  • Package details

Specifications

Model
LSSB-100W-LV(XXK)
watta100W
Lumen14,00017,000
Efficiency140LM/W±3%170Lm/W±3%
Light SourceCree 3030Lumileds 5050
Input Volt347-480VAC
CCT3000-6500K4000K/ 5000K
DefaultSlip fitter
Installation Hole64mm/ 2.5''
Size18.97*12.83*3.15''
Weight5.5kg
IP RatingIP65
Beam Angle80*155 degree (TypeIII)
Lifetime50,000+hours
Driver

Sosen driver SS-100VA-56

Replacement250W HID/Metal Halide
CertificationETL cETL CE RoHS


LED Shoebox Light Fxitures 100W 150W 300W 140Lm/W DCL ETL

led shoebox light fixtures advantage

LED Shoebox Light Fixtreus 100w 150w 300w


Size

100w led shoebox light fixtures size.jpg

Features and benefits

  • 5-year warranty

  • Photocell sensor available.

  • High Voltage 347-480VAC available.

  • Long life span and less brightness degradation.

  • Efficiency of power supply is more than 90%.

  • No UV and near-IR radiation in the light beam.

  • Slip fitter,Yoke bracket,square and round pole arm available.


347-480v LED Pole Light with Photocell.jpg


Optional Arms

led shoebox light fixtures four Optional Arms

80x155 degrees (TypeIII)

80x155 degrees (TypeIII)

Accessories

Slip fitter
Slip fitter
Square mount arm kitSquare mount arm kit
Round mount arm kitRound mount arm kit
Yoke bracketYoke bracket
Twist Lock PhotocellTwist Lock Photocell

Package details:

1pc/55*40*15cm

GW:5.5kg
