100W LED Shoebox Area Light Fixtures 170Lm/W 17000Lm
  • 100W LED Shoebox Area Light Fixtures 170Lm/W 17000Lm
  • 100W LED Shoebox Area Light Fixtures 170Lm/W 17000Lm
  • 100W LED Shoebox Area Light Fixtures 170Lm/W 17000Lm
  • 100W LED Shoebox Area Light Fixtures 170Lm/W 17000Lm
  • 100W LED Shoebox Area Light Fixtures 170Lm/W 17000Lm
  • 100W LED Shoebox Area Light Fixtures 170Lm/W 17000Lm
100W LED Shoebox Area Light Fixtures 170Lm/W 17000Lm100W LED Shoebox Area Light Fixtures 170Lm/W 17000Lm100W LED Shoebox Area Light Fixtures 170Lm/W 17000Lm100W LED Shoebox Area Light Fixtures 170Lm/W 17000Lm100W LED Shoebox Area Light Fixtures 170Lm/W 17000Lm100W LED Shoebox Area Light Fixtures 170Lm/W 17000Lm

100W LED Shoebox Area Light Fixtures 170Lm/W 17000Lm

●   Watt - 100W

●   Lumens - 14,000/ 17,000

●   Light Source - Lumileds 3030

●   Input Volt - 100-277VAC

●   IP Rating - IP65 - IK10

●   Size - 18.97*12.83*3.15''

●   Installation Hole - 2.5''

●   Lamp Weight - 5.5kg

●   CCT (Color Temp) - 3000-6500K

●   5 years warranty

●   Beam Angle - 80*155 degree (TypeIII)

Inquire Now

100W LED Shoebox Area Light Fixtures 170Lm/W 17000Lm

Name:

Tel:

E-mail:

Country:

CAPTCHA:

Submit the information to obtain product spec sheet,Please make sure that your email address is absolutely correct!

Specification Sheet
  • Data Sheets
  • Beam Angle
  • Options/Accessories
  • Package details

Specifications

Model
LSSB-100W-LV(XXK)
watta100W
Lumen14,00017,000
Efficiency140LM/W±3%170Lm/W±3%
Light SourceCree 3030Lumileds 5050
Input Volt100-277VAC
CCT3000-6500K4000K/ 5000K
DefaultSlip fitter
Installation Hole64mm/ 2.5''
Size18.97*12.83*3.15''
Weight5.5kg
IP RatingIP65
Beam Angle80*155 degree (TypeIII)
Lifetime50,000+hours
Driver

Sosen driver SS-100VA-56

Replacement250W HID/Metal Halide
CertificationETL cETL CE RoHS

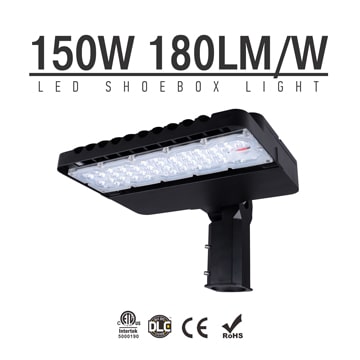

LED Shoebox Light Fxitures 100W 150W 300W  140Lm/W  DCL ETL

LED Shoebox Light Fixtures 100w 150w 300w.jpg

Size

100w shoebox light fixtsize size.jpg

Features and benefits

  • 5-year warranty

  • Photocell sensor available.

  • High Voltage 347-480VAC available.

  • Long life span and less brightness degradation.

  • Efficiency of power supply is more than 90%.

  • No UV and near-IR radiation in the light beam.

  • Slip fitter,Yoke bracket,square and round pole arm available.


LED Pole Light with Photocell.jpg


Optional Arms

led shoebox light fixtures four Optional Arms.jpg

80x155 degrees (TypeIII)

80x155 degrees (TypeIII)

led shoebox light fixtures four Optional Arms.jpg

Package details:

1pc/55*40*15cm

GW:5.5kg
