240W Slim Pro LED Flood Light 40800lm - Daylight White Outdoor Waterproof Portable Work Flood Light Fixtures

●   Watt: 240W

●   Lumens: 37,200/ 40,800

●   Light Source: Lumileds 5050

●   Input Volt: 100-277VAC

●   IP Rating: IP66 - IK10

●   Size: 342*362*132mm

●   Lamp Weight: 5.5kg

●   CCT (Color Temp): 3000, 4000, 5000, 6000

●   5 years warranty

●   Beam Angle: 10/20/40/60/90/140*100/135*60(P50)

Inquire Now Next Product

240W Slim Pro LED Flood Light 40800lm - Daylight White Outdoor Waterproof Portable Work Flood Light Fixtures

Name:

Tel:

E-mail:

Country:

CAPTCHA:

Submit the information to obtain product spec sheet,Please make sure that your email address is absolutely correct!

Specification Sheet
  • Data Sheets
  • Beam Angle
  • Options/Accessories
  • Package details

Specifications

Model No.LSHM‐240W‐LV(XXK)
Watt
240W
Lumen37,200
40,800
Efficiency155Lm/W±3%170Lm/W±3%
Input Volt100-277VAC
Chip BrandLumileds/ Osram 5050
CCT3000K 4000K 5000K 5700K 6500K4000K, 5000K
ModulesRotatable
Weight5.5kg

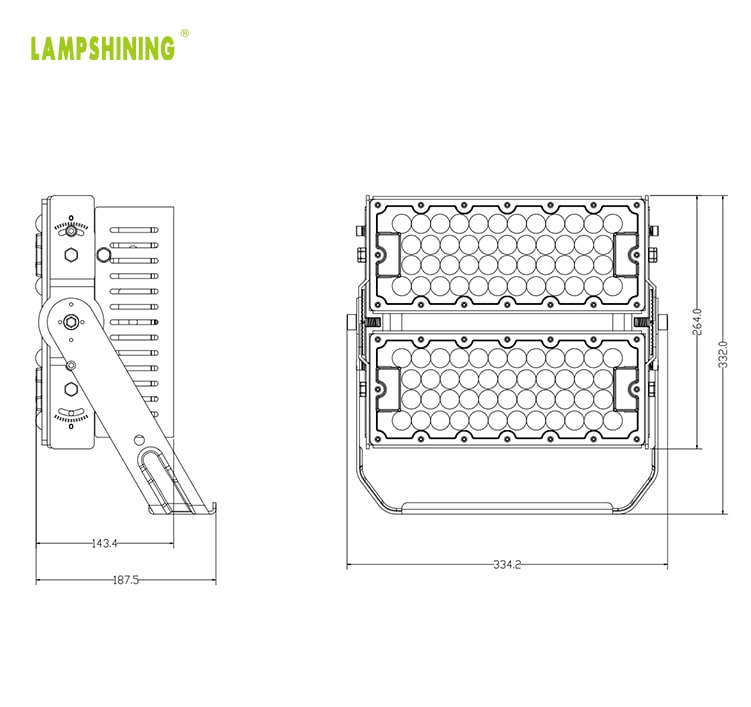

Size342*362*132mm
Beam Angle10/ 20/ 40/ 60/ 90 degree/ 140*100/ 135*60 degree(P50)
DriverMeanwell XLG-240-H-A
Wind rating51.0-56.0m/s
IP RatingIP66 & IK10
CRIRa70 (Ra80, Ra90 optional)
DimmableOptional dimmable and non-dimmable
CertificationENEC REACH ETL DLC TUV CE CB SAA RoHS LM79 LM80 TM21 Salt Spray test approved
Life TimeL70/B10 >50,000hours
Warranty5 Years / 7 years extended warranty available


240W Module LED Flood Lights

240W Slim Pro LED Flood Light

ENEC REACH ETL DLC TUV CE CB SAA RoHS LM79 LM80 TM21 Salt Spray test approved certified icon


  • 170Lm/W can save a lot of energy consumption for your stadium sports field and get more and higher quality light;

  • 200 watt Module LED Flood light can emit 35,000 lumens of light and can replace 500-600 watt metal halide MH or HPS / HID lamps. 3000-6500K optional light colors ensure that bright and clear light with different color temperatures can be selected in different scenes;

  • Using folding Aluminum Fin design, light weight, Thermal effect is good;

  • The bracket can be rotated up and down for easy adjustment, and can be installed in various ways. Ideal for directing light more precisely in the right direction or areas with special lighting requirements. It is the best installation or refurbishment option for basketball courts, football fields, baseball fields, golf courses and other sports fields;


Color

slim pro LED Flood Lights color, black and white


Why Choose 240W Module LED Flood Lights?

slim pro led flood light module adjustable

1.High luminaire efficiency up to 170lm/w

2.Marine grade aluminum housing

3.IP66 and IK10 protection rate

4.5 years warranty

5.Folding aluminum fin design which are very light weight

6.ENEC ETL DLC TUV CE CB SAA RoHS LM79 LM80 TM21 IK10 Salt Spray test approved

7.Module Rotatable ±25° ,Separate module can be mounted on the same robust bracket to offer the utmost flexibility.

Module Adjustment Installation

1.Folding aluminum fin design

Lightweight, fast heat dissipation. Increase the heat dissipation surface area by air coolingto dissipate heat and expand the contact area with air! It speeds up the spread of heat! Thermal effect is good.


slim pro LED Flood Lights Folding aluminum fin


2.Protection class

1.IP66 & Lightning protection & IK10. Waterproof IP66 and lightning protection 10/20KV, IK10 protective design allows Slim PRO LED High MAST LIGHT to withstand harsh environments;

2.Each module of slim pro high mast lights series comes with M20 Waterproof Breathable Pressure Relief Vent Plug;


introduce waterproof,lightning protection, ik10 design

M20 Waterproof Breathable Pressure Relief Vent Plug


Photometrics

The optical lens is made of PC, and the transmittance reaches 92%,reducing light loss,maximize the lumens on where it should be lit up and evenness, minimize lighting pollution to nature and human life.

10/ 20/ 40/ 60/ 90 degree/ 140*100/ 135*60 degree(P50) beam angle

Certification Testing


Installation

1.Wall installation 2. Ground installation 3.Pole installation


slim pro LED Flood Lights installation method


Application

Slim Pro LED Flood Light is very suitable for large areas such as sports fields, stadiums, Racing track, Ballpark airports, terminals, etc.

application

Beam angle

The optical lens is made of PC, and the transmittance reaches 92%,reducing light loss,maximize the lumens on where it should be lit up and evenness, minimize lighting pollution to nature and human life.

Slim Pro 240W LED High Mast Light

Accessories

347-480VAC Sosen driver

1-10V Dimmable
10KV or 20KV SPD
Slip fitterSlip fitter
Round Installation plateRound Installation plate
Anti glared visorAnti glared visor
Laser pointerLaser pointer
Remote driver boxRemote driver box


Package details

Wattage240W
Size of box(cm)
39*38*26
Weight7.0kg
