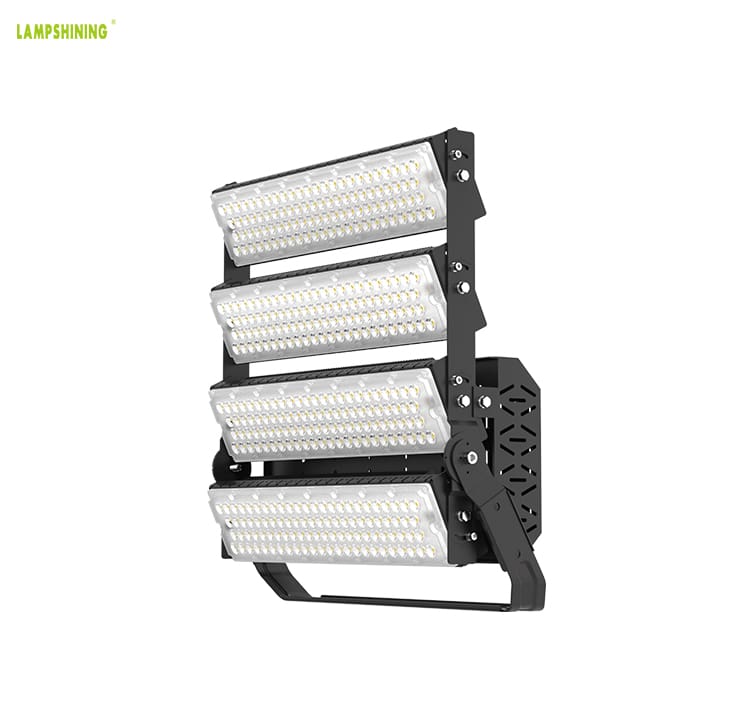

1000W LED Sports Lighting, 175LM/W, 175,000 lumens, 100-277V, 2000W Equivalent

●   Watt: 1000W

●   Lumens: 160,000/ 175,000

●   Light Source: Lumileds 5050

●   Input Volt: 100-277VAC

●   IP Rating: IP66 - IK10

●   Size: 729*650*188mm

●   Lamp Weight: 20kg

●   CCT (Color Temp): 3000, 4000, 5000, 6000

●   5 years warranty

●   Beam Angle: 10/20/40/60/90/140*100/135*60(P50)

●   Price: 1-9999(Contact us)

Inquire Now Next Product

1000W LED Sports Lighting, 175LM/W, 175,000 lumens, 100-277V, 2000W Equivalent

Name:

Tel:

E-mail:

Country:

CAPTCHA:

Submit the information to obtain product spec sheet,Please make sure that your email address is absolutely correct!

Specification Sheet
Model No.LSHM‐B1000W‐LV(XXK)
Watt
1000W
Lumen160,000
Efficiency160Lm/W±3%
Input Volt100-277VAC
Chip BrandLumileds/ Osram 5050
CCT3000K 4000K 5000K 5700K 6500K
Weight16kg
Size650*597*188mm
Beam Angle10/ 20/ 40/ 60/ 90 degree/ 140*100/ 135*60 degree(P50)
DriverMeanwell 4pcs XLG-240-H-A
Driver(Optional)Sosen 4pcs SS-200VA-56
Wind rating51.0-56.0m/s
IP RatingIP66 & IK10
CRIRa70 (Ra80, Ra90 optional)
DimmableOptional dimmable and non-dimmable
CertificationENEC REACH ETL DLC TUV CE CB SAA RoHS LM79 LM80 TM21 Salt Spray test approved
Life TimeL70/B10 >50,000hours
Warranty5 Years / 7 years extended warranty available
Model No.LSHM‐B1000W‐LV(XXK)
Watt
1000W
Lumen175,000
Efficiency175Lm/W±3%
Input Volt100-277VAC
Chip BrandLumileds/ Osram 5050
CCT4000K, 5000K
Weight16kg
Size650*597*188mm
Beam Angle10/ 20/ 40/ 60/ 90 degree/ 140*100/ 135*60 degree(P50)
DriverMeanwell 4pcs XLG-240-H-A
Driver(Optional)Sosen 4pcs SS-200VA-56
Wind rating51.0-56.0m/s
IP RatingIP66 & IK10
CRIRa70 (Ra80, Ra90 optional)
DimmableOptional dimmable and non-dimmable
CertificationENEC REACH ETL DLC TUV CE CB SAA RoHS LM79 LM80 TM21 Salt Spray test approved
Life TimeL70/B10 >50,000hours
Warranty5 Years / 7 years extended warranty available
Model No.LSHM‐B1000W‐LV(XXK)
Watt
1000W
Lumen185,000Lm
Efficiency185Lm/w±5%
Input Volt100-277VAC
Chip BrandLumileds 5050
CCT3000K~6000K
Weight16kg
Size650*597*188mm
Beam Angle25° / 40° / 60°
DriverMeanwell or Sosen drive
Driver(Optional)Sosen 4pcs SS-200VA-56
Wind rating51.0-56.0m/s
IP RatingIP66 & IK10
CRIRa70 (Ra80, Ra90 optional)
DimmableOptional dimmable and non-dimmable
CertificationENEC REACH ETL DLC TUV CE CB SAA RoHS LM79 LM80 TM21 Salt Spray test approved
Life TimeL70/B10 >50,000hours
Warranty5 Years / 7 years extended warranty available

Slim Pro LED Sports Flood Light 1000W

Slim Pro LED Sports Flood Light 1000W

Slim Pro LED Sports Flood Light is a perfect Outdoor lighting solution for Stadium.

1000W

Lumileds 5050

160Lm/W/ 175Lm/W

3000K-6000K

ETL DLC ENEC TUV CE CB SAA RoHS

LM79 LM80 TM21 Salt Spray test approved

High quility LED Brand

High quility LED Brand

Uses Lumileds 5050, High Efficiency 155-170Lm/W.

Lumileds 5050

Folding aluminum fin design

Folding aluminum fin design

Lightweight, fast heat dissipation. Increase the heat dissipation surface area by air coolingto dissipate heat and expand the contact area with air! It speeds up the spread of heat! Thermal effect is good.

Folding aluminum fin

IP66 & Lightning protection & IK10

IP66 & Lightning protection & IK10

IP66 & Lightning protection & IK10. Waterproof IP66 and lightning protection 10/20KV, IK10 protective design allows Slim pro led sports light to withstand harsh environments;

IP66

Lightning protection

IK10

Module Rotatable

Module Rotatable

Module Rotatable ±25° ,Separate module can be mounted on the same robust bracket to offer the utmost flexibility.

Module Rotatable

Breathable Pressure Relief Vent Plug

Breathable Pressure Relief Vent Plug

Each module of slim pro led sport light comes with M20 Waterproof Breathable Pressure Relief Vent Plug


M20 Waterproof Breathable Pressure Relief Vent Plug

Other Watt

Slim ProE LED Flood Light is available in wattage from 400W to 1440W, which is the best choice to replace the existing MH/HID Outdoor Area lights of 1000W-3000W.

Beam Angle

Beam Angle

The optical lens is made of PC, and the transmittance reaches 92%,reducing light loss,maximize the lumens on where it should be lit up and evenness, minimize lighting pollution to nature and human life.

10°

20°

40°

60°

90°

135*60°(P50)

Application

Airports, stadiums, docks, construction sites, construction towers, highway crossroads, highways, shipyards, aircraft factories

Accessories

347-480VAC Sosen driver

1-10V Dimmable
10KV or 20KV SPD
Slip fitterSlip fitter
Round Installation plateRound Installation plate
Anti glared visorAnti glared visor
Laser pointerLaser pointer
Remote driver boxRemote driver box


WattSize
1000W1pc/ 650*597*188mm

slim pro 1000w led sports light size
