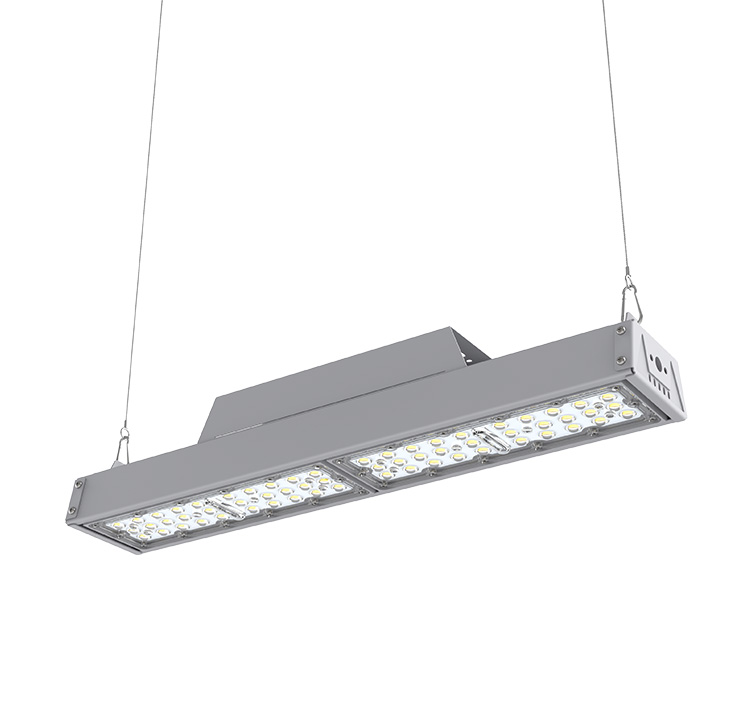

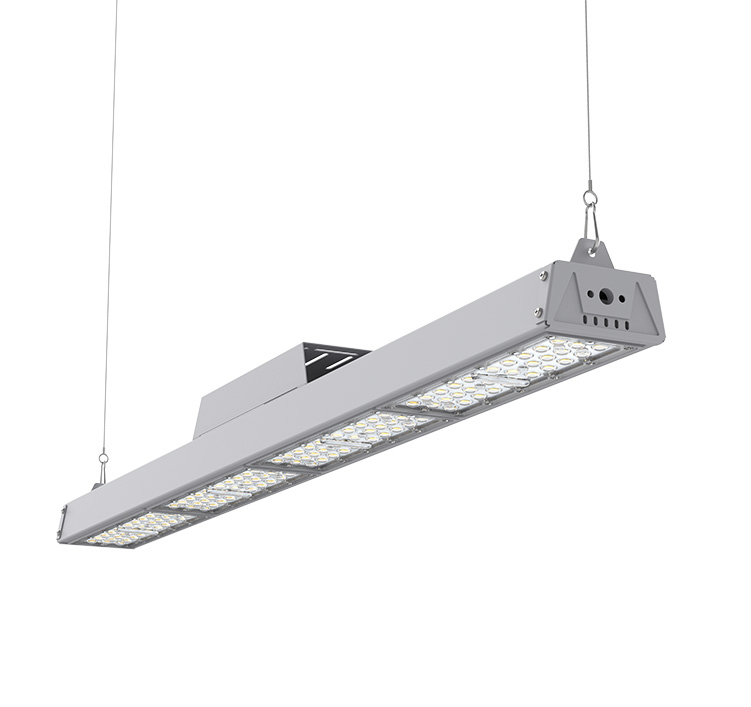

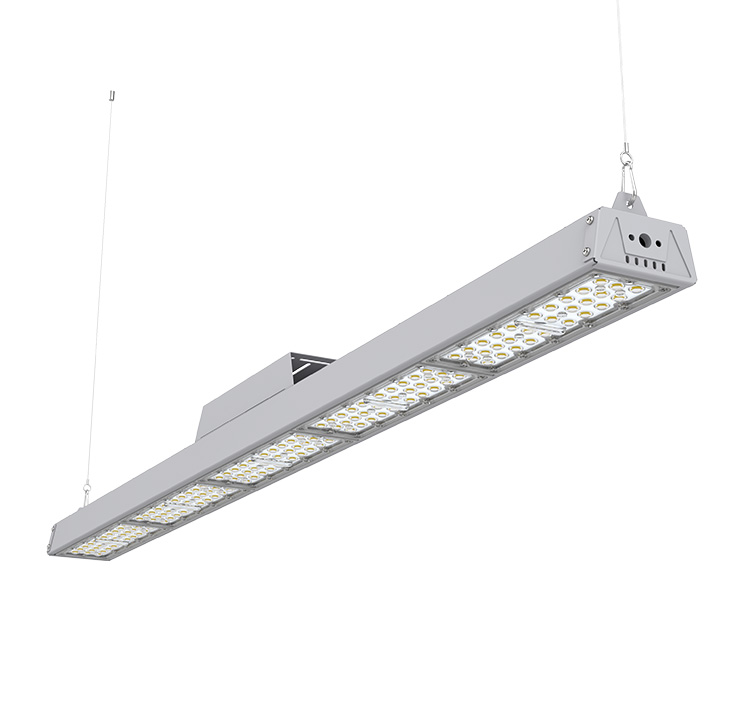

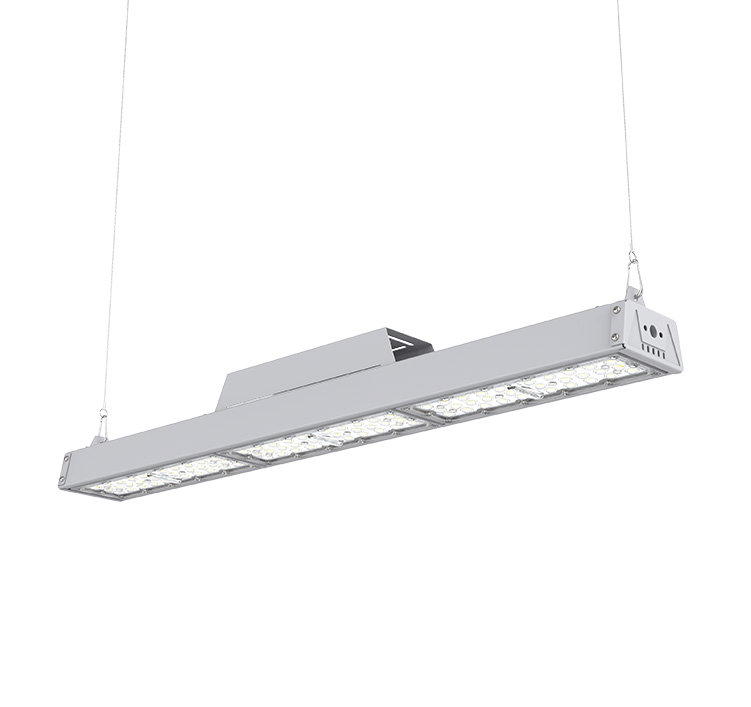

Linear High Bay Lights,Industrial LED Lighting 50W-300W

● Watt: 50W to 300W

● Lumens: 9500Lm ~57000Lm

● Light Source: SMD 5050

● CCT (Color Temp): 3000K-6000K

● Input Volt: 100-277VAC

● Beam Angle: 60°/90°/120°

● IP & IK Rating : IP65/IP54 & IK10

● Each lamp comes with 2sets of 1m irerope+2hooks

● 5 years warranty

Inquire Now Specification Sheet

Product Details

Accessories Options

Dimensions

190Lm/W →

Model	LSLHBL-50W	LSLHBL-100W	LSLHBL-150W	LSLHBL-200W	LSLHBL-240W	LSLHBL-300W
Wattage	50W	100W	150W	200W	240W	300W
Input Voltage	100-277VAC , 347-480VAC (Optional) 50/60 Hz
Driver	Moso / Sosen
LED Brand	SMD 5050
Efficiency	190LM/W±3%
Lumen	9500Lm	19000Lm	28500Lm	38000Lm	45600Lm	57000Lm
IP Rating	Moso Driver (IP65), Sosen Driver (IP54)
IK Rating	IK10
Beam Angle	60°/90°/120°
Color Temp	3000K-6000K
Surge protection	6KV
Motion Sensor Optional	Sensing Height 13m(MAX), Sensing Distance 6m(Radius)
Mount	Each lamp comes with 2sets of 1m irerope+2hooks (Optional ceiling and wall mounting kit)

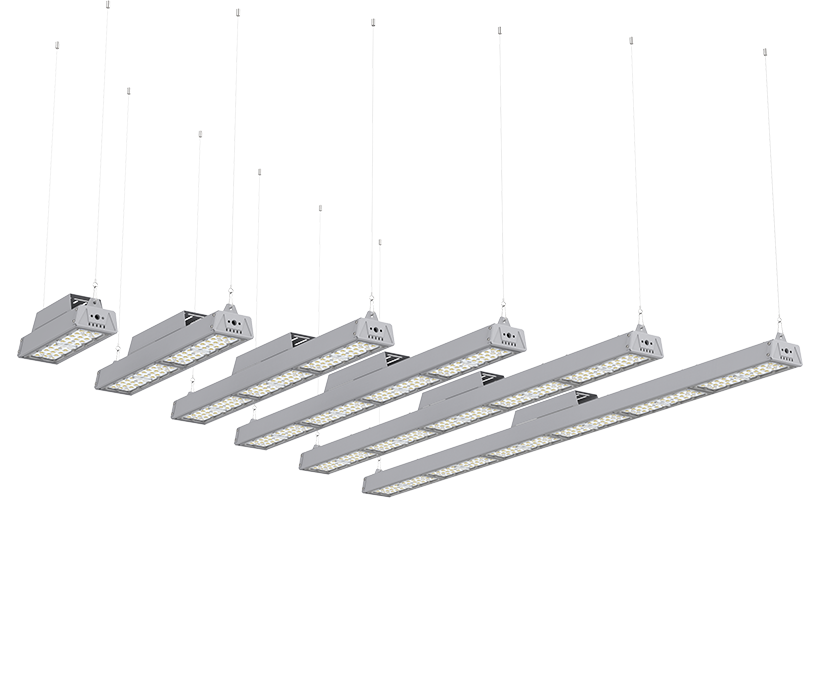

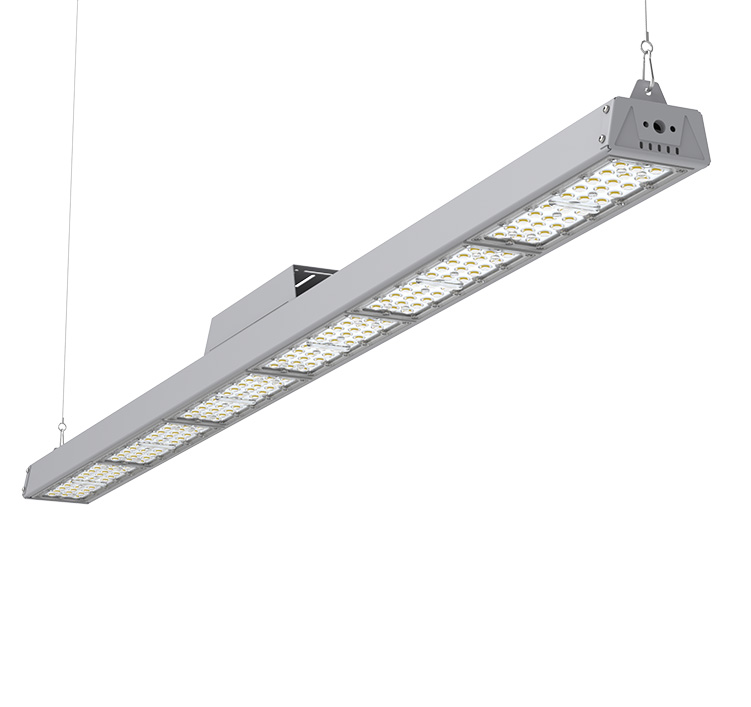

3th Gen Linear LED High Bay Lights 50W to 300W

IP54/IP65 and IK10 Protection Rate.

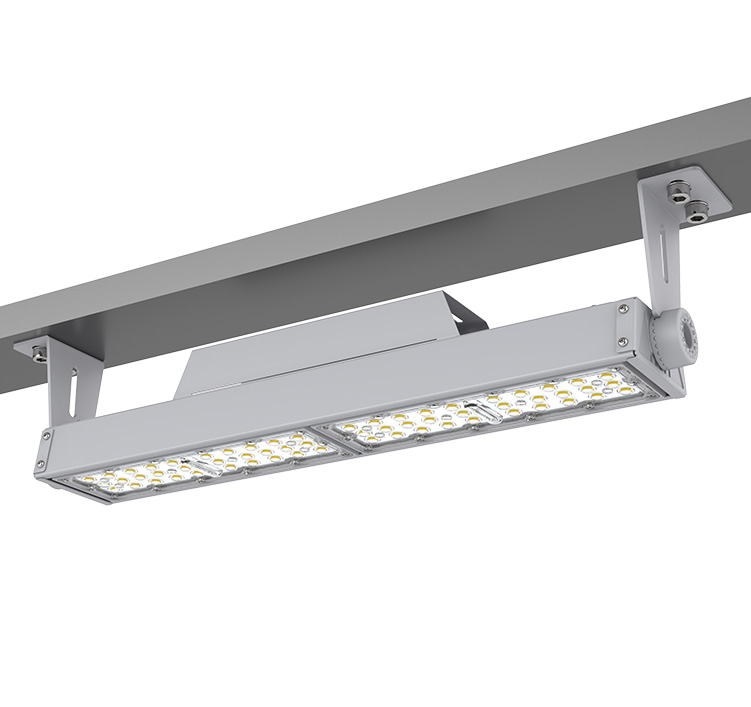

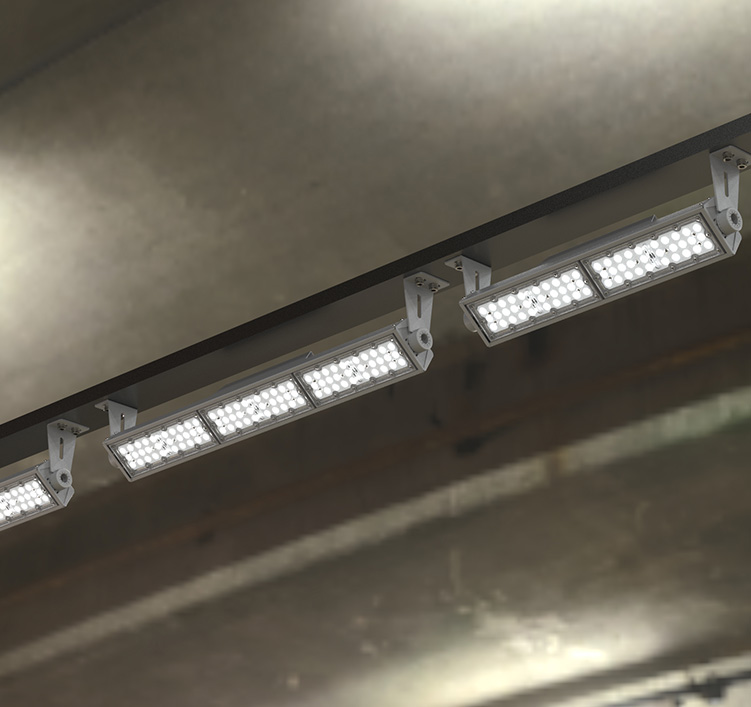

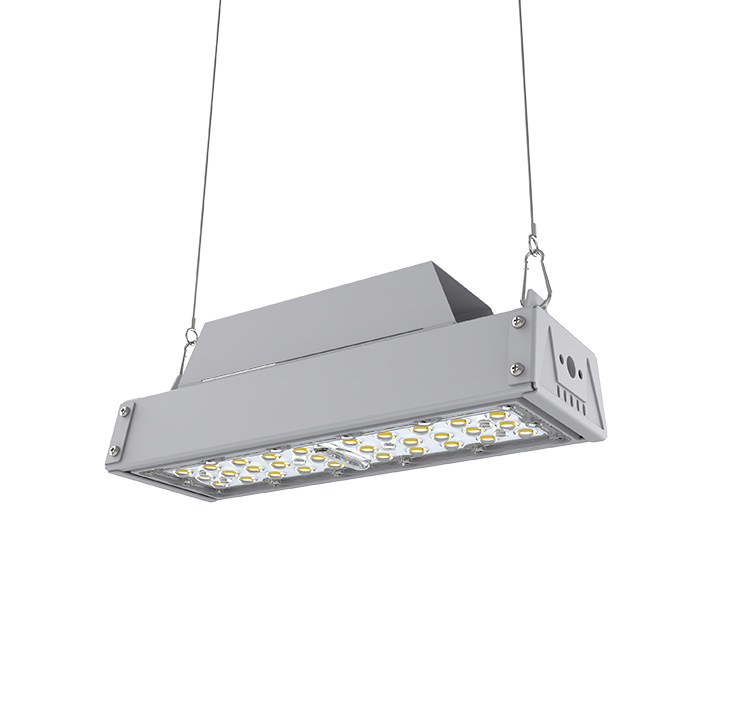

Suspension mount or Ceiling mount

SMD 5050 Which up to 190Lm/W

Various intelligent control: 1-10V, Dali, Microwave sensor, PIR sensor and Emergency.

Housing is made of a combination of high thermal conductivity aluminum extruded radiator.

Tiny package and lighter,lower freight cost,more competitive in the market.

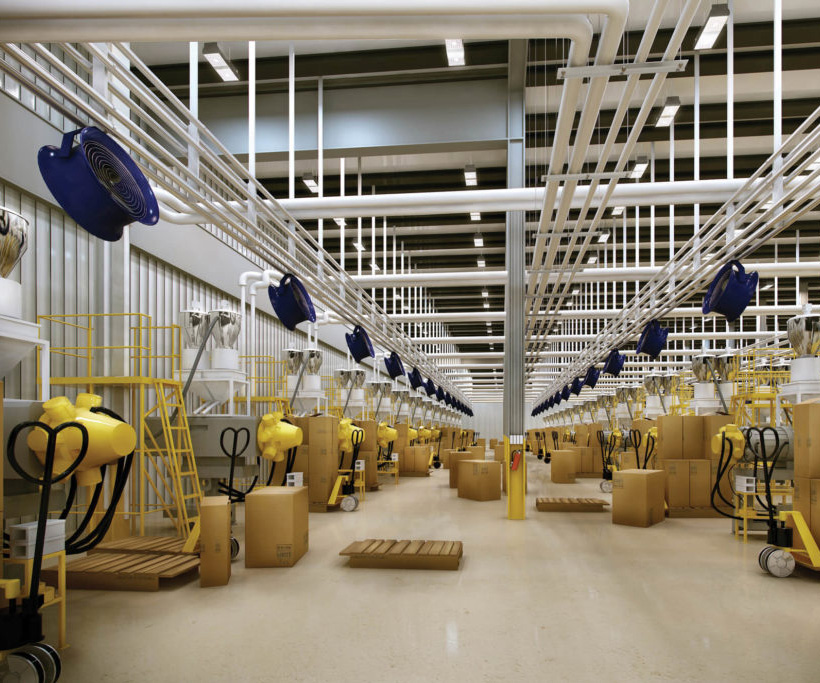

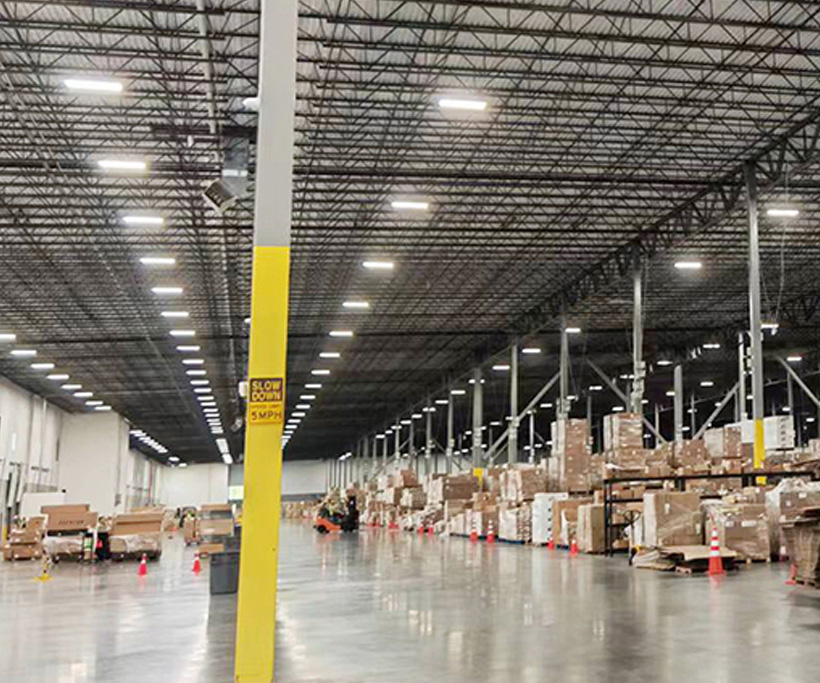

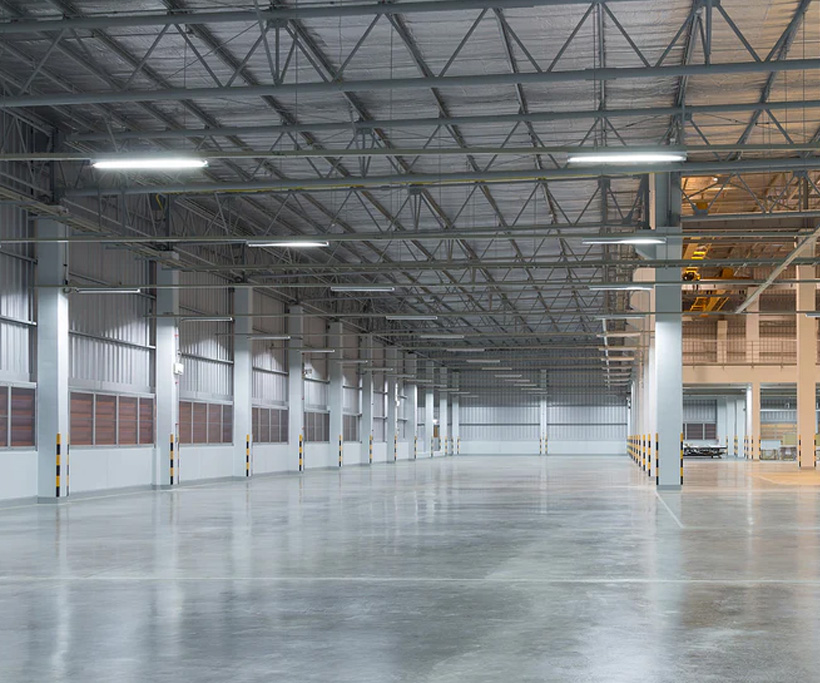

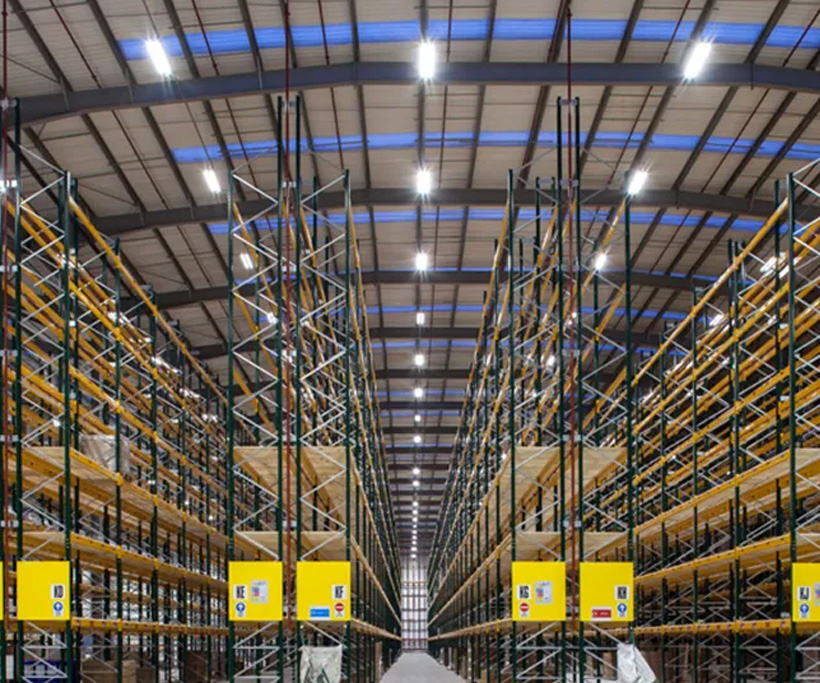

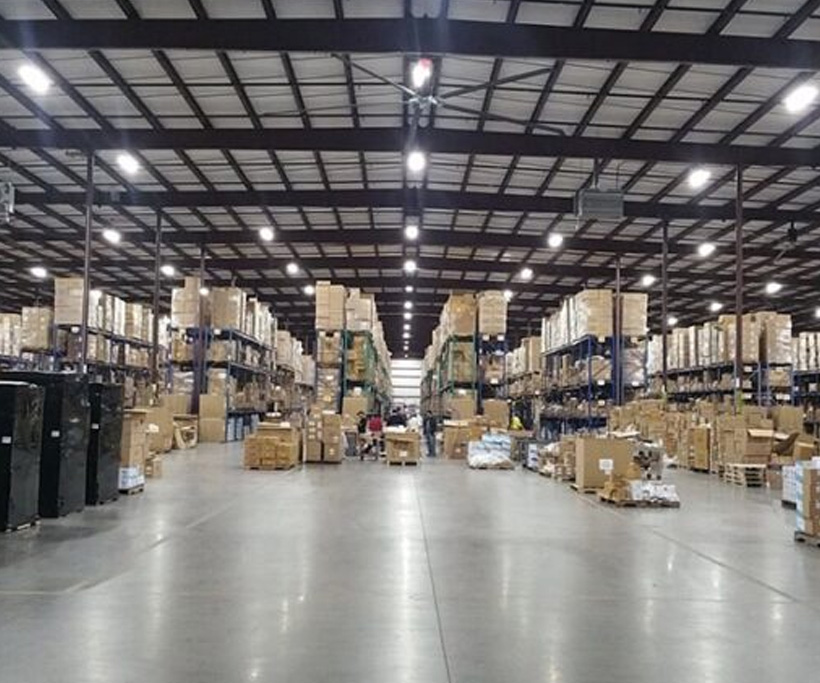

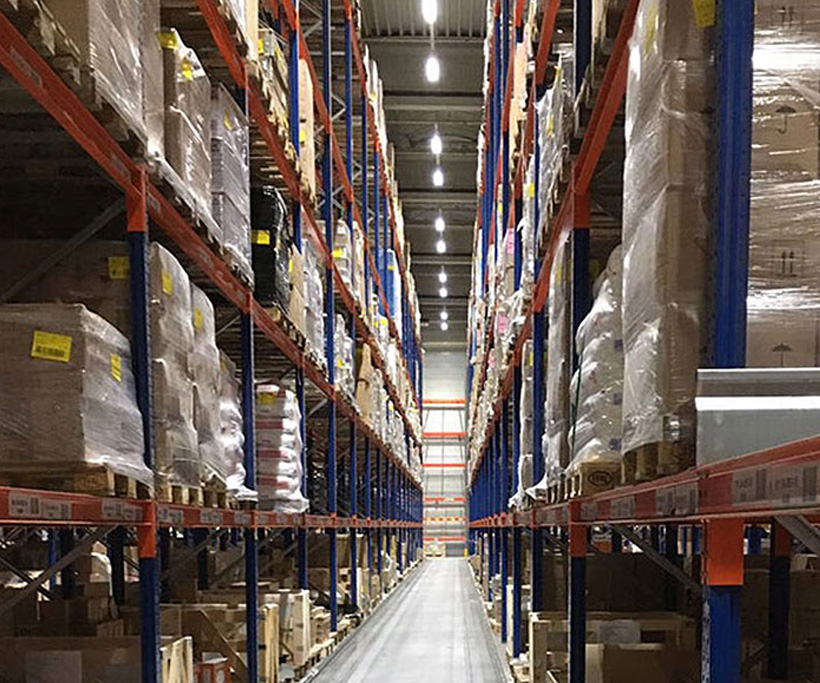

Avaialble for warehouse,tunnel lighting,advertisement ,gas station and factory lighting etc.

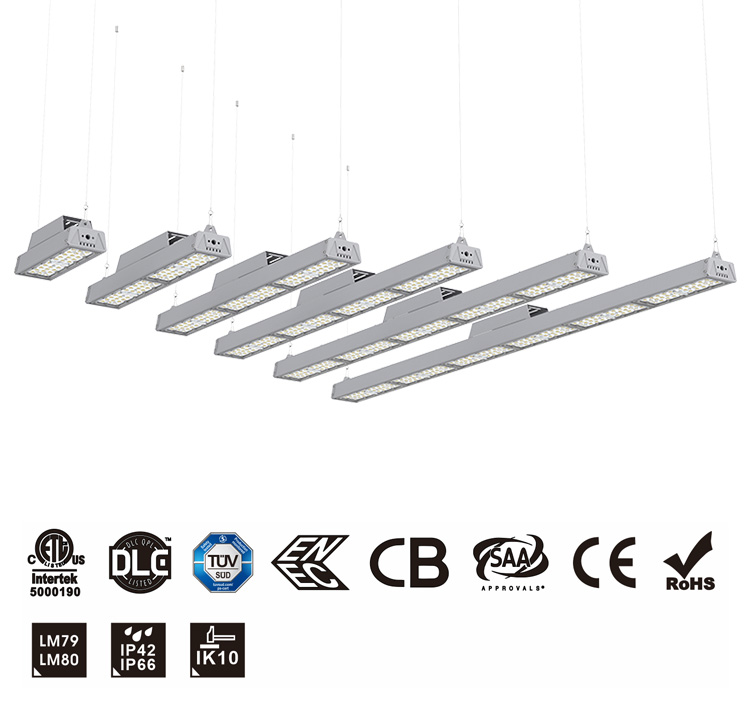

ETL

DLC

TUV

ENEC

SAA

RoHS

IP54/IP65

IK10

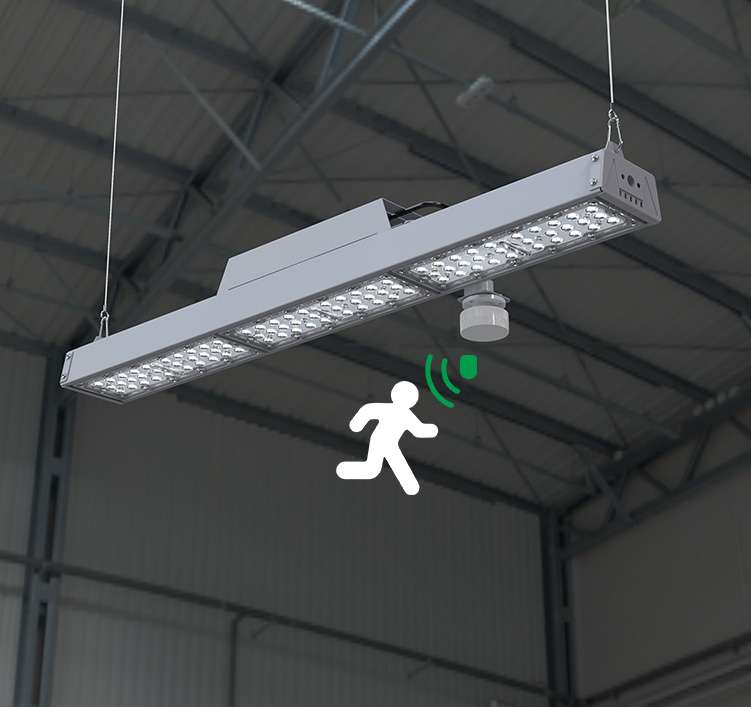

Motion Sensor Linear LED High Bay Lighting

Each fixture can be used with or without a sensor

A sensor can be easily added at any time

Sensor settings can be adjusted from the ground via remote control

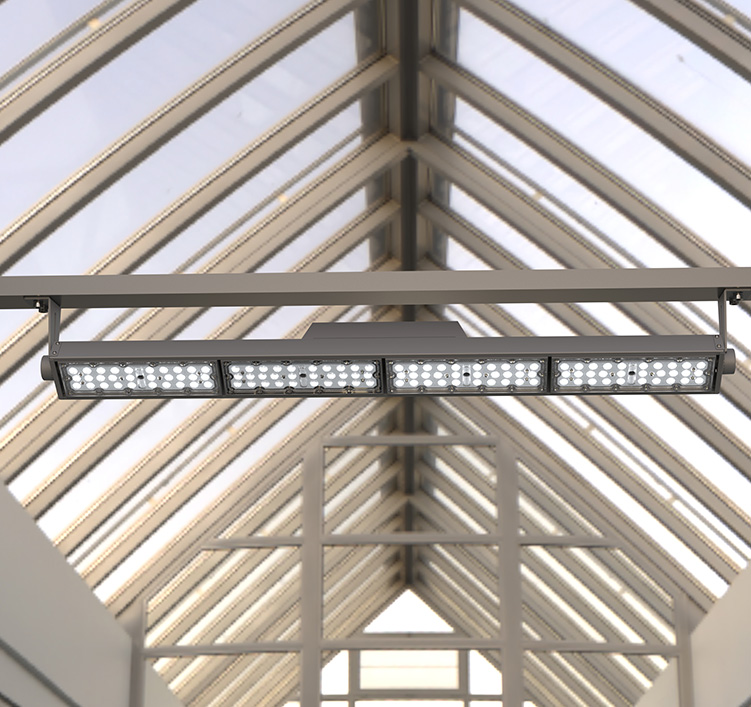

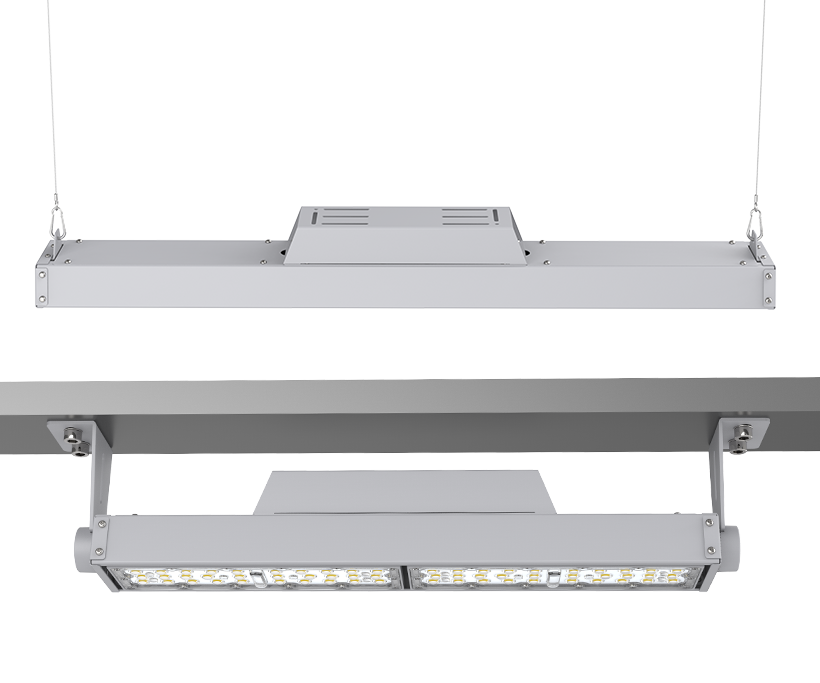

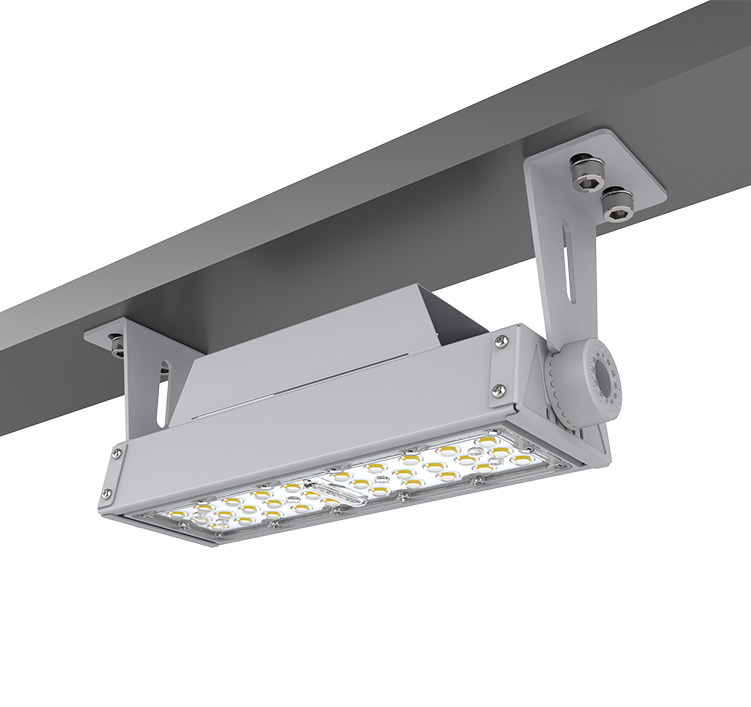

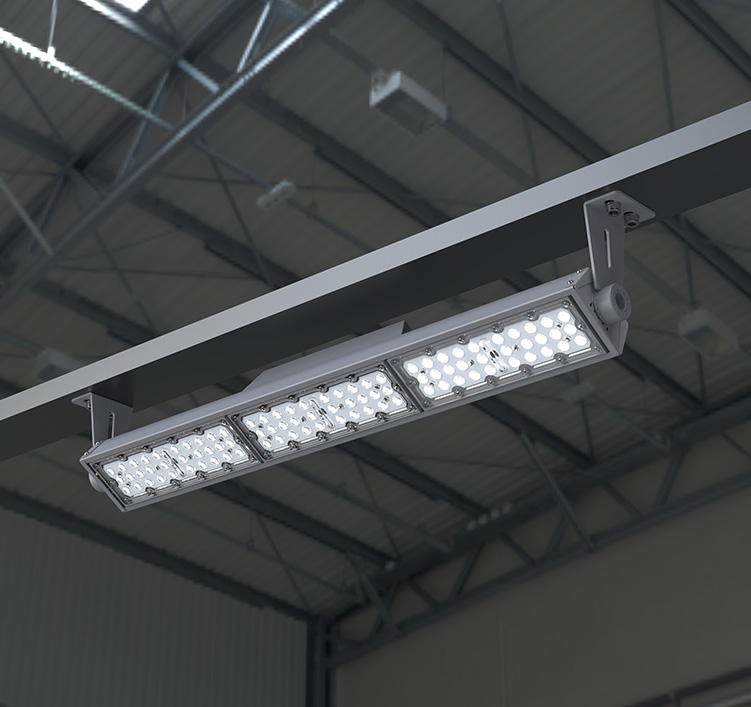

Suspension mount or Ceiling Mount

Linear High Bay LED Light 50W to 300W - Commercial Linear Fixtures - Suspension or Surface Mount - Multiple Wattages and Sizes Available With Different Accessories

Beam Angle (PHOTOMETRICS)
