20W 2,800lm LED 120 Degree Post top Luminaire - 4m Pole Outdoor Light is equivalent to 60W MH lamp

●   Watt: 20W

●   Lumens: 2,800

●   Light Source: Osram 2835

●   Input Volt: 100-277VAC

●   IP Rating: IP65 - IK10

●   Size: 400*400*630.5mm

●   Arm Diameter: 76mm/ 3"

●   Lamp Weight: 6.8kg

●   CCT (Color Temp): 3000K-6000K

●   5 years warranty

●   Beam Angle: 120 degree

Inquire Now Next Product

20W 2,800lm LED 120 Degree Post top Luminaire - 4m Pole Outdoor Light is equivalent to 60W MH lamp

Name:

Tel:

E-mail:

Country:

CAPTCHA:

Submit the information to obtain product spec sheet,Please make sure that your email address is absolutely correct!

Specification Sheet
ModelLSPT-20W-LV(XXK)PRO
Watt20W
Lumen2,800
Efficiency(with arm)140Lm/W±3%
Efficiency(without arm)160Lm/W±3%
Input Volt100-277VAC
Chip BrandOsram 2835
DriverSosen SS-30VA-56
IP & IK RatingIP65 & IK10
CCT3000K-6000K
Weight6.8Kg
Dimension400*400*630.5mm / 15.75*15.75*24.8 in
Beam angle120 degree
CertificationENEC. TUV, CE, CB, SAA, ROSH, LM79, LM80, TM21, Salt Spray test approved

Pro LED Post Top Lights 20W

Pro LED Post Top Lights 20W

Pro LED Post Top Lights is a perfect Outdoo lighting solution for parks gardens and pathways.

20W

140Lm/W

3000K-6000K

ENEC TUV CE CB SAA RoHS

LM79 LM80 TM21 Salt Spray test approve

High brightness

High brightness

Using high-quality lamp beads to reduce light waste, the utilization rate of light is higher, CRI>70, the light efficiency can reach 140Lm/W!

Lumileds 2835

Aluminum radiator

Aluminum radiator

The PRO LED Post Top Light shell adopts aluminum heat sink and sheet metal frame, which has better heat dissipation and longer life.

Aluminum radiator

Top-down glowing design

Top-down glowing design

Pro series landscape lights use the top-down lighting design, the loss of light is smaller, and the brightness of the ground is increased;

Top-down glowing design

Waterproof IP65

Waterproof IP65

The Pro LED Post Top Light is IP65 waterproof, making it safer to use outdoors.

Waterproof IP65

High energy efficiency

High energy efficiency

Our pro led post top light can emit 2800-7800Lm of light and the efficiency is as high as 140LM/W. 20W-60W LED post top light can replace 60W-150W metal halide. You will save 75% of energy consumption after replacement.

High energy efficiency

Easy to install

Easy to install

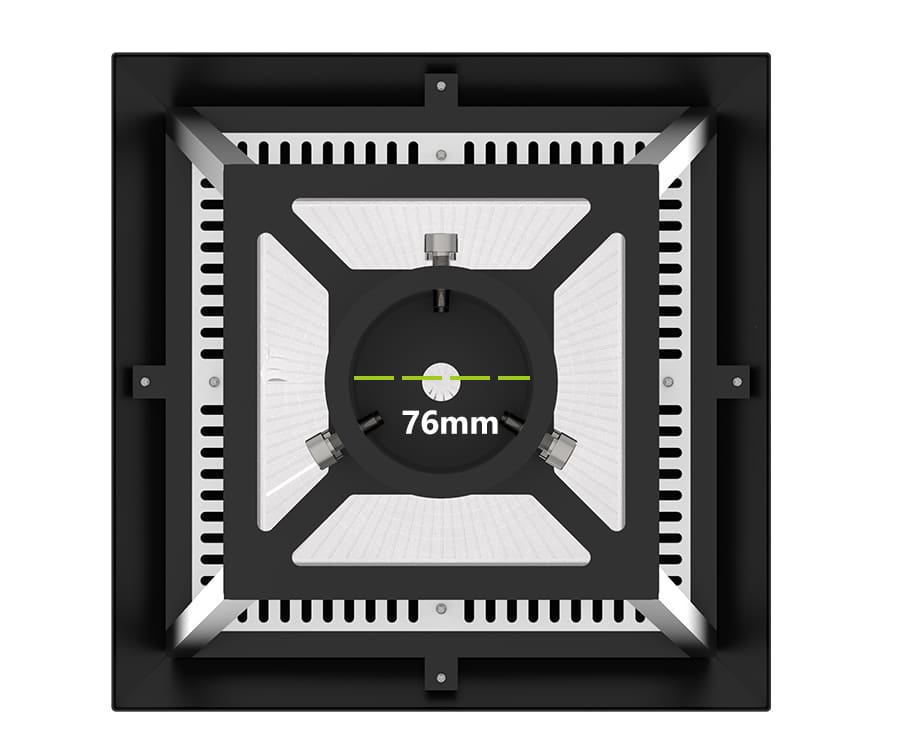

The mounting head has an aperture of 76mm, which is easy to install and replace the original lamps, and can be used for most pole installations.

76mm

Application

It is very suitable for road landscape lighting in parks, residential areas, gardens, villas, courtyards, scenic spots, greenways, roads, commercial streets, squares, and scenic spots.

Dusk To Dawn Sensor

Our LED post-top/garden light comes with an inbuilt photocell or dusk to daw sensor, when the primary role of any photocell sensor is to get turned OFF after detecting an ambient light while getting turned ON during darkness. That is why this post-top/garden light is known as dusk to dawn sensor light.

accessoricy of pro led post top light Dusk To Dawn Sensor



WattSize
20W 1pc/ 400x400x630.5mm/ 15.75"x15.75"x24.8 in



20W pro led post top light size
