400W 480W 600W Module Flood LED Light, Grey Fin Anticorrosive Natatorium, Outdoor Recreation Luminaires

●   Watt: 400W/ 480W/ 600W

●   Lumens: 76,000/ 81,600/ 96,000

●   Light Source: Lumileds 5050

●   Input Volt: 100-277VAC

●   IP Rating: IP65 - IK08

●   Size: 372*744.6*147mm

●   Lamp Weight: 10-15.5kg

●   CCT (Color Temp): 3000-6500K

●   5 years warranty

●   Beam Angle: 10/ 20/ 40/ 60/ TypeIV/ 135*60(P50)

Inquire Now Next Product

400W 480W 600W Module Flood LED Light, Grey Fin Anticorrosive Natatorium, Outdoor Recreation Luminaires

Name:

Tel:

E-mail:

Country:

CAPTCHA:

Submit the information to obtain product spec sheet,Please make sure that your email address is absolutely correct!

Specification Sheet
Model No.LSHM‐400W‐LV(XXK)MAX
Power400W
Lumen76,000
Efficiency190lm/w±3%
DriverMeanwell 2*ELG‐240‐48A
Input Volt100-277VAC
Chip BrandLumileds 5050
CCT4000K 5000K
Weight10Kg
Size372*744.6*147mm
Beam Anlge10/ 20/ 40/ 60/ Type4/ 135*60 degree(P50)
IP RatingIP66 & IK10
Wind rating51.0-56.0m/s
CRIRa70 (Ra80, Ra90 optional)
Life TimeL70/B10 >50,000hours
DimmableDimmable and Non-dimmable
Warranty5 Years / 7 years extended warranty available
CertificationTUV CE CB SAA RoHS LM79 LM80 TM21 IK10 Salt Spray test approved


Model No.LSHM‐480W‐LV(XXK)MAX
Power480W
Lumen81,600
Efficiency170Lm/W±3%
DriverMeanwell 2*ELG‐240‐48A
Input Volt100-277VAC
Chip BrandLumileds 5050
CCT4000K 5000K
Weight14.5kg
Size372*744.6*147mm
Beam Anlge10/ 20/ 40/ 60/ Type4/ 135*60 degree(P50)
IP RatingIP66 & IK10
Wind rating51.0-56.0m/s
CRIRa70 (Ra80, Ra90 optional)
Life TimeL70/B10 >50,000hours
DimmableDimmable and Non-dimmable
Warranty5 Years / 7 years extended warranty available
CertificationTUV CE CB SAA RoHS LM79 LM80 TM21 IK10 Salt Spray test approved


Model No.LSHM-600W-LV(XXK)MAX
Power600W
Lumen96,000
Efficiency160Lm/W±3%
DriverMeanwell 2*ELGC-300-H-A
Input Volt100-277VAC
Chip BrandLumileds 5050
CCT3000-6500K
Weight15.5kg
Size372*744.6*147mm
Beam Anlge10/ 20/ 40/ 60/ Type4/ 135*60 degree(P50)
IP RatingIP66 & IK10
Wind rating51.0-56.0m/s
CRIRa70 (Ra80, Ra90 optional)
Life TimeL70/B10 >50,000hours
DimmableDimmable and Non-dimmable
Warranty5 Years / 7 years extended warranty available
CertificationTUV CE CB SAA RoHS LM79 LM80 TM21 IK10 Salt Spray test approved


Slim MAX LED Flood Light 400W 480W 600W

Slim MAX LED Flood Light 400W 480W 600W

Slim MAX LED Flood Light is a perfect Outdoor lighting solution for area, street, stadium.

400W

480W

600W

Lumileds 5050

160Lm/W-190Lm/W

3000K-6000K

TUV CE CB SAA RoHS

LM79 LM80 TM21 IK10 Salt Spray test approved

High quility LED Brand

High quility LED Brand

Uses Lumileds 5050, High Efficiency 160-190Lm/W.

Lumileds 5050

Folding aluminum fin design

Folding aluminum fin design

Lightweight, fast heat dissipation. Increase the heat dissipation surface area by air coolingto dissipate heat and expand the contact area with air! It speeds up the spread of heat! Thermal effect is good.

Folding aluminum fin design

IP66 & Lightning protection & IK10

IP66 & Lightning protection & IK10

IP66 & Lightning protection & IK10. Waterproof IP66 and lightning protection 10/20KV, IK10 protective design allows Slim max led sports light to withstand harsh environments;

IP66

Lightning protection

IK10

50,000H

-30~45℃

Dustproof net

Dustproof net

The radiator of Slim Plus LED Flood Light adds a layer of dust net to prevent more dust from affecting heat dissipation, and it is also easier to maintain later.

Dustproof net

Other Watt

Slim Max LED Flood Light is available in wattage from 200W to 1500W, which is the best choice to replace the existing MH/HID street lights of 500W-3200W.

Slim Max LED Flood Light

Slim Max LED Flood Light

Slim Max LED Flood Light

Slim Max LED Flood Light

Slim Max LED Flood Light

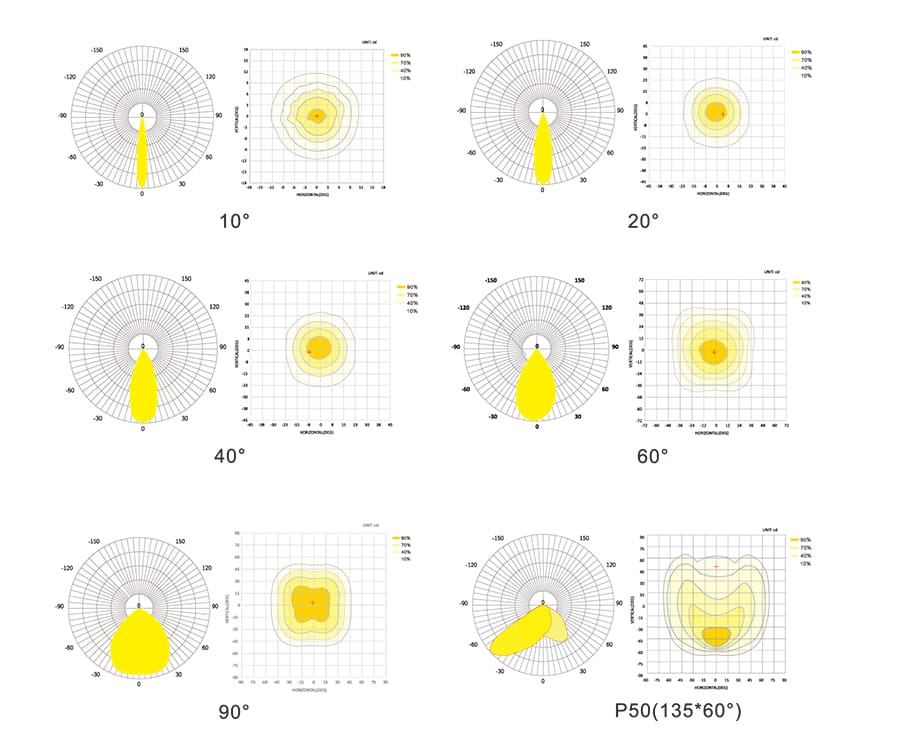

Beam Anlge

Beam Anlge

The beam angle can be selected from 10/ 20/ 40/ 60/ Type4/ 135*60 degree(P50). Professional light distribution angle can better achieve uniform and efficient lighting effect.

10 degree

20 degree

40 degree

60 degree

Type4

135*60 degree(P50)

Application

Can illuminate intersections, squares, docks, ships, ports, construction sites, cranes,Tennis courts, basketball courts, soccer fields, etc.

Accessories

10KV or 20KV SPD

1-10V Dimmable
347-480VAC(Sosen driver)
Dali dimmable(Sosen driver)
Anti-glare plateAnti-glare plate



WattSize
400W/ 480W/ 600W1pc/ 372*744.6*147



400W 480W 600W Module Flood LED Light size
