100 Watt LED Area Light - 17000lumen - Outdoor Dimmable IP66 Floodlight Wholesale

●   Watt: 100W

●   Lumens: 14,000/ 17,000

●   Light Source: Lumileds 3030

●   Input Volt: 100-277VAC

●   IP Rating: IP66 - IK10

●   Size: 306.6*216.5*104mm

●   Lamp Weight: 2.7kg

●   CCT (Color Temp): 3000, 4000, 5000, 5700, 6000

●   5 years warranty

●   Beam Angle: 15/25/40/60/90120/30*70/49*21/136*78

Inquire Now Next Product

100 Watt LED Area Light - 17000lumen - Outdoor Dimmable IP66 Floodlight Wholesale

Name:

Tel:

E-mail:

Country:

CAPTCHA:

Submit the information to obtain product spec sheet,Please make sure that your email address is absolutely correct!

Specification Sheet
  • Data Sheets
  • Beam Angle
  • Options/Accessories
  • Package details

Specifications

Model

LSHM-100W-LV(XXK)ProE

Watt100W
Lumen14,00017,000
Efficiency

140Lm/W±3%

170Lm/W±3%
Input Volt100-277VAC
Chip BrandLumileds 3030
CCT3000K 4000K 5000K 5700K 6000K4000K, 5000K
ModulesRotatable
Weight2.7kg
Size

306.6*216.5*104mm

Beam Angle10/ 25/ 40/ 60/ 90/ 120/ 30*70/ 49*21/ 136*75 degree
Driver

Meanwell Driver XLG-100-H-A

CertificationETL DLC TUV CE CB SAA RoHS LM79 LM80 TM21 IK10 Salt Spray test approved


Size

100 Watt LED Area Light size

50w 100w 150w 200w 240w led area light

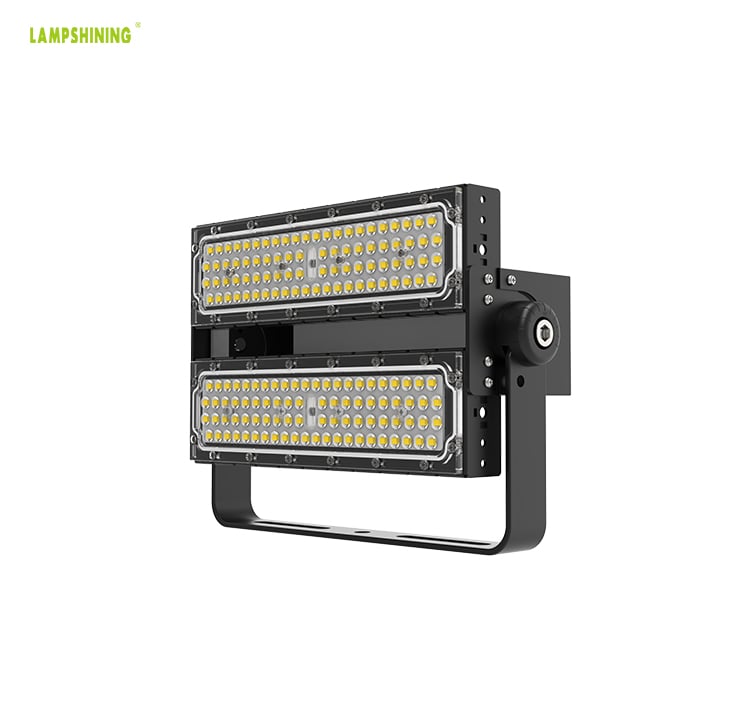

100 Watt LED Area Light

1.Waterproof IP66 - Adopt sealing potting process, better waterproof performance;

2.Module Rotatable - The angle of the lamps can be adjusted according to equirements to achieve the best lighting angle;

3.Efficient Heat Dissipation - Folding Aluminum Fin Design.lighter weight, better heat dissipation performance;

4.High quality LED Chip - Use Lumileds 3030 high quality lamp beads.Light efficiency can reach 170Lm/w;


100 Watt LED Area Light

100 Watt LED Area Light features

Beam angle

The optical lens is made of PC, and the light transmittance reaches 92%, reducing the loss of light, maximizing the lumen and uniformity of the lighting area and reducing the lighting pollution to nature and human life. Optional 15/25/40/60/90120/30*70/49*21/136*78 degree beam angle.


slim proe led area light beam angle


Installation

1. Wall Installation 2.Ground Installation 3.Pole Installation

Installation of lamps


Application

1.Tunnel 2.Billboard 3.External wall 4.Sport field

Four lighting application sites

If you want to know more details about the product, or need to provide lighting design for your venue, please feel free to contact us.


contact us

Beam angle

The optical lens is made of PC, and the light transmittance reaches 92%, reducing the loss of light, maximizing the lumen and uniformity of the lighting area and reducing the lighting pollution to nature and human life. Optional 15/25/40/60/90120/30*70/49*21/136*78 degree beam angle.

slim proe led area flood light beam angle

Packaging

37*28*15cm 1pc/ctn

GW: 3.0Kg
