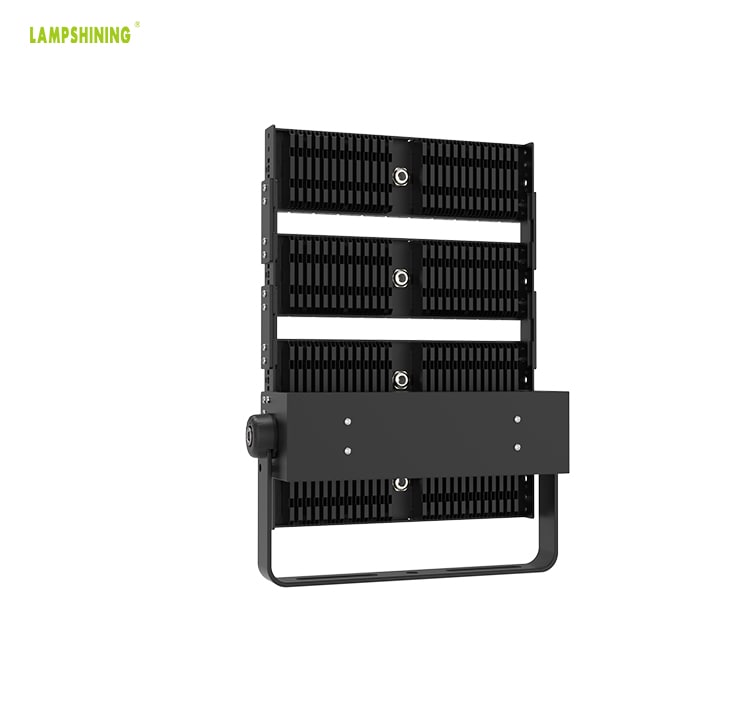

200W 34,000 Lumens LED Flood Light Outdoor Security Lighting - Garden, Parking lot, Sports Field Light
  • 200W 34,000 Lumens LED Flood Light Outdoor Security Lighting - Garden, Parking lot, Sports Field Light
  • 200W 34,000 Lumens LED Flood Light Outdoor Security Lighting - Garden, Parking lot, Sports Field Light
  • 200W 34,000 Lumens LED Flood Light Outdoor Security Lighting - Garden, Parking lot, Sports Field Light
  • 200W 34,000 Lumens LED Flood Light Outdoor Security Lighting - Garden, Parking lot, Sports Field Light
  • 200W 34,000 Lumens LED Flood Light Outdoor Security Lighting - Garden, Parking lot, Sports Field Light
200W 34,000 Lumens LED Flood Light Outdoor Security Lighting - Garden, Parking lot, Sports Field Light200W 34,000 Lumens LED Flood Light Outdoor Security Lighting - Garden, Parking lot, Sports Field Light200W 34,000 Lumens LED Flood Light Outdoor Security Lighting - Garden, Parking lot, Sports Field Light200W 34,000 Lumens LED Flood Light Outdoor Security Lighting - Garden, Parking lot, Sports Field Light200W 34,000 Lumens LED Flood Light Outdoor Security Lighting - Garden, Parking lot, Sports Field Light

200W 34,000 Lumens LED Flood Light Outdoor Security Lighting - Garden, Parking lot, Sports Field Light

●   Watt: 200W

●   Lumens: 28,000/ 34,000

●   Light Source: Lumileds 3030

●   Input Volt: 100-277VAC

●   IP Rating: IP66 - IK10

●   Size: 306.6*406.5*104mm

●   Lamp Weight: 4.2kg

●   CCT (Color Temp): 3000, 4000, 5000, 5700, 6000

●   5 years warranty

●   Beam Angle: 15/25/40/60/90120/30*70/49*21/136*78

Inquire Now Next Product

200W 34,000 Lumens LED Flood Light Outdoor Security Lighting - Garden, Parking lot, Sports Field Light

Name:

Tel:

E-mail:

Country:

CAPTCHA:

Submit the information to obtain product spec sheet,Please make sure that your email address is absolutely correct!

Specification Sheet
  • Data Sheets
  • Beam Angle
  • Options/Accessories
  • Package details

Specifications

Model

LSHM-200W-LV(XXK)ProE

Watt200W
Lumen28,00034,000
Efficiency

140Lm/W±3%

170Lm/W±3%
Input Volt100-277VAC
Chip BrandLumileds 3030
CCT3000K 4000K 5000K 5700K 6000K4000K, 5000K
ModulesRotatable
Weight4.2kg
Size

306.6*406.5*104mm

Beam Angle10/ 25/ 40/ 60/ 90/ 120/ 30*70/ 49*21/ 136*75 degree
Driver

Meanwell Driver XLG-240-H-A

CertificationETL DLC TUV CE CB SAA RoHS LM79 LM80 TM21 IK10 Salt Spray test approved


Size

200w LED flood Light size

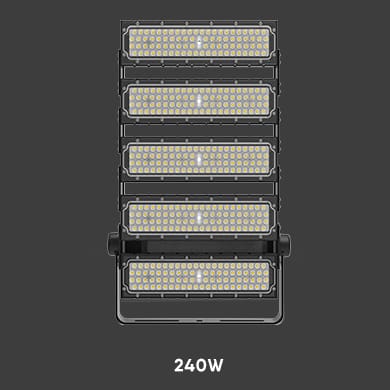

50w 100w 150w 200w 240w slim proe led flood light


200W

200W Slim ProE LED Area Flood Light

200W Slim ProE LED Area Flood Light

Beam angle

The optical lens is made of PC, and the light transmittance reaches 92%, reducing the loss of light, maximizing the lumen and uniformity of the lighting area and reducing the lighting pollution to nature and human life. Optional 15/25/40/60/90120/30*70/49*21/136*78 degree beam angle.


slim proe led flood light beam angle


Installation

1. Wall Installation 2.Ground Installation 3.Pole Installation

Installation of lamps


Application

1.Tunnel 2.Billboard 3.External wall 4.Sport field

Four lighting application sites

If you want to know more details about the product, or need to provide lighting design for your venue, please feel free to contact us.


contact us

Beam angle

The optical lens is made of PC, and the light transmittance reaches 92%, reducing the loss of light, maximizing the lumen and uniformity of the lighting area and reducing the lighting pollution to nature and human life. Optional 15/25/40/60/90120/30*70/49*21/136*78 degree beam angle.

slim proe led area flood light beam angle

Packaging

37*47*15cm 1pc/ctn

GW: 4.6Kg
