● Watt: 1500W/1650W/1800W
● Light Source: SMD 5050
● Input Volt: 100-277VAC(1500W),198-440VAC(1650W 1800W)
● IP &IK Rating: IP66 & IK10
● CCT (Color Temp): 3000K~6000K
● Beam Angle: (Symmetrical) 10° / 15°/ 20° / 40°
● Beam Angle: (Asymmetrical) P60-L(180Lm/W)
● Lifespan: L90B10>100,000hrs
● 5 years warranty
Model | LSHM-1500W(XXK)Ultra-S | LSHM-1650W(XXK)Ultra-S | LSHM-1800W(XXK)Ultra-S |
| Watt | 1500W | 1650W | 1800W |
| Chip Brand | SMD 5050 | ||
| Lumen | 255,000Lm | 272,250Lm | 288,000Lm |
| Efficiency | 170lm/w±5% | 165lm/w±5% | 160lm/w±5% |
| Driver | Inventronics (Optional MOSO S6) | POWERLAND 0-10V DALI DMX (Optional MOSO S6 DALI DMX) | |
| Input Volt | 100-277VAC (Optional 249-582VAC) | 198-440VAC | |
| Power Factor | >0.95 | ||
| CRI | Ra>70 ,Optional with Ra>80,(Ra>90 TLCI >90) | ||
| Bracket Materials | Iron (Optional with Aluminum die casting) | Aluminum die casting | |
| Materials | Skived Aluminum Fin Radiators Aluminum Housing | ||
| Finish | Powder Coating | ||
| SPD | 10KV / 20KV Optional | ||
| Fixtures Color | Black | ||
| CCT | 3000K~6000K | ||
| Lifespan | L90B10>100,000hrs | ||
| IP Rating | IP66 | ||
| IK Rating | IK10 | ||
| Control | 0-10V (Optional DALI / DMX） | 0-10V, Dali Dimmable / Motion sensor / DALI / DMX Optional | |
| Beam Angle(Symmetrical) | 10° 15° 20° 40° | ||
| Certifications | ETL / ENEC / TUV / CE / CB / SAA / RoHS / LM79 / LM80 / IK10 Salt Spray test | ||
| Warranty | 5 Years | ||
Model | LSHM-1500W(XXK)Ultra-S | LSHM-1650W(XXK)Ultra-S | LSHM-1800W(XXK)Ultra-S |
| Watt | 1500W | 1650W | 1800W |
| Chip Brand | SMD 5050 | ||
| Lumen | 270,000Lm | 280,500Lm | 306,000Lm |
| Efficiency | 180lm/w±5% | 170lm/w±5% | 170lm/w±5% |
| Driver | Inventronics (Optional MOSO S6) | POWERLAND 0-10V DALI DMX (Optional MOSO S6 DALI DMX) | |
| Input Volt | 100-277VAC (Optional 249-582VAC) | 198-440VAC | |
| Power Factor | >0.95 | ||
| CRI | Ra>70 ,Optional with Ra>80,(Ra>90 TLCI >90) | ||
| Bracket Materials | Iron (Optional with Aluminum die casting) | Aluminum die casting | |
| Materials | Skived Aluminum Fin Radiators Aluminum Housing | ||
| Finish | Powder Coating | ||
| SPD | 10KV / 20KV Optional | ||
| Fixtures Color | Black | ||
| CCT | 3000K~6000K | ||
| Lifespan | L90B10>100,000hrs | ||
| IP Rating | IP66 | ||
| IK Rating | IK10 | ||
| Control | 0-10V (Optional DALI / DMX） | 0-10V, Dali Dimmable / Motion sensor / DALI / DMX Optional | |
| Beam Angle(Symmetrical) | Symmetrical: 10°/15°/ 20° / 40° Asymmetrical: P60-L | Symmetrical: 10°/15°/ 20°/ 40° | |
| Certifications | ETL / ENEC / TUV / CE / CB / SAA / RoHS / LM79 / LM80 / IK10 Salt Spray test | ||
| Warranty | 5 Years | ||

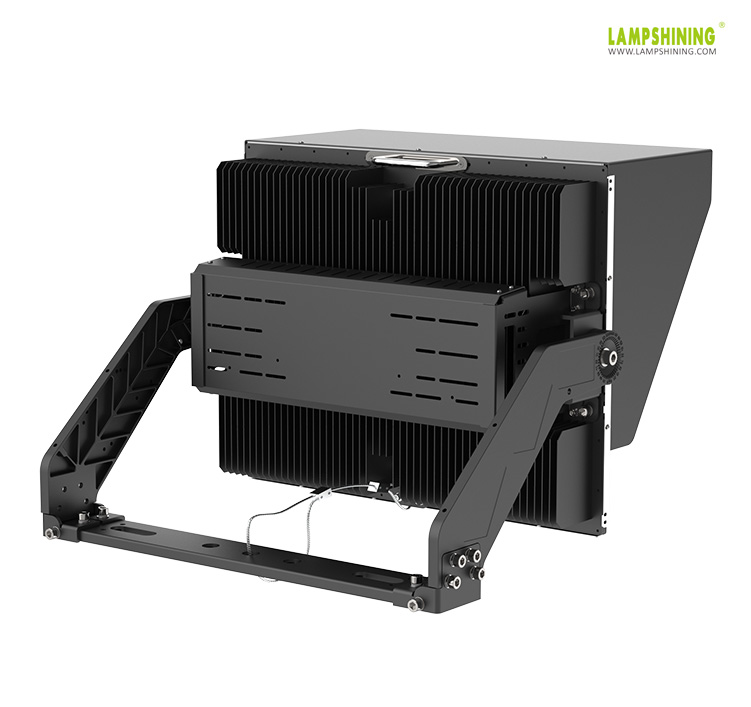

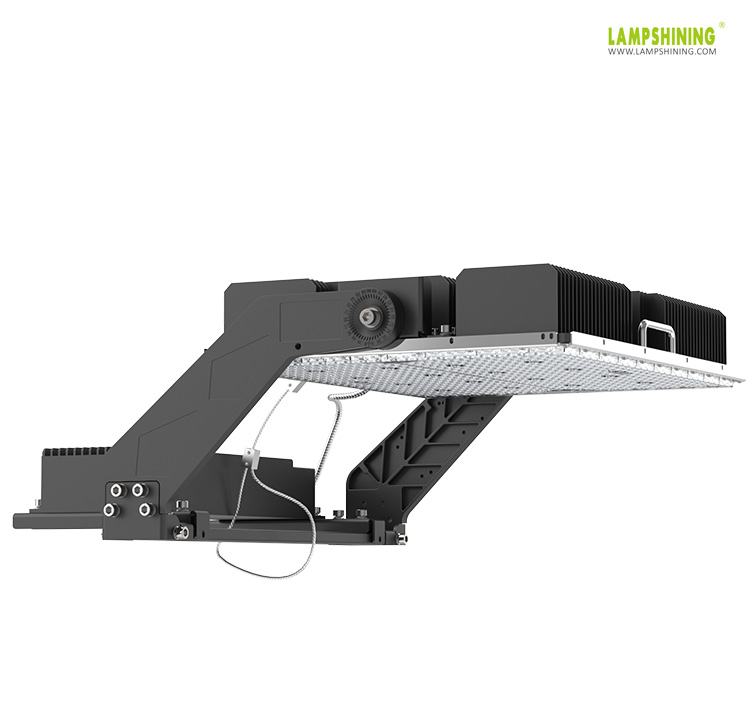

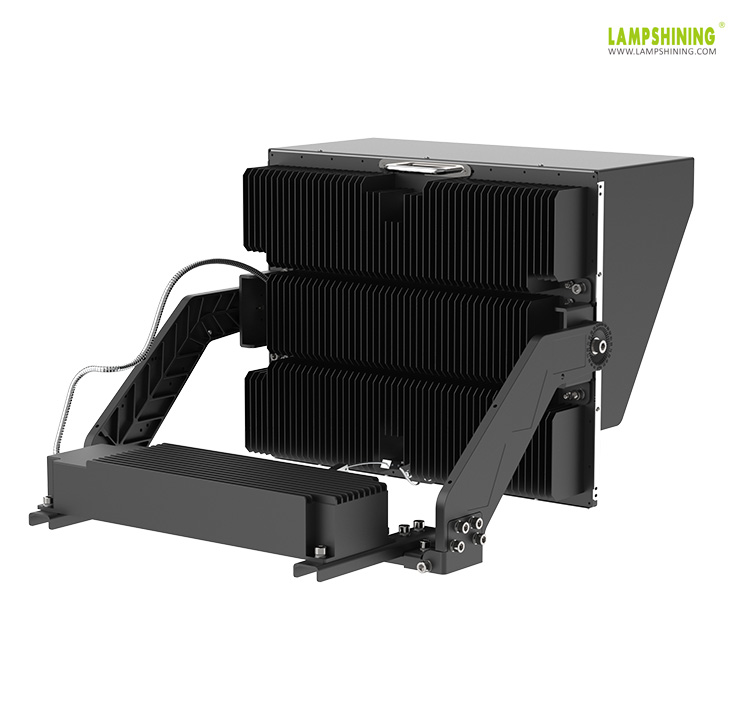

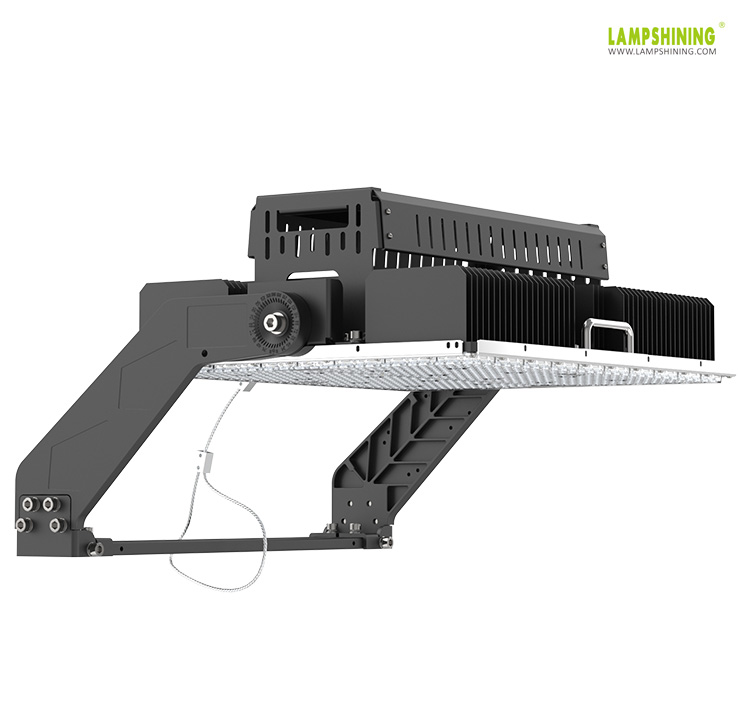

Ultra-S LED SPORTS & STADIUM LIGHT 1500W 1650W 1800W

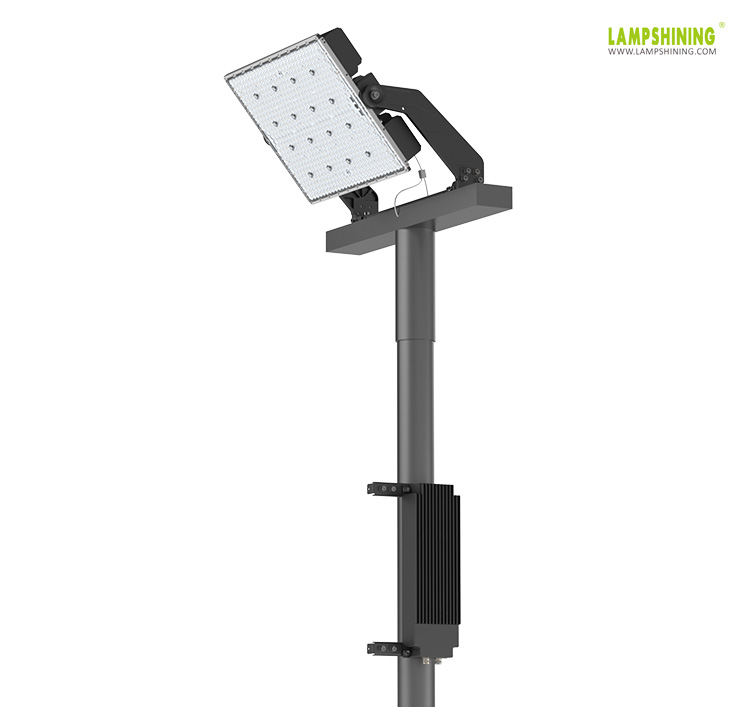

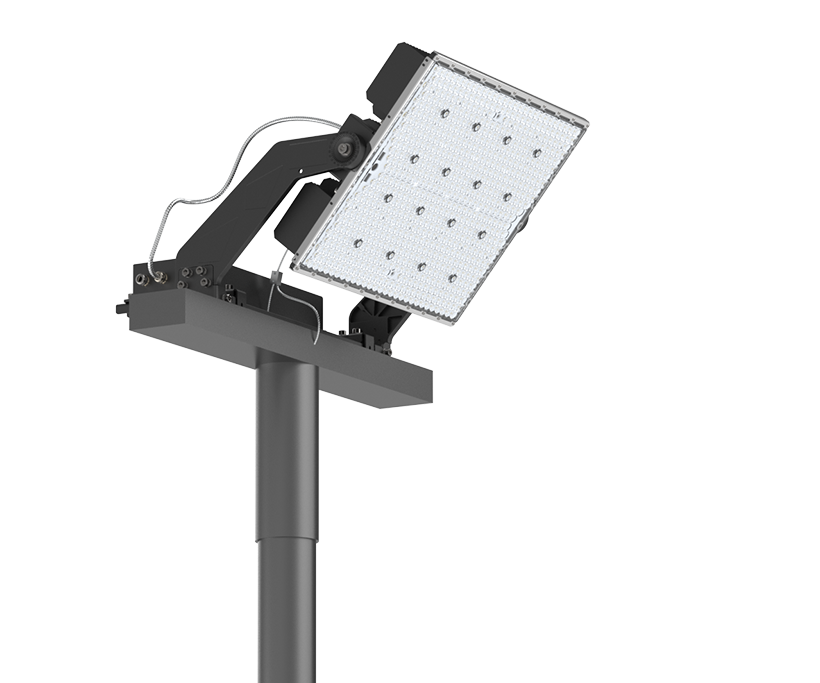

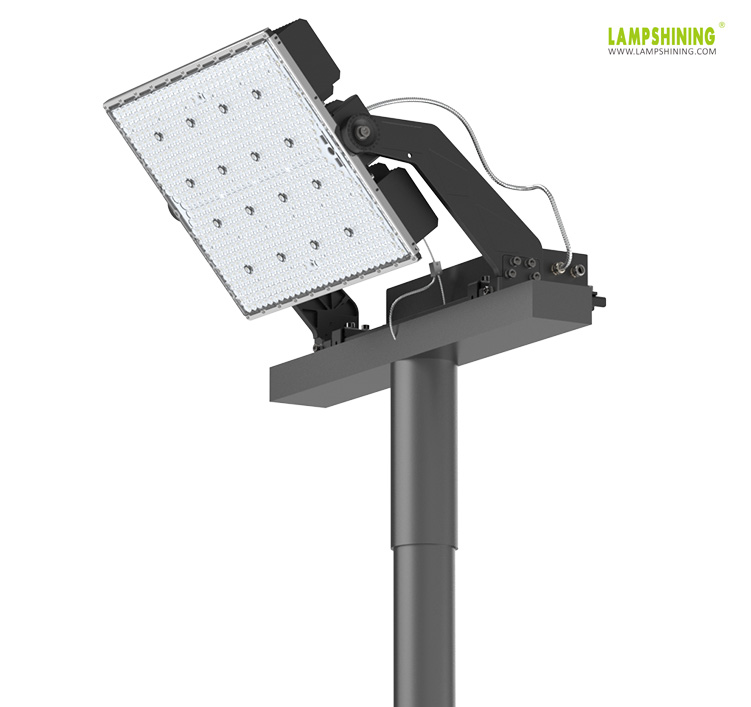

LED High Mast Lights 1500W 1650W 1800W UP TO 306,000LM
ENEC
ETL
TUV
CE
CB
SAA
RoHS
LM79
LM80
IK10
IP66
Professional sports beam angle

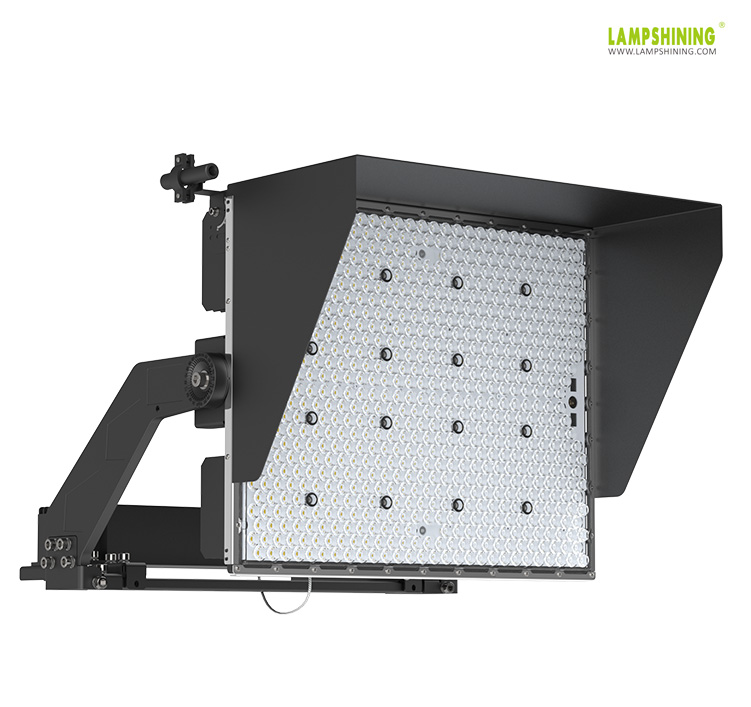

With a precise optical design to minimize glare.The visor is optional according to the size of the venue to cut off light distribution, so as to
obtain the best visibility and provide comfortable light to the venue,athletes, live audience and screen audience.

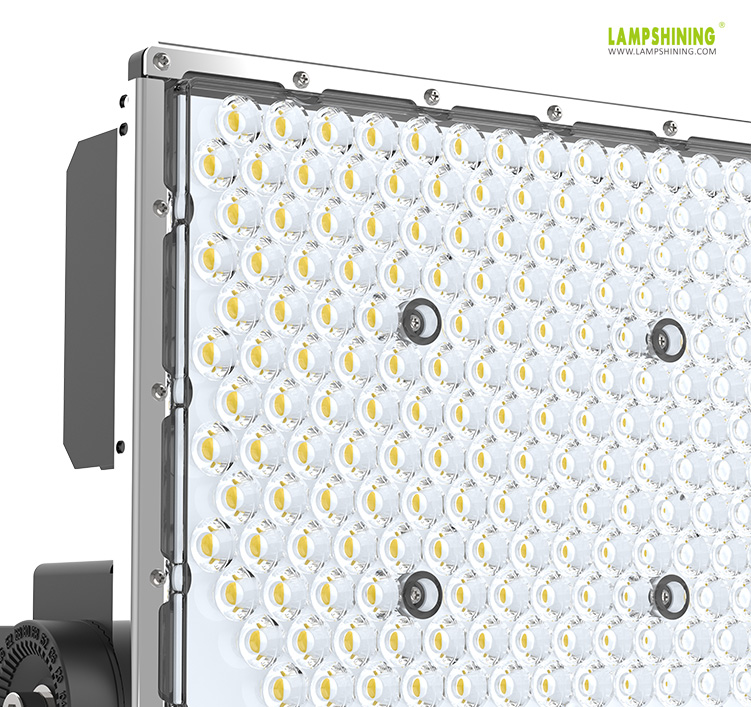

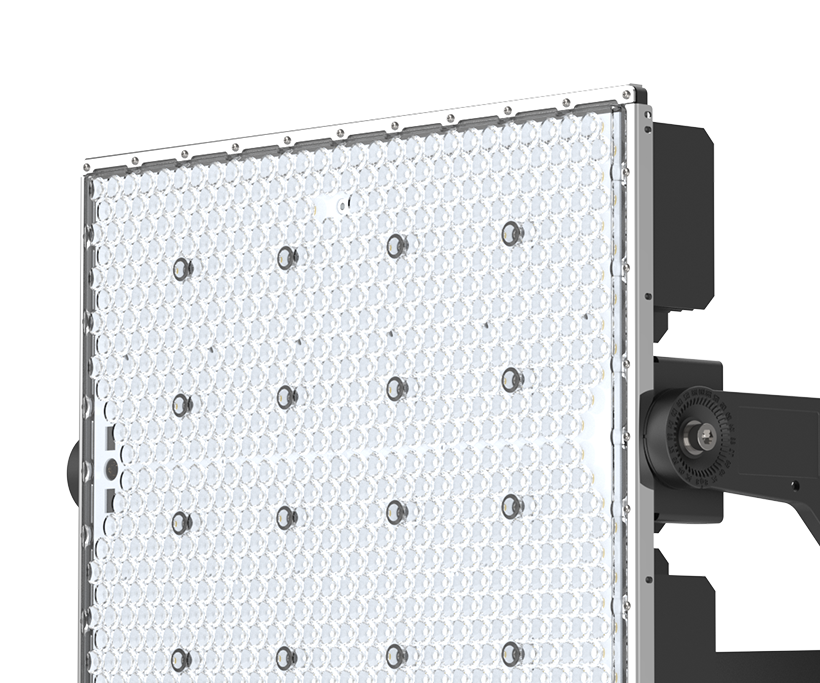

Optical lens are securely fixed on all four sides with 304 stainless steel strips to prevent deformation and ensure the optimal emission angle at all times.

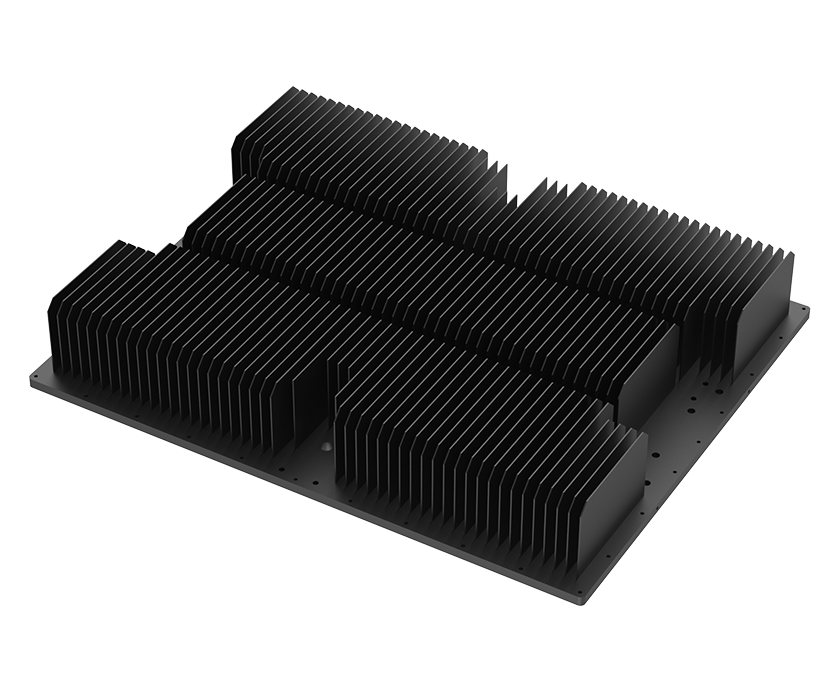

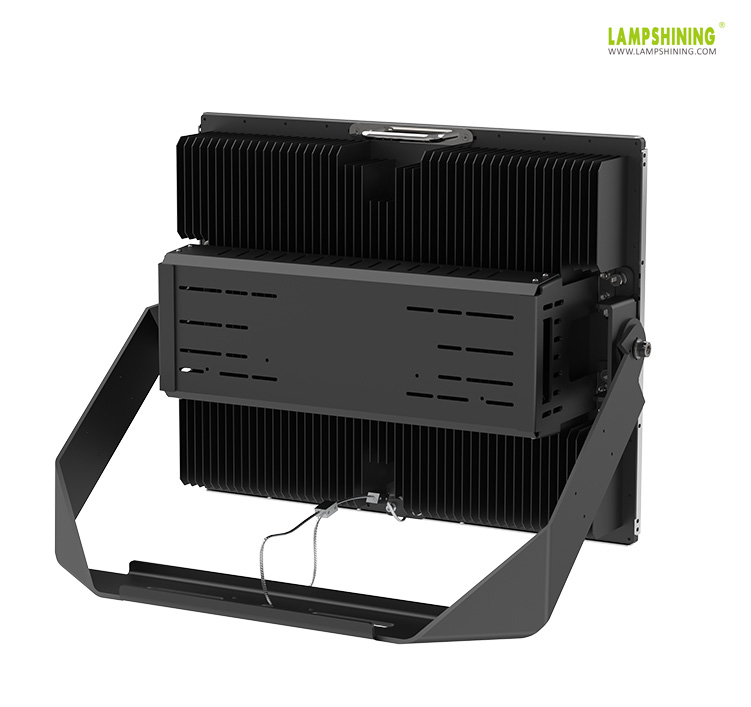

Skived Aluminum Fin Radiators
Aluminum has a high thermal conductivity,ensuring rapid heat transfer from the base to the fins,making it ideal for high-performance cooling.
Unlike assembled heat sinks, skived fin radiators have no thermal resistance at the interface between the fins and the base, ensuring seamless heat transfer and better mechanical strength.
Integrated One-Piece Structure
Excellent Thermal Conductivity
