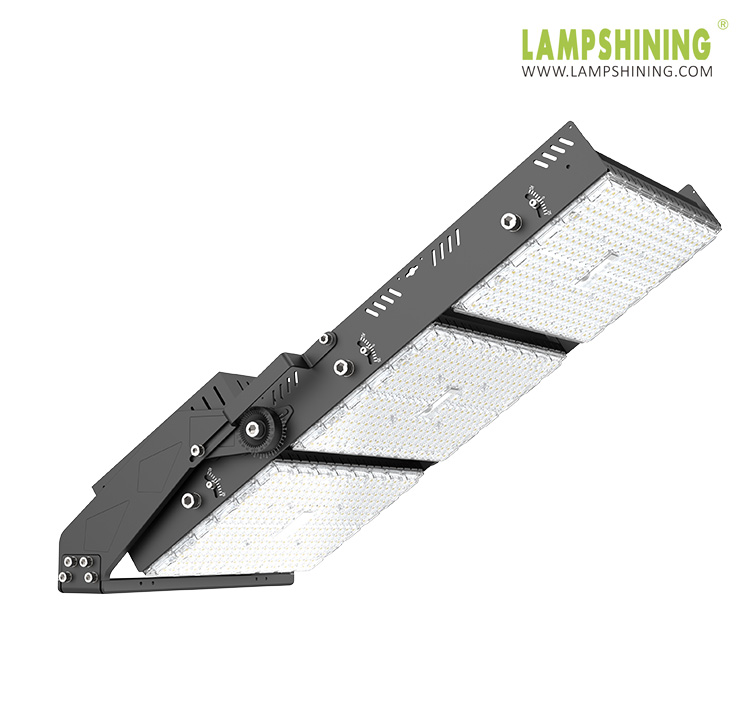

1800W Low Glare Rating Ultra LED High Mast Lights LED Stadium Lights Anti-glare sports lighting

●   Watt: 1800W

●   Light Source: Lumileds 5050

●   Input Volt: 100-277VAC

●   IP &IK Rating: IP66 & IK10

●   Size: 556*1011*435mm

●   Lamp Weight: 35.5kg

●   Fuction: Dali2.0 & DMX

●   CCT (Color Temp): 3000~6000k

●   Modules: Rotatable ±25°

●   Beam Angle: (Symmetrical) 10° / 20°/ 40° / 60°

●   Beam Angle: (Asymmetrical) P50-L / P60-L

●   5 years warranty



Inquire Now Next Product

1800W Low Glare Rating Ultra LED High Mast Lights LED Stadium Lights Anti-glare sports lighting

Name:

Tel:

E-mail:

Country:

CAPTCHA:

Submit the information to obtain product spec sheet,Please make sure that your email address is absolutely correct!

Specification Sheet

Model

LSHM-1800W(XXK)Ultra
Watt1800W
Chip BrandLumileds 5050
Lumen297,000Lm
Efficiency165lm/w±5%
Driver

Inventronics / Sosen driver

Gross Weight35.5kg
Input Volt100-277VAC, 50/60Hz
Power Factor>0.9
CRIRa80
MeterialFolding aluminum fin design which are very light weight.5mm thickness turnnion bracket
FinishPowder Coating
Size556*1011*435mm
Fixtures ColorBlack
CCT3000K~6000K
IP RatingIP66
IK RatingIK10
Control0-10V, 1-10V dim control, Motion sensor, DALI, Zigbee,Dali2.0 & DMX
Beam Angle(Symmetrical)10°  20°  40°  60°
Beam Angle(Asymmetrical)P50-L
CertificationsENEC / TUV / CE/ CB/SAA/RoHS/LM79/LM80/IK10 Salt Spray test
Warranty5 Years


Model

LSHM-1800W(XXK)Ultra
Watt1800W
Chip BrandLumileds 5050
Lumen32,4000Lm
Efficiency180lm/w±5%
Driver

Inventronics / Sosen driver

Gross Weight35.5kg
Input Volt100-277VAC, 50/60Hz
Power Factor>0.9
CRIRa80
MeterialFolding aluminum fin design which are very light weight.5mm thickness turnnion bracket
FinishPowder Coating
Size556*1011*435mm
Fixtures ColorBlack
CCT3000K~6000K
IP RatingIP66
IK RatingIK10
Control0-10V, 1-10V dim control, Motion sensor, DALI, Zigbee,Dali2.0 & DMX
Beam Angle(Symmetrical)10°  20°  40°  60°
Beam Angle(Asymmetrical)P50-L / P60-L
CertificationsENEC / TUV / CE/ CB/SAA/RoHS/LM79/LM80/IK10 Salt Spray test
Warranty5 Years


1800W Ultra LED High Mast Lights

1800W Ultra LED High Mast Lights

High luminaire efficiency up to 180lm/w,Marine grade aluminum housing.Comes with DMX and Dali function,max remote distance 200 meters.

Folding aluminum fin design which is very light weight.5mm thickness turnnion bracket.Both single module and full lamp are rotatable.


180Lm/W

Lumileds 5050

IP66 and IK10 protection rate

3000K~6000K

ENEC TUV  CE  CB SAA RoHS

LM79 LM80 IK10 Salt Spray test

Glare Free Asymmetric LED Stadium Lights

Glare Free Asymmetric LED Stadium Lights

Asymmetrical l P50-L & P60-L optic allows lamp to be installed horizontally No overflow upward lights which emits no light pollution neither to sky nor audiences or neighbors’ space

Asymmetrical P50-L & P60 optics produce a very low Glare Rating, GR<45,lights were forwarded further away which produces a higher uniformity up to 0.8


No overflow upward lights

No light pollution to sky

No light pollution to audiences or neighbors’ space

Low Glare Rating GR<45

Uniformity(U0) up to 0.8

Folding aluminum Fin Design Very light weight

Folding aluminum Fin Design Very light weight

Folding aluminum Fin Design which is very light weight which makes Ultra Lighter and smaller. Which both improves installation safety and reduces maintenance.

Without Driver 27.32Kg

With Driver 35.32Kg

Beam Angle

Beam Angle

Broader illumination range, wide range of applications.

Symmetrical 10° / 20°/ 40°/ 60°

Asymmetrical  P50-L / P60-L


Modules Rotatable

Modules Rotatable

Modules Rotatable and Bracket Rotatable,You can adjust the lighting angle at will to increase the lighting range.

Module Rotatable ±25°

Bracket Rotatable 0° to 270°

INFRARED PRECISION AIMING

INFRARED PRECISION AIMING

Preset P50L&P60-L Optical Lens Irradiation Angle Laser Aiming Angle
