● Watt: 200W / 240W / 300W
● Light Source: Lumileds 5050
● Input Volt: 100-277VAC
● IP &IK Rating: IP66 & IK10

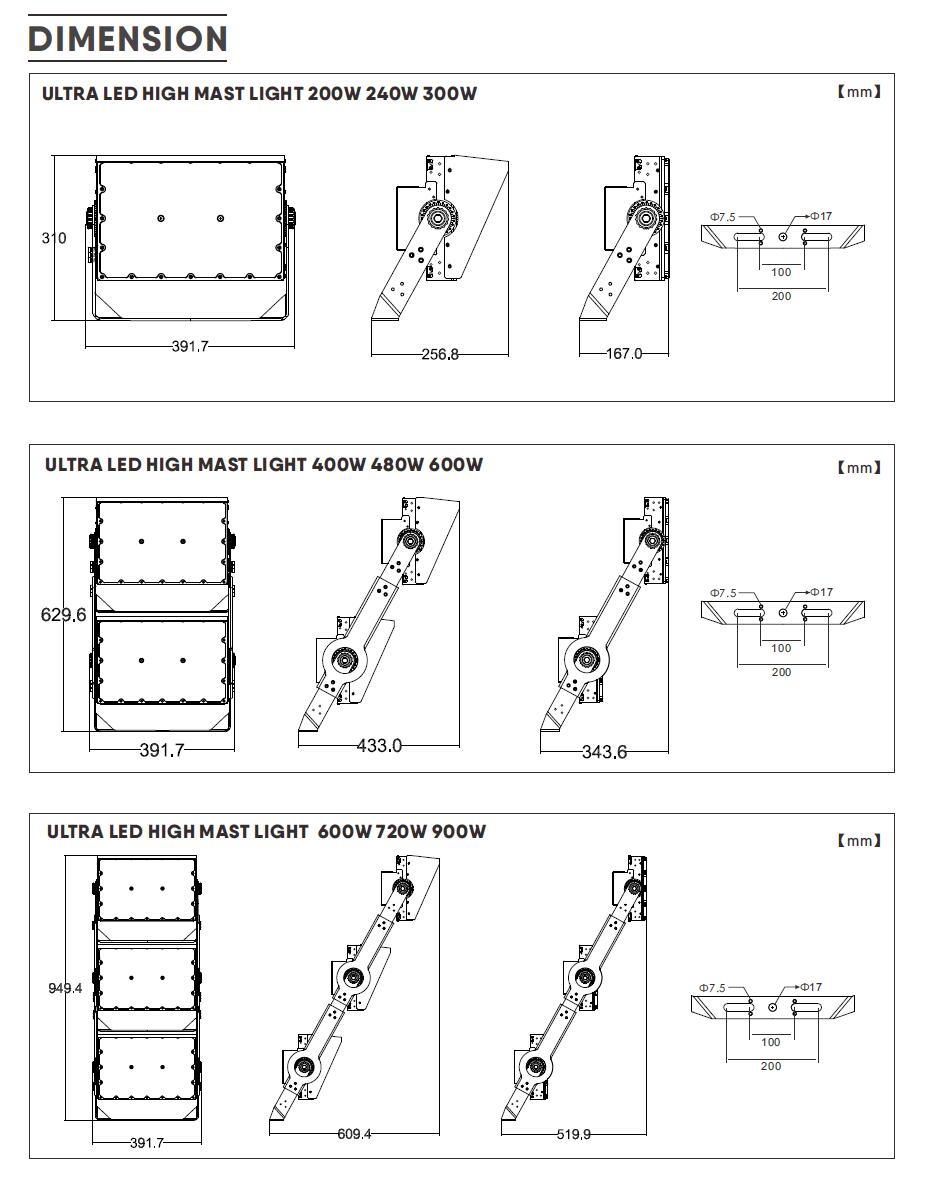

● Size: 367*307*167.5mm
● Lamp Weight: 6.8kg
● Fuction: Dali2.0 & DMX
● CCT (Color Temp): 3000~6000k
● Modules: Rotatable ±25°
● Beam Angle: (Symmetrical) 10° / 20°/ 40° / 60°
● Beam Angle: (Asymmetrical) P50-L / P60-L
● 5 years warranty
Model | LSHM-200W(XXK)Ultra | LSHM-240W(XXK)Ultra | LSHM-300W(XXK)Ultra |
| Watt | 200W | 240W | 300W |
| Chip Brand | Lumileds 5050 | ||
| Lumen | 35,000Lm | 40,800Lm | 49,500Lm |
| Efficiency | 175lm/w±5% | 170lm/w±5% | 165lm/w±5% |
| Driver | Inventronics / Sosen driver | ||
| Gross Weight | 5.9kg | ||
| Input Volt | 100-277VAC, 50/60Hz | ||
| Power Factor | >0.9 | ||
| CRI | Ra>70 ,Optional with Ra>80 or Ra>90 | ||
| Bracket Materials | Iron / Optional with Aluminum die casting | ||
| Meterial | Folding aluminum fin design which are very light weight.5mm thickness turnnion bracket | ||
| Finish | Powder Coating | ||
| SPD | 10KV / 20KV Optional | ||
| Fixtures Color | Black | ||
| CCT | 3000K~6000K | ||
| IP Rating | IP66 | ||
| Lifespan | L90B10>100,000hrs | ||
| IK Rating | IK10 | ||
| Control | 0-10V, 1-10V dim control, Motion sensor, DALI, Zigbee,Dali2.0 & DMX | ||
| Beam Angle(Symmetrical) | 10° 20° 40° 60° 90° | ||
| Beam Angle(Asymmetrical) | P50-L | ||
| Certifications | ETL / ENEC / TUV / CE / CB / SAA / RoHS / LM79 / LM80 / IK10 Salt Spray test | ||
| Warranty | 5 Years | ||
Model | LSHM-200W(XXK)Ultra | LSHM-240W(XXK)Ultra | LSHM-300W(XXK)Ultra |
| Watt | 200W | 240W | 300W |
| Chip Brand | Lumileds 5050 | ||
| Lumen | 39,000Lm | 44,400Lm | 54,000Lm |
| Efficiency | 190lm/w±5% | 185lm/w±5% | 180lm/w±5% |
| Driver | Inventronics / Sosen driver | ||
| Gross Weight | 6.8kg | ||
| Input Volt | 100-277VAC, 50/60Hz | ||
| Power Factor | >0.9 | ||
| CRI | Ra>70 ,Optional with Ra>80 or Ra>90 | ||
| Bracket Materials | Iron / Optional with Aluminum die casting | ||
| Meterial | Folding aluminum fin design which are very light weight.5mm thickness turnnion bracket | ||
| Finish | Powder Coating | ||
| SPD | 10KV / 20KV Optional | ||
| Fixtures Color | Black | ||
| CCT | 3000K~6000K | ||
| IP Rating | IP66 | ||
| IK Rating | IK10 | ||
| Lifespan | L90B10>100,000hrs | ||
| Control | 0-10V, 1-10V dim control, Motion sensor, DALI, Zigbee,Dali2.0 & DMX | ||
| Beam Angle(Symmetrical) | 10° 20° 40° 60° 90° | ||
| Beam Angle(Asymmetrical) | P50-L / P60-L | ||
| Certifications | ENEC / TUV / CE/ CB/SAA/RoHS/LM79/LM80/IK10 Salt Spray test | ||
| Warranty | 5 Years | ||
EASY Combination
Ultra LED high mast lights 200W 240W 300W two power, through the link piece can be quickly assembled into
two modules 400W 480W 600W, three modules 600W 720W 900W, which means that only need to stock Ultra
LED high mast lights plus the link piece can meet the needs of six kinds of power, the demand for application
scenarios can be quickly responded to.
2pcs built into one piece 400W & 480W & 600W
3pcs built into one piece 600W & 720W & 900W
Ultra LED High Mast Lights 200W 240W 300W
For area lighting for applications:
Airports, Golf course | Sport Fields | Stadiums|Shopping Centers | Prisons | Expressways |
Industrial Facilities and Railway Terminals etc.
200W / 240W / 300W
400W / 480W / 600W
600W / 720W / 900W
Module Rotatable
Both single module and full lamp are rotatable
rotatable 270°
LampShining Asymmetrical LED High Mast Lights
Asymmetrical l P50-L & P60-L optic allows lamp to be installed horizontally No overflow upward lights which emits no light pollution neither to sky nor audiences or neighbors’space.
Asymmetrical P50-L & P60 optics produce a very low Glare Rating, GR<45,lights were forwarded further away which produces a higher uniformity up to 0.8
No overflow upward lights
No light pollution to sky
No light pollution to audiences or neighbors space
Low Glare Rating GR<45
Uniformity(U0) up to 0.8
Horizontal installation at 0 degree angle & Lamp tilted up 10 degree
Horizontal installation at 0 degree angle,No upper light output ratio (ULOR 0%) when mounted at 0° tilt.
Asymmetrical Lighting Asymmetrical lighting Distribtion Solutions are more dark-sky friendly and more e
At90° No direct uplighting
Lamp tilted up 10 degree
Remote Driver
Remote driver can be located 300m away from luminaire
Beam Angle
Broader illumination range, wide range of applications.
Symmetrical 10° / 20°/ 40°/ 60°
Asymmetrical P50-L / P60-L
