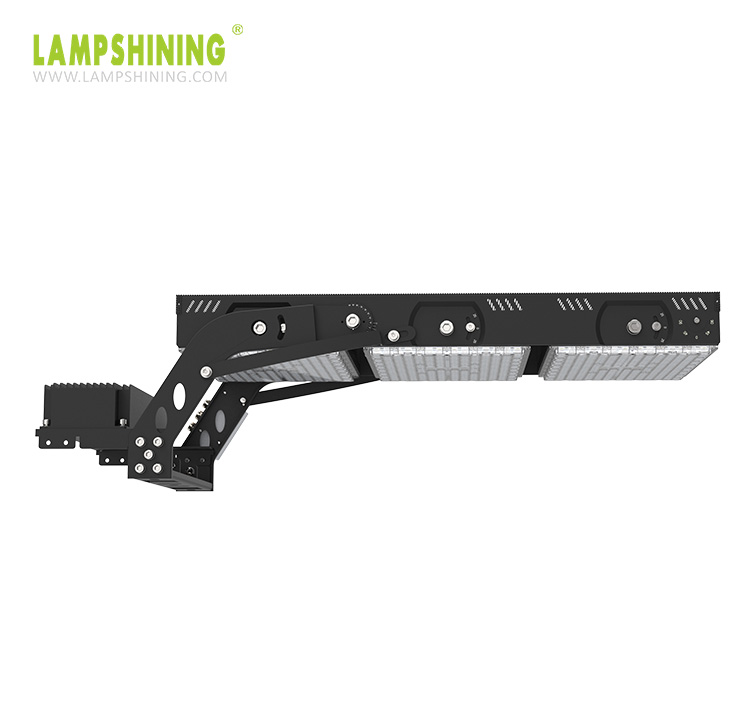

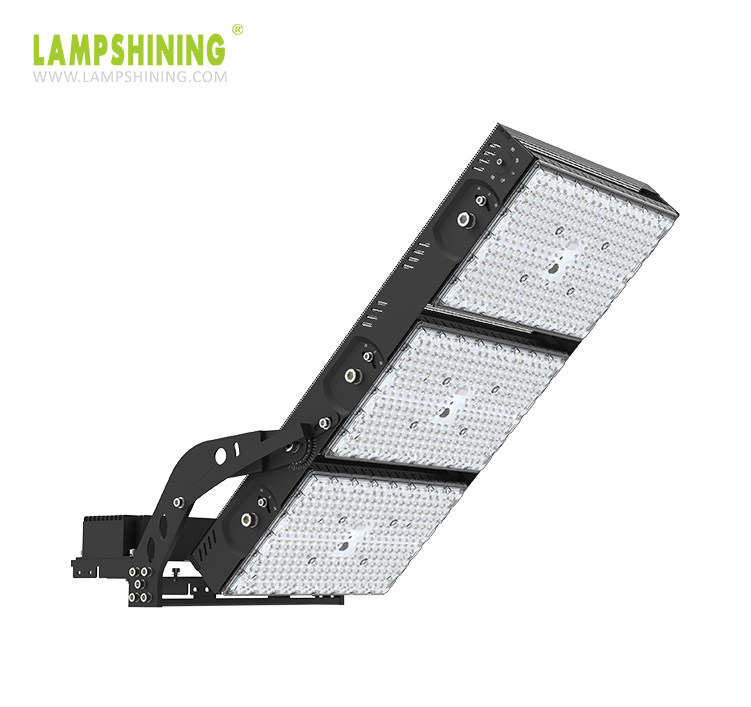

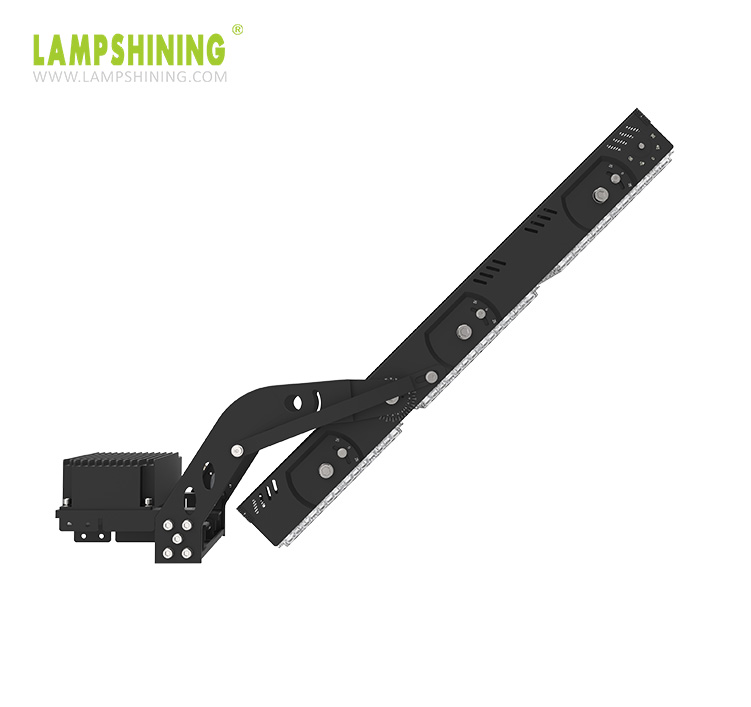

Ultra-Z 1800W 1500W Ultra-Z LED High Mast Lights LED Sports Flood Lights low glare optics No light pollution to sky No overflow upward lights

●   Watt: 1500W/1800W

●   Light Source: Lumileds 5050

●   Input Volt: 198~440VAC

●   IP &IK Rating: IP66 & IK10

●   Fuction: Dali2.0 & DMX

●   Modules: Rotatable 88°

●   Beam Angle: (Symmetrical) 10° / 20°/ 40° / 60°

●   Beam Angle: (Asymmetrical) P50-L / P60-L

●   Without backward net cover: Module rotatable ± 25°

●   With backward net cover: Module rotatable ± 10°

●   With/Without backward

●   5 years warranty



Inquire Now Next Product

Ultra-Z 1800W 1500W Ultra-Z LED High Mast Lights LED Sports Flood Lights low glare optics No light pollution to sky No overflow upward lights

Name:

Tel:

E-mail:

Country:

CAPTCHA:

Submit the information to obtain product spec sheet,Please make sure that your email address is absolutely correct!

Specification Sheet

Model

LSHM-1500W(XXK)Ultra-ZLSHM-1800W(XXK)Ultra-Z
Watt1500W1800W
Chip BrandLumileds 5050
Lumen255,000Lm297,000Lm
Efficiency170lm/w±5%165Lm/w±5%
P50-L Lumen Efficiency155Lm/w±5%152Lm/w±5%
Driver

Moso Driver

Gross Weight32.5kg
Input Volt198~440Vac
Power Factor>0.9
CRIRa80
FuctionDali2.0 & DMX
SPD10KV
ModulesRotatable
CCT3000K~6000K
IP RatingIP66
IK RatingIK10
Control0-10V, 1-10V dim control, Motion sensor, DALI, Zigbee
Beam Angle(Symmetrical)10°  20°  40°  60°
Beam Angle(Asymmetrical)P50-L
CertificationsENEC TUV CE CB SAA RoHS LM79 LM80 IK10 IP66 Salt Spray
Warranty5 Years

Model

LSHM-1500W(XXK)Ultra-ZLSHM-1800W(XXK)Ultra-Z
Watt1500W1800W
Chip BrandLumileds 5050
Lumen255,000Lm297,000Lm
Efficiency185Lm/w±5%180Lm/w±5%
P50-L Lumen Efficiency170Lm/w±5%165Lm/w±5%
P60-L Lumen Efficiency150Lm/w±5%145Lm/w±5%
Driver

Moso Driver

Gross Weight32.5kg
Input Volt198~440Vac
Power Factor>0.9
CRIRa80
FuctionDali2.0 & DMX
SPD10KV
ModulesRotatable
CCT3000K~6000K
IP RatingIP66
IK RatingIK10
Control0-10V, 1-10V dim control, Motion sensor, DALI, Zigbee
Beam Angle(Symmetrical)10°  20°  40°  60°
Beam Angle(Asymmetrical)P50-L
CertificationsENEC TUV CE CB SAA RoHS LM79 LM80 IK10 IP66 Salt Spray
Warranty5 Years

1500W&1800W Ultra-Z LED High Mast Light

1500W&1800W Ultra-Z LED High Mast Light

Asymmetrical P50-L and P60-L optics are designed to allow lamps to be installed horizontally, without emitting light upwards or causing light pollution to the sky, audience, or neighboring spaces. These optics are designed to direct the light output of the lamp to a specific area, creating a focused and controlled lighting environment.


By using these optics, you can ensure that your lighting is efficient and effective, while minimizing the impact on the environment and those around you. This is especially important in urban or residential areas, where light pollution can be a significant problem.


In summary, the asymmetrical P50-L and P60-L optics are a great solution for those looking for a controlled and focused lighting environment that minimizes light pollution and its impact on the surroundings.

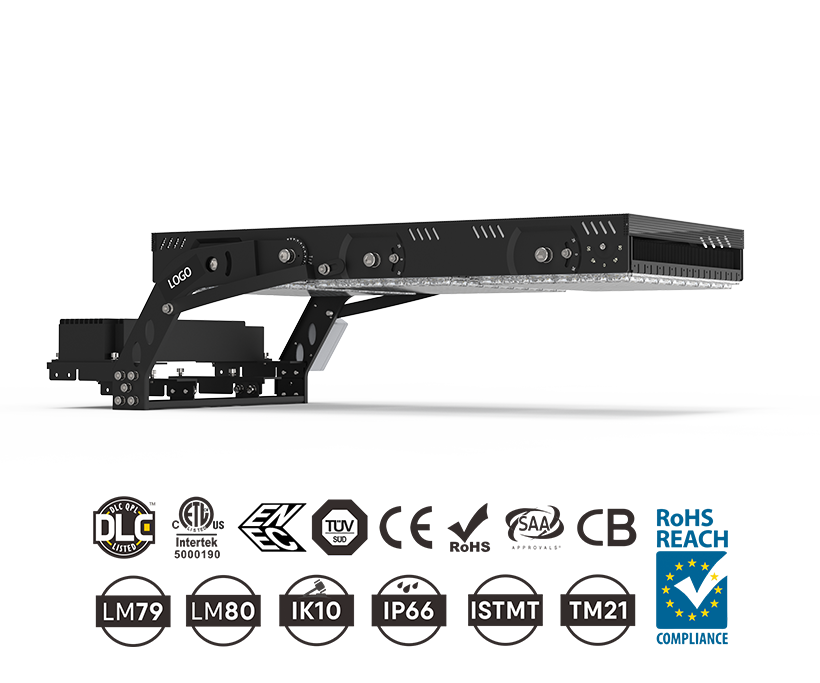

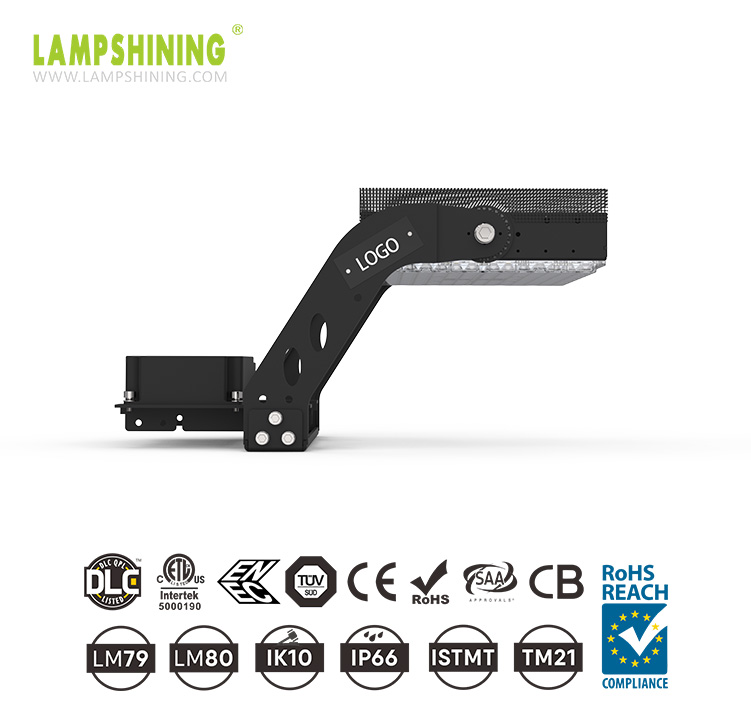

ENEC TUV CE CB SAA RoHS

LM79  LM80 IK10  IP66 Salt Spray

IP66 and IK10 protection rate

5 years warranty

Asymmetric Optical Lenses

Asymmetric Optical Lenses

Horizontal installation at 0 degree angle & 10degree tilt angle installtion

Symmetrical & Asymmetrical Optic Tilted installation

Symmetrical & Asymmetrical Optic Tilted installation

Symmetrical and Asymmetrical optics are two types of lenses or reflectors used in lighting fixtures to control the direction and spread of light. Tilted installation refers to the angle at which the lighting fixture is installed, which can affect the direction and spread of light.



Symmetrical and Asymmetrical optics can be used in conjunction with tilted installation to adjust the direction and spread of light, making them versatile tools for lighting designers and engineers.


Polarized Light Design Asymmetrical optic

Polarized Light Design Asymmetrical optic

The polarized light design with asymmetrical optic lenses like P50 and P60L in the Ultra-Z LED High Mast Lights is an effective solution to reduce light pollution and direct light where it's needed. This design minimizes overflow of upward lights that would otherwise emit light pollution to the sky and surrounding areas, including audience and neighbors' spaces.


The asymmetrical optical lenses provide a precise distribution of light, illuminating the playing field or specific areas of interest without creating excess glare or light spillage. This results in a more efficient and targeted illumination, which helps to reduce light pollution and create a more comfortable environment for players and spectators.


The polarized light design reduces glare and enhances contrast, making it easier for players to see and react to the game while minimizing eye strain. This feature is especially important for high-speed sports where quick reaction times are critical.


The combination of polarized light design and asymmetrical optic lenses like P50 and P60L in the Ultra-Z LED High Mast Lights is an effective way to reduce light pollution and create a comfortable, safe, and enjoyable environment for players and spectators.


No overflow upward lights

No light pollution to sky

No light pollution

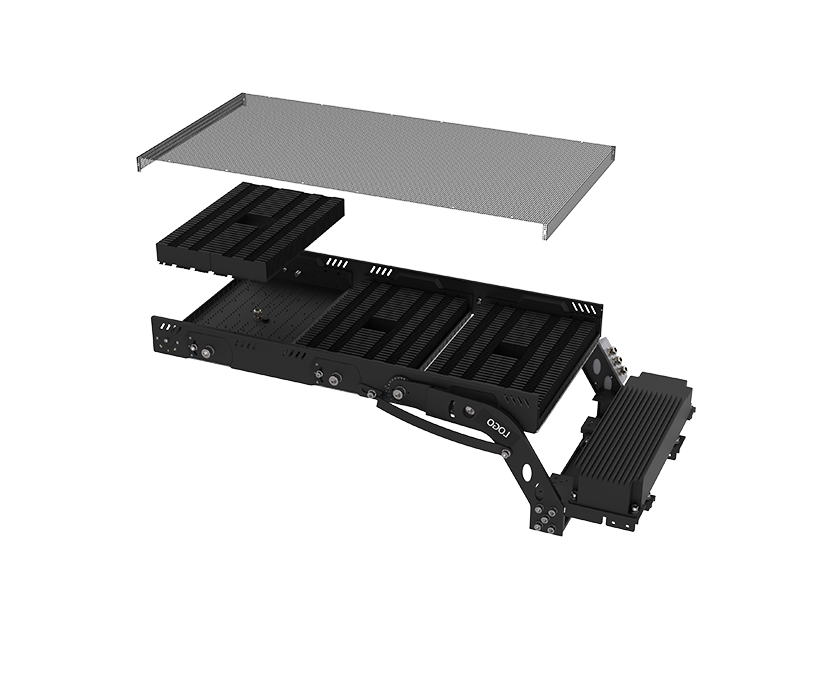

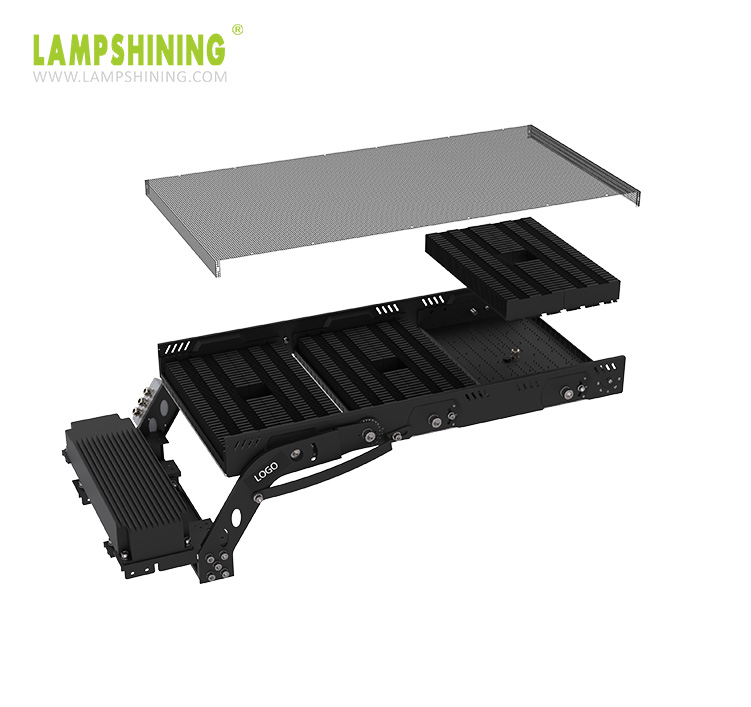

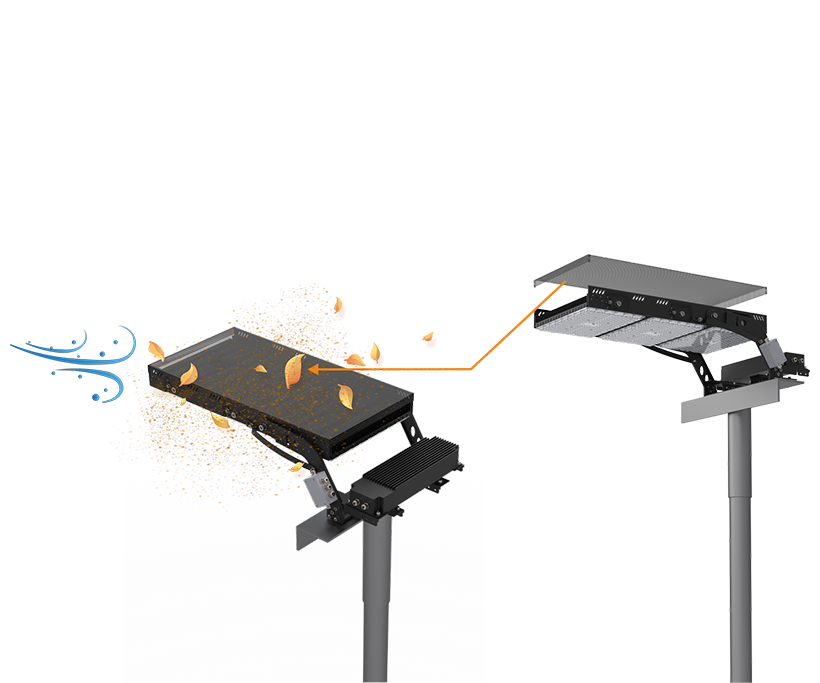

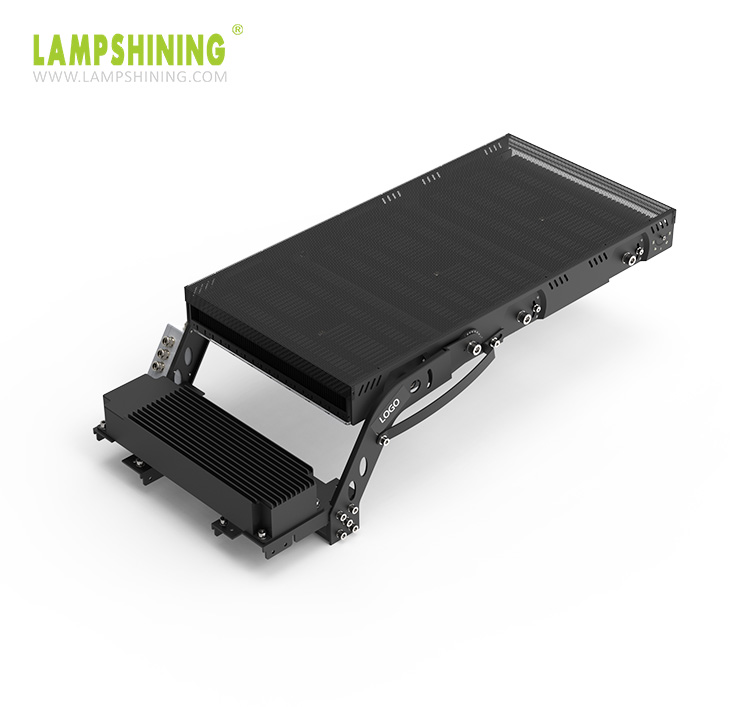

Backward rear net cover to prevent damage from bird nesting

Backward rear net cover to prevent damage from bird nesting

In addition to preventing damage from bird nesting, the backward rear net cover can also help prevent debris from accumulating inside the led lights, which can cause clogs or other types of damage. By keeping the interior of the equipment clean and free of debris, the backward rear net cover can help ensure that the equipment operates reliably and efficiently over time.

Marine grade aluminum housing

Marine grade aluminum housing

Marine grade aluminum housing and folding aluminum fin design are two features commonly found in electronics equipment designed for harsh or challenging environments where exposure to saltwater, humidity, and other environmental factors can cause corrosion and other types of damage.


Folding aluminum fin design, on the other hand, is a lightweight heat sink design that can efficiently dissipate heat from electronic components, such as LEDs. The folded fin design increases the surface area of the heat sink, allowing for efficient heat dissipation while maintaining a low weight. This design is effective for applications where weight is critical.


Overall, the combination of marine grade aluminum housing and folding aluminum fin design can help ensure that electronics equipment can operate reliably in harsh or challenging environments while maintaining efficient cooling capabilities.


Small Size

Light Weight

Salt Spray

Application

For area lighting for interior and exterior applications:

Airport, golf course, factories, plants, warehouse, exhibition halls, gym, seaport, highway, high mast lighting and

bmx sportlighting etc.
