LED Large Stadium Lights - LED Sports high mast Lighting 1440W-223200 Lumen

●   Watt: 1440W

●   Lumens: 223,200

●   Light Source: Lumileds 5050

●   Input Volt: 100-277VAC

●   IP Rating: IP65 - IK08

●   Size: 1119*694*268mm

●   Lamp Weight: 37kg

●   CCT (Color Temp): 3000,4000,5000,5700k

●   5 years warranty

●   Beam Angle: 10/ 20/ 40/ 60/ 90/ 140*100/ 135*60(P50)

Inquire Now Next Product

LED Large Stadium Lights - LED Sports high mast Lighting 1440W-223200 Lumen

Name:

Tel:

E-mail:

Country:

CAPTCHA:

Submit the information to obtain product spec sheet,Please make sure that your email address is absolutely correct!

Specification Sheet
  • Data Sheets
  • Beam Angle
  • Options/Accessories
  • Package details

Specifications

ModelLSTHM-B1440W-LV(XXK)
Watt1440W
Lumen223,200
Efficiency155Lm/W±3%
Input Volt100-277VAC
Chip BrandLumieleds 5050
CCT3000-6500K
Modules360 Degree Rotatable
Weight37kg
Size1119*694*268mm
DriverMeanwell 6*ELG-240-48A/ 6*XLG-240-H-A
IP RatingIP65 & IK08
Lifespan>50,000 Hours
DimmingDimmable / Non-dimmable
Module rotatableModule rotatable up & down & back and front
Fixture MaterialMarine grade aluminum
Wind rating51.0-56.0m/s
Beam Angle10/ 20/ 40/ 60/ 90/ 140*100/ 135*60 degree(P50)
CertficationENEC ETL DLC TUV CE CB SAA RoHS LM79 LM80 TM21 IK10 Salt Spray test approved


1440 watt LED High Mast Light main feature

  • IP65 rated LED floodlight

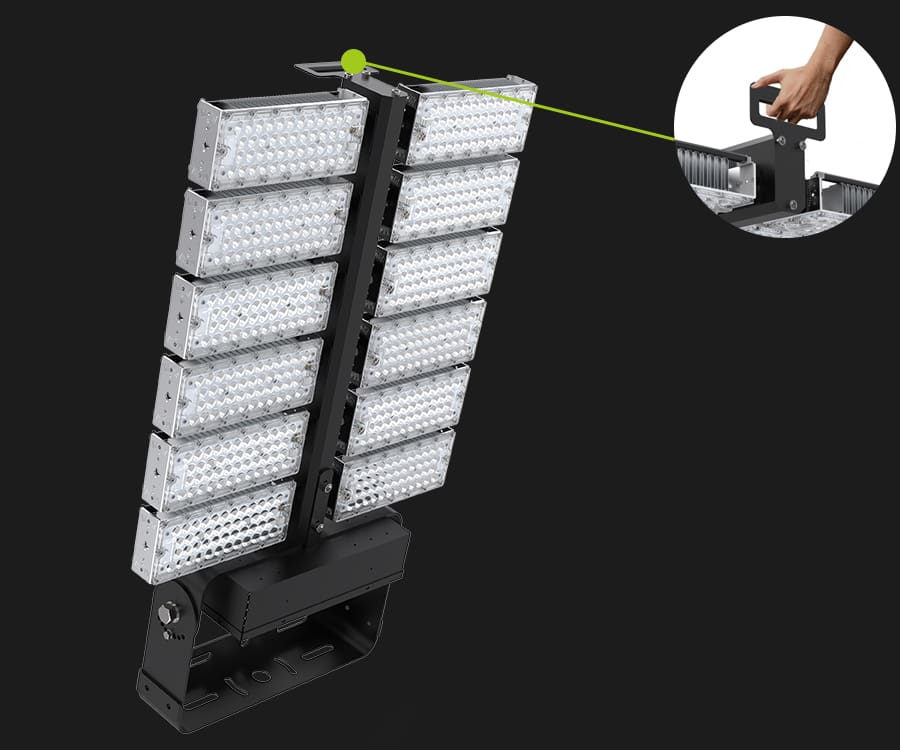

  • Rotatable modules offering maximum customisation

  • Heavy duty stirrup mounting bracket

  • Multiple optics available

  • Can be installed as a floodlight or high bay

  • With illumination equivalent to 3000W metal halide fixtures you will enjoy an instant-on, flicker-free cold start, and industry-leading 155-160Lm/W.

  • Protractor scale for easier aiming

  • 50,000-hour operating life means years of maintenancefree operation.

  • Unique design extracts heat from the light source, thereby extending component life and ultimately prolonging the useful life of the fixture.

  • Lightweight design provides easy retrofitting of existing HID installations,along with quick mounting on all new installations.


1440W flood LED High Mast pole Light show

1440w LED Large Sports Stadium high mast Lights advantages


Size

1440w LED Large Sports field Stadium high mast Light size

Light weight

1.weight of folding fin heat sink is 50% ligher than die costing, extrution etc.

2.1070 aluminum, thickness 0.5mm. structure on heat dissipation, the heat dissipation area is larger, and the heat dissipation effect is better, it's with Lighter weight, which is 1/3 of weight of die-casting, proximate matter and cold forging.


1440w LED Large Stadium Lights with lightweight high heat dissipation material


Our led high mast uses aluminum fins for heat dissipation, which has good heat dissipation performance and light weight, and it is 50% lighter than the weight of the die-cast high mast. There is a big advantage in installing our led high pole lights for aerial work. Lightweight design provides easy refurbishment of existing HID installations as well as quick installation.

1440w LED Large field stadium high mast Light lightweight design


Rotatable module

1.Rotatable module

2.Rotatable modules opffering maximum customisation

3.Replaceable optical lens

4.Protractor scale for easier aiming

5..Lengthened heavy duty mounting Bracket allowing for 360o rotation

6.Salt spray resistant, corrosive resistant,processed with dedicated treatments on the heat sink and other components,these fixtures can withstand corrosive and salt intensive environments.


1440w LED Large field stadium high mast Light module rotatable design


Waterproof IP65

1.Anti-dust design,able to be with flushable cleaning2.IP65 (TUV report available)3.can't be immersed into the water

1440w LED Large field airport high mast Light waterproof ip65


Withstand wind

Install our High Power LED Football pitch lights Can withstand hurricanes of 51.0-56.0m/s.


LED Large Stadium Lights can withstand hurricanes


Photometrics


Certification Testing


Installation


Applications


lighting fixtures application iconlighting fixtures application iconlighting fixtures application icon
All ApplicationsBaseball, SoftballBasketball, Tennis

Uniformity and light quality

Light pollution and spillage

Controls

High levels of illumination

Lighted from all sides

Reducing glare

Floodlight, or area-style fixtures

Court configuration (grouping)

Court access

lighting fixtures application iconlighting fixtures application icon
Harbors, WharfsSoccer, Lacrosse, Mixed Use

Pole location (primarily sidelines)

Pole quantity

Number of fixtures per pole

Pole location

Pole quantity

Number of fixtures per pole


1440w rotatable module large sites led high mast lights

Cases show

Soccer Field Ligting

Photometrics

10 20 40 60 90 140*100 degree

LED high mast light phohometrics

Bracket

Heavy stirrup mounting bracket, can be equipped with circular installation accessories rotate 270 degree.

1440w LED Large field airport high mast Light bracket design

1440w LED Large field airport high mast Light Round installation plate

Packing method

107*87*48cm 1pc/ctn

GW: 43Kg


Finished lamp packaging diagram

1440w LED high mast light Packing method
