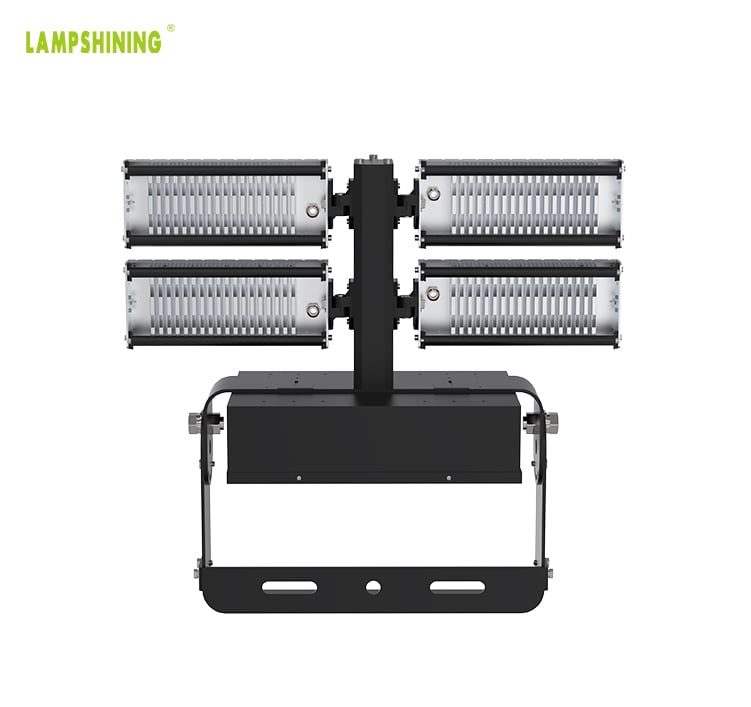

400W Transformer LED High Mast Light

●   Watt: 400W

●   Lumens: 64,000/ 70,000

●   Light Source: Lumileds 5050

●   Input Volt: 100-277VAC

●   IP Rating: IP66 - IK08

●   Size: 705*645*289mm

●   Lamp Weight: 23kg

●   CCT (Color Temp): 3000,4000,5000,5700k

●   5 years warranty

●   Beam Angle: 10/ 20/ 40/ 60/ 90/ 140*100/ 135*60(P50)

Inquire Now Next Product

400W Transformer LED High Mast Light

Name:

Tel:

E-mail:

Country:

CAPTCHA:

Submit the information to obtain product spec sheet,Please make sure that your email address is absolutely correct!

Specification Sheet
ModelLSTHM-B400W-LV(XXK)
Watt400W
Lumen64,000
Efficiency160Lm/W±3%
Input Volt100-277VAC
Chip BrandLumieleds 5050
CCT3000-6500K
Modules360 Degree Rotatable
Weight23kg
Size705*645*289mm
DriverMeanwell 3*XLG-240-H-A
IP RatingIP66 & IK08
Lifespan>50,000 Hours
DimmingDimmable / Non-dimmable
Module rotatableModule rotatable up & down & back and front
Fixture MaterialMarine grade aluminum
Wind rating51.0-56.0m/s
Beam Angle10/ 20/ 40/ 60/ 90/ 140*100/ 135*60 degree(P50)
CertficationENEC ETL TUV CE CB SAA RoHS LM79 LM80 TM21 IK10 Salt Spray test approved
ModelLSTHM-B400W-LV(XXK)
Watt400W
Lumen70,000
Efficiency175Lm/W±3%
Input Volt100-277VAC
Chip BrandLumieleds 5050
CCT3000-6500K
Modules360 Degree Rotatable
Weight23kg
Size705*645*289mm
DriverMeanwell 3*XLG-240-H-A
IP RatingIP66 & IK08
Lifespan>50,000 Hours
DimmingDimmable / Non-dimmable
Module rotatableModule rotatable up & down & back and front
Fixture MaterialMarine grade aluminum
Wind rating51.0-56.0m/s
Beam Angle10/ 20/ 40/ 60/ 90/ 140*100/ 135*60 degree(P50)
CertficationENEC ETL TUV CE CB SAA RoHS LM79 LM80 TM21 IK10 Salt Spray test approved

Transformer LED High Mast Flood Light 400W

Transformer LED High Mast Flood Light 400W

Transformer LED High Mast Flood Light is a perfect Outdoor lighting solution for area, street, stadium.

400W

Lumileds 5050

160-175Lm/W

3000K-6000K

ETL ENEC TUV CE CB SAA RoHS

LM79 LM80 TM21 IK10 Salt Spray test approved

High quility LED Brand

High quility LED Brand

Uses Lumileds 5050, High Efficiency 160-175Lm/W.

Lumileds 5050

Folding aluminum fin design

Folding aluminum fin design

Lightweight, fast heat dissipation. Increase the heat dissipation surface area by air coolingto dissipate heat and expand the contact area with air! It speeds up the spread of heat! Thermal effect is good.

Folding aluminum fin design

Lightweight

Handle

Handle

The Transformer LED High Mast Light is equipped with a handle on the top for easy transport and installation.

Handle

Rotatable

Rotatable

The module of Transformer LED High Mast Light can be rotated up and down, left and right, easy to adjust and get the best lighting angle.

Rotatable 140 degree

Rotatable 360 degree

IP66 & Lightning protection & IK10

IP66 & Lightning protection & IK10

IP66 & Lightning protection & IK10. Waterproof IP66 and lightning protection 10/20KV, IK10 protective design allows transformer led sports light to withstand harsh environments;

IP66

Lightning protection

IK10

50,000H

-30~45℃

Withstand wind

Withstand wind

Install our High Power LED Football pitch lights Can withstand hurricanes of 51.0-56.0m/s.

51.0-56.0m/s

Other Watt

Transformer LED High Mast Light is available in wattage from 240W to 1800W, which is the best choice to replace the existing MH/HID street lights of 500W-4000W.

Beam Angle

Beam Angle

The beam angle can be selected from 20/ 40/ 60/ 90/ 120 degree. Professional light distribution angle can better achieve uniform and efficient lighting effect.

20 degree

40 degree

60 degree

90 degree

120 degree

Application

Tennis courts, basketball courts, football fields, large squares, areas, etc.

stadium light application

stadium light application

stadium light application


Accessories

347-480VAC Sosen driver
1-10V Dimmable
10KV or 20KV SPD
Hot-dip galvanizing bracket
Round installation plate
Round installation plate


WattSize
400W 1pc/ 705*645*289mm


400W Transformer LED High Mast Light size
