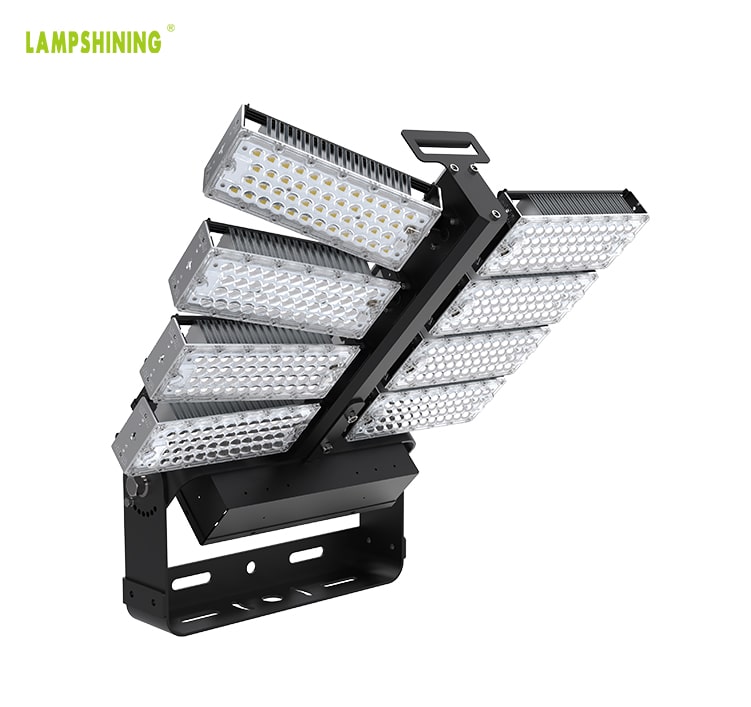

960W LED High Mast Light,Rotatable Module,155Lm/W,148800 Lumen,IP65,Stadium Light,Sports Lighting,Flood Lighting
  • 960W LED High Mast Light,Rotatable Module,155Lm/W,148800 Lumen,IP65,Stadium Light,Sports Lighting,Flood Lighting
  • 960W LED High Mast Light,Rotatable Module,155Lm/W,148800 Lumen,IP65,Stadium Light,Sports Lighting,Flood Lighting
  • 960W LED High Mast Light,Rotatable Module,155Lm/W,148800 Lumen,IP65,Stadium Light,Sports Lighting,Flood Lighting
  • 960W LED High Mast Light,Rotatable Module,155Lm/W,148800 Lumen,IP65,Stadium Light,Sports Lighting,Flood Lighting
  • 960W LED High Mast Light,Rotatable Module,155Lm/W,148800 Lumen,IP65,Stadium Light,Sports Lighting,Flood Lighting
960W LED High Mast Light,Rotatable Module,155Lm/W,148800 Lumen,IP65,Stadium Light,Sports Lighting,Flood Lighting960W LED High Mast Light,Rotatable Module,155Lm/W,148800 Lumen,IP65,Stadium Light,Sports Lighting,Flood Lighting960W LED High Mast Light,Rotatable Module,155Lm/W,148800 Lumen,IP65,Stadium Light,Sports Lighting,Flood Lighting960W LED High Mast Light,Rotatable Module,155Lm/W,148800 Lumen,IP65,Stadium Light,Sports Lighting,Flood Lighting960W LED High Mast Light,Rotatable Module,155Lm/W,148800 Lumen,IP65,Stadium Light,Sports Lighting,Flood Lighting

960W LED High Mast Light,Rotatable Module,155Lm/W,148800 Lumen,IP65,Stadium Light,Sports Lighting,Flood Lighting

●   Watt: 960W

●   Lumens: 148,800

●   Light Source: Lumileds 5050

●   Input Volt: 100-277VAC

●   IP Rating: IP65 - IK08

●   Size: 855*694*268mm

●   Lamp Weight: 27kg

●   CCT (Color Temp): 3000,4000,5000,5700k

●   5 years warranty

●   Beam Angle: 10/ 20/ 40/ 60/ 90/ 140*100/ 135*60(P50)

Inquire Now Next Product

960W LED High Mast Light,Rotatable Module,155Lm/W,148800 Lumen,IP65,Stadium Light,Sports Lighting,Flood Lighting

Name:

Tel:

E-mail:

Country:

CAPTCHA:

Submit the information to obtain product spec sheet,Please make sure that your email address is absolutely correct!

Specification Sheet
  • Data Sheets
  • Beam Angle
  • Options/Accessories
  • Package details

Specifications

ModelLSTHM-B960W-LV(XXK)
Watt960W
Lumen148,800
Efficiency155Lm/W±3%
Input Volt100-277VAC
Chip BrandLumieleds 5050
CCT3000-6500K
Modules360 Degree Rotatable
Weight27kg
Size855*694*268mm
DriverMeanwell 4*ELG-240-48A/ 4*XLG-240-H-A
IP RatingIP65 & IK08
Lifespan>50,000 Hours
DimmingDimmable / Non-dimmable
Module rotatableModule rotatable up & down & back and front
Fixture MaterialMarine grade aluminum
Wind rating51.0-56.0m/s
Beam Angle10/ 20/ 40/ 60/ 90/ 140*100/ 135*60 degree(P50)
CertficationENEC ETL DLC TUV CE CB SAA RoHS LM79 LM80 TM21 IK10 Salt Spray test approved


960W LED Stadium High mast Lights

  • IP65 rated LED floodlight

  • Rotatable modules offering maximum customisation

  • Heavy duty stirrup mounting bracket

  • Multiple optics available

  • Can be installed as a floodlight or high bay

  • With illumination equivalent to 1750 watt and 2000W metal halide fixtures you'll enjoy an"instant-on, flicker-free; cold start, and industry-leading 155-160Lm/W.

  • Protractor scale for easier aiming

  • 50,000-hour operating life means years of maintenancefree operation.

  • Unique design extracts heat from the light source, thereby extending component life and ultimately prolonging the useful life of the fixture.

  • Lightweight design provides easy retrofitting of existing HID installations,along with quick mounting on all new installations.


960w freeway module adjusatable led freeway flood lighting

960W 100-277VAC adjustable module LED Stadium High Pole Lights Fixture advantages

Size


 960w led high mast light size

Light weight

1.weight of folding fin heat sink is 50% ligher than die costing, extrution etc.

2.1070 aluminum, thickness 0.5mm. structure on heat dissipation, the heat dissipation area is larger, and the heat dissipation effect is better, it's with Lighter weight, which is 1/3 of weight of die-casting, proximate matter and cold forging.


960W 100-277VAC LED Stadium High Pole Lights with lightweight high heat dissipation material


Our led high mast uses aluminum fins for heat dissipation, which has good heat dissipation performance and light weight, and it is 50% lighter than the weight of the die-cast high mast. There is a big advantage in installing our led high pole lights for aerial work. Lightweight design provides easy refurbishment of existing HID installations as well as quick installation.


960W 100-277VAC LED Stadium High Pole Lights Fixture lightweight design


Certified

ENEC ETL DLC TUV CE CB SAA RoHS LM79 LM80 TM21 IK10 Salt Spray test approved

960W 100-277VAC LED Stadium High Pole Lights Fixture certified


Module Design

Fin heat dissipation design. Optional multiple optical angles for different lighting requirements

960W 100-277VAC LED Stadium High Pole Lights Fixture module design


Withstand wind

Install our LED Stadium High Pole Lights Can withstand hurricanes of 51.0-56.0m/s.


960W 100-277VAC LED Stadium High Pole Lights Fixture can withstand hurricanes


Rotatable module

1.Rotatable module

2.Rotatable modules opffering maximum customisation

3.Replaceable optical lens

4.Protractor scale for easier aiming

5..Lengthened heavy duty mounting Bracket allowing for 360o rotation

6.Salt spray resistant, corrosive resistant,processed with dedicated treatments on the heat sink and other components,these fixtures can withstand corrosive and salt intensive environments.


960W 100-277VAC LED Stadium High Pole Lights Fixture adjustable angle design


Waterproof IP65

1.Anti-dust design,able to be with flushable cleaning2.IP65 (TUV report available)3.can't be immersed into the water

960W 100-277VAC LED Stadium High Pole Lights Fixture fixtures waterproof ip65


Photometrics


Certification Testing


Installation


Applications


lighting fixtures application iconlighting fixtures application iconlighting fixtures application icon
All ApplicationsBaseball, SoftballBasketball, Tennis

Uniformity and light quality

Light pollution and spillage

Controls

High levels of illumination

Lighted from all sides

Reducing glare

Floodlight, or area-style fixtures

Court configuration (grouping)

Court access

lighting fixtures application iconlighting fixtures application icon
Harbors, WharfsSoccer, Lacrosse, Mixed Use

Pole location (primarily sidelines)

Pole quantity

Number of fixtures per pole

Pole location

Pole quantity

Number of fixtures per pole



high power led flood lighting

960W adjustable 360 degree module led high mast stadium light

960W adjustable 360 degree module led high mast stadium light

Photometrics

10 20 40 60 90 140*100 degree

LED high mast light phohometrics

Accessories

347-480VAC Sosen driver
1-10V Dimmable
10KV or 20KV SPD
Hot-dip galvanizing bracket
Round installation plate
Round installation plate


Packing method

81*81*48cm 1pc/ctn

GW: 31.5Kg


Finished lamp packaging diagram

960w LED high mast light Packing method
