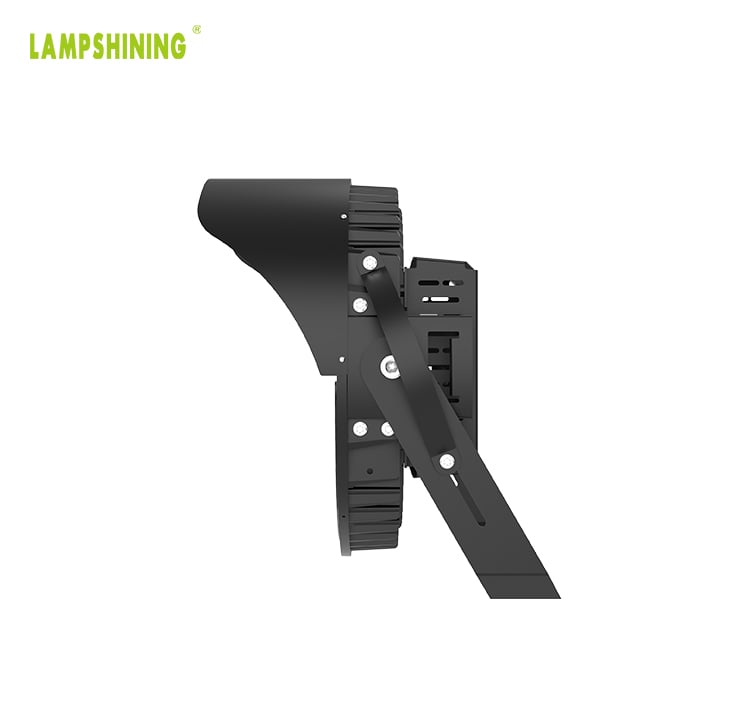

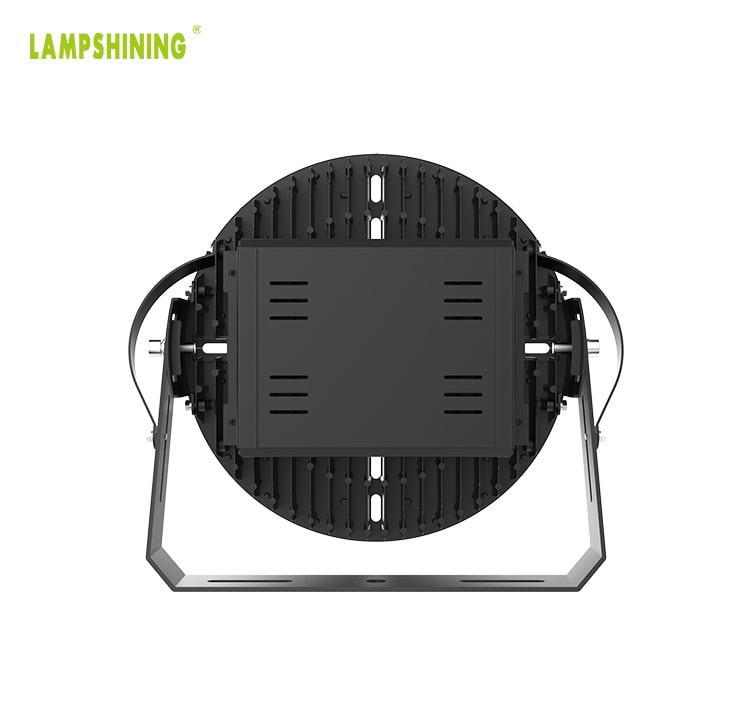

Round Slim Aluminum LED Sports Light 480W - Anti Glare Corrosion-resistant brackets Lighting Fixtures

●   Watt: 480W

●   Lumens: 76,800/ 86,400

●   Light Source: Lumileds 5050

●   Input Volt: 100-277VAC

●   IP Rating: IP66 - IK10

●   Dimension: 490*330mm

●   Lamp Weight: 19.5kg

●   CCT (Color Temp): 4000, 5000, 6000

●   5 years warranty

●   Beam Angle: 10/ 25/ 45/ 60 degree

Inquire Now

Round Slim Aluminum LED Sports Light 480W - Anti Glare Corrosion-resistant brackets Lighting Fixtures

Name:

Tel:

E-mail:

Country:

CAPTCHA:

Submit the information to obtain product spec sheet,Please make sure that your email address is absolutely correct!

Specification Sheet
ModelLSRHM-480W- LV(XXK)
Watt480W
Lumen76,800
Efficiency160Lm/W±3%
DriverMeanwell 2*XLG-240H-A
Input Volt100-277VAC
Chip BrandLumileds 5050
CCT4000-6000K
Anti glared shieldIncluded
Weight19.5Kg
Dimension490*330mm /  19.3"x13" in
Beam angle10, 25, 45, 60 degree
CertificationTUV CE CB SAA RoHS LM79 LM80 TM21 IK10 Salt Spray test approved
ModelLSRHM-480W- LV(XXK)
Watt480W
Lumen86,400
Efficiency180Lm/W±3%
DriverMeanwell 2*ELG-240-48A
Input Volt100-277VAC
Chip BrandLumileds 5050
CCT4000K, 5000K
Anti glared shieldIncluded
Weight19.5Kg
Dimension490*330mm /  19.3"x13" in
Beam angle10, 25, 45, 60 degree
CertificationTUV CE CB SAA RoHS LM79 LM80 TM21 IK10 Salt Spray test approved

Round LED Sports Light 480W

Round LED Sports Light 480W

Round LED Sports Light is a perfect Outdoor lighting solution for area, stadium.

480W

Lumileds 5050

160-180Lm/W

3000K-6000K

TUV CE CB SAA RoHS

LM79 LM80 TM21 IK10 Salt Spray test approved

High quility LED Brand

High quility LED Brand

Uses Lumileds 5050, High Efficiency 160-180Lm/W.

Lumileds 5050

Honeycomb heat dissipation design

Honeycomb heat dissipation design

ADC12 aluminum alloy integrated die-casting, honeycomb heat dissipation design, heat dissipation effect is more.

Honeycomb heat dissipation design

Rotatable Bracket

Rotatable Bracket

Rotating scale on the luminaire for customers to adjust the angle more accurately.

Rotatable

IP66 & Lightning protection & IK10

IP66 & Lightning protection & IK10

IP66 & Lightning protection & IK10. Waterproof IP66 and lightning protection 10/20KV, IK10 protective design allows Slim pro led sports light to withstand harsh environments;

IP66

Lightning protection

IK10

Power-separated design

Power-separated design

The power box and the radiator are separated design,Solved the problem that the temperature of the power supply becomes higher because the heat of the radiator accumulates on the power supply.

The discrete design keeps the power supply cool and prolongs its lifespan.

Power-separated design

Anti glare shield (Optional)

Anti glare shield (Optional)

In sports lighting, emitting upward light is likely to cause discomfort in other areas. The special design of the anti glared shield can better control the excess light scattered upwards, achieve the effect of anti-glare, and increase the effective light of the sports field.

Anti glare

Exploded

Exploded

High quality luminaires that require little maintenance, offer significant energy savings and excel at illuminating defined outdoor areas.

Round LED Sports Light

Installation

1.Without anti-glareplate 2.With anti-glare plate 3.Slip fitter 4.Rotatable Arm

Beam Angle

Beam Angle

The beam angle can be selected from 10/ 25/ 45/ 60 degree. Professional light distribution angle can better achieve uniform and efficient lighting effect.

10 degree

25 degree

45 degree

60 degree

Application

Tennis courts, basketball courts, football fields, large squares, areas, etc.

stadium light application

stadium light application

stadium light application

Accessories

347-480VAC Sosen driver
1-10V Dimmable
Dali Dimmable
Hot-dip galvanizing bracket

10KV SPD
Slip fitterSlip fitter
Rotatable ArmRotatable Arm
Aiming deviceAiming device


WattSize
480W 1pc/ 490*330mm



Round Slim Aluminum LED Sports Light 480W size
