480W 91200Lm 190Lm/W Energy-saving LED Sport Light | Flood Light, High Pole Area Lighting
  • 480W 91200Lm 190Lm/W Energy-saving LED Sport Light | Flood Light, High Pole Area Lighting
  • 480W 91200Lm 190Lm/W Energy-saving LED Sport Light | Flood Light, High Pole Area Lighting
  • 480W 91200Lm 190Lm/W Energy-saving LED Sport Light | Flood Light, High Pole Area Lighting
  • 480W 91200Lm 190Lm/W Energy-saving LED Sport Light | Flood Light, High Pole Area Lighting
  • 480W 91200Lm 190Lm/W Energy-saving LED Sport Light | Flood Light, High Pole Area Lighting
480W 91200Lm 190Lm/W Energy-saving LED Sport Light | Flood Light, High Pole Area Lighting 480W 91200Lm 190Lm/W Energy-saving LED Sport Light | Flood Light, High Pole Area Lighting 480W 91200Lm 190Lm/W Energy-saving LED Sport Light | Flood Light, High Pole Area Lighting 480W 91200Lm 190Lm/W Energy-saving LED Sport Light | Flood Light, High Pole Area Lighting 480W 91200Lm 190Lm/W Energy-saving LED Sport Light | Flood Light, High Pole Area Lighting

480W 91200Lm 190Lm/W Energy-saving LED Sport Light | Flood Light, High Pole Area Lighting

480W;

91,200Lm(190Lm/W±3%);

15/ 30/ 60/ 90 degree/ TPII/ TPIII;

Replacement 1000W HPS, MH;

Industry-leading 190LM/W helps you save more energy;

A variety of professional optical lenses, suitable for lighting in various different scenes;

Unique quality of light with flickerfree operation suitable for HDTV broadcasting and Super Slow Motion;


Inquire Now Next Product

480W 91200Lm 190Lm/W Energy-saving LED Sport Light | Flood Light, High Pole Area Lighting

Name:

Tel:

E-mail:

Country:

CAPTCHA:

Submit the information to obtain product spec sheet,Please make sure that your email address is absolutely correct!

Specification Sheet
  • Data Sheets
  • Beam Angle
  • Options/Accessories
  • Package details

Overview

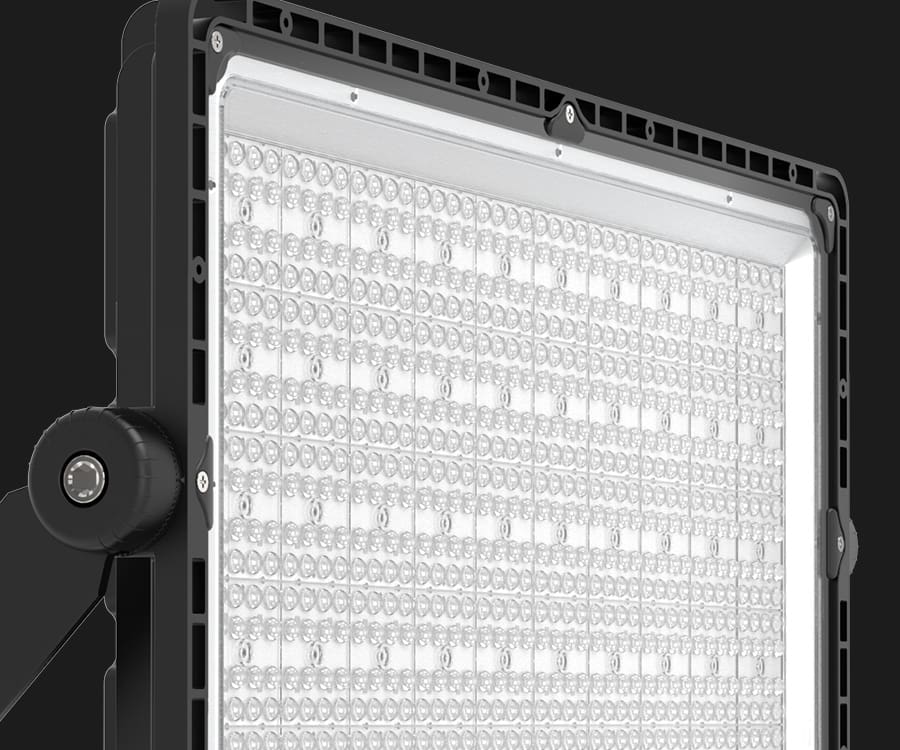

480W LED Sport Light

Our 480W high efficiency LED sport lighting is designed to replace 1000-1200W metal halides and HPS sport flood lamps. We have authoritative certifications such as ETL, DLC, TUV, CE, ROSH, CB, SAA, LCP, IP66, IK08, Salt spray test. We specialize in the R&D and manufacturing of LED Sport light to support the illuminating of areas. We have achieved very good results in all kinds of area lighting.


The Ultra series of LED Sport lights are sturdy and durable with integrated aluminum alloy die-casting honeycomb heat dissipation design. And the surface has adopted black sand powder spray treatment, corrosion resistance, oxidation resistance, and salt spray resistance. What's more,it uses the stainless steel bracket and Silicone gaskets, and the screws are made of AISI 304 stainless steel.


480w ultra led sport light


Optional Colors

The housing is available in black and silver gray.

led sport light optional colors

Size

480w led sport light size

Specifications

Model No.

LSHM‐480W‐LV(XXK)Ultra

LSHM‐480W‐LV(XXK)Ultra
Power Consumption480W480W
Light SourceLumileds 3030Lumileds 5050
Luminous Flux(±5%)76,800Lm[160(±3%) Lm/W]91,200[190(±3%) LM/W]
Driver TypeMeanwell 2*ELG-240-48AMeanwell 2*ELG-240-48A
Luminaire Net Weight15kg15kg
Correlated Color Temperature3000K, 4000K, 5000K, 5700K, 6500K
Color Rendering IndexRa70 (Ra80, Ra90 optional)
Input Voltage100-277 VAC
Power Factor>0.95
IP&IK RatingIP66 / IK08
Life TimeL70/B10 >50,000hours
Warranty5 Years / 7 years extended warranty available
DimmableDimmable and Non-dimmable
Beam Angle15/ 30/ 60/ 90 degree/ TPII(137*80 degree)/ TPIII(146*83 degree)
CertificationETL, DLC, TUV, CE, ROSH, CB, SAA, LCP, IP66, IK08, Salt spray test.


Why Chooes Ultra 480W LED Sport Area Light?


1.High Lumens Efficiency

Standard osram 5050, Lumileds 5050 lamp beads luminous efficiency 190lm/W.

high efficiency 190lm/w


2.Bracket Rotatable

The Product Bracket can rotate more than 270 degree, easy to adjust the best lighting angle.


led sport light bracket rotatable 270 degree

led sport light bracket rotatable easy to adjust the best lighting angle


3.Multi-module splicing

Single module 480w design, simpler structure and easier assembly.


simpler structure and easier assembly


4.Honeycomb heat dissipation design

ADC12 aluminum alloy integrated die-casting, honeycomb heat dissipation design, heat dissipation effect is more.


led sport light Honeycomb heat dissipation design

The unique groove design of the power cover solves the heat dissipation problem of the power supply, reduces the working temperature of the power supply and prolongs the service life of the lamp.

Better heat dissipation of power supply


5.Waterproof IP66 & IK08

Waterproof IP66 and IK08 protection, can ensure that the lamp can work normally in bad weather.


led sport light waterproof ip66 &ik08 design


Installation

led sport light installation

Application

Ideal for outdoorcrossroads, squares, docks, ships, ports, construction sites, cranes, tennis courts, basketball courts, football fields, etc.


led sport light application


LED lighting solution customization

Our engineers can customize professional DIAlux simulation for your venue for free.You only need to provide relevant site information, and our engineers will choose the best combination of power and beam angle for the LED lights.

dialux simulation

get the latest quotation

Beam Angle

Optional 15/ 30/ 60/ 90 degree/ TPII(137*80 degree)/ TPIII(146*83 degree).

ultra led sport light beam angle

Anti-glare Cover

Optional anti-glare cover

Optional anti-glare cover

Package details

480W: 70*58*22cm

1pc/ctn, GW: 15kg
