1440/1800W LED Football field flood Light
Our 1440W/1800W high power LED stadium lighting is designed to replace 3500W to 4000W metal halides and HPSflood lamps. We have authoritative certifications such as ETL DLC ENEC TUV CE RoHS SAA CB IECEE Lm79 Lm80 ISTMT IK08 Salt spray test. We specialize in the R&D and manufacturing of LED stadium lighting to support the illuminating of large areas. We have achieved very good results in all kinds of sports field lighting. High performance lighting ideal for sports fields and stadiums,Each module can be adjustable with the marking scale to adjust the angle accurately,which help achieve the perfect uniformity illumination.
Our LED Football field flood light features:
1.Unique quality of light with flickerfree operation suitable for HDTV broadcasting and Super Slow Motion.
2.Flexible optical system optimising lighting distributions for best in class results.
3.Compact and low weight for minimal structural costs.
4.Fully controllable solution enabling instant lighting, stepped illumination levels and event lighting with dynamic lighting scenarios.
5.100-277VAC, no additional adapter required.
6.1800W led floodlights up to 270,000 Lumens.
7.We offer a 5-year warranty on this LED floodlight.
8.60%-80% energy efficiency, can work more than 50,000 hours, you can save a lot of energy consumption every year after replacing our LED lights.
9.Lightweight design will reduce safety hazards and installation difficulties when installed at high altitude.
10.Instant start and no flicker, so there is no need to worry about startup issues.
11.High uniformity and color rendering.
Parameter
| Model No. | LSDHM-1440W-LV(XXK) | LSDHM-1800W-LV(XXK) |
| Power Consumption | 1440W | 1800W |
| Luminous Flux(±5%) | 237,600Lm | 279,000Lm
|
| Efficacy (5000K, Ra70) | 165(±3%) LM/W | 155(±3%) LM/W |
| Light Source | Lumileds 5050 |
| Correlated Color Temperature | 3000K 4000K 5000K 5700K |
| Color Rendering Index | Ra70 (Ra80, Ra90 optional) |
| Beam Angle | 10/ 20/ 40/ 60/ 90 degree/ 10 degree(P50-P8)/ 135*60 degree(P50)/97*47 degree(TypeIV) |
| Input Voltage | 100-240 VAC / 100-277 VAC |
| Power Factor | >0.95 |
| Frequency | 50 / 60 Hz |
| Surge Protection | 6kV |
| Driver Type | Meanwell ELG-240-48A*6 | Meanwell ELGC-300-H-A*6 |
| Product Dimension | 46.89''*44.31''*7.14'' |
| Luminaire Net Weight | 39.6kg | 42kg |
| Export Carton Size | 1pc/ 128*125*25cm |
| Gross Weight | 43.6kg | 46kg |
| Thermal Management Type | Natural air cooling Floded Aluminium fin |
| Fixture Color | black |
| IP Rating | IP66 |
| Impact Rating | IK08 |
| Wind rating | 51.0-56.0m/s |
| Mounting Option | Bracket Mounting |
| Bracket Material | 316 stainless steel |
| OperatingTemperature | -30°C to + 40°C (-22°F to 104°F) |
| Life Time | L70/B10 >50,000hours |
| Warranty | 5 Years / 7 years extended warranty available |
| Dimmable | Dimmable and Non-dimmable |
| Intelligent Control | DALI Control |
| Accessory | Visor (optional) |
| With 10KV or 20KV SPD |
| Plug - EU/US Standard Plug (optional) |
| Certification | ETL DLC ENEC TUV CE RoHS SAA CB IECEE Lm79 Lm80 ISTMT IK08 Salt spray test |
Size
Lightweight design
1.Weight of folding fin heat sink is ligher than die casting, extrution etc.
2.1070 Aluminum, thickness 0.5mm.
Structure on heat dissipation, the heat dissipation area is langer, and the heat dissipation effect is better, it's with Lighter weight, which is 1/3 of weight of die-casting, proximate matter and cold forging.
The lightweight design not only ensures the convenience of LED Stadium Lights during installation. Moreover, many safety hazards can be eliminated during use. After a long period of use, the pole will gradually age. If the weight of the fixture is too heavy, it may collapse, as shown in the picture below. With our lightweight LED football field Light, the probability of this happening will be greatly reduced.
Our Football field LED flood light uses aluminum fins for heat dissipation, which has good heat dissipation performance and light weight, and it is 50% lighter than the weight of the die-cast flood light. There is a big advantage in installing our led football field flood light for aerial work. Lightweight design provides easy refurbishment of existing HPS, MH installations as well as quick installation.
Withstand wind
Install our High Power LED Football pitch lights Can withstand hurricanes of 51.0-56.0m/s.
Rotatable Module
1.Rotating scale on the luminaire for customers to adjust the angle more accurately.
2.Module rotatable up & down & back and front up to 360 degree.
Most manufacturers design the lighting fixtures implementing lens and reflector technologies for desired light distribution.These existing LED lighting methods according to the characteristics of the light will spread to a wider area and will also fall on the area that does not need the light and may lead to light pollution which is inefficient in terms of energy savings. Dragonfly LED Football filed light technology prevents light pollution and emits the light only to the target area, This is advanced technology to control luminance with low power consumption to providea simillar level of luminous flux and also to maximize energy savings.
High heat dissipation
Our LED football field floodlights have a very good cooling system using a combination of highly thermally conductive materials. In fact, if the heat around the LED chip is too high, the brightness and life of the lamp will be reduced. Therefore, we also attach great importance to heat dissipation during design, which is one of the reasons for the durability of our lamps.
Waterproof and lightning proof design
The IP66 waterproof and lightning protection design makes the LED football field floodlights resistant to harsh conditions.
Beam angle
10/ 20/ 40/ 60/ 90 degree/ 10 degree(P50-P8)/ 135*60 degree(P50)/97*47 degree(TypeIV)
The installation height of the luminaire is usually between 30 and 50 meters, so the traditional floodlighting will have too much light loss. And our LED stadium flood light uses high quality Lumiled 5050 chips and lenses to select the desired illumination angle. The direction of the beam is concentrated to achieve precise illumination of the light and reduce light loss.
Application
Ideal for outdoor large venue lighting, stadiums, sports fields, tunnels, tennis courts, football fields, rugby fields, basketball courts, golf courses, marinas, etc.
LED lighting solution customization
Our engineers can customize professional DIAlux simulation for your venue for free.You only need to provide relevant site information, and our engineers will choose the best combination of power and beam angle for the LED lights.
Product Configuration
1.Standard lens plus tempered glass
2. Standard with 316 stainless steel bracket, strong hardness, never corroded.
3. Each module angle can be rotated freely
4. Finned radiator, the main lightweight design, reducing the load bearing pressure of the pole.
5. All power and module wiring are fast male and female connectors for easy follow-up maintenance
6. Standard with Meanwell Power + Philips 5050 lamp beads
7. Customers can choose the higher configuration of Meanwell HLG power supply

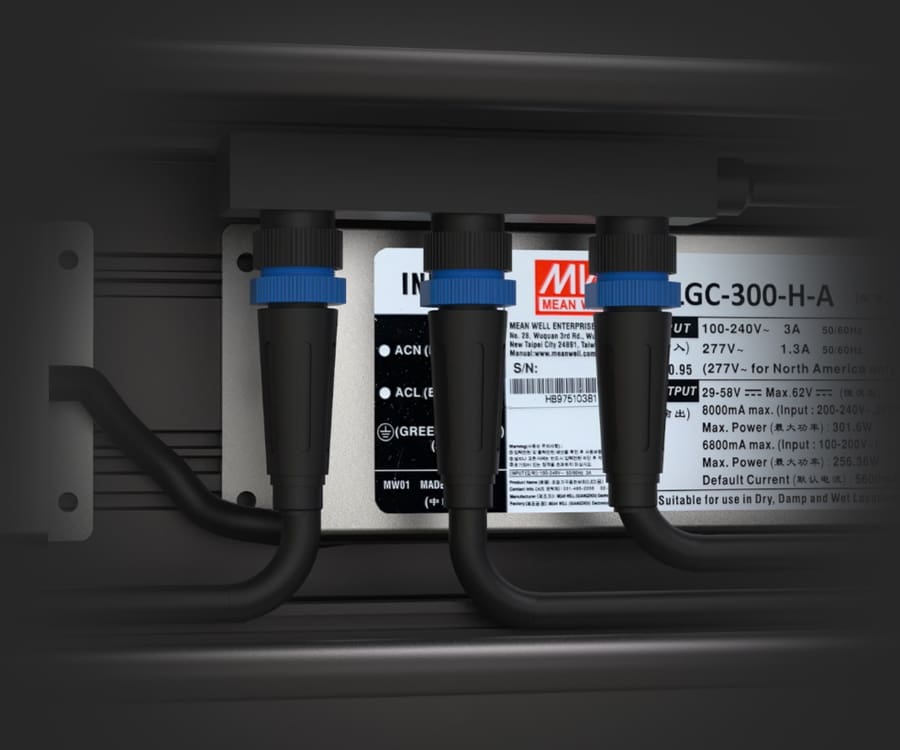

Use Quick-connector，Save 80% Maintenance Time
The male female plugs are used for all power supplies and modules. Make maintenance and installation more convenient.
Standard 316 stainless steel bracket
316 stainless steel is an austenitic stainless steel. Due to the addition of Mo element, it has a great improvement in corrosion resistance and high temperature strength. It can withstand high temperatures up to 1200-1300 degrees and can be used under harsh conditions.
Better uniformity lighting
As shown in the figure below, a bad light source will cause too many shadows on the main court, affecting the athlete's line of sight and experience, and will reduce the visual clarity of the audience and the TV station, which will seriously cause strobe and affect the viewing experience.
In order to minimize the impact of this shadow, we have already solved this process in designing this LED Football field lights. With our new LED Flood Light, we will get a good lighting environment. Our module is rotatable. A uniform distribution of light can be achieved perfectly. And equipped with anti-glare cover, so that athletes and viewers can get a good experience.
