720W/ 900W Lightweight Indoor outdoor Stadium LED Light, Sport Field Uniform Flood Lighting

●   Watt: 720W/ 900W

●   Lumens: 118,800/ 139,500

●   Light Source: Lumileds 5050

●   Input Volt: 100-277VAC

●   IP Rating: IP66 - IK08

●   Size: 745.3*847.7*172mm

●   Lamp Weight: 22.8-24kg

●   Colors: Black

●   CCT (Color Temp): 3000,4000,5000,5700k

●   5 years warranty

●   Beam Angle: 10/ 20/ 60/ 90*10(p50-p8)/ 135*60(p50)/97*47(TypeLV)

Inquire Now Next Product

720W/ 900W Lightweight Indoor outdoor Stadium LED Light, Sport Field Uniform Flood Lighting

Name:

Tel:

E-mail:

Country:

CAPTCHA:

Submit the information to obtain product spec sheet,Please make sure that your email address is absolutely correct!

Specification Sheet
ModelLSDHM-720W-LV(XXK)
Watt720W
Lumen118,800
Efficiency165Lm/W±3%
Input Volt100-277VAC
Chip BrandLumileds 5050
CCT4000K 5000K
Modules360 Degree Rotatable
Weight22.8kg
Size745.3*847.7*172mm
DriverMeanwell 3*ELG-240-48A/ 3*XLG-240-H-A
Beam Angle10/ 20/ 40/ 60/ 90/ 135*60(p50)/97*47(TypeLV)/ 30*70 degree
CRIRa70 (Ra80, Ra90 optional)
IP&IK RatingIP66 / IK08
Wind rating51.0-56.0m/s
Life TimeL70/B10 >50,000hours
Warranty5 Years / 7 years extended warranty available
DimmableDimmable and Non-dimmable
Certification

ETL DLC ENEC TUV CE RoHS SAA CB IECEE Lm79 Lm80 ISTMT IK08 Salt spray test

ModelLSDHM-900W-LV(XXK)
Watt900W
Lumen139,500
Efficiency155Lm/W±3%
Input Volt100-277VAC
Chip BrandLumileds 5050
CCT3000K 4000K 5000K 5700K
Modules360 Degree Rotatable
Weight24kg
Size745.3*847.7*172mm
DriverMeanwell 3*ELGC-300-H-A
Beam Angle10/ 20/ 40/ 60/ 90/ 135*60(p50)/97*47(TypeLV)/ 30*70 degree
CRIRa70 (Ra80, Ra90 optional)
IP&IK RatingIP66 / IK08
Wind rating51.0-56.0m/s
Life TimeL70/B10 >50,000hours
Warranty5 Years / 7 years extended warranty available
DimmableDimmable and Non-dimmable
Certification

ETL DLC ENEC TUV CE RoHS SAA CB IECEE Lm79 Lm80 ISTMT IK08 Salt spray test

Dragonfly LED Stadium Light 720W 900W

Dragonfly LED Stadium Light 720W 900W

Dragonfly LED Stadium Light is a perfect Outdoor lighting solution for area, street, stadium.

720W

900W

Lumileds 5050

155Lm-165Lm/W

3000K-6000K

ETL DLC ENEC TUV CE CB SAA RoHS

LM79 LM80 TM21 IK10 Salt Spray test approved

High quility LED Brand

High quility LED Brand

Uses Lumileds 5050, High Efficiency 155-165Lm/W.

Lumileds 5050

Folding aluminum fin design

Folding aluminum fin design

Lightweight, fast heat dissipation. Increase the heat dissipation surface area by air coolingto dissipate heat and expand the contact area with air! It speeds up the spread of heat! Thermal effect is good.

Folding aluminum fin design

Rotatable

Rotatable

1.Rotating scale on the luminaire for customers to adjust the angle more accurately.

2.Module rotatable up & down & back and front up to 360 degree.

rotatable 360 degree

IP66 & Lightning protection & IK10

IP66 & Lightning protection & IK10

IP66 & Lightning protection & IK10. Waterproof IP66 and lightning protection 10/20KV, IK10 protective design allows Slim pro led sports light to withstand harsh environments;

IP66

Lightning protection

IK10

50,000H

-30~45℃

Dustproof net

Dustproof net

The radiator of Slim Plus LED Flood Light adds a layer of dust net to prevent more dust from affecting heat dissipation, and it is also easier to maintain later.

Dustproof net

Withstand wind

Withstand wind

Install our High Power LED Football pitch lights Can withstand hurricanes of 51.0-56.0m/s.

51.0-56.0m/s

Quick-connector

Quick-connector

The male female plugs are used for all power supplies and modules. Make maintenance and installation more convenient.

Quick-connector

Better uniformity lighting

Better uniformity lighting

As shown in the figure below, a bad light source will cause too many shadows on the main court, affecting the athlete's line of sight and experience, and will reduce the visual clarity of the audience and the TV station, which will seriously cause strobe and affect the viewing experience.


In order to minimize the impact of this shadow, we have already solved this process in designing this LED golf course lights. With our new LED Flood Light, we will get a good lighting environment. Our module is rotatable. A uniform distribution of light can be achieved perfectly. And equipped with anti-glare cover, so that athletes and viewers can get a good experience.

Other Watt

Dragonfly LED Flood Light is available in wattage from 240W to 1800W, which is the best choice to replace the existing MH/HID street lights of 500W-4000W.

Beam Angle

Beam Angle

The beam angle can be selected from 10/ 20/ 40/ 60/ 90/ 97*47(TypeIV)/ P50/ P50-P8. Professional light distribution angle can better achieve uniform and efficient lighting effect.

10 degree

20 degree

40 degree

60 degree

90 degree

97*47 degree(TypeIV)

P50

P50-P8

Application

Can illuminate intersections, squares, docks, ships, ports, construction sites, cranes,Tennis courts, basketball courts, soccer fields, etc.

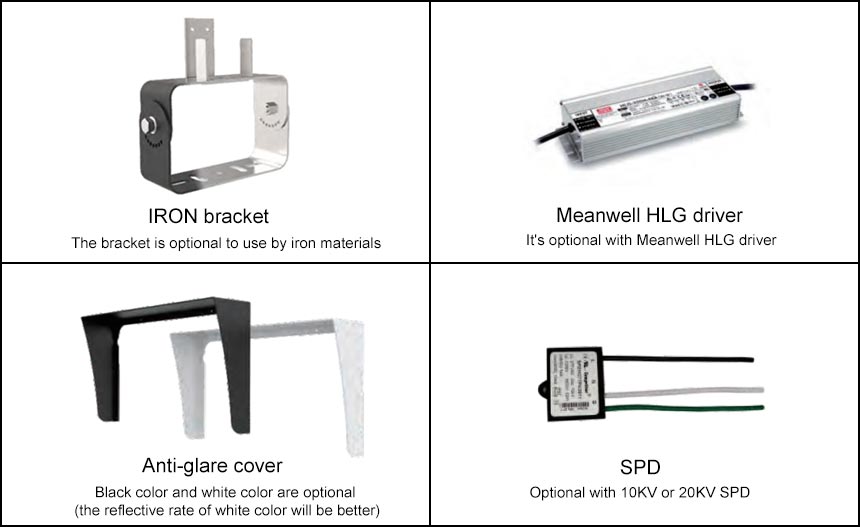

Accessories

900w led stadium lights accessories are optional.


900w led stadium lights accessories


Product Configuration

1.Standard lens plus tempered glass

2. Standard with 316 stainless steel bracket, strong hardness, never corroded.

3. Each module angle can be rotated freely

4. Finned radiator, the main lightweight design, reducing the load bearing pressure of the pole.

5. All power and module wiring are fast male and female connectors for easy follow-up maintenance

6. Standard with Meanwell Power + Philips 5050 lamp beads

7. Customers can choose the higher configuration of Meanwell HLG power supply



WattSize
720W/ 900W1pc/ 685*853*172mm



720W/ 900W Stadium LED Light size
