180W LED Street & Rural Roadway Lighting - 60mm Arm Smart Parking Lot Outdoor landscape LED Lights

1. 180 Watt;

2. 23400 Lm(130Lm/W)

3. Replaceable 350-400W HPS, MH, HQI;

4. TUV CE CB SAA RoHS LM79 LM80 TM21 IK08 Salt Spray test approved;

5Cost-effective street light for rural roadway lighting;

6. use tempered glass + lens In order to prevent the lens turning into yellow after being exposed to sunlight for a period of time;

Inquire Now Next Product

180W LED Street & Rural Roadway Lighting - 60mm Arm Smart Parking Lot Outdoor landscape LED Lights

Name:

Tel:

E-mail:

Country:

CAPTCHA:

Submit the information to obtain product spec sheet,Please make sure that your email address is absolutely correct!

Specification Sheet
  • Data Sheets
  • Beam Angle
  • Options/Accessories
  • Package details

Overview


180W LED Street Light


saturn 180w led street light


Size


Specifications

ModelLSSSL-180W(XXK)
Watt180W
Lumen

23400lm (130LM/W±3%)

Chip BrandLumileds 3030
Input Volt100-240Vac
Driver

Sosen Driver SS-200GA-56

CCT3000K, 4000K, 5000K, 5700K, 6000K
Arm Dia

60mm

HousingWhiteGreyBlack
Size549*280*92mm
Beam angleType 2M, Type 3M
Certification
TUV CE CB SAA RoHS LM79 LM80 TM21 IP65 IK08 Salt Spray test approved


Feature

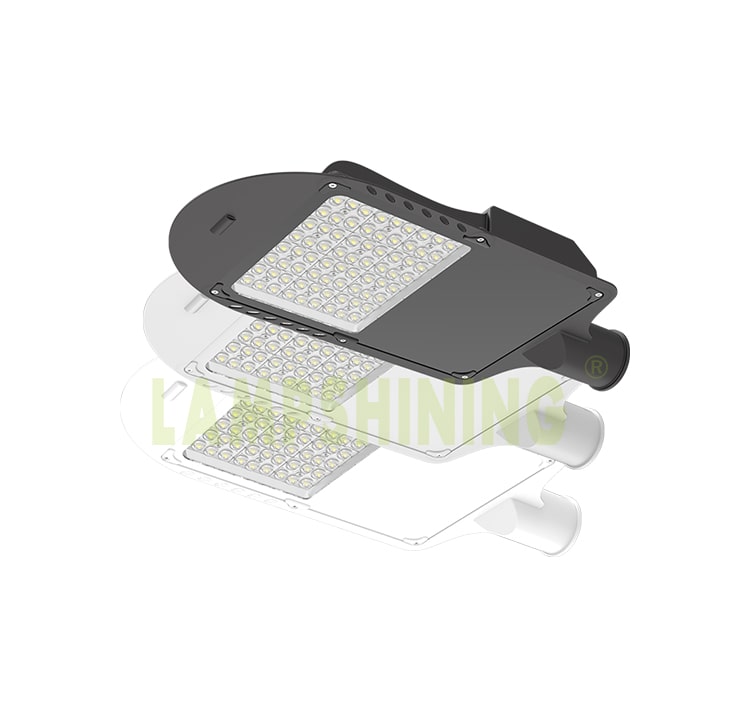

20W LED Street Light exploded view

1. High luminaire efficiency up to 130lm/w;

2. 20-150W available (Mounting Height: 4-12M);

3. IP66 and IK08 protection rate;

4. Cost-effective street light for rural roadway lighting;

5. 5 years warranty;

6. TUV CE CB SAA RoHS LM79 LM80 TM21 IP65 IK08 Salt Spray test approved;

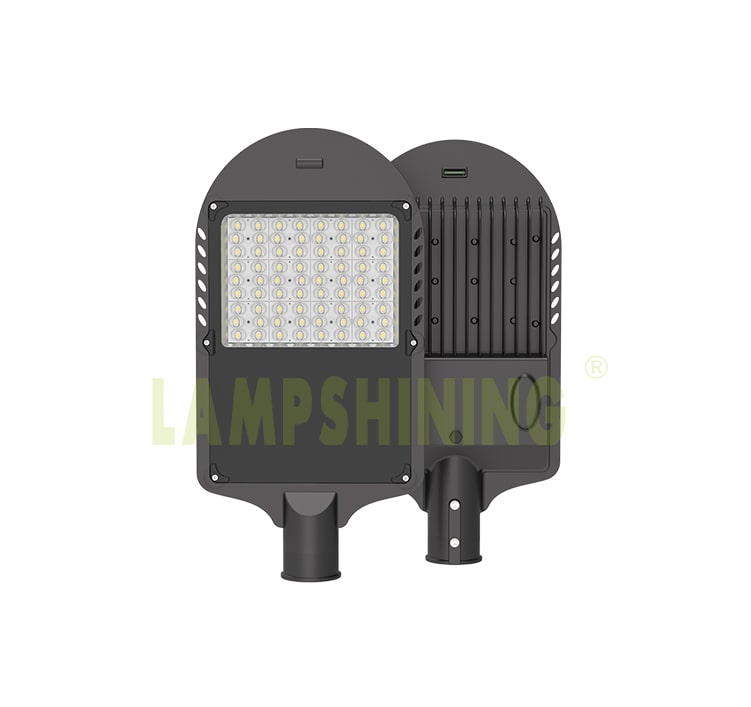

saturn 180w led street light can choose housing color


1.high quality led source

Using high-quality Lumileds 3030 LED source, high efficiency 135-140LM / W. saturn series LED street lights use tempered glass + lens In order to prevent the lens turning into yellow after being exposed to sunlight for a period of time,  which will lead to poor light transmission and even fogging may occur. Tempered glass + lens completely avoids this situation.

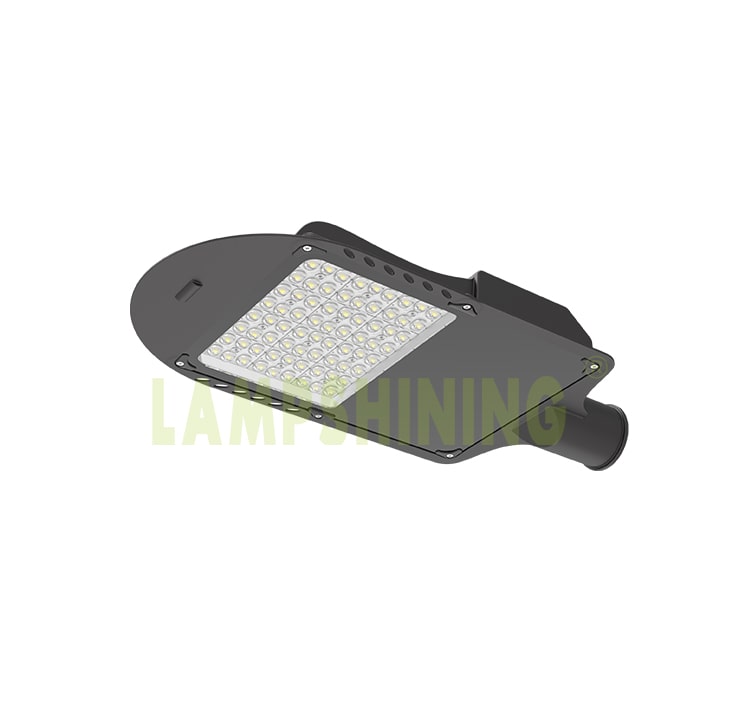

saturn 180w led street light uses lumileds 3030 with tempered glass


2.heat dissipation

The fin can increase the heat dissipation area and obtain better heat dissipation effect. Birds are also prevented from staying on the lamps.

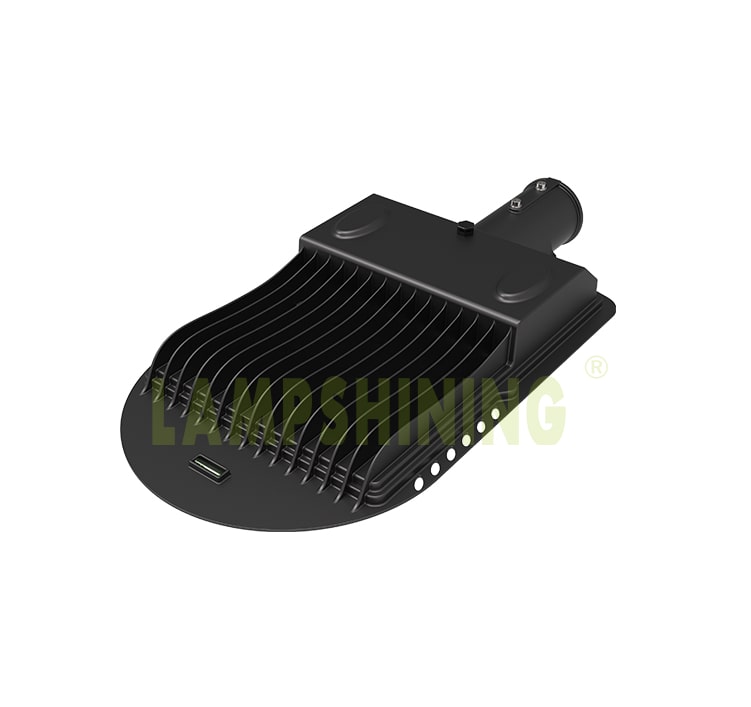

saturn 180w led street light heat dissipation


3.Easy to clean

The design of the Saturn LED street light makes it difficult for dust to accumulate. The dust will be blownaway when the wind blows.


saturn 180w led street light easy to clean


4.Waterproof IP66

The waterproof performance.of IP66.enables Saturn LED street lights to keep working normally in bad weather.


saturn 180w led street light waterproof ip66


5.Level instrument

The level instrument accurates thetion of lain a minute.


saturn 180w led street light with level instrument

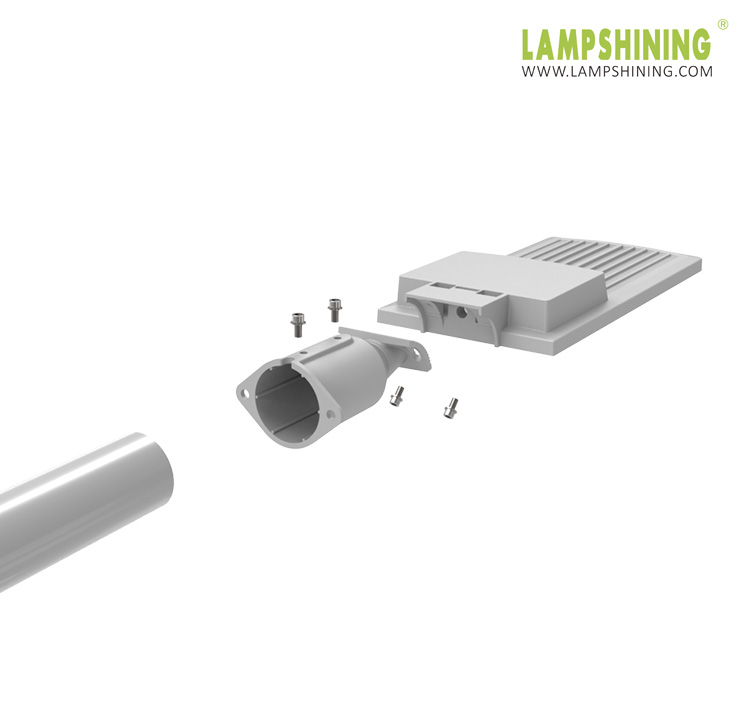

6.Pole installation holes

60mm optional pole mounting holes.


180w led street light optional accessory


contact us

Beam angle

Optional Type 2M, Type 3M beam angle;


saturn led street light beam angle


Application

Suitable for Main road, secondary road, branch road, highway, overpass, urban road, flyover, school, residential area, industrial area, park, city square, courtyard LED roadway lighting;


saturn led street light application

Accessorries

L bracket for 60mm pole post topConer bracketWall mount adaptor for dia. 60mm spigot
adaptor for 2 street light (both dia 60mm)

Rotatable adaptor (dia 60mm to dia60mm)

(dia 60mm to dia76mm)

led street light accessory L bracket for 60mm pole post topled street light accessory Coner bracketled street light accessory Wall mount adaptor for dia 60mm spigotled street light accessory adaptor for 2 street light (both dia 60mm)led street light accessory Rotatable adaptor (dia 60mm to dia60mm)(dia 60mm to dia76mm)

Photocell sensorNEMA 5pinsNEMA 7pinsNEMA short cap10KV SPD
led street light accessory Photocell sensorled street light accessory nema 5pinsled street light accessory nema 7pinsled street light accessory nema short capled street light accessory 10KV SPD


Package details for without photocell

180W: 1pc/62*35*16mm

GW: 6.5kg


Package details for with photocell

180W: 1pc/63*36*21mm

GW: 6.8kg
