30W LED Street Lights-Government tender Energy Savings Roadway Lighting fixtures

●   Watt: 30W

●   Lumens: 4,050/ 4,500/ 5,100

●   Light Source: Lumileds 3030/ 5050

●   Input Volt: 100-240VAC

●   IP Rating: IP66 - IK10

●   Arm Dia: 42/ 60mm

●   Size: 491*190*82mm

●   Lamp Weight: 3kg

●   CCT (Color Temp): 3000, 4000, 5000, 6000

●   5 years warranty

●   Beam Angle: TypeII, TypeIII

Inquire Now Next Product

30W LED Street Lights-Government tender Energy Savings Roadway Lighting fixtures

Name:

Tel:

E-mail:

Country:

CAPTCHA:

Submit the information to obtain product spec sheet,Please make sure that your email address is absolutely correct!

Specification Sheet
  • Data Sheets
  • Beam Angle
  • Options/Accessories
  • Package details

Specifications

ModelLSSSL-30W(XXK)
Watt30W
Lumen4,0504,5005,100
Efficiency135Lm/W±3%150Lm/W±3%170Lm/W±3%
Chip BrandLumileds 3030Lumields 5050
Input Volt100-240VAC
DriverSosen Driver SS-35VAL-50B
CCT4000K-6000K4000K, 5000K
Arm Dia42/ 60mm
Size491*190*82mm
Weight3kg
HousingWhite/ Grey/ Black
Beam Angle
TypeII, Type III

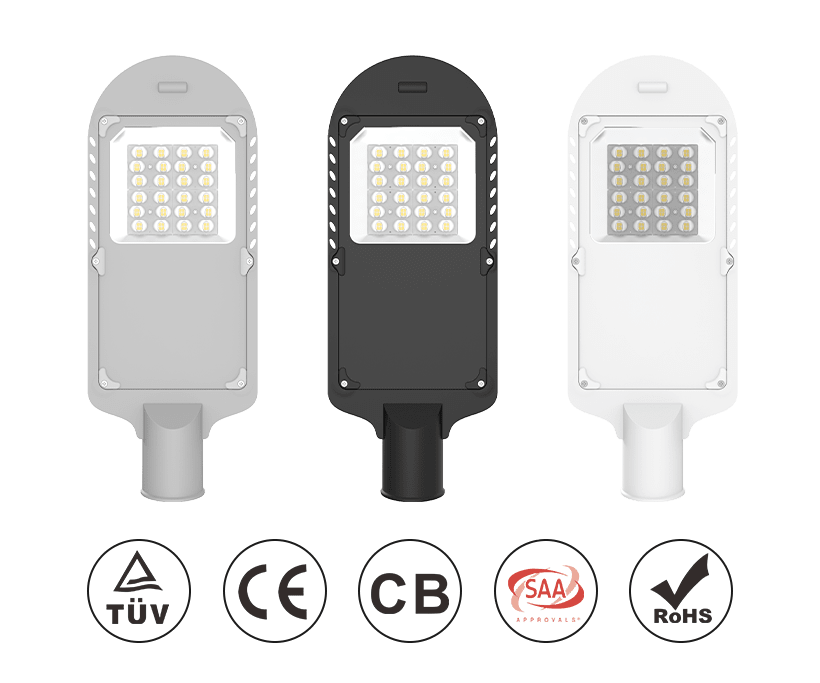

CertificationTUV CE CB SAA RoHS LM79 LM80 TM21 IK08 Salt Spray test approved

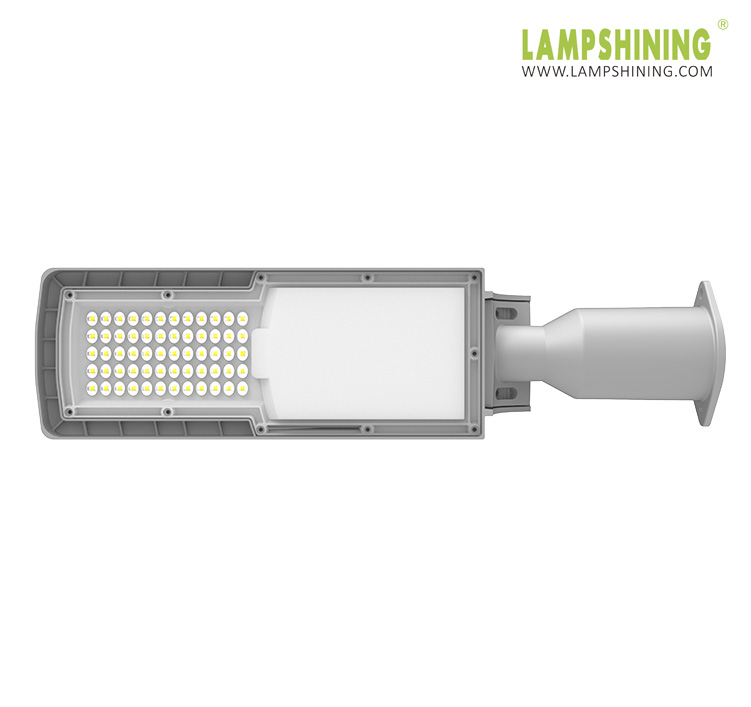

30W LED Street Light

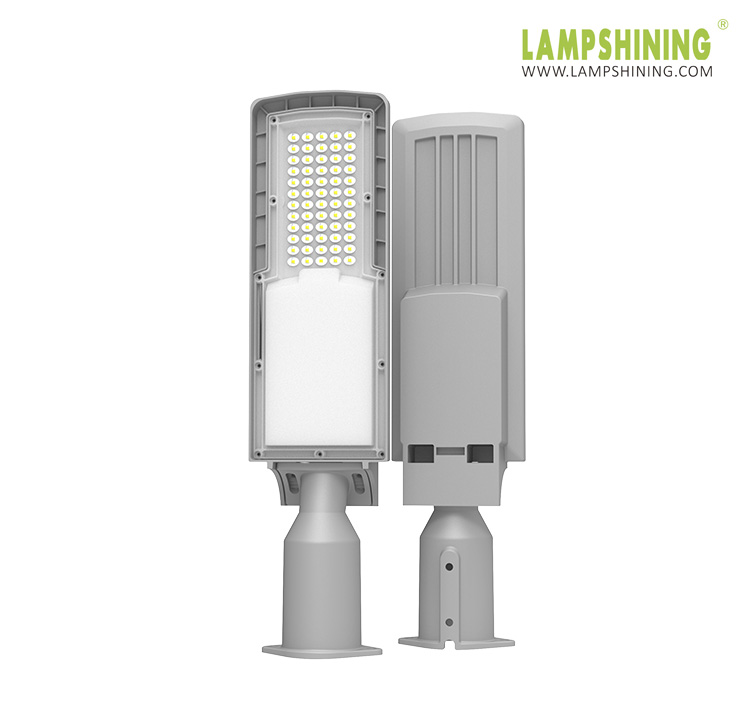

30w saturn led street light

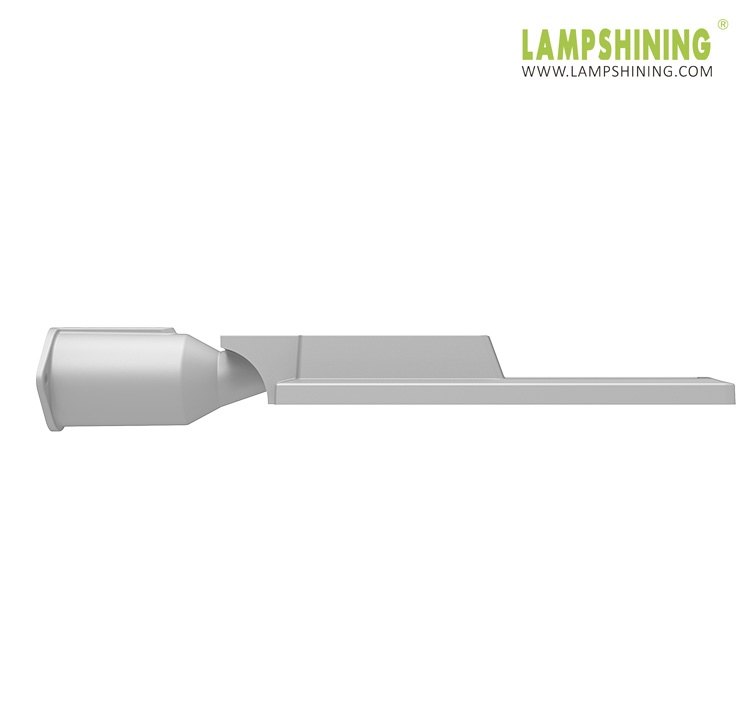

Size


30w led street light size


Feature

20W LED Street Light exploded view

1. High luminaire efficiency up to 170lm/w;

2. 20-150W available (Mounting Height: 4-12M);

3. IP66 and IK08 protection rate;

4. Cost-effective street light for rural roadway lighting;

5. 5 years warranty;

6. TUV CE CB SAA RoHS LM79 LM80 TM21 IP65 IK08 Salt Spray test approved;

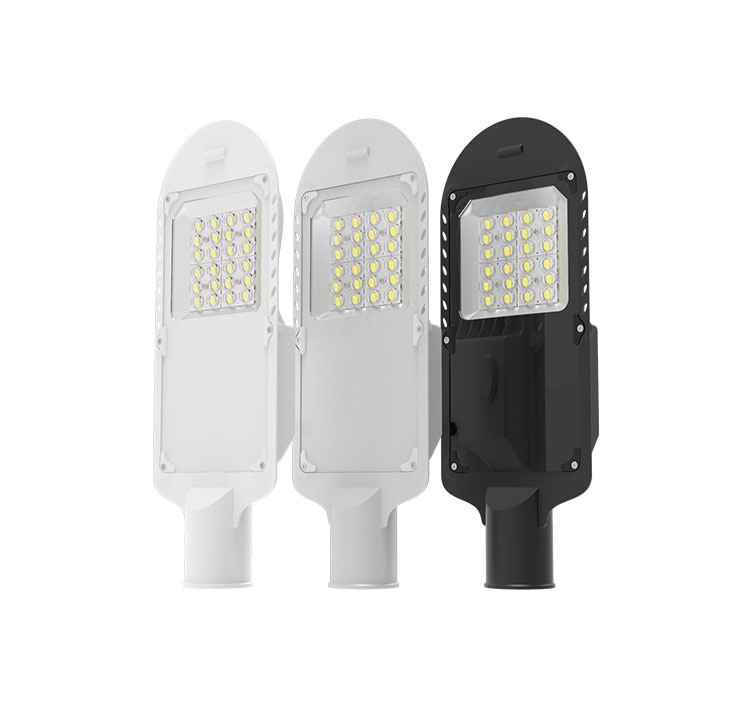

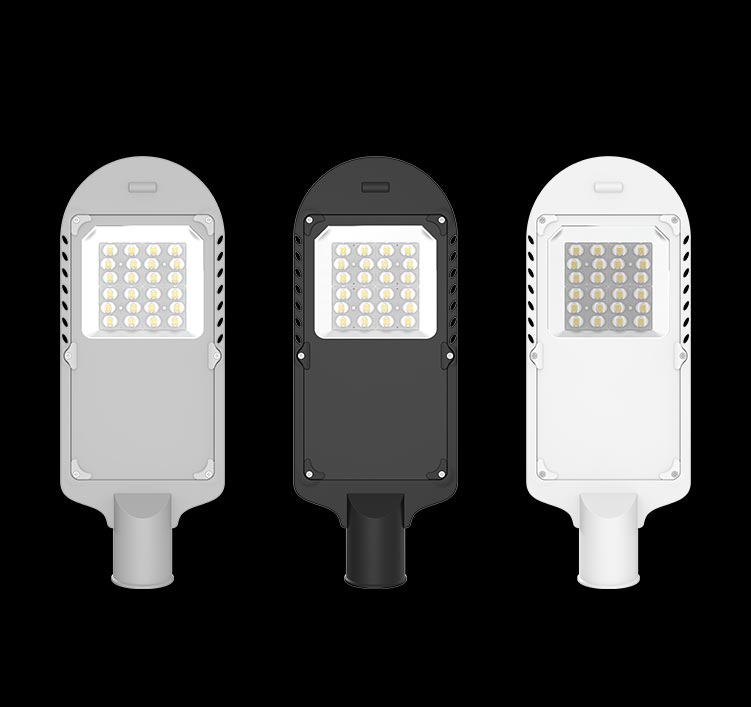

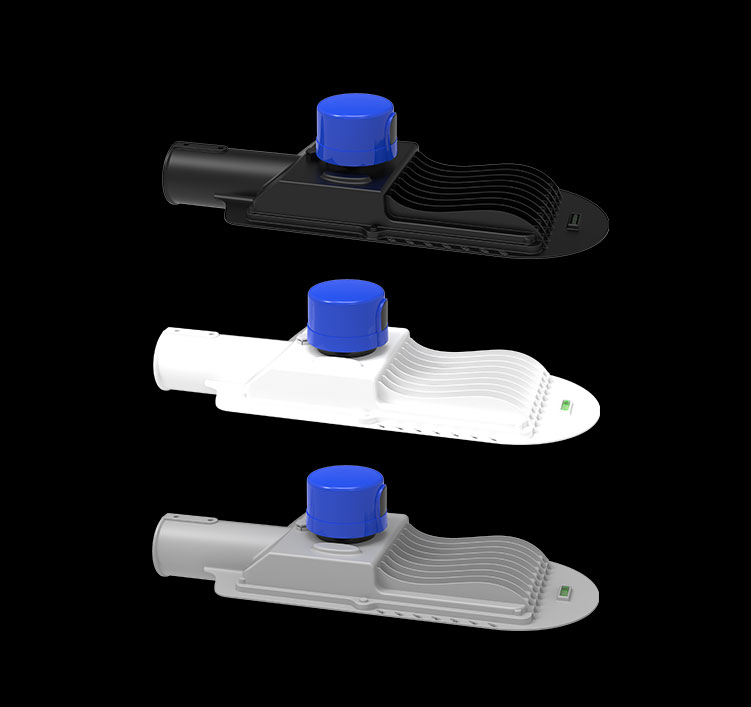

30w led street light can choose housing color

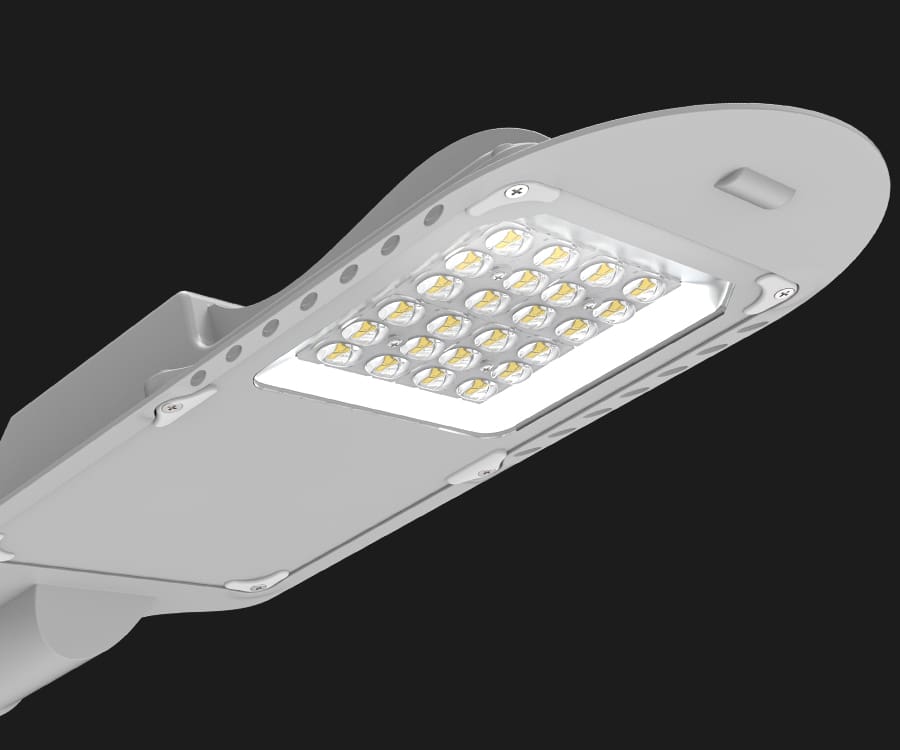

1.high quality led source

Using high-quality Lumileds 3030/ 5050 LED source, high efficiency 135-170LM / W. saturn series LED street lights use tempered glass + lens In order to prevent the lens turning into yellow after being exposed to sunlight for a period of time,  which will lead to poor light transmission and even fogging may occur. Tempered glass + lens completely avoids this situation.

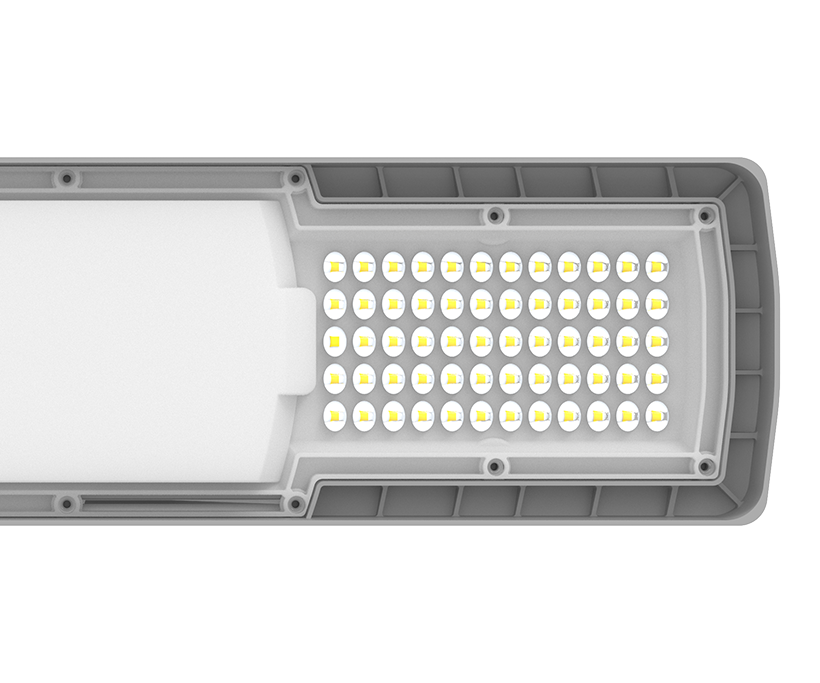

30w lumileds 3030 saturn led street light with tempered glass and optional lens

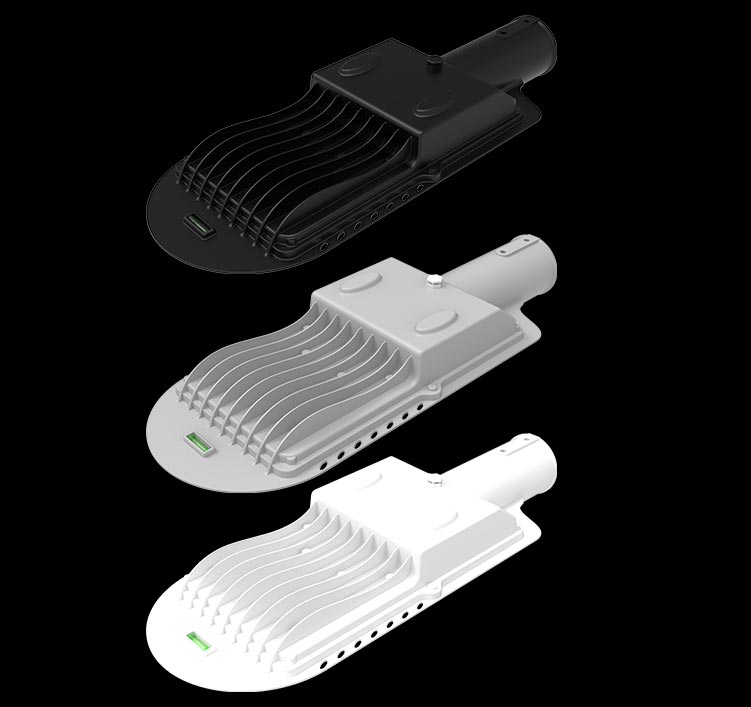

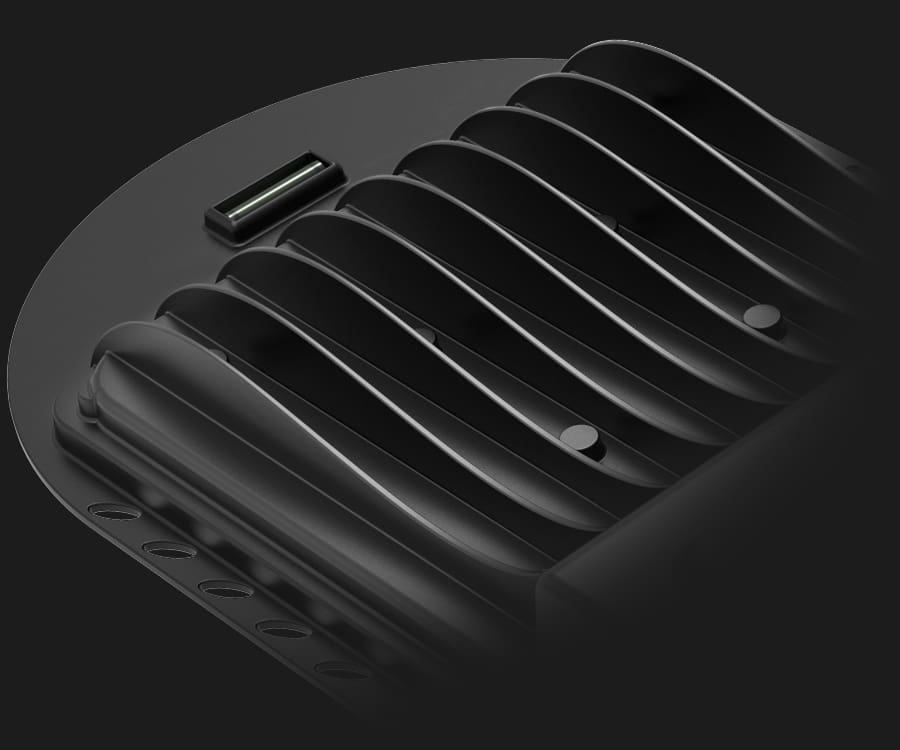

2.heat dissipation

The fin can increase the heat dissipation area and obtain better heat dissipation effect. Birds are also prevented from staying on the lamps.


30w saturn led street light good heat dissipation


3.Easy to clean

The design of the Saturn LED street light makes it difficult for dust to accumulate. The dust will be blownaway when the wind blows.


30w led street light easy to clean

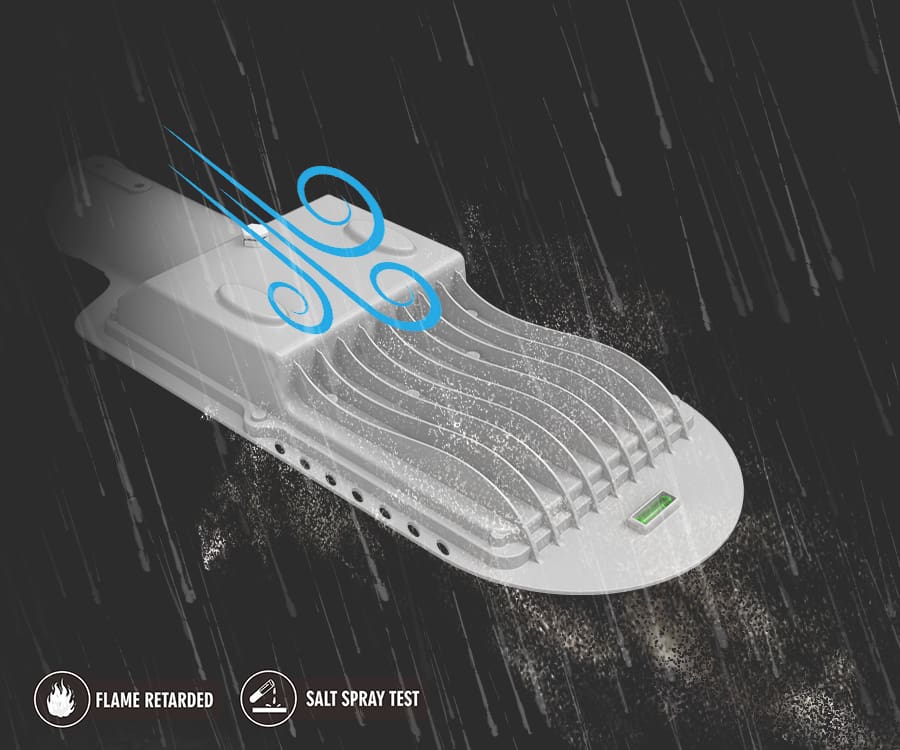

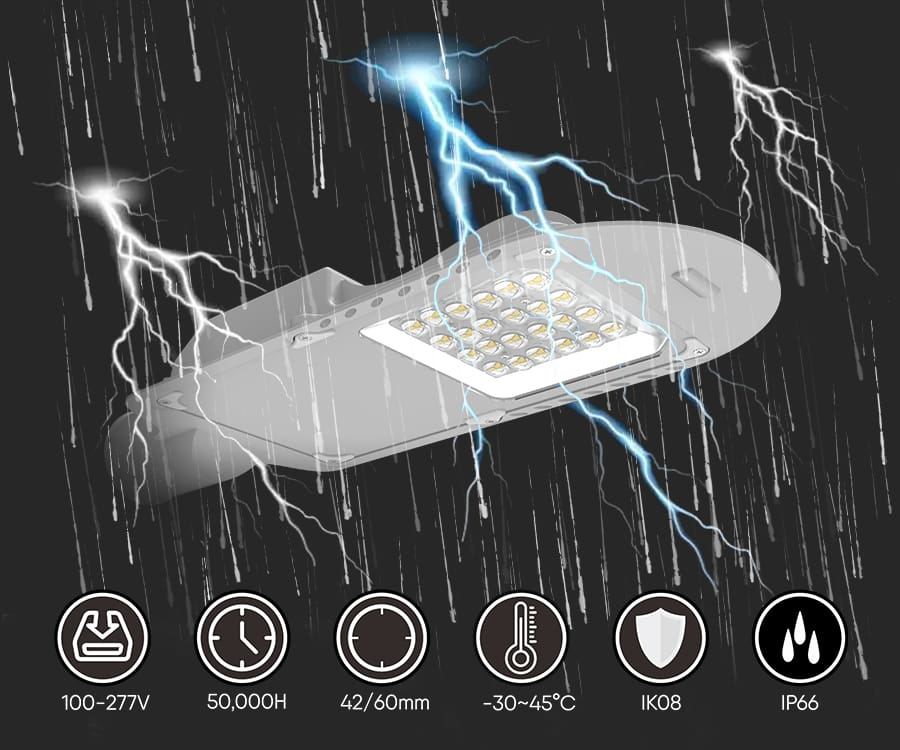

4.Waterproof IP66

The waterproof performance.of IP66.enables Saturn LED street lights to keep working normally in bad weather.


30w led street light waterproof ip66

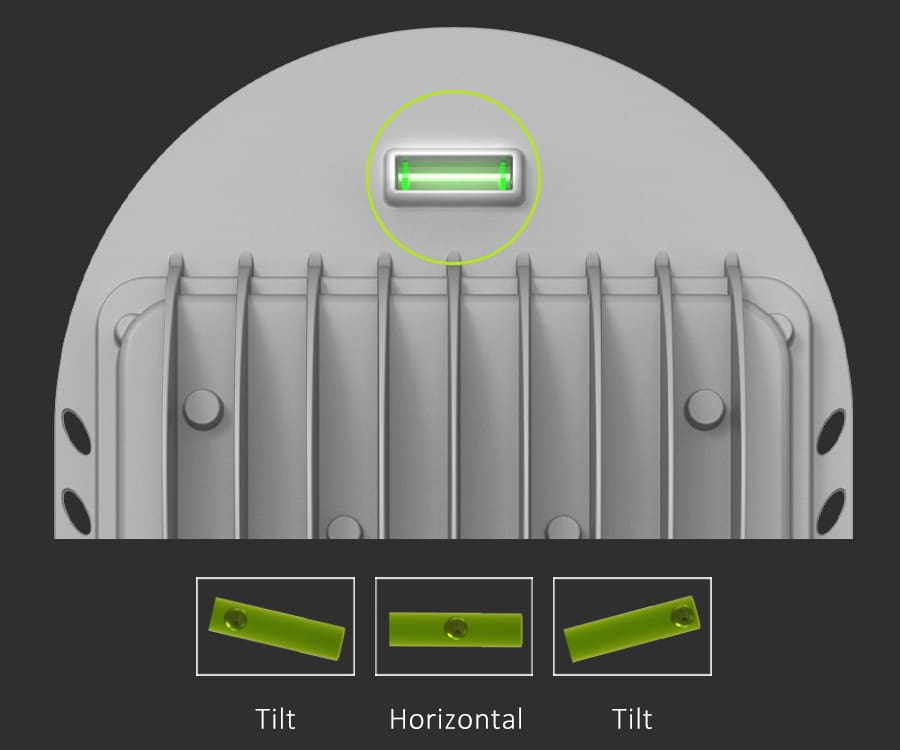

5.Level instrument

The level instrument accurates thetion of lain a minute.


30w led street light with level instrument

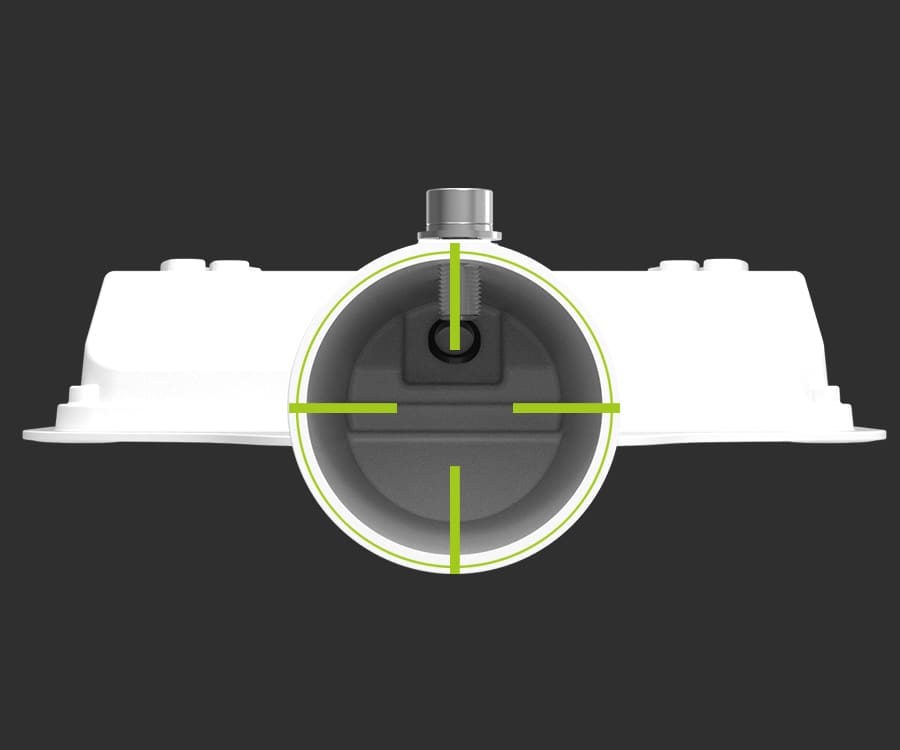

6.Pole installation holes

60mm/42mm optional pole mounting holes.


30w led street light pole installation holes 60mm/42mm

30w led street light optional accessory


contact us

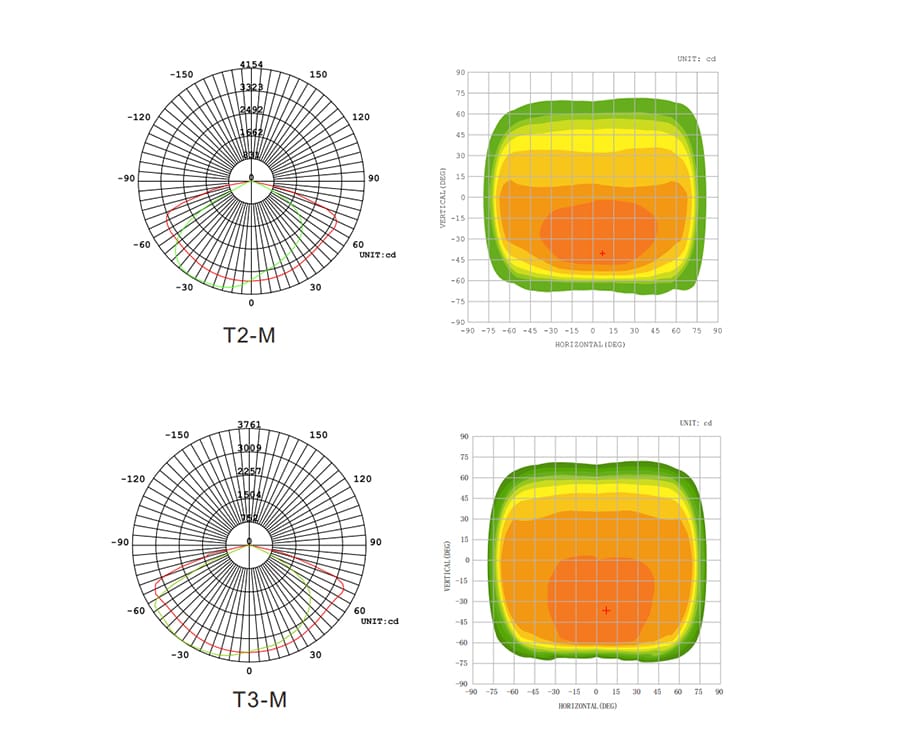

Beam angle

Optional Type 2M, Type 3M beam angle;


saturn led street light beam angle

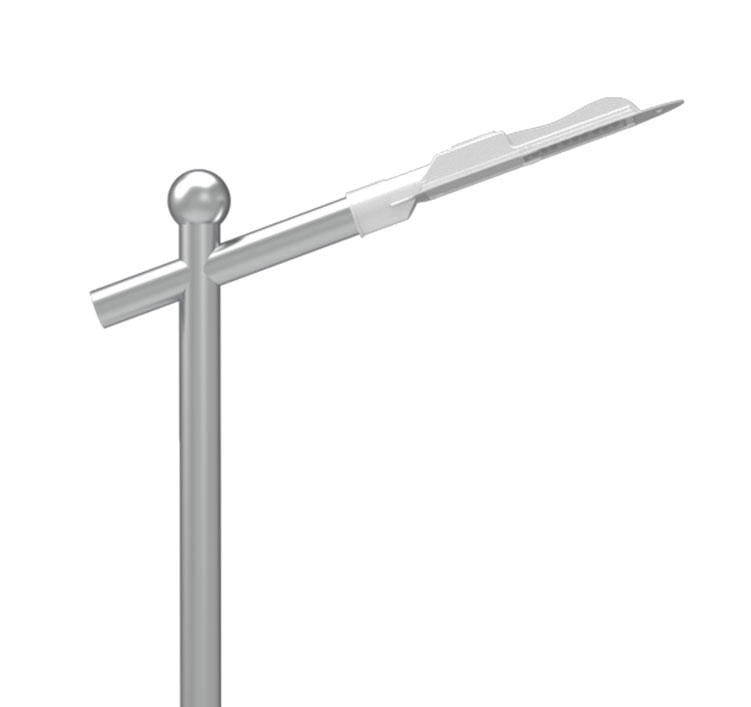

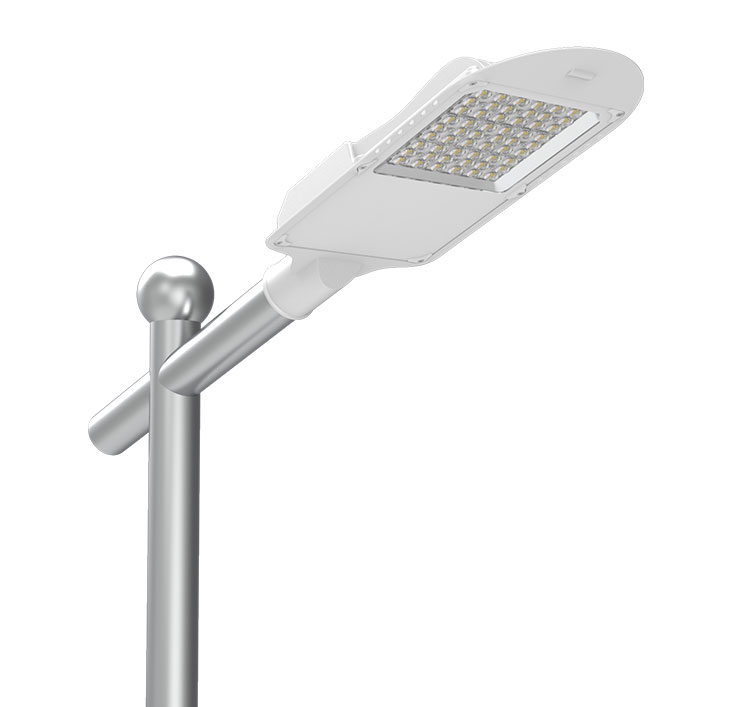

Application

Suitable for Main road, secondary road, branch road, highway, overpass, urban road, flyover, school, residential area, industrial area, park, city square, courtyard LED roadway lighting.


street led lighting application

Accessorries

L bracket for 60mm pole post topConer bracketWall mount adaptor for dia. 60mm spigot
adaptor for 2 street light (both dia 60mm)

Rotatable adaptor (dia 60mm to dia60mm)

(dia 60mm to dia76mm)

led street light accessory L bracket for 60mm pole post topled street light accessory Coner bracketled street light accessory Wall mount adaptor for dia 60mm spigotled street light accessory adaptor for 2 street light (both dia 60mm)led street light accessory Rotatable adaptor (dia 60mm to dia60mm)(dia 60mm to dia76mm)

Photocell sensorNEMA 5pinsNEMA 7pinsNEMA short cap10KV SPD
led street light accessory Photocell sensorled street light accessory nema 5pinsled street light accessory nema 7pinsled street light accessory nema short capled street light accessory 10KV SPD


Package details for without photocell

30W: 1pc/57*26*14mm

GW: 3.0kg


Package details for with photocell

30W: 1pc/58*30*20mm

GW: 3.3kg
