● Watt: 30W/40W/50W/60W
● Light Source: SMD 5050
● Input Volt: 100-277VAC
● IP Rating: IP66 - IK10
● CCT (Color Temp): 3000K~6000K
● Efficiency:175Lm/w
● Socket type: Zhaga book 18, NEMA 3/5/7 pin
● Wattages Adjustable: 40% - 60% - 80% -100%
● CCT Adjustable: 3000K / 4000K / 5000K or 4000K / 5000K / 6000K
● Beam Angle: 120° / T2-M/ T2-S / T3-M / T3-S / T4-M / T5 / P45
● 5 years warranty
Model | LSPT-30W(XXK)Skylar | LSPT-40W(XXK)Skylar | LSPT-50W(XXK)Skylar | LSPT-60W(XXK)Skylar |
| Watt | 30W | 40W | 50W | 60W |
| Lumen | 5250Lm | 7000Lm | 8750Lm | 10500Lm |
| Efficiency | 175Lm/W±3% | |||
| Input Volt | 100-277VAC | |||
| Chip Brand | SMD 5050 | |||
| Power Supply | Sosen / Lifud / Moso Driver | |||
| Socket type | Optional connectors, Zhaga book 18, NEMA 3/5/7 pin, Wattage & CCT Power Selectable Switches (Optional) | |||
| CCT | 3000K 4000K 5000K 6000K | |||
| Body colour | Black, optionally any RAL colour of your choice | |||
| Body material | Aluminium injected die-cast, painted powder-coated | |||
| Lampshade type | Transparent | |||
| Lampshade material | PC (UV Protection) | |||
| IP & IK Rating | IP66 & IK10 | |||
| Beam Angle | 120° / T2-M/ T2-S / T3-M / T3-S / T4-M / T5 / P45 | |||
| Certifications | ENEC,ENEC+,ETL, DLC, TUV, CE, CB, IECEE, SAA, RoHS, LM79, LM80, TM21, Salt spray test approved | |||

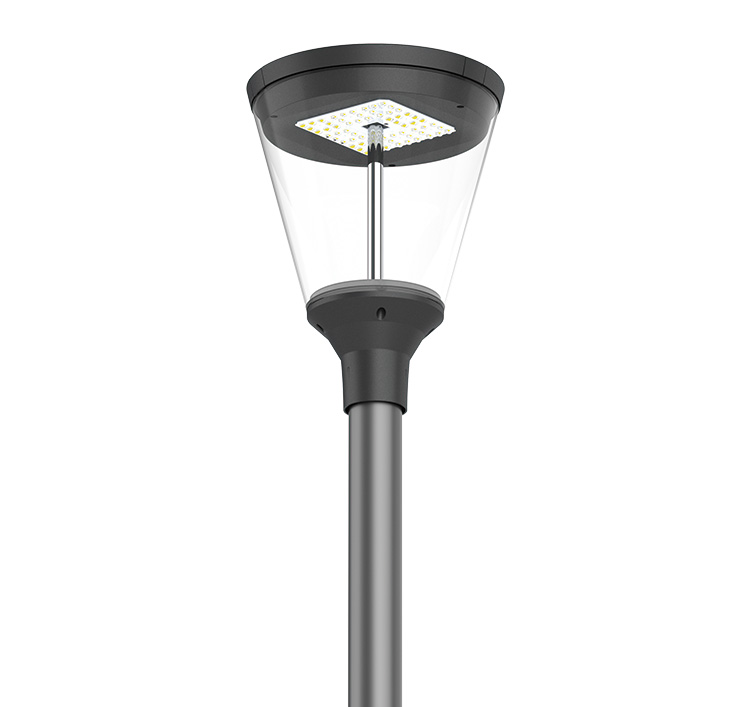

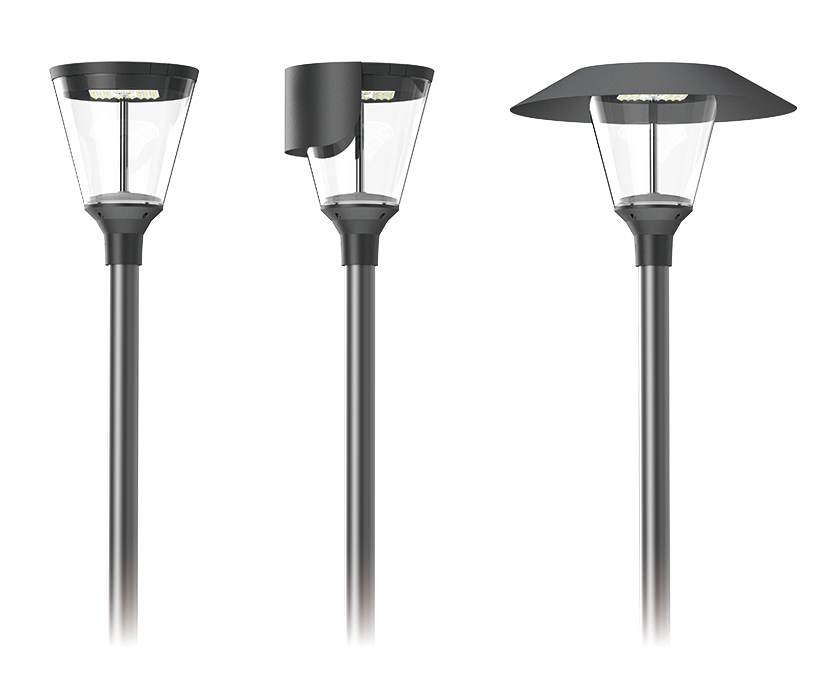

Skylar Series Modern LED Post Top Lights for Urban Public Parks
Skylar Series Modern LED Post Top Lights 10W to 60W,zhaga D4i,Outdoor Pole Top Area Light for Commercial Parking Lot, Garden, Backyard,ENEC ENEC+ Certification
30W
40W
50W
60W

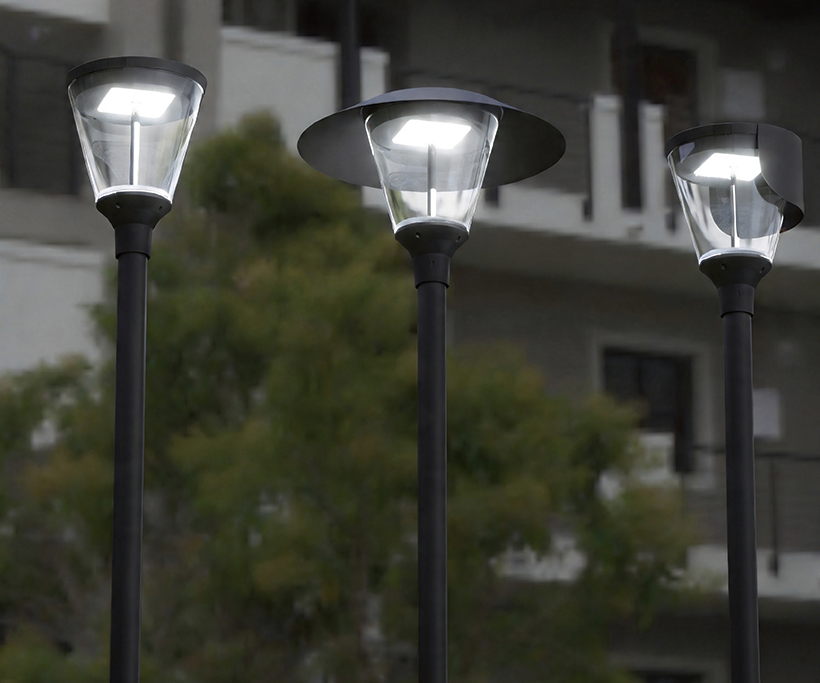

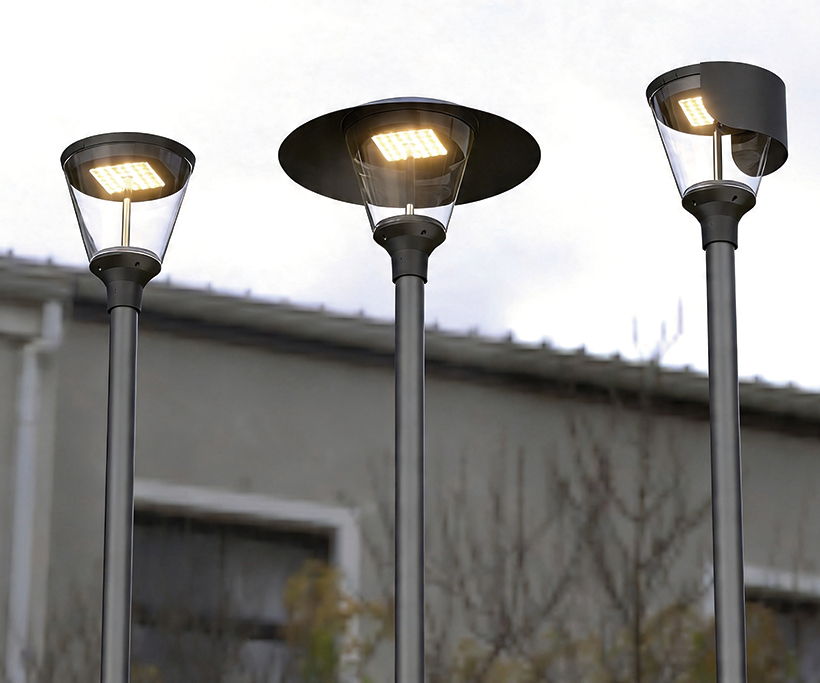

Contemporary Pole Top Fixtures for High-end Residential Areas
Featuring a sleek, minimalist circular design, this fixture not only provides 360-degree illumination but also adds a professional, modern touch to your commercial parking lots, university campuses, or urban plazas.

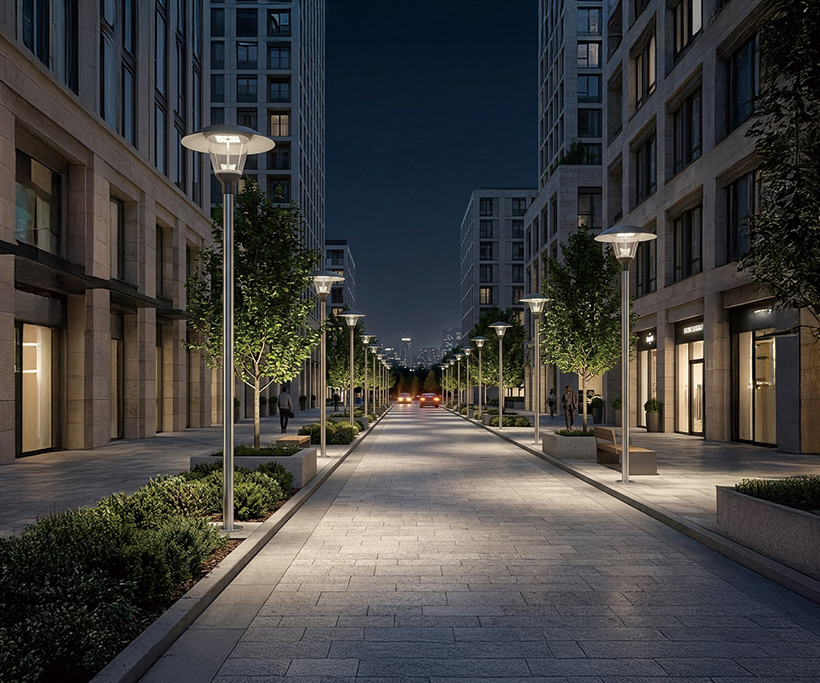

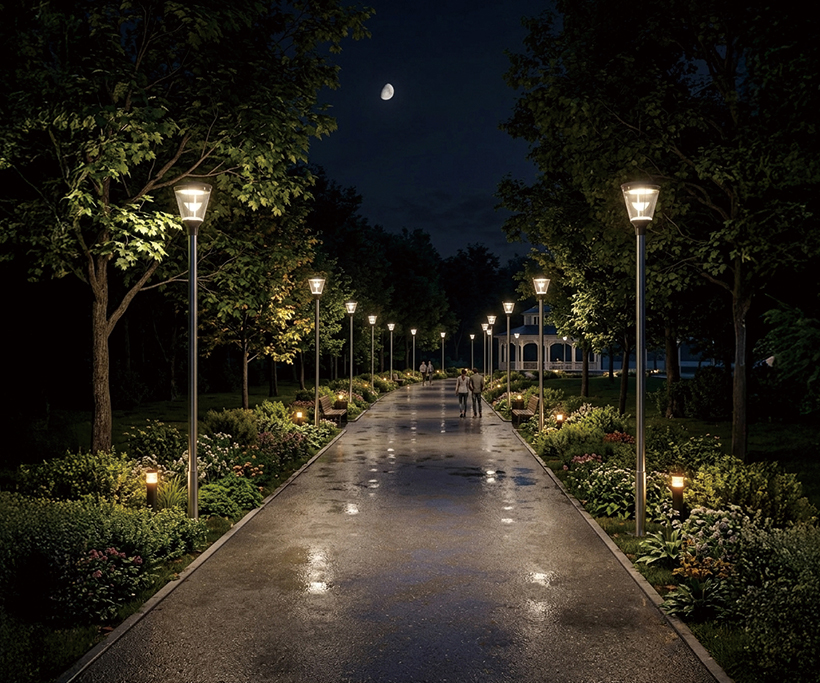

Garden Post Lighting
Parking Lot Post Lighting
Pathway Post Lighting

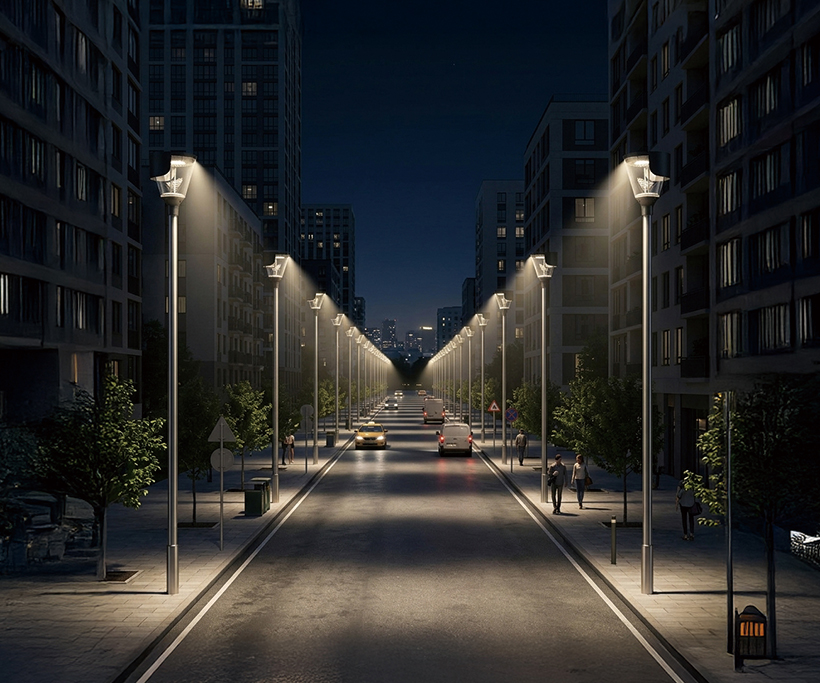

Residential Street Lightsing

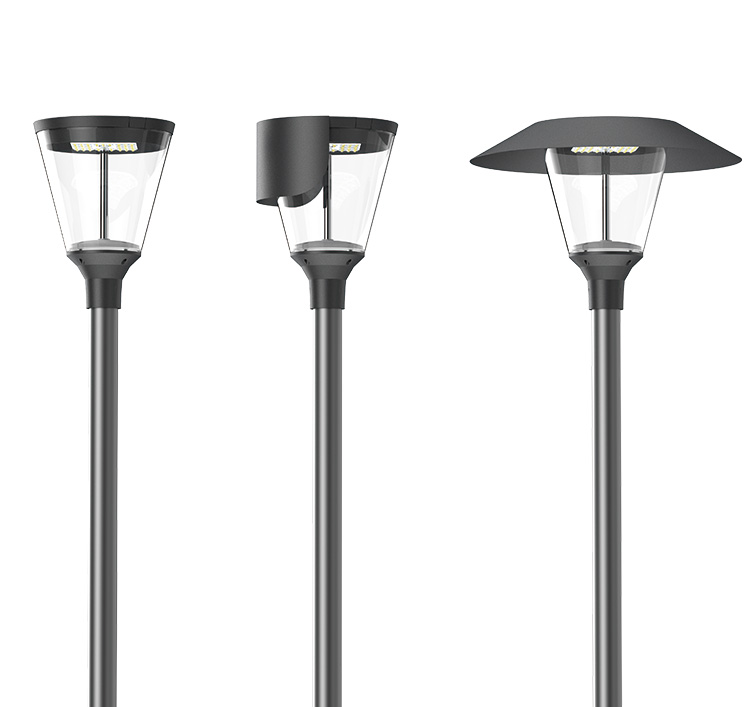

ACCESSORIES AVAILABLE

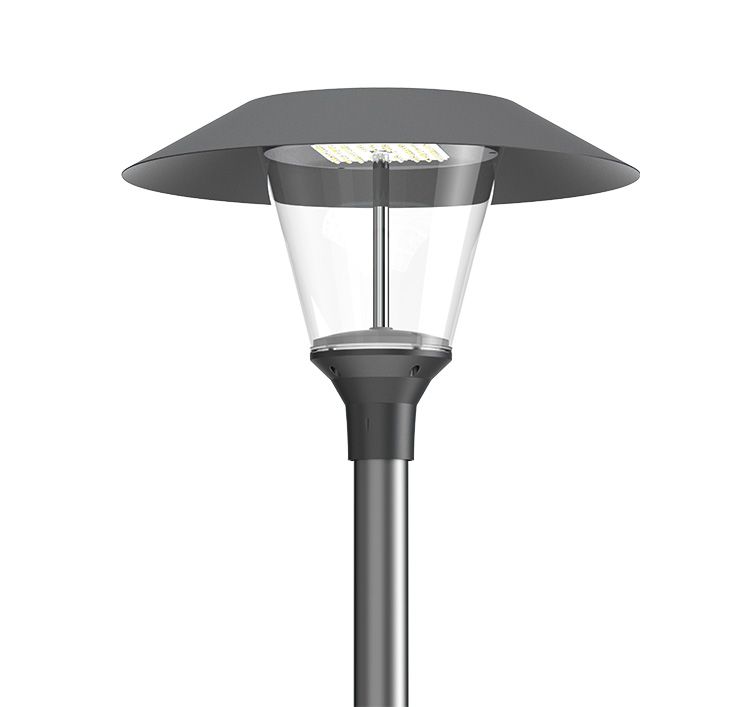

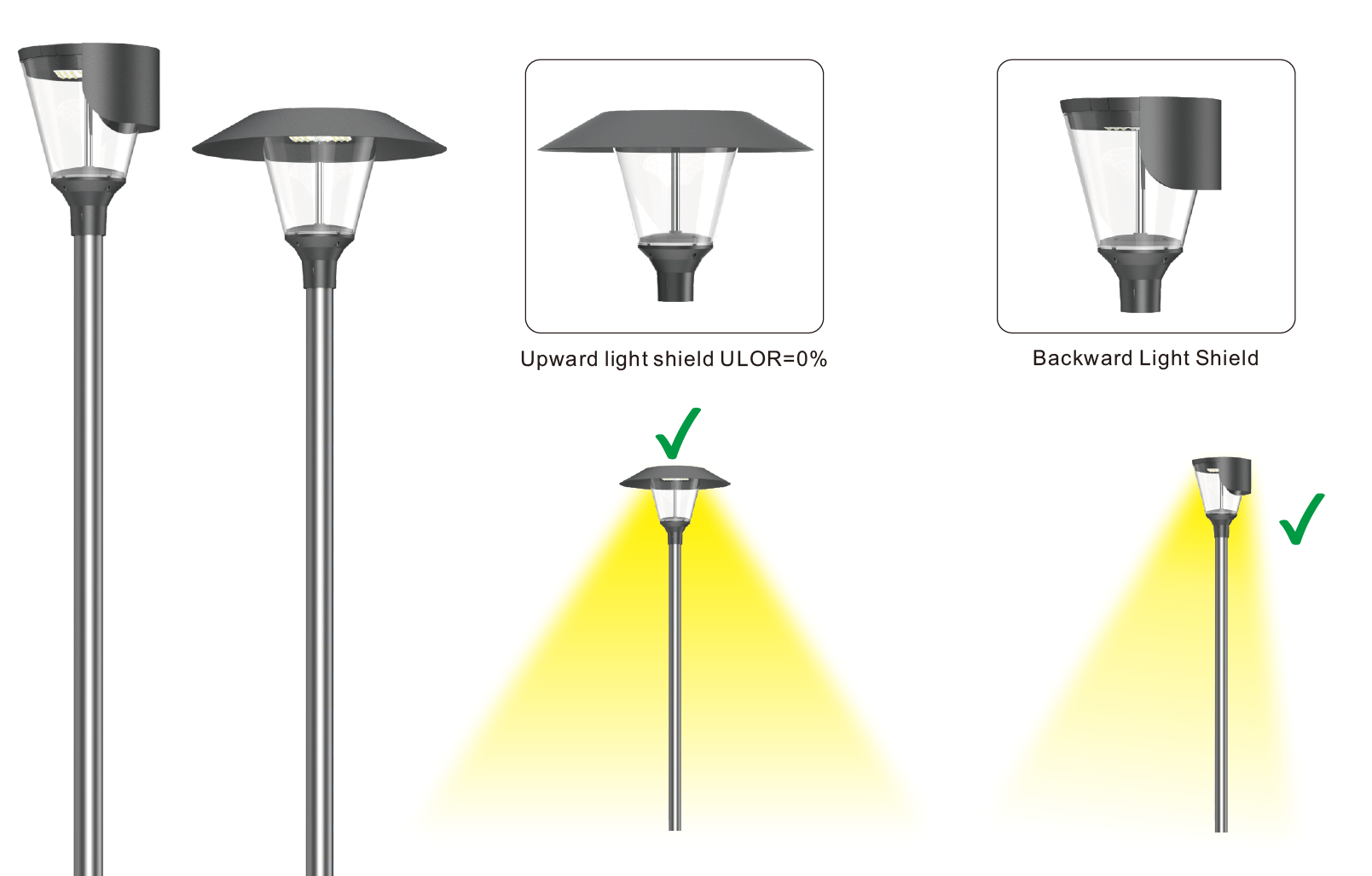

Upward light shield ULOR=0%

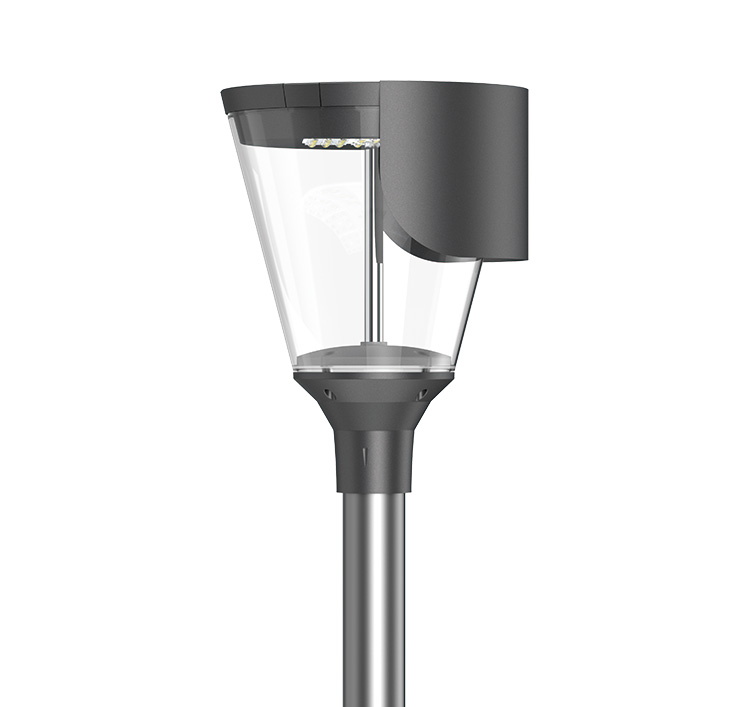

Backward Light Shield

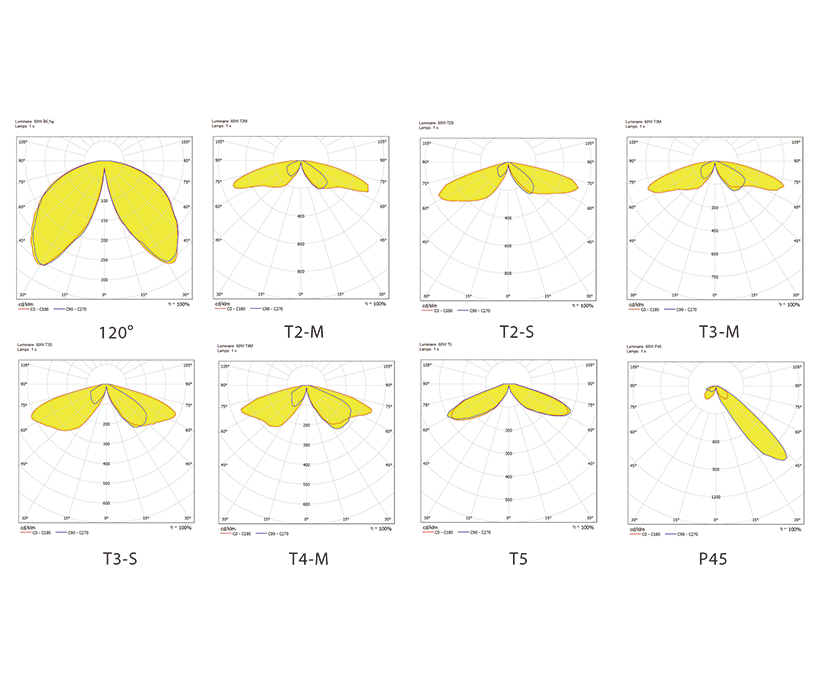

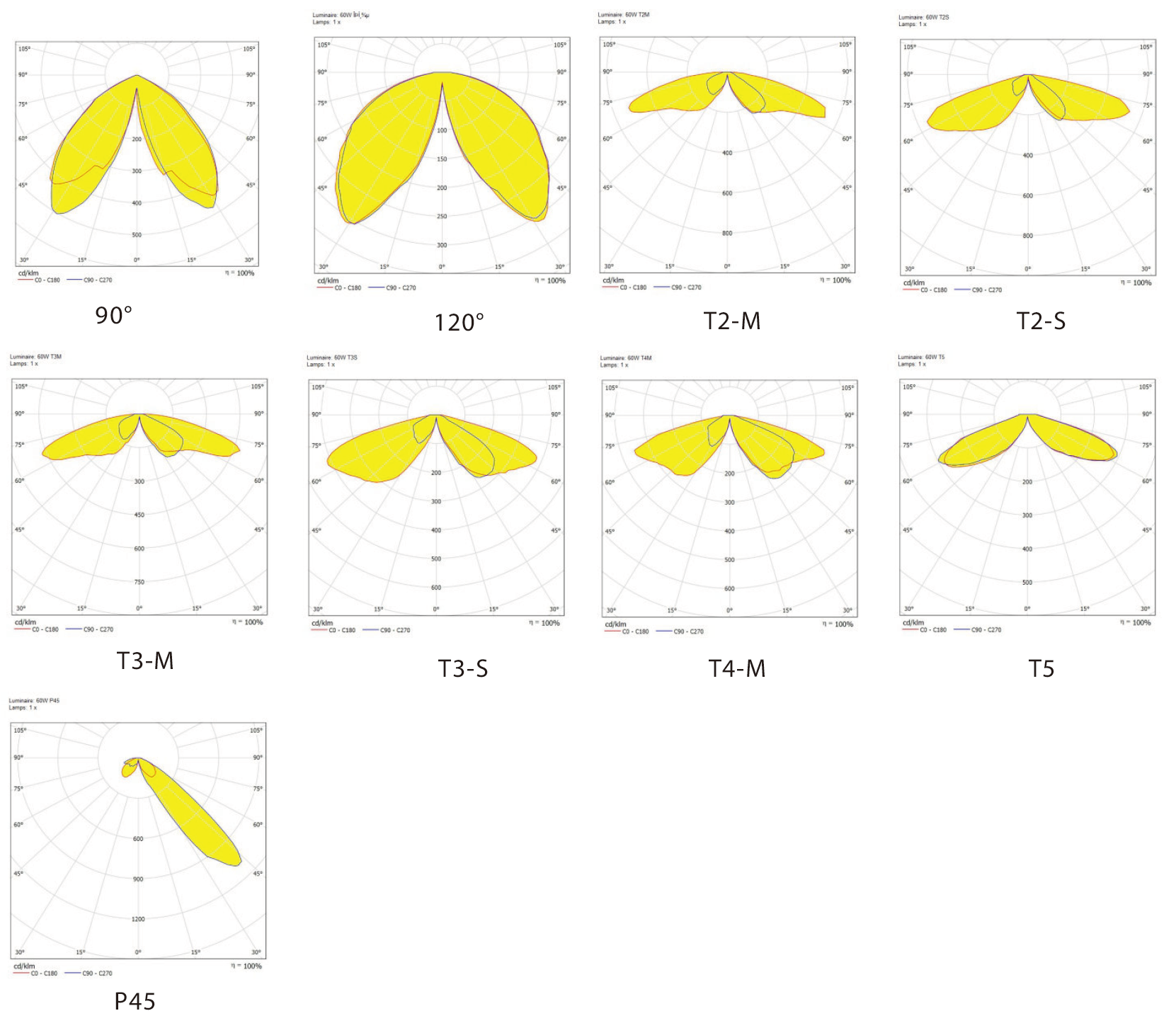

Beam Angle (PHOTOMETRICS)
Multiple Beam Angle to adapt to various application scenarios.
120°
T2-M
T2-S
T3-M
T3-S
T4-M
T5
P45
Skylar Post Top Lights 30W 40W 50W 60W
Control Function
Wattage & CCT Selectable Switches

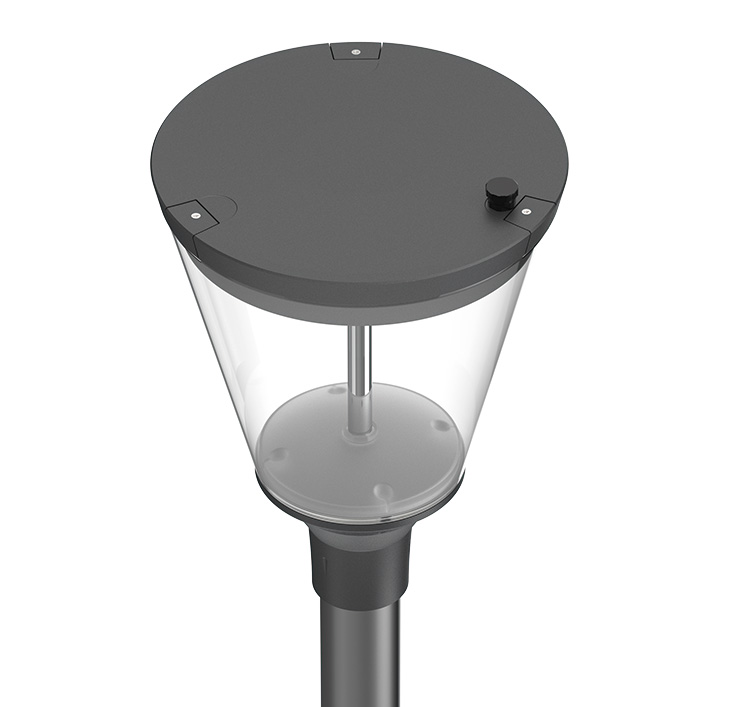

Zhaga Book 18

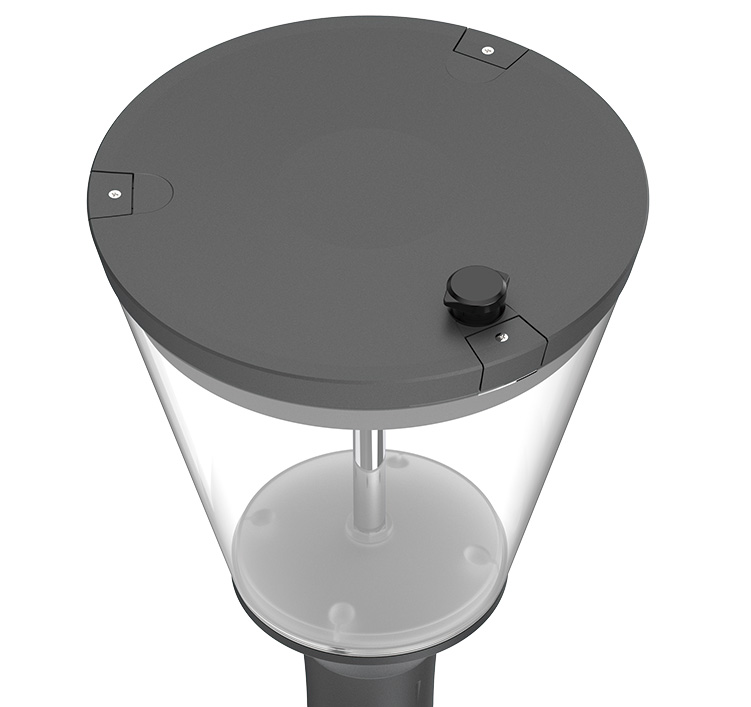

Waterproof Breathable Pressure Relief Vent

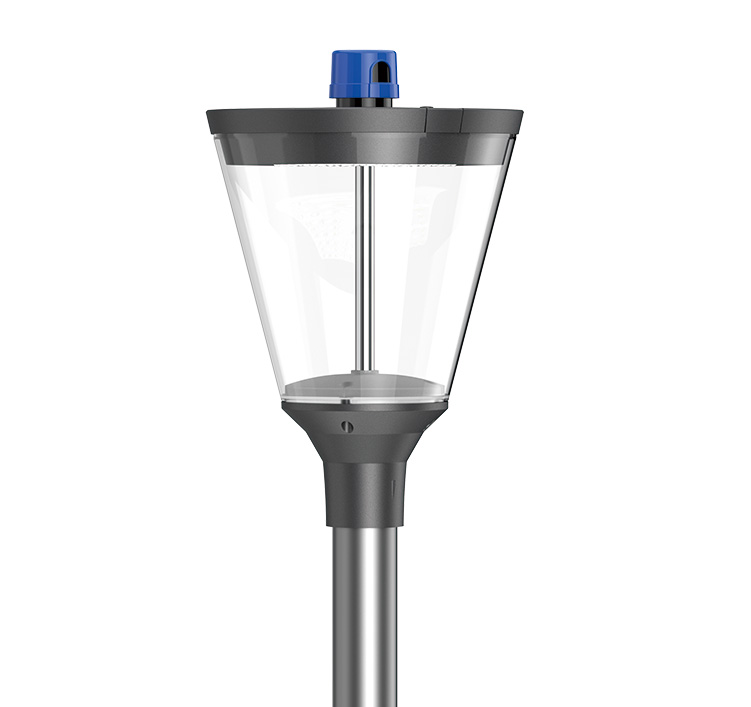

NEMA 3P 5P 7P
Skylar Post Top Lights Case Studies
worked with a number of different customers around the world.
