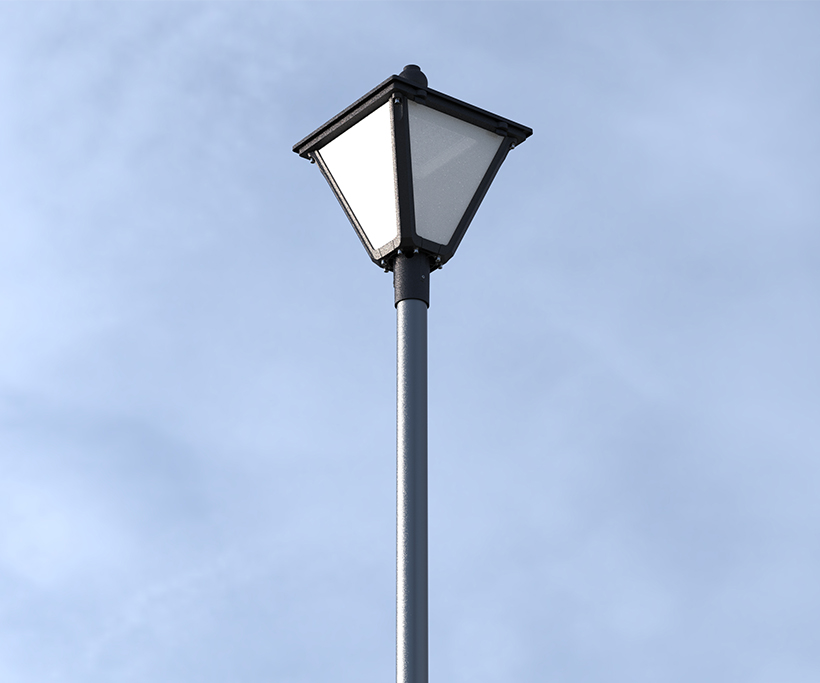

The Villa Series Retro LED Post Top Lights combine classic architectural styling with modern LED performance.
Available in 30W, 40W, 50W, 60W and 80W models, the series delivers up to 12,000 lumens with a luminous efficacy
of up to 155 lm/W. Its IP66 and IK10 construction, multiple optical distributions and maintenance-friendly design make
it suitable for parks, residential communities, villa gardens, pedestrian areas and commercial streets.
● Watt: 30W / 40W / 50W / 60W / 80W
● Light Source: SMD 5050
● Input Volt: 100-277VAC
● IP Rating: IP66 - IK10
● CCT (Color Temp): 3000K~6000K
● Efficiency:155Lm/w
● Socket type: Zhaga book 18, NEMA 3/5/7 pin
● Wattages Adjustable: 40% - 60% - 80% -100%
● CCT Adjustable: 3000K / 4000K / 5000K or 4000K / 5000K / 6000K
● Beam Angle: 120° / T2-M/ T2-S / T3-M / T3-S / T4-M / T5
● 5 years warranty
| Model | LSPT-30W(XXK)Villa | LSPT-40W(XXK)Villa | LSPT-50W(XXK)Villa | LSPT-60W(XXK)Villa | LSPT-80W(XXK)Villa |
| Watt | 30W | 40W | 50W | 60W | 80W |
| Efficiency | 155Lm/w±3% | 150Lm/w±3% | 150Lm/w±3% | 150Lm/w±3% | 150Lm/w±3% |
| Luminous Flux | 4,650Lm | 4,650Lm | 4,650Lm | 4,650Lm | 4,650Lm |
| Driver | Sosen / Lifud / Moso Driver | ||||
| Chip Brand | SMD 5050 | ||||

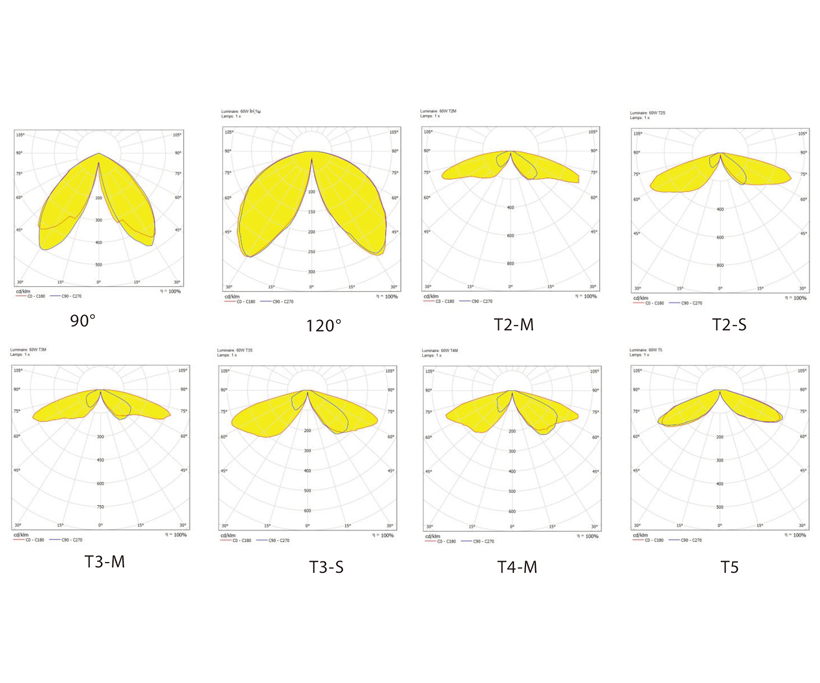

| Beam Angle | 90° / 120° / T2-M / T2-S / T3-M / T3-S / T4-M / T5 | ||||
| CCT | 3000K~6000K | ||||
| IP & IK Rating | IP66 & IK10 | ||||
| Surge protector | 10KV & 20KV (Optional) | ||||
| Protection class | Class I & Class II | ||||
| CRI | CRI >70, Optional CRI >80, CRI >90 | ||||
| Body colour | Black, optionally any RAL colour of your choice | ||||
| Body material | Aluminium injected die-cast, painted powder-coated | ||||
| Lampshade type | Side clear ro milky tempered glass | ||||
| Function | Tooless openable,terminal block,support rod | ||||
| Socket type | connectors, Zhaga book 18, NEMA 3/5/7 pin socket (Optional) | ||||
| Wattage & CCT Slectable | Wattages Adjustable: 100% - 80% - 60% -40% ; CCT Adjustable: 3000K / 4000K / 5000K or 4000K / 5000K / 6000K (Optional) | ||||
| Operating Temperature | -40C° to 55C° | ||||

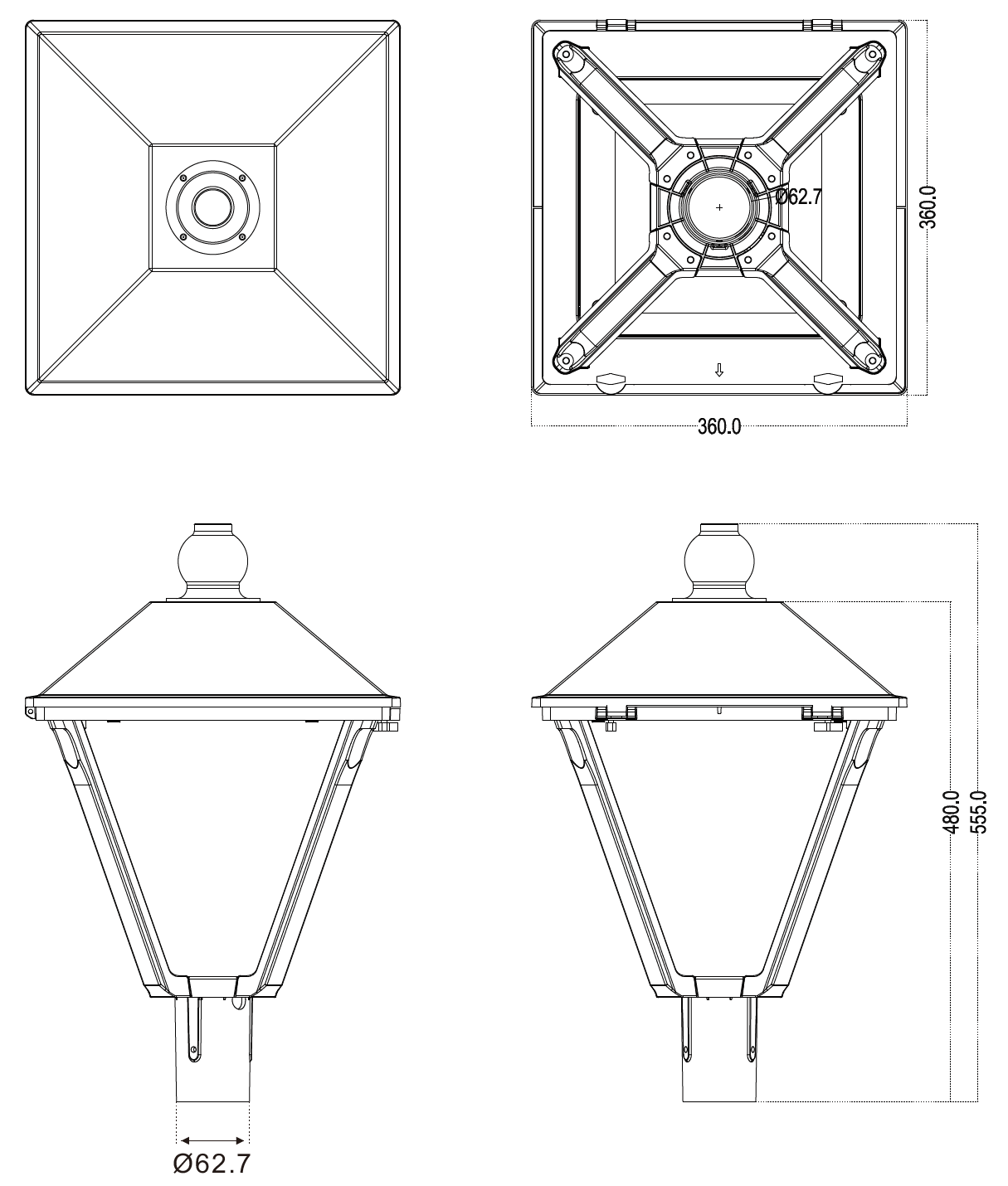

| Mounting dimensions | Ø60mm | ||||
| Certificate | ENEC ,ENEC+ ,CE,Zhaga,ZD4I,CB,RoHS,IK10,IP66,LM79,L90B10>100K ,Salt Spray,3G Vibration | ||||

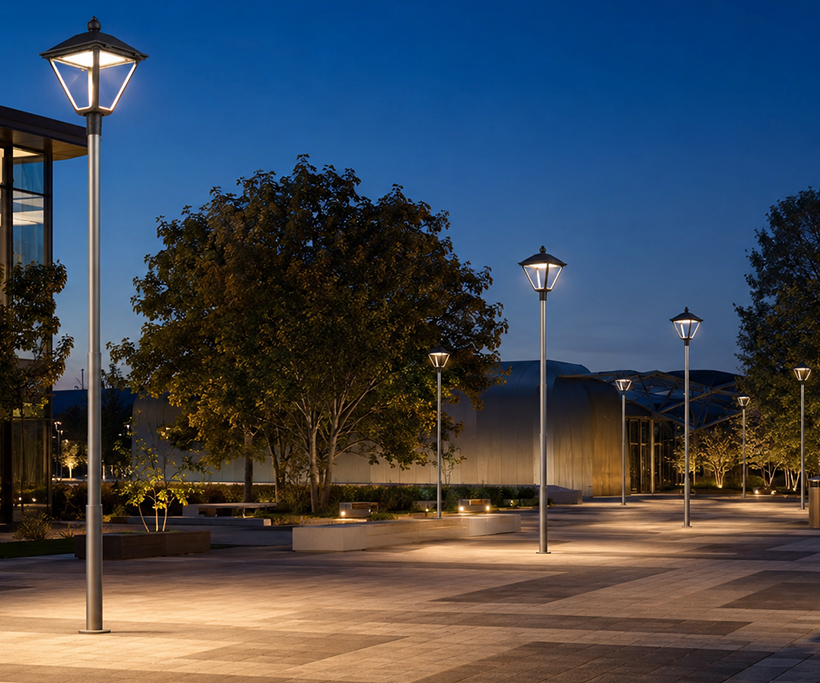

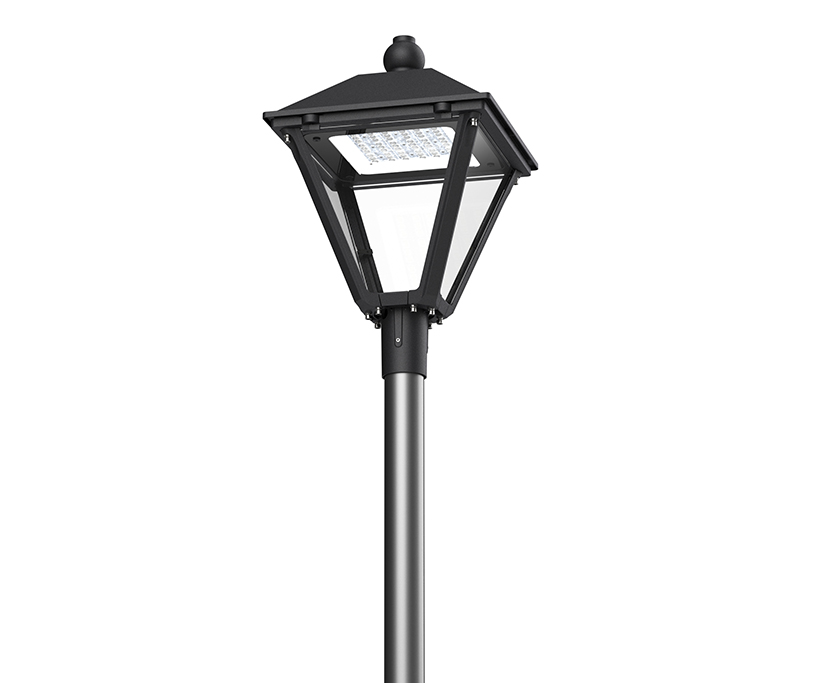

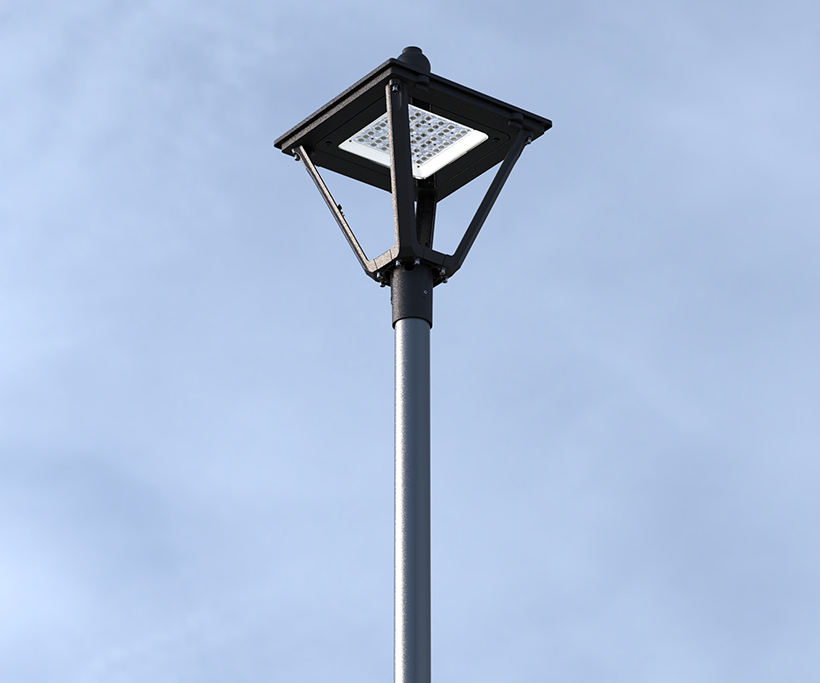

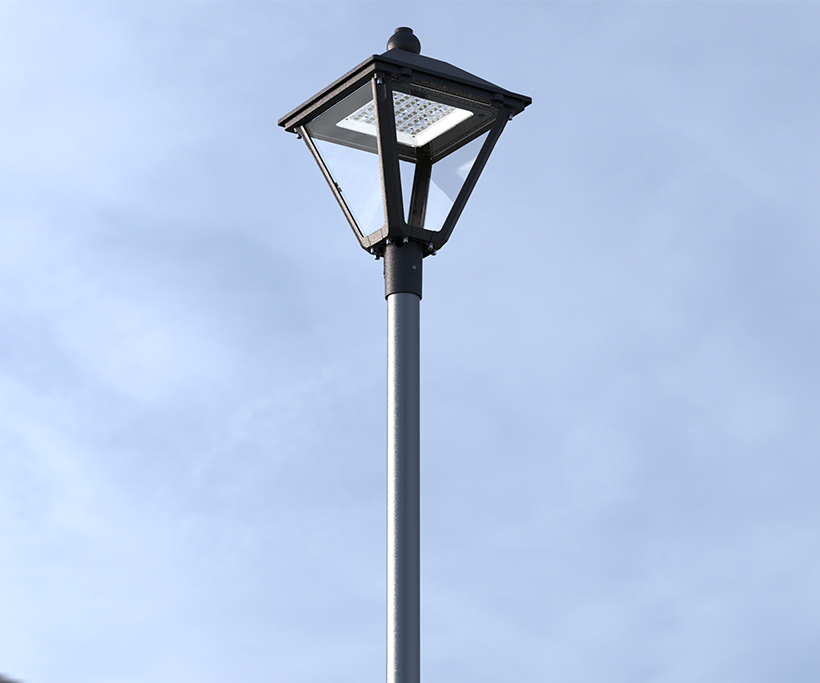

Villa Retro LED Post Top Lights
Villa Series Retro LED Post Top Lights deliver up to 12,000 lm and 155 lm/W. IP66, IK10, multiple optics and optional smart controls for outdoor projects.The Villa Series preserves the decorative appeal of traditional post top luminaires while providing the efficiency, optical control and maintenance advantages of LED technology. It is a flexible outdoor lighting solution for projects that require visual character and reliable illumination.The Villa Series combines timeless architectural styling with efficient LED technology. Available from 30W to 80W, it provides comfortable outdoor illumination for parks, residential communities, villa gardens, walkways and commercial areas.
30W
40W
50W
60W
80W

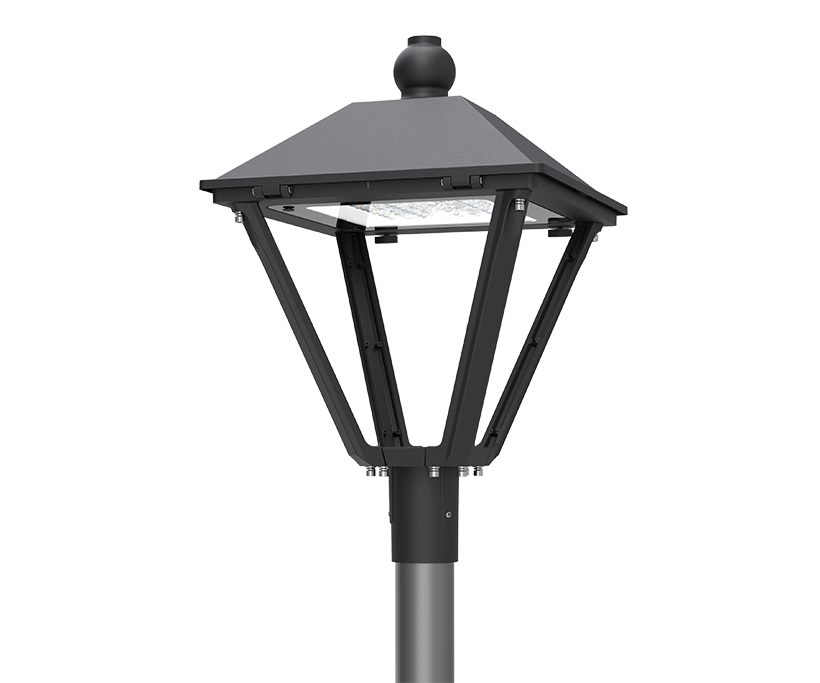

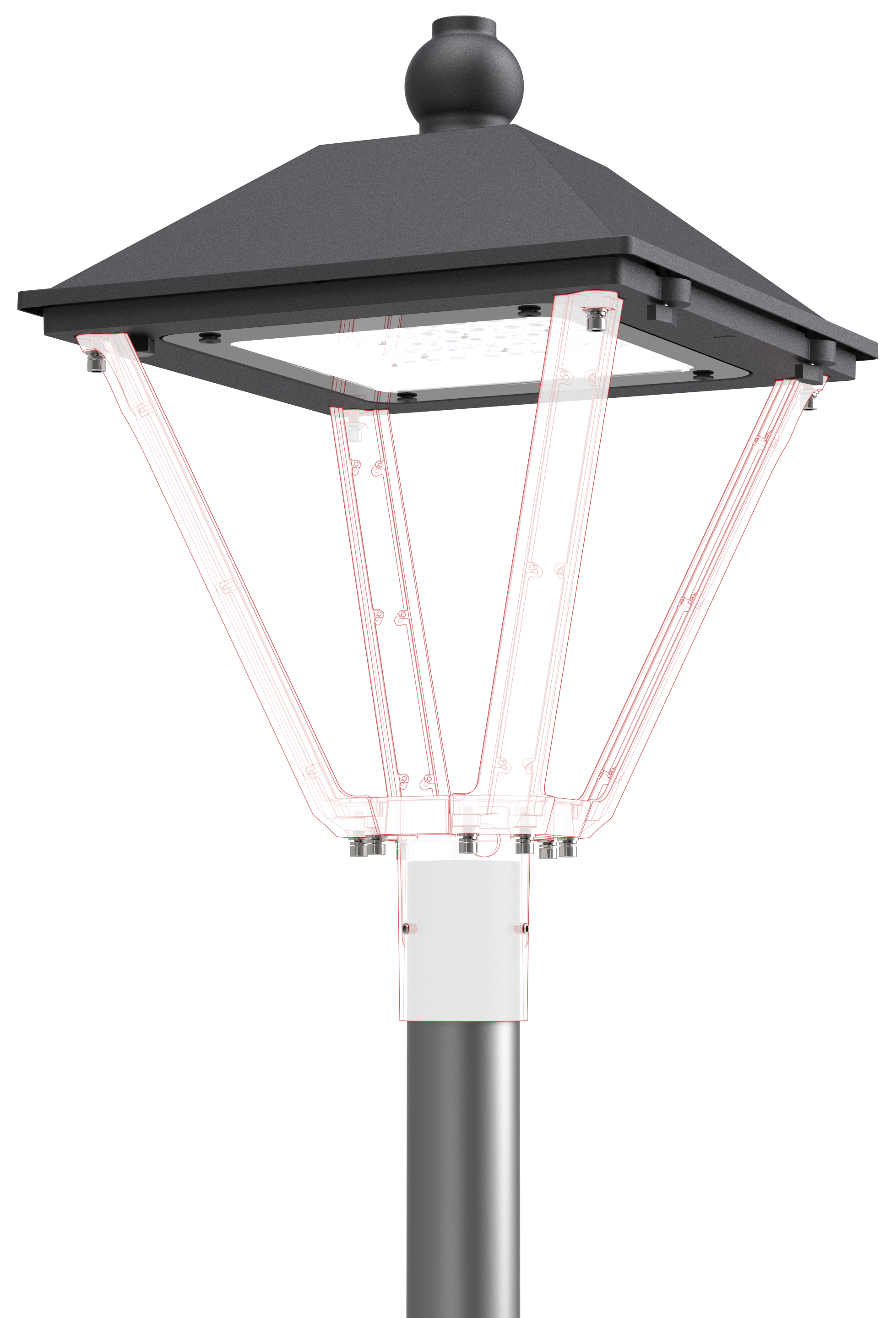

Durable Die-Cast Aluminum Housing
The high-strength die-cast aluminum housing Arm Covers provides reliable structural support and efficient heat dissipation. Its thermal design helps reduce LED operating temperatures, supporting stable performance and longer service life.
retro LED post top lights for parks
decorative LED post top lights for villas
outdoor post top lights for residential communities
traditional LED post top lighting for commercial streets
energy-efficient architectural post top lights
LED post top lights with Zhaga or NEMA socket
classic outdoor LED post top lantern

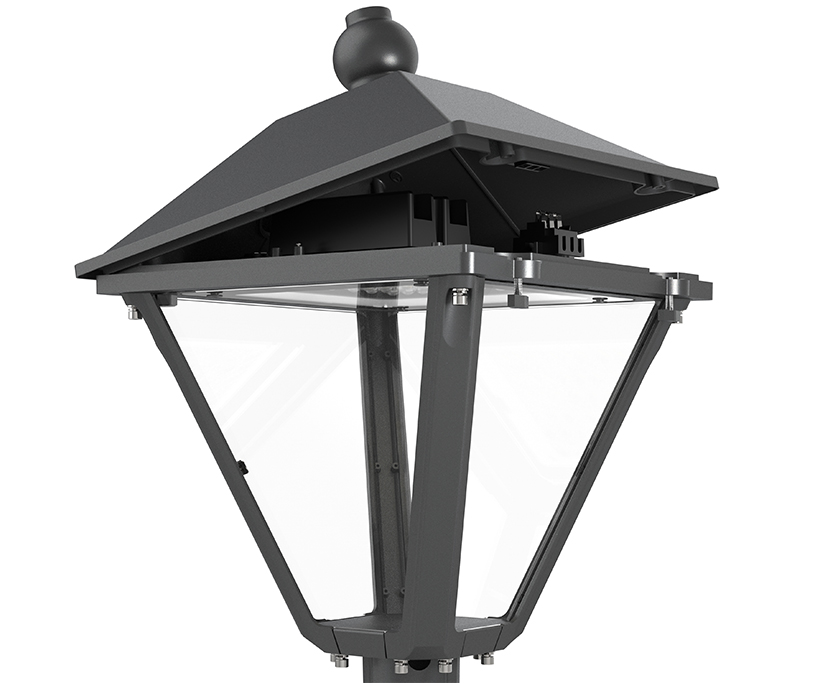

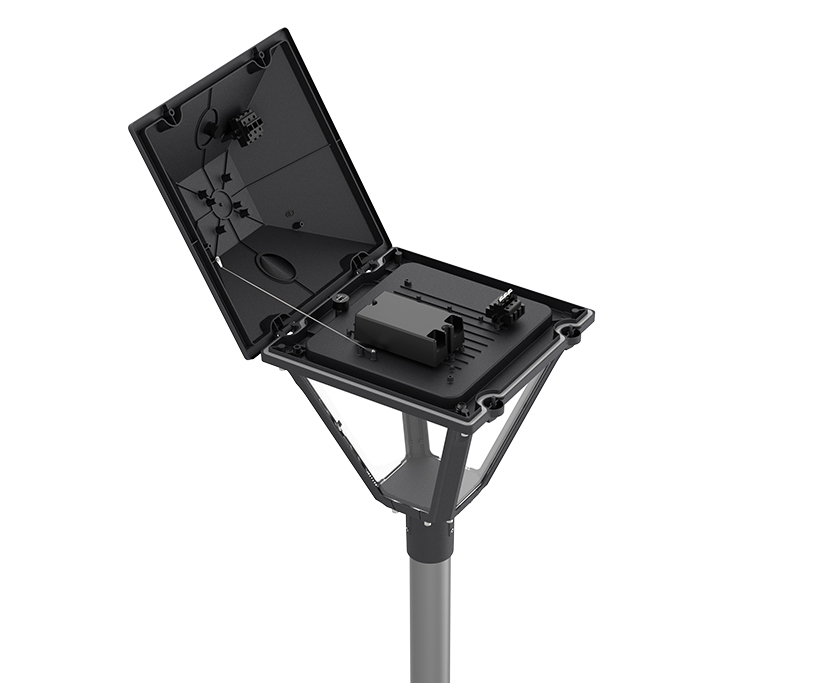

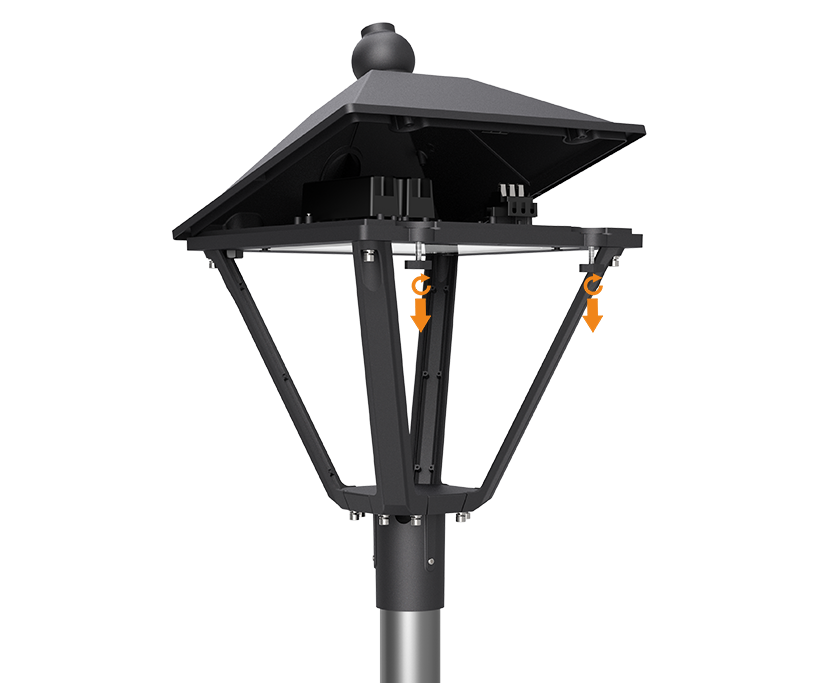

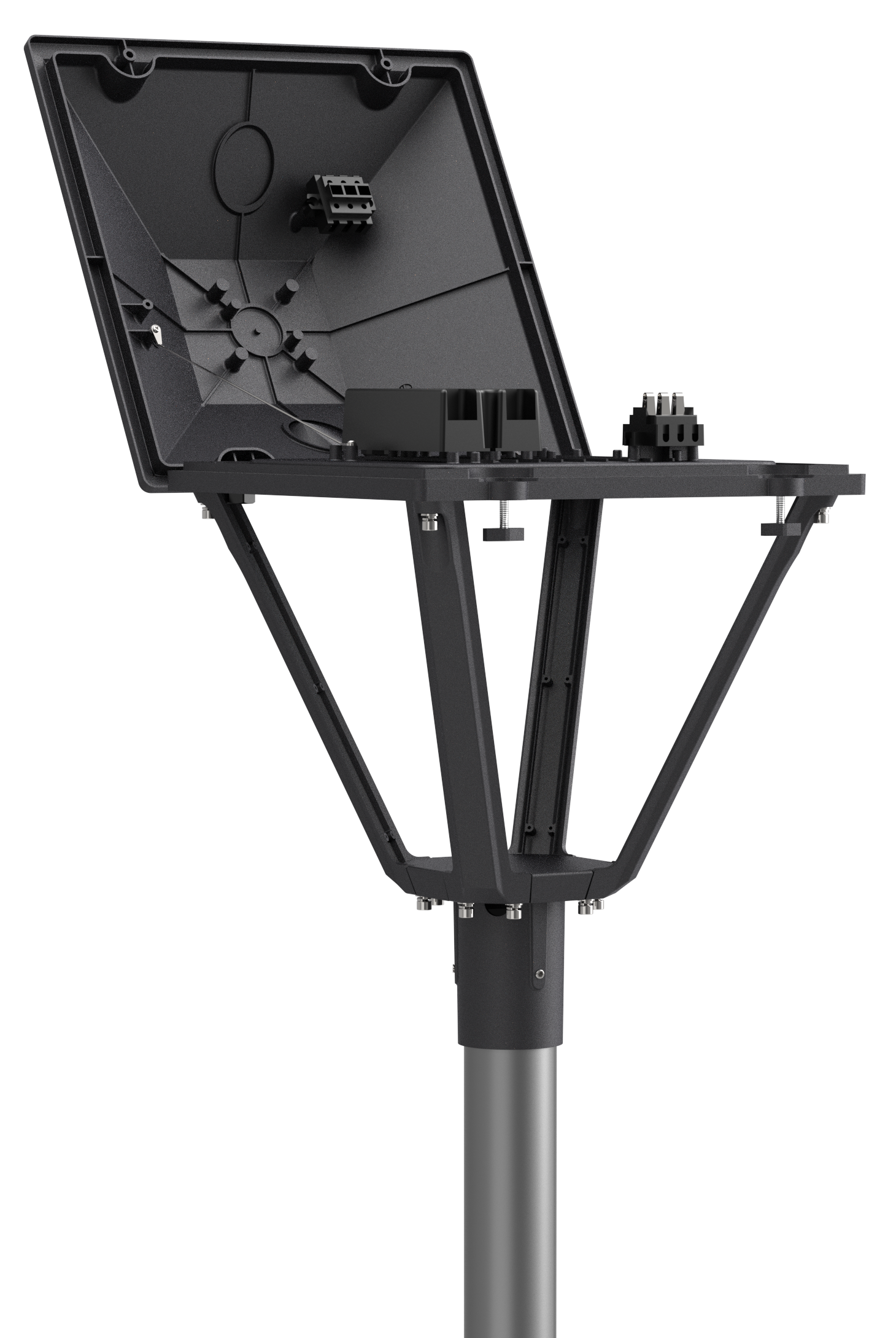

Tool-Free Maintenance with Automatic Power Cut-Off
The top cover can be opened without tools, allowing maintenance personnel to inspect or replace internal components more efficiently.
A support rod keeps the cover securely open during servicing.A knife switch is included as standard. Opening the top cover automatically
disconnects power from the LED module, improving maintenance safety

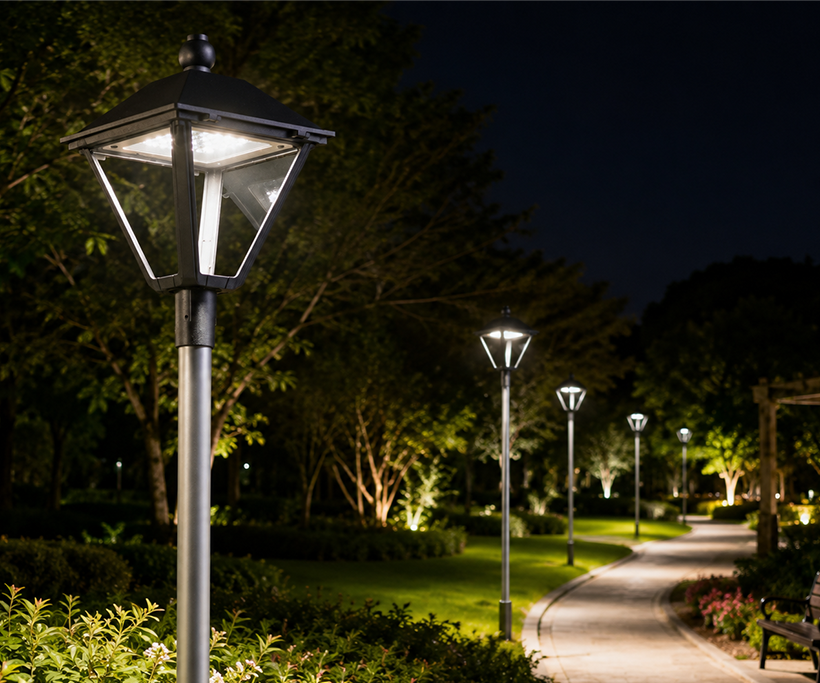

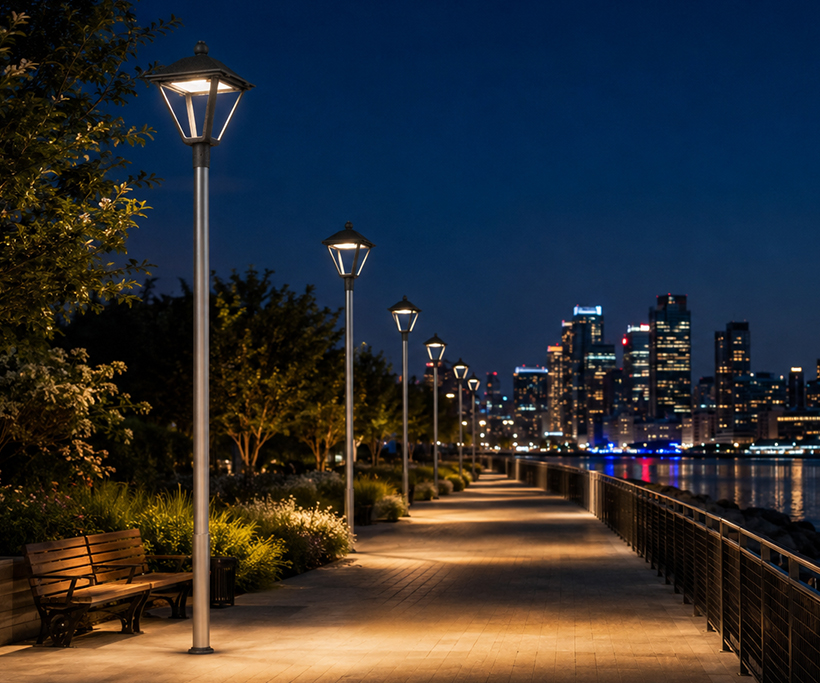

Urban roads and pedestrian routes

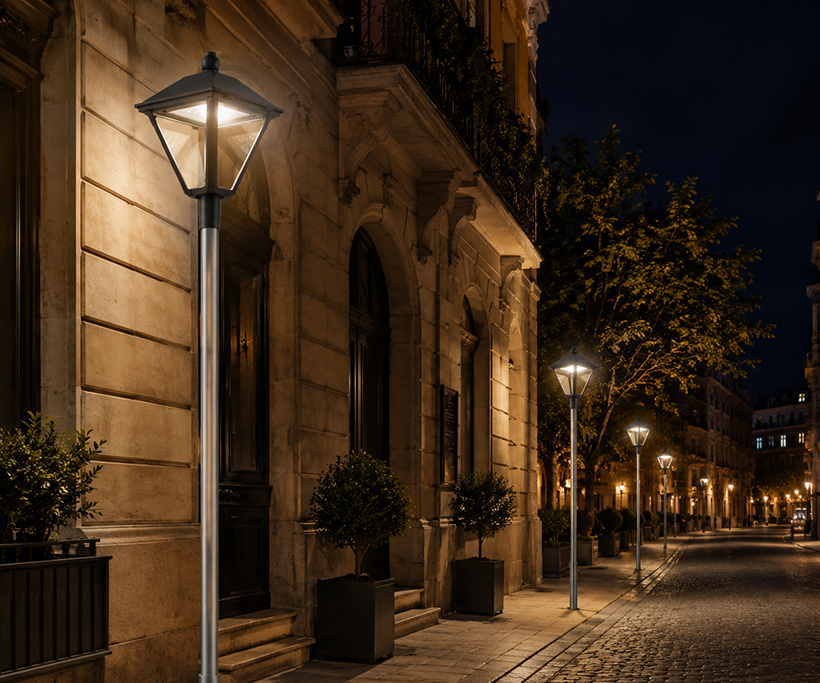

Public parks and green areas

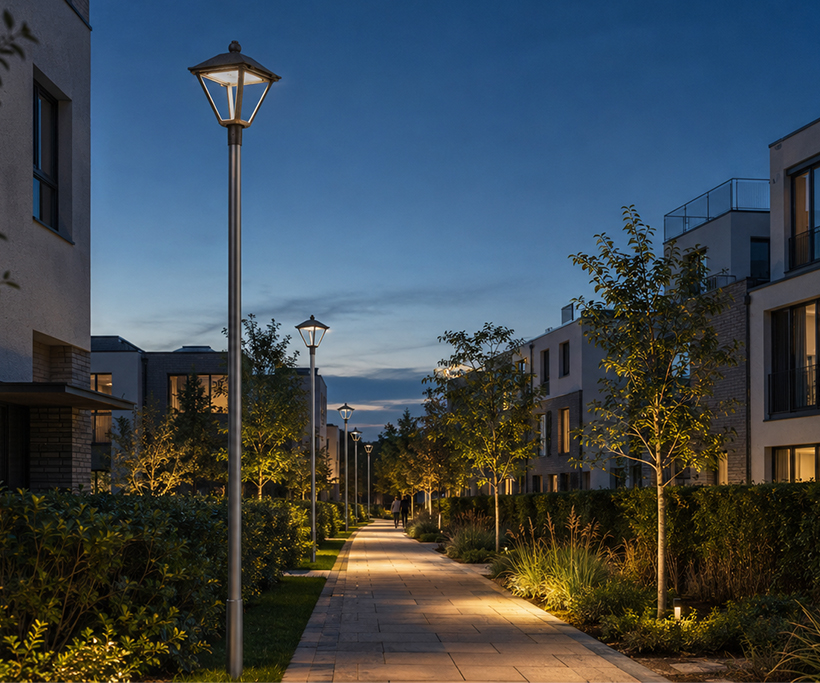

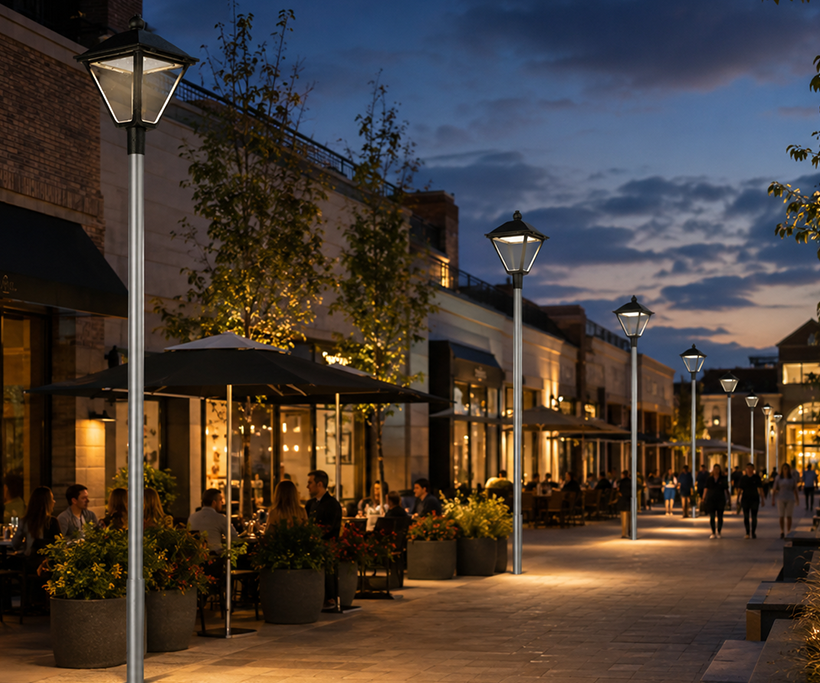

Residential communities
Villa gardens and private developments

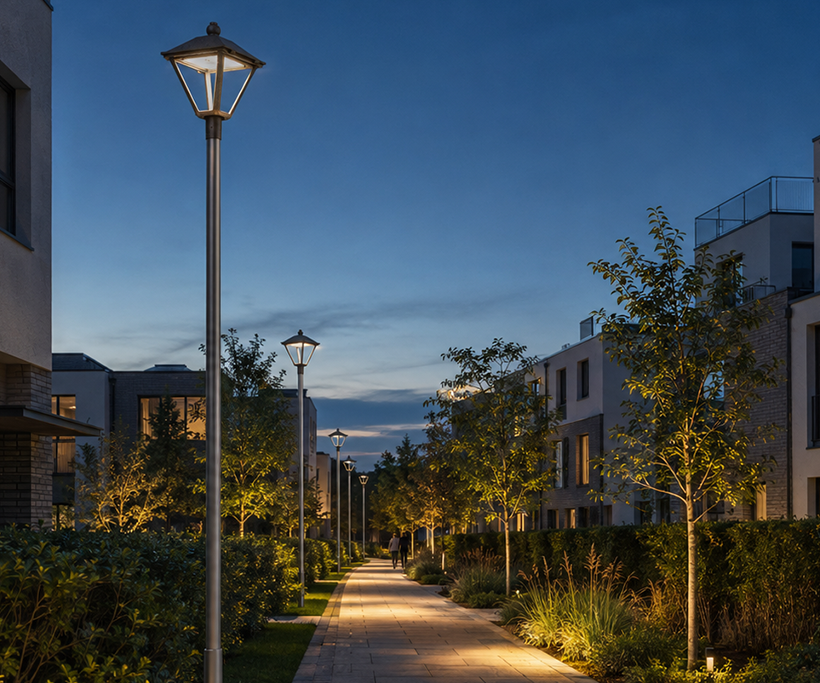

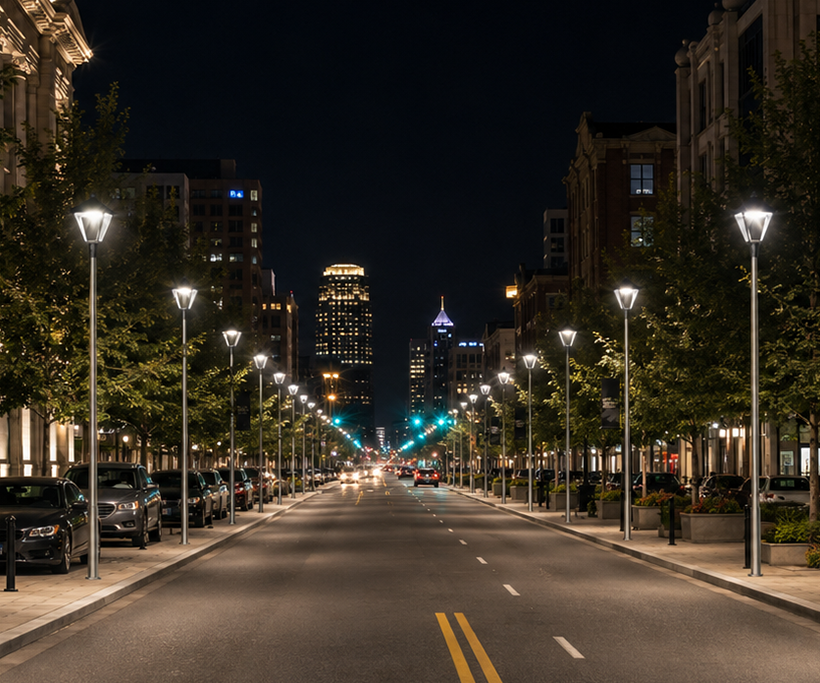

Commercial streets and shopping areas

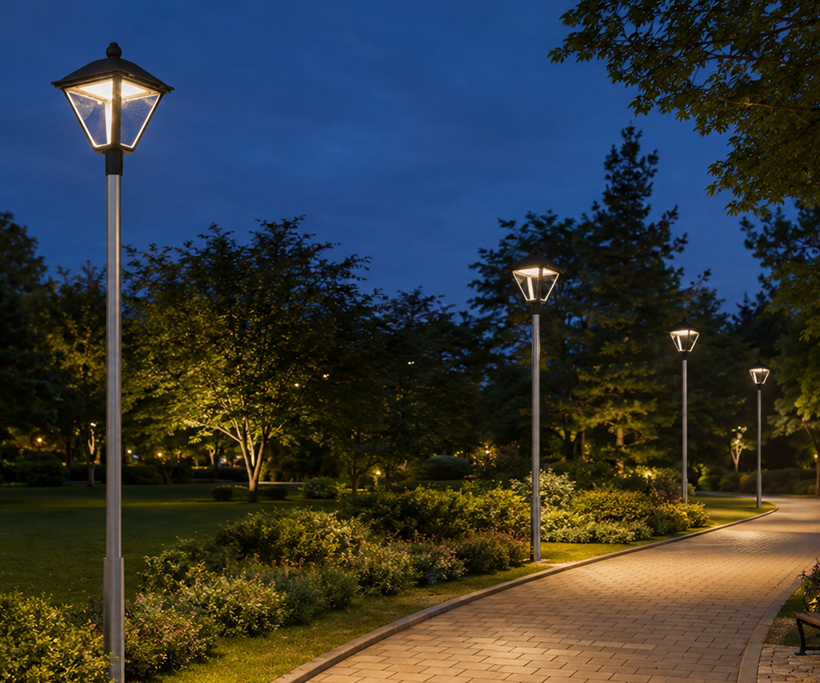

Squares and urban public spaces
Parking areas
Landscape and accent lighting
Wattage and CCT Selection & knife switch
A knife switch is included as standard. Opening the top cover automatically disconnects power from the LED module,
improving maintenance safety.
Optional Wattage and CCT Selection,The optional adjustable version.
This flexible design helps reduce inventory requirements and allows one luminaire platform to meet different project needs.
Wattages Adjustable: 100% - 80% - 60% -40%
CCT Adjustable: 3000K / 4000K / 5000K or 4000K / 5000K / 6000K

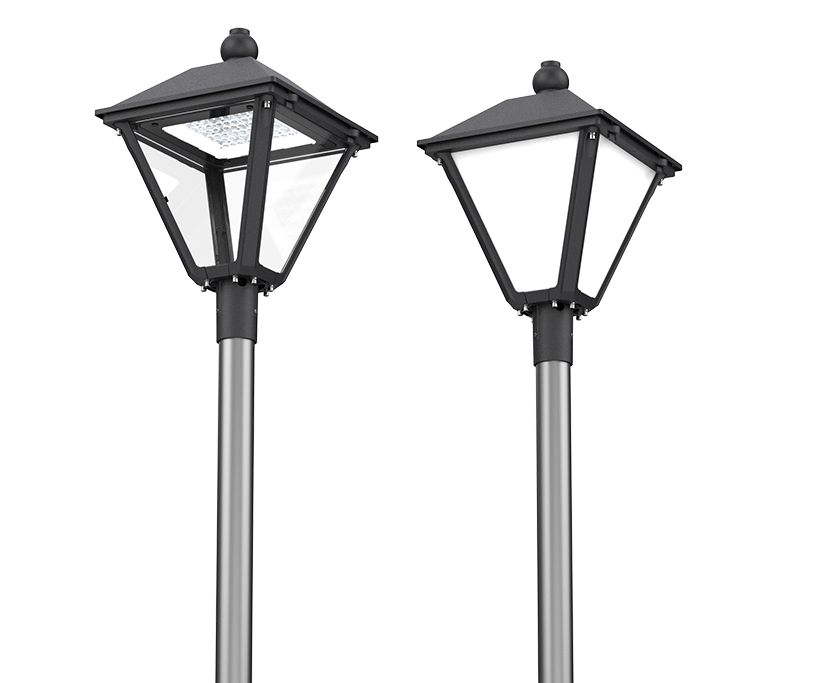

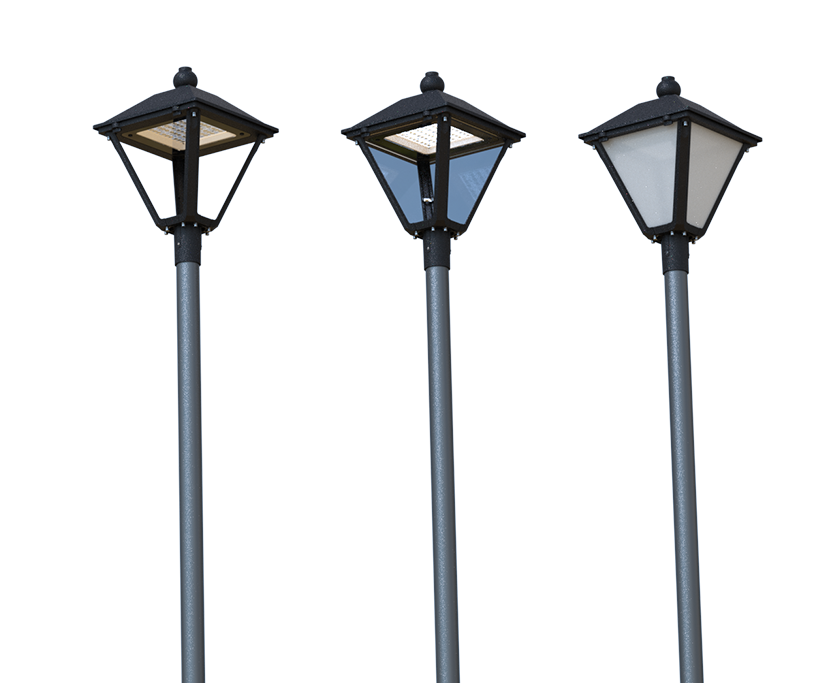

Cover and Appearance Options
Cover and Appearance Options
The Villa Series offers several appearance configurations,
These options allow the luminaire to complement different architectural and landscape styles.
Open lantern design without glass

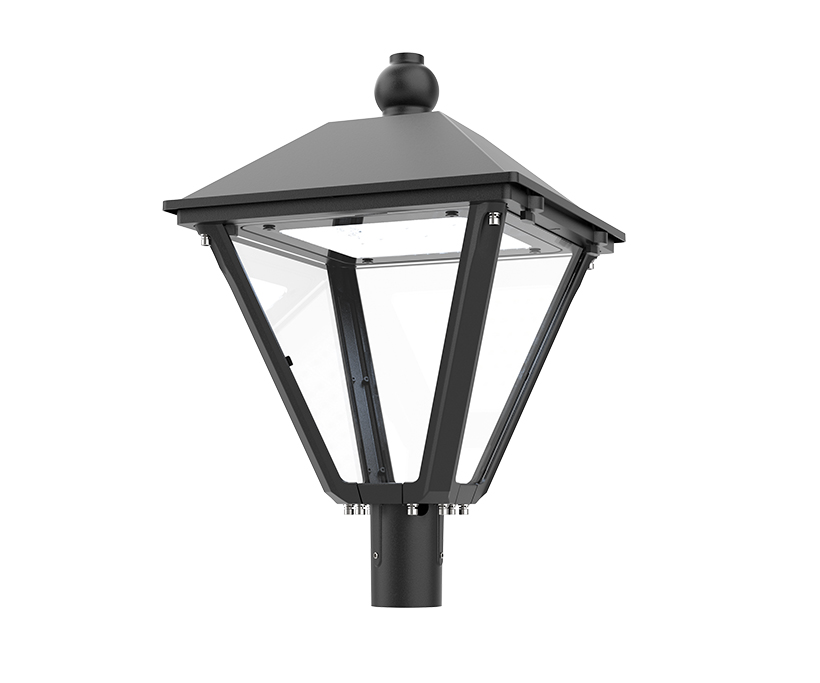

Clear-side tempered glass

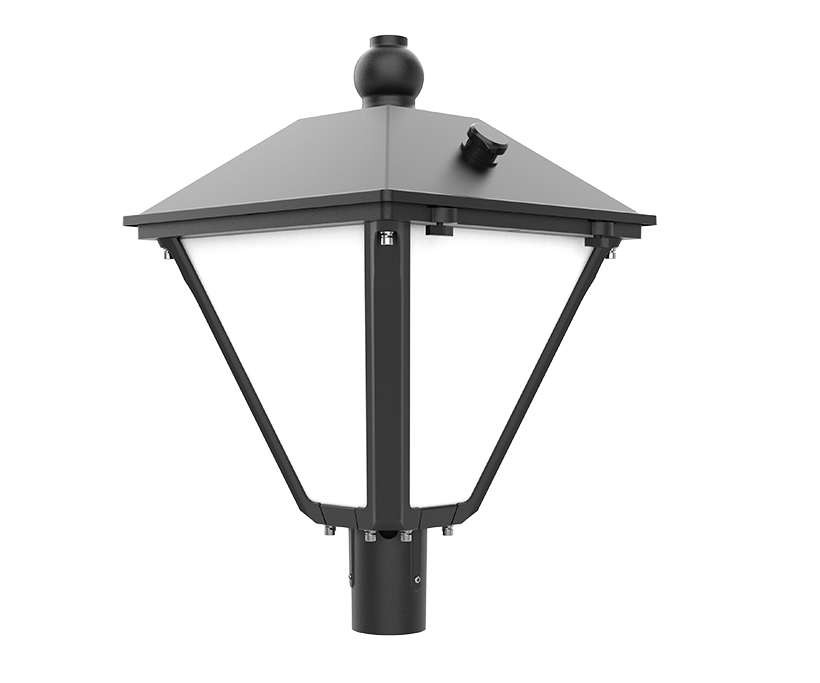

Milky-white tempered glass

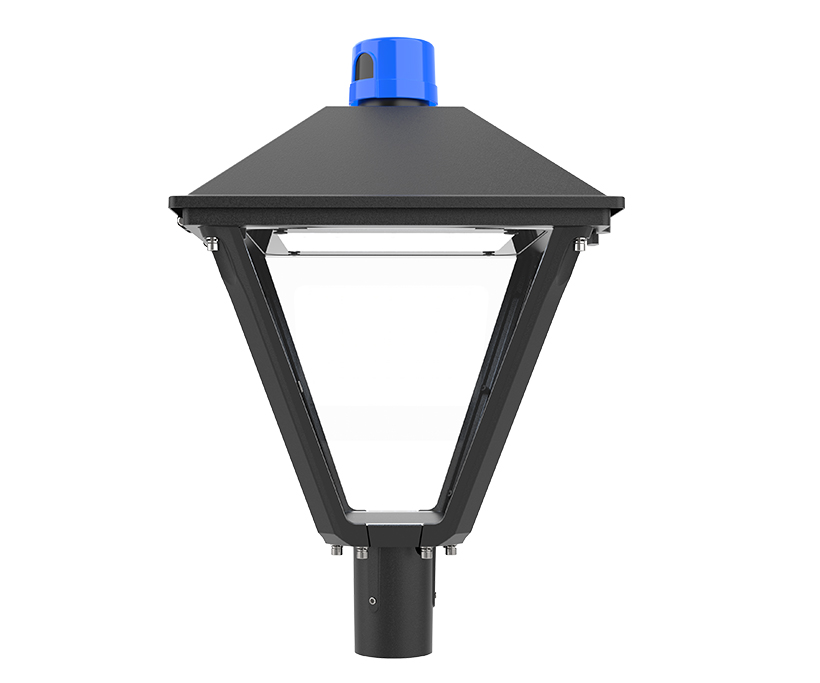

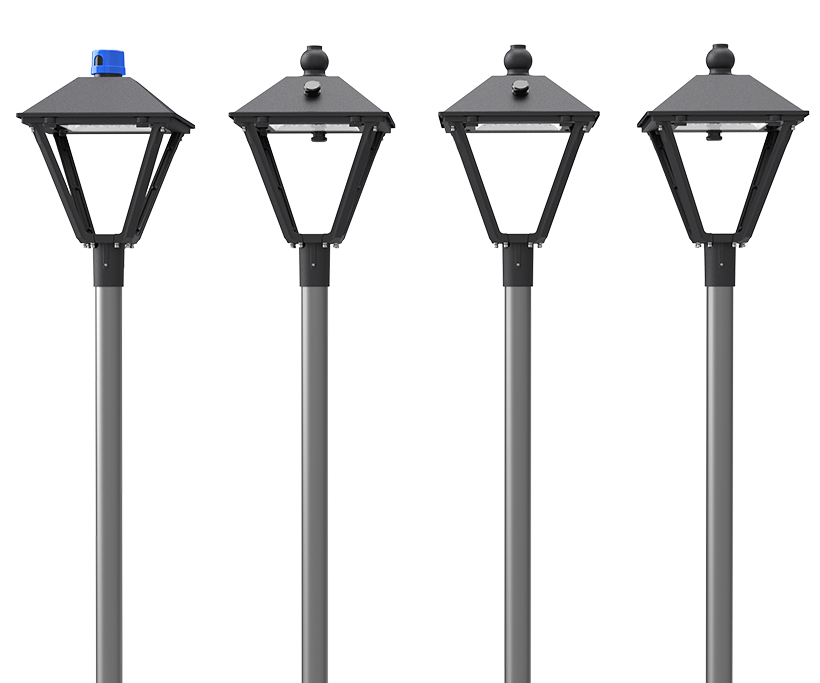

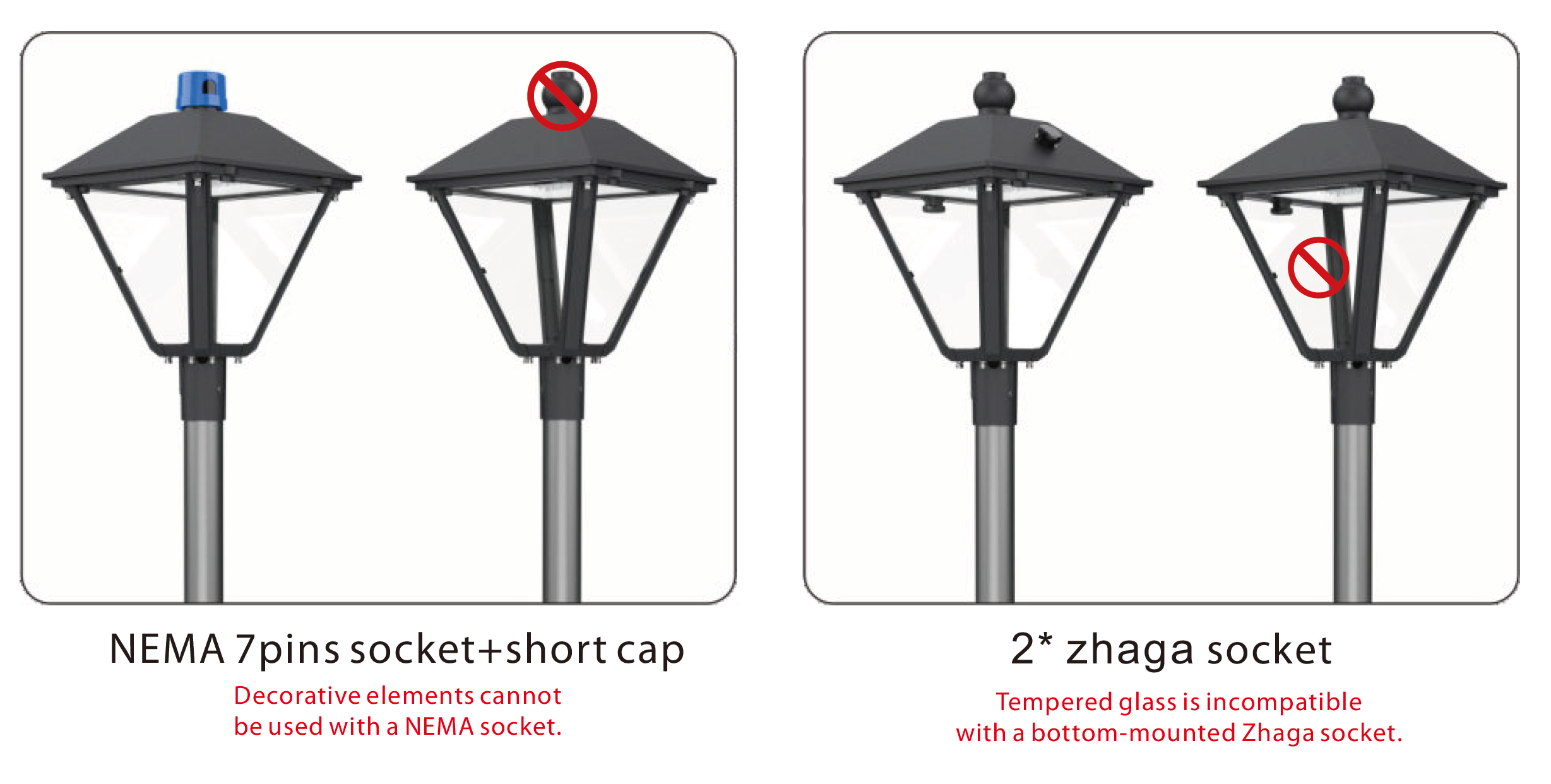

Smart Lighting Sockets Options
Configuration notice: Decorative arm covers cannot be combined with a NEMA socket.
Tempered glass is incompatible with a bottom-mounted Zhaga socket.
Optional smart-control interfaces include:
1)NEMA 3-pin, 5-pin or 7-pin sockets
2)NEMA shorting cap
3)up and down Zhaga Book 18 sockets x2
4)Zhaga Book 18 sockets
Applications
Villa Retro LED Post Top Lights are ideal for:
Urban roads and pedestrian routes
Public parks and green areas
Residential communities
Villa gardens and private developments
Commercial streets and shopping areas
Squares and urban public spaces

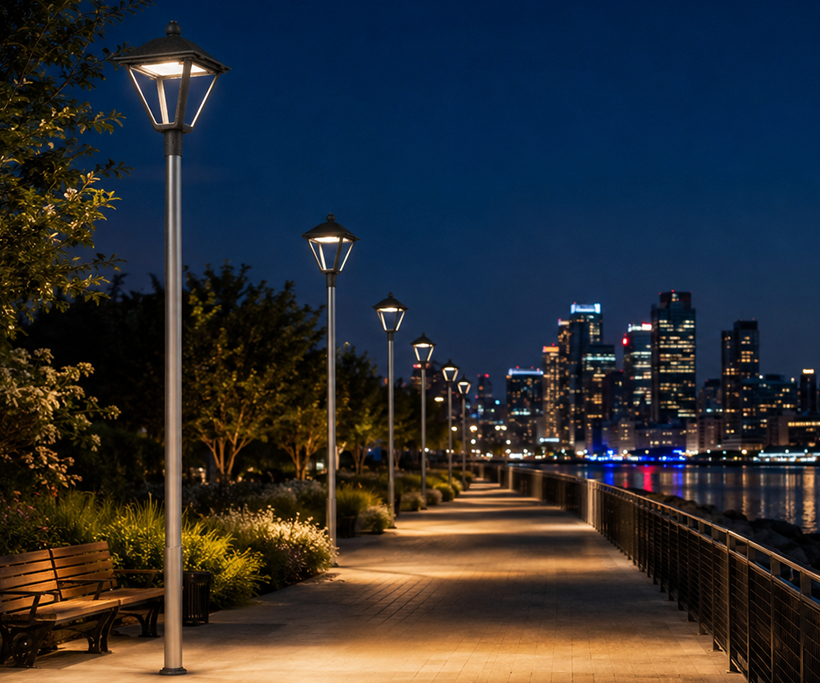

Parking areas

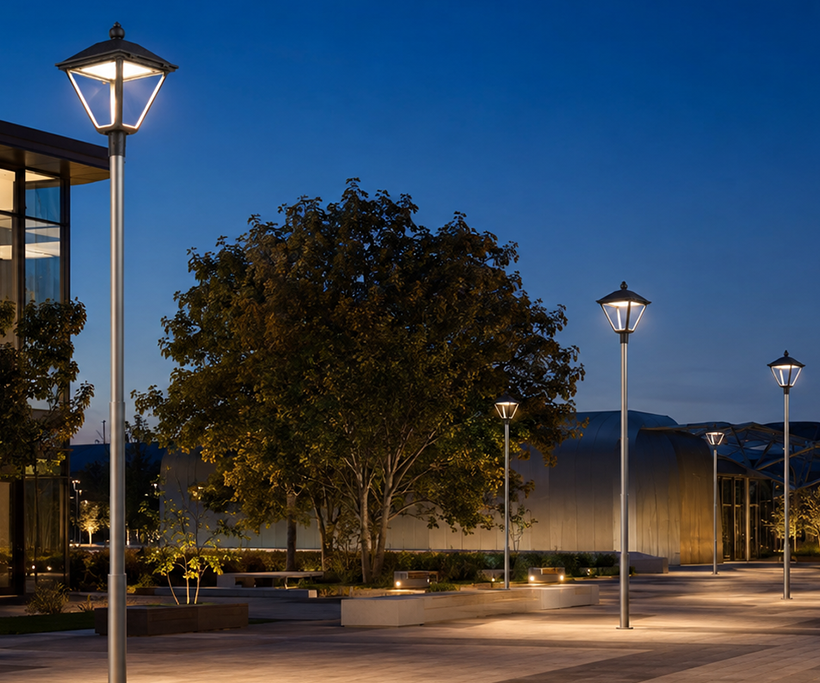

Landscape and accent lighting
