● Watt: 60W
● Lumens: 9,600
● Light Source: Lumileds 2835
● Input Volt: 100-277VAC
● IP Rating: IP66 - IK08
● Arm Dia: 60-80mm
● SPD: 10KV or 20KV(Optional)
● Size: Φ430x488.7mm
● CCT (Color Temp): 3000, 4000, 5000, 5700, 6000
● Beam Angle: T5 90/ 120 degree/ T2/ T3/ T4
● 5 years warranty
|Chip Brand||Lumileds 2835|
|CCT||3000K 4000K 5000K 5700K 6000K|
|Cover||Tempered glass/ Milky Acrylic|
|SPD||10KV or 20KV(Optional)|
T5(140*140)/ T2/ T3/ T4
|Certification||ENEC, TUV, CE, CB, SAA, RoHS, LM79, LM80, TM21, IK08, IP66, Spray test|
|Other optional wattage(10W-80W)|
Skyscraper LED Post Top Lights 60W
Skyscraper LED Post Top Lights is a perfect Outdoo lighting solution for parks gardens and pathways.
ENEC TUV CE CB SAA RoHS
LM79 LM80 TM21 Salt Spray test approved
Using high-quality lamp beads to reduce light waste, the utilization rate of light is higher, CRI>70, the light efficiency can reach 160Lm/W!
Uses aluminum radiator and sheet metal frame.
Waterproof & Lightning Protection
The lamps have passed the waterproof IP66 and anti-impact IK08 tests, and are equipped with 10KA lightning arresters. Even in bad weather outdoors, it can ensure that the lamps are not affected and work normally, increasing road safety.
Used for outdoor poles with a diameter of 60-80mm
1.Single post 10-18 ft. Mounting heights(Spider / Cantilever mount only);
2.Twin mount arm 18-22 ft. Mounting height 's (Spider / Cantilever mount only);
3.Wall mount arm 8-10 ft. Mounting heights (Spider / Cantilever mount only);
Twin mount arm
Wall mount arm
We have several series of landscape street lights to choose from to adapt to different lighting environments.
The beam angle can be selected from T2 T3 T4 T5(140*140). Professional light distribution angle can better achieve uniform and efficient lighting effect.

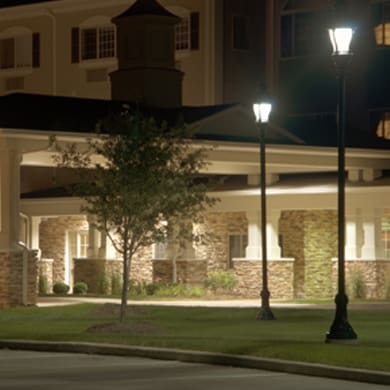

It is very suitable for road landscape lighting in parks, residential areas, gardens, villas, courtyards, scenic spots, greenways, roads, commercial streets, squares, and scenic spots.
|NEMA 7pins+Short Cap|
|Surge Protection Device||10KA|
