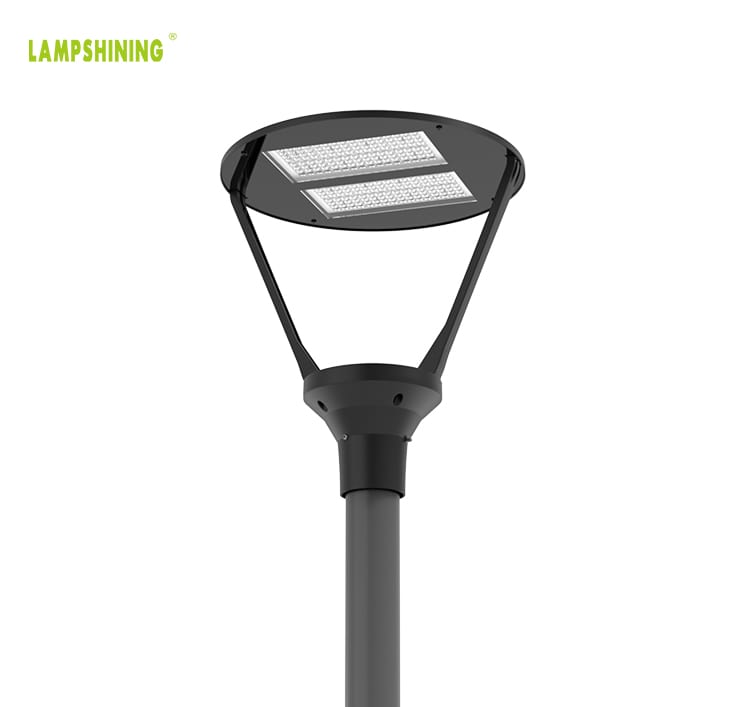

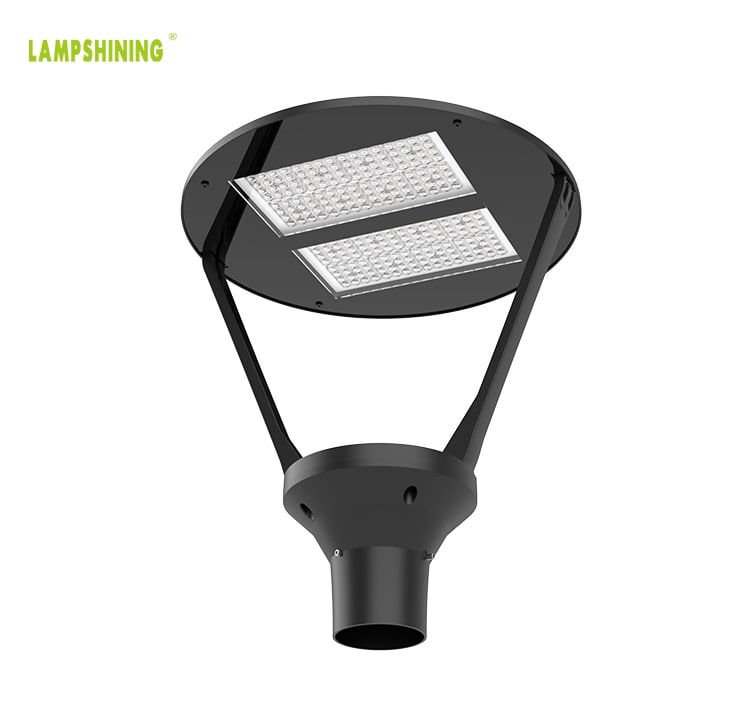

80W LED Post Top Light - Outdoor pathway Landscape Pole Lighting Fixtures for Sale

●   Watt: 80W

●   Lumens: 12,400

●   Light Source: Lumileds 2835

●   Input Volt: 100-277VAC

●   IP Rating: IP66 - IK08

●   Arm Dia: 60-80mm

●   SPD: 10KV or 20KV(Optional)

●   Size: Φ430x488.7mm

●   CCT (Color Temp): 3000, 4000, 5000, 5700, 6000

●   Beam Angle: T5(140*140)/ 120 degree/ T2/ T3/ T4

●   5 years warranty

Inquire Now Next Product

80W LED Post Top Light - Outdoor pathway Landscape Pole Lighting Fixtures for Sale

Name:

Tel:

E-mail:

Country:

CAPTCHA:

Submit the information to obtain product spec sheet,Please make sure that your email address is absolutely correct!

Specification Sheet
Model

LSPT-80W(XXK)plus

Watt80W
Efficiency12,400lm(155Lm/W±3%)
Input Volt100-277VAC
Chip BrandLumileds 2835
CCT3000K 4000K 5000K 5700K 6000K
Arm Dia60-80mm
CoverTempered glass/ Milky Acrylic
SPD10KV or 20KV(Optional)
Size

Φ430x488.7mm

Beam Angle

T5(140*140)/ T2/ T3/ T4

Driver

Moso MNC-100V-240

CertificationENEC, TUV, CE, CB, SAA, RoHS, LM79, LM80, TM21, IK08, IP66, Spray test


Other optional wattage(10W-80W)
LSPT-10W-LV(XXK)10WLSPT-15W-LV(XXK)15WLSPT-20W-LV(XXK)20W
LSPT-25W-LV(XXK)25WLSPT-30W-LV(XXK)30WLSPT-35W-LV(XXK)35W
LSPT-40W-LV(XXK)40WLSPT-45W-LV(XXK)45WLSPT-50W-LV(XXK)50W
LSPT-55W-LV(XXK)55WLSPT-60W-LV(XXK)60WLSPT-65W-LV(XXK)65W
LSPT-70W-LV(XXK)70WLSPT-75W-LV(XXK)75WLSPT-80W-LV(XXK)80W


Skyscraper LED Post Top Lights 80W

Skyscraper LED Post Top Lights 80W

Skyscraper LED Post Top Lights is a perfect Outdoo lighting solution for parks gardens and pathways.

80W

155Lm/W

3000K-6000K

ENEC TUV CE CB SAA RoHS

LM79 LM80 TM21 Salt Spray test approved

High brightness

High brightness

Using high-quality lamp beads to reduce light waste, the utilization rate of light is higher, CRI>70, the light efficiency can reach 155Lm/W!

Lumileds 2835

Aluminum radiator

Aluminum radiator

Uses aluminum radiator and sheet metal frame.

Aluminum radiator

Waterproof & Lightning Protection

Waterproof & Lightning Protection

The lamps have passed the waterproof IP66 and anti-impact IK08 tests, and are equipped with 10KA lightning arresters. Even in bad weather outdoors, it can ensure that the lamps are not affected and work normally, increasing road safety.

50,000H

-40-55℃

Installation Hole

Installation Hole

Used for outdoor poles with a diameter of 60-80mm

60mm

80mm

Installation

Installation

1.Single post 10-18 ft. Mounting heights(Spider / Cantilever mount only);

2.Twin mount arm 18-22 ft. Mounting height 's (Spider / Cantilever mount only);

3.Wall mount arm 8-10 ft. Mounting heights (Spider / Cantilever mount only);

Single post

Twin mount arm

Wall mount arm

Other Series

We have several series of landscape street lights to choose from to adapt to different lighting environments.

Beam Angle

Beam Angle

The beam angle can be selected from T2 T3 T4 T5(140*140). Professional light distribution angle can better achieve uniform and efficient lighting effect.

T2

T3

T4

T5(140*140 degree)

Application

It is very suitable for road landscape lighting in parks, residential areas, gardens, villas, courtyards, scenic spots, greenways, roads, commercial streets, squares, and scenic spots.

skyscraper led post top light Application

skyscraper led post top light Application

skyscraper led post top light Application

Accessories

Photocell
Photocell
photocell
NEMA 7pins+Short Capnema 7 pin + short cap
Surge Protection Device
10KA
10ka surge protection device
Mounting
60-80mm
60-80 mouting hole


WattSize
80W 1pc/ Φ430x488.7mm(Φ16.92x19.24in)


skyscraper led post top light size
