1. 400W/480W;
2. 70,000Lm(175Lm/W)/84,000(175Lm/W);
3. Replaceable 800W-1000W HPS, MH, HQI;
4. ETL DLC TUV CE CB SAA RoHS LM79 LM80 TM21 IK10 Salt Spray test approved Certification;
5. Die-cast connector can realize the conversion of multiple modules to single module;
6. The lamp efficiency reaches 160LPW, with higher brightness and less energy consumption;
Overview
Specifications
| Model No. | LSHM‐B400W‐LV(XXK) | LSHM‐B480W‐LV(XXK) | LSHM‐B400W‐LV(XXK) | LSHM‐B480W‐LV(XXK) |
| Power | 400W | 480W | 400W | 480W |
| Luminous Flux(±3%) | 64,000lm(160Lm/W) | 74,400lm(155Lm/W) | 70,000lm(175Lm/W) | 84,000lm(175Lm/W) |
| Protection level | IP66,IK10 | |||
| Power Factor | >0.95 | |||
| Weight | 10kg | |||
| Wind rating | 51.0-56.0m/s | |||
| Driver Type | Meanwell 2*ELG-240-48A | |||
| Light Source | Lumileds 5050 | |||
| Input Voltage | 100-277 VAC | |||
| CCT | 3000K 4000K 5000K 5700K 6500K | 4000K, 5000K | ||
| CRI | Ra70 (Ra80, Ra90 optional) | |||
| Life Time | L70/B10 >50,000hours | |||
| Dimmable | Dimmable and Non-dimmable | |||
| Warranty | 5 Years / 7 years extended warranty available | |||
| Beam Angle | 10 / 20 / 40/ 60 / 90 degree/ TypeIV/ 135*60 degree(P50) | |||
| Certification | ENEC TUV CE CB SAA RoHS LM79 LM80 TM21 IK10 Salt Spray test approved | |||

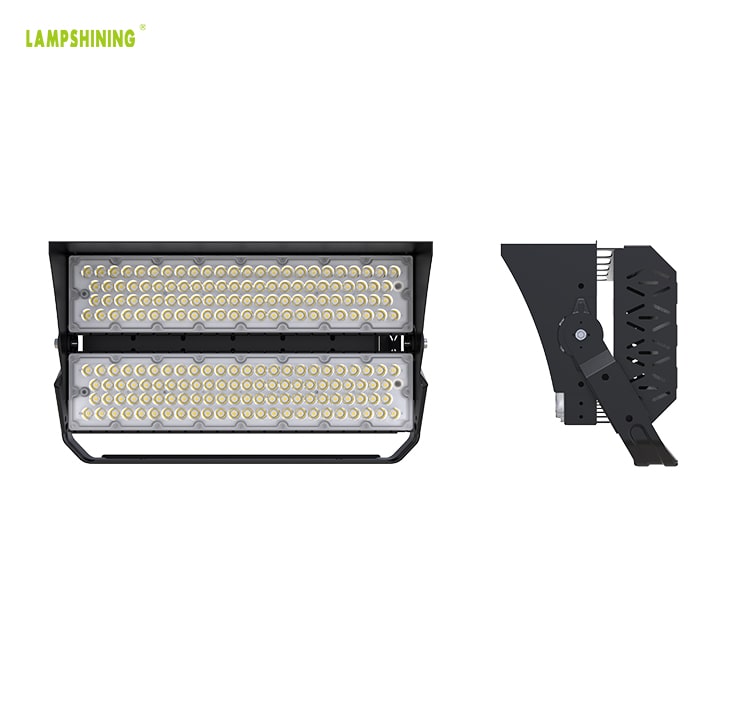

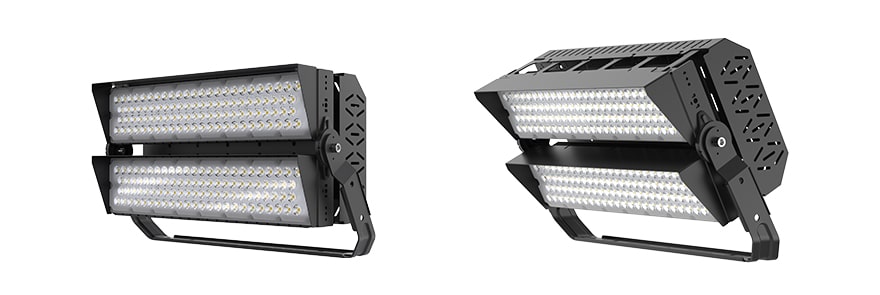

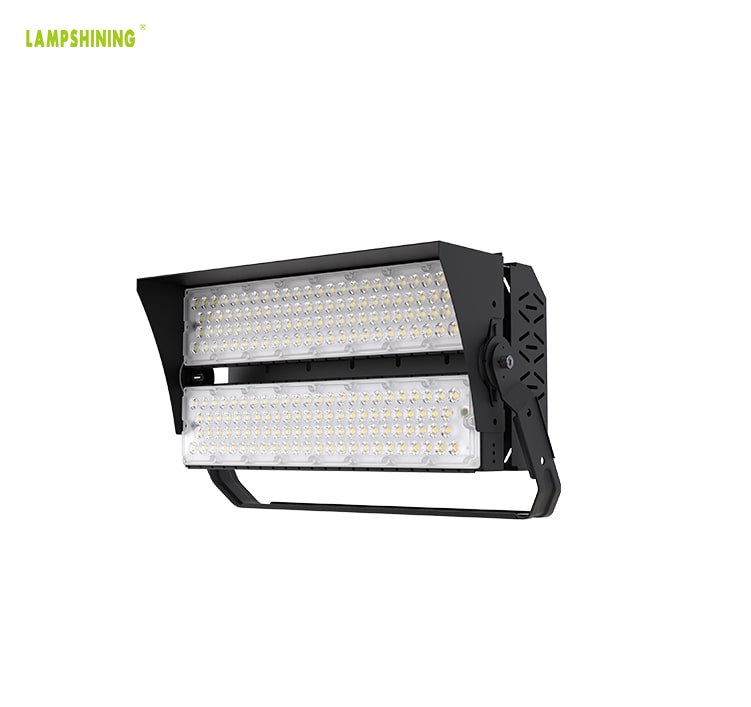

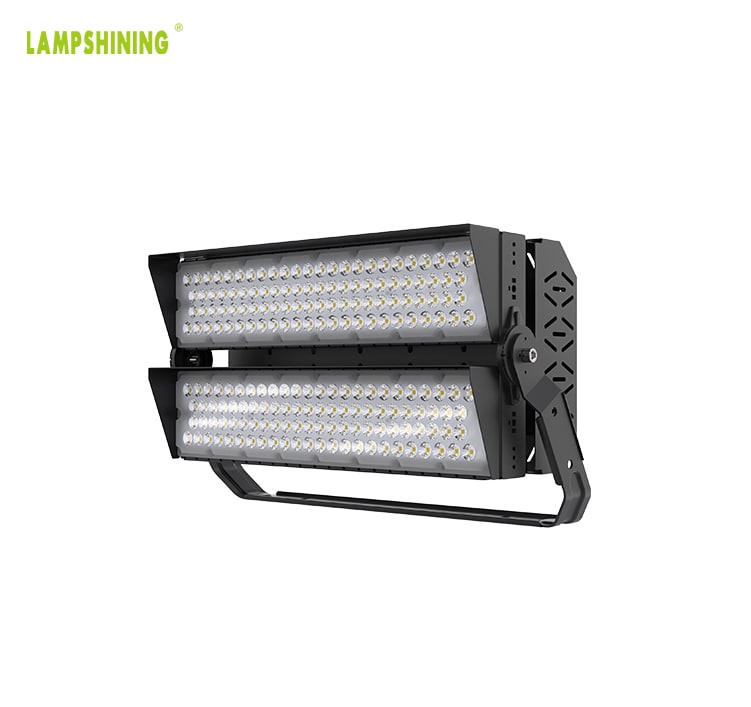

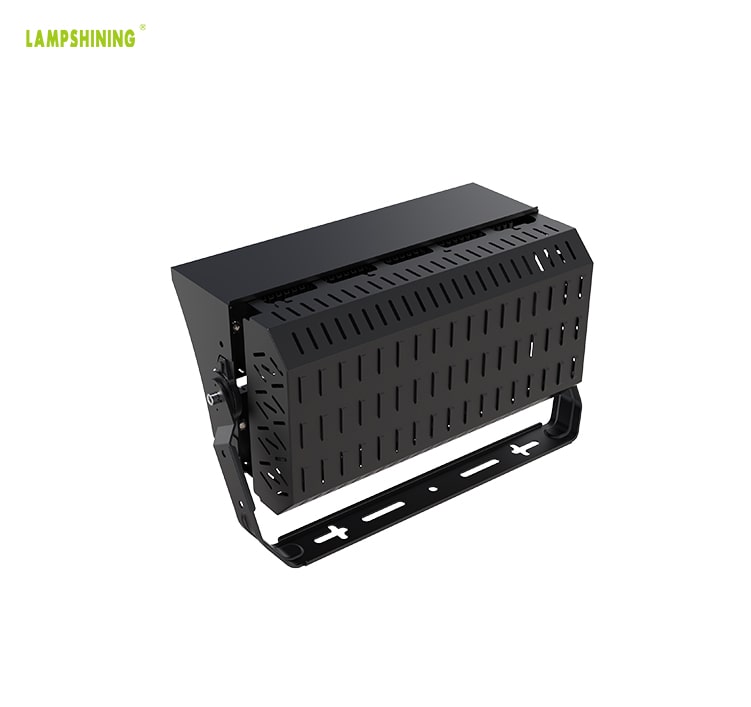

400W 480W LED Sports Light - Hockey Pitch,rugby field, Fencing Hall Lighting
Slim Pro 400W 480w LED High Mast Light, 155-175Lm/W. Immediately improve lighting quality and reduce energy costs by up to 75%. Suitable Sport Lighting, Hockey Pitch,rugby field, Fencing Hall Lighting.

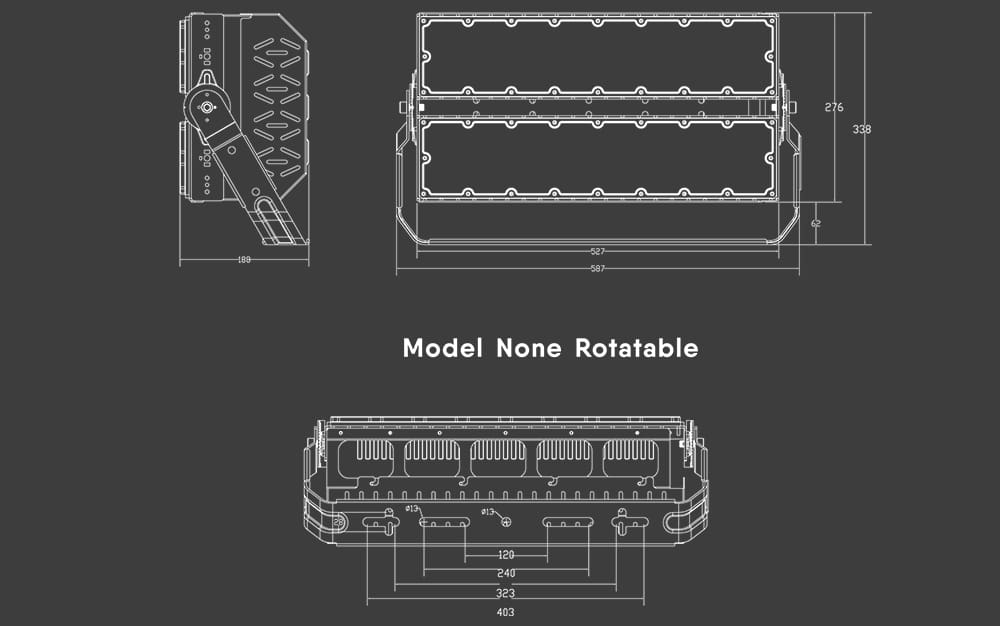

Size
529*362*132mm
Color
Feature
1. High luminaire efficiency up to 175lm/w;
2. Marine grade aluminum housing;
3. IP66 and IK10 protection rate;
4. 5 years warranty;
5. Folding aluminum fin design which are very light weight;

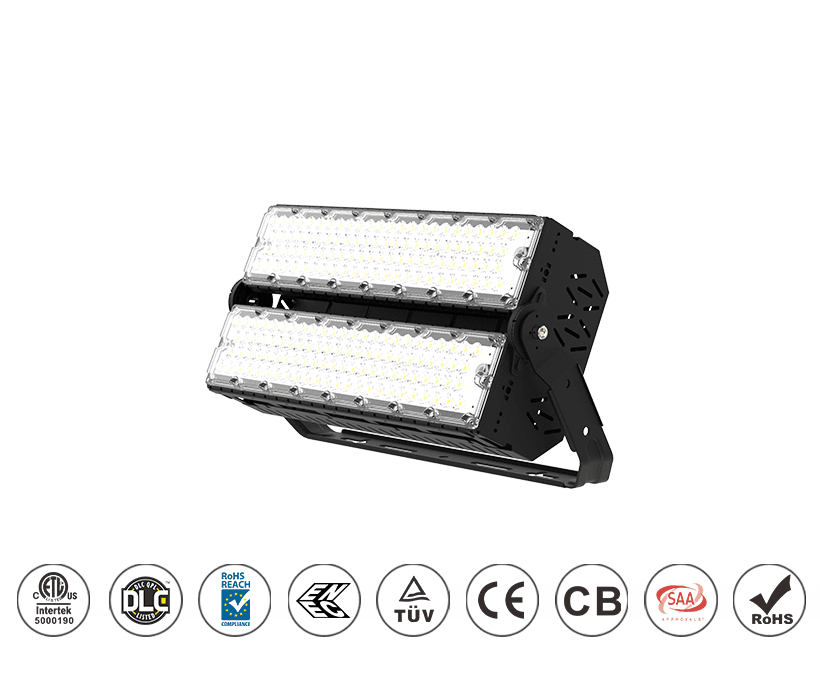

6. ETL DLC TUV CE CB SAA RoHS LM79 LM80 TM21 IK10 Salt Spray test approved;
Why Choose 400W 480W Outdoor LED High Mast Light?
1.High Efficiency
Uses high quality Lumileds 5050, LED High Mast Light Efficiency up to 175Lm/W. Save more energy consumption.

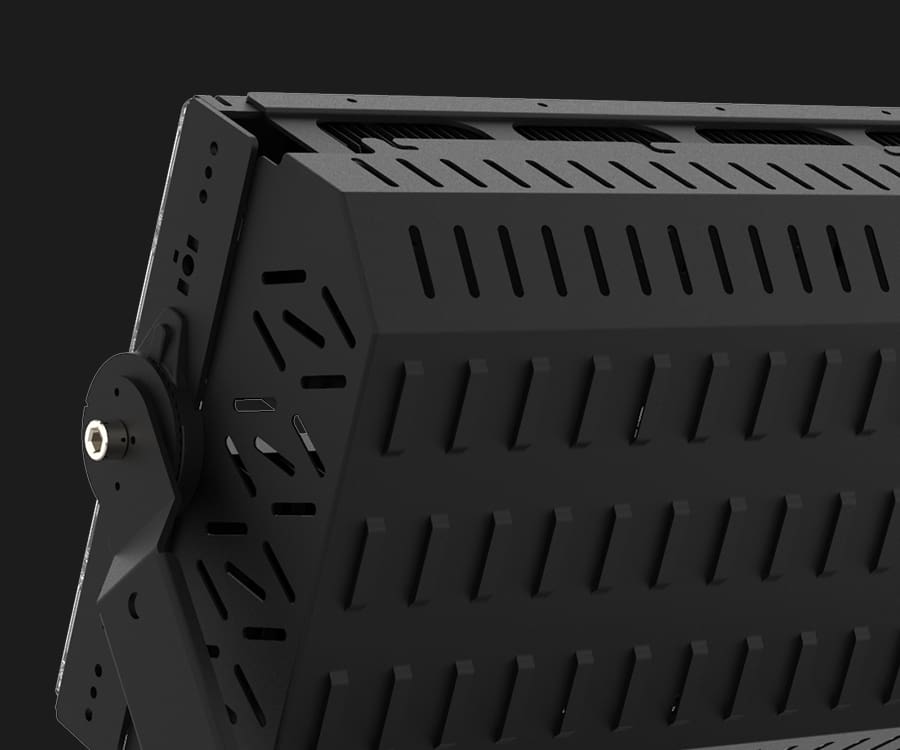

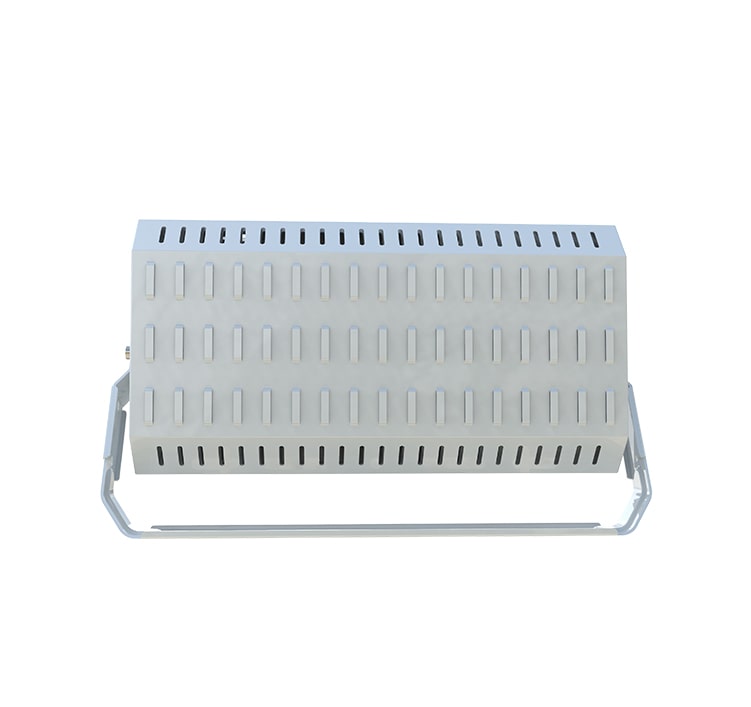

2.Heat dissipation
Folding aluminum fin design which are very light weight. Increase the heat dissipation surface area by air cooling to dissipate heat and expand the contact area with air! It speeds up the spread of heat! Thermal effect is good! Compared with traditional die-cast aluminum and profile aluminum, which is heavier and there are certain safety risks. On the contrary ,the aluminum fin heat sink are more secure.
3.Die-cast connector
Die-cast connector can realize the conversion of multiple modules to single module.

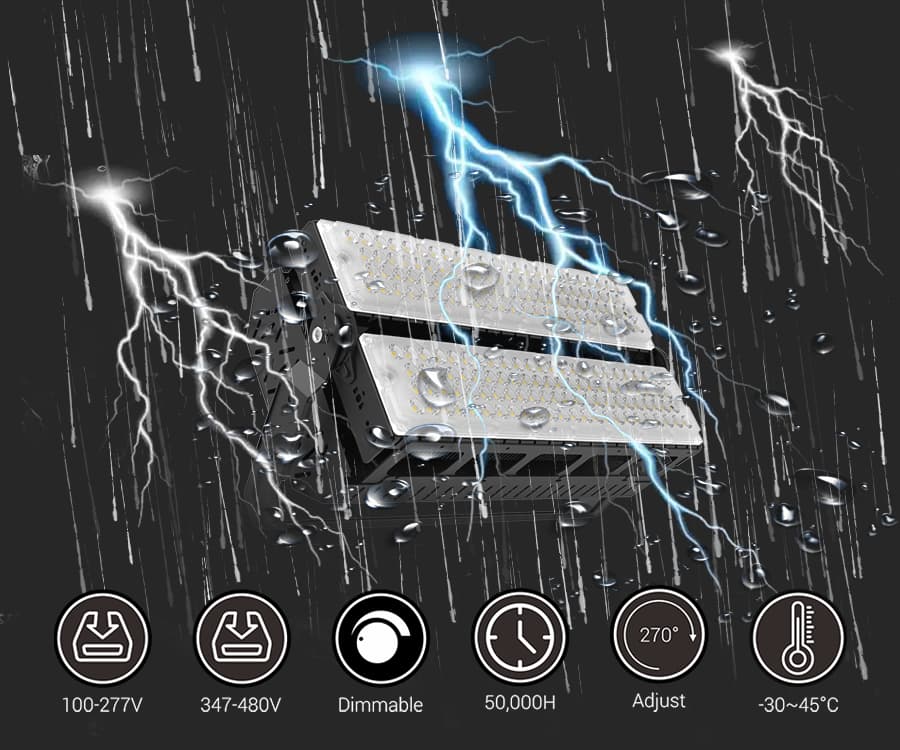

4.Protection class
1.IP66 & Lightning protection & IK10. Waterproof IP66 and lightning protection 10/20KV, IK10 protective design allows Slim PRO LED High MAST LIGHT to withstand harsh environments;
2.Each module of slim pro high mast lights series comes with M20 Waterproof Breathable Pressure Relief Vent Plug;
5. Higher quality lighting
The lampshining Slim pro series LED high mast light can achieve high-quality lighting, CRI> 80. If there is a higher requirement for lighting, we can customize CRI> 90.
Installation method
1.Wall installation 2.Ground installation 3.Pole installation
Appliaction
Click to contact us for more detailed information and the latest quotation!

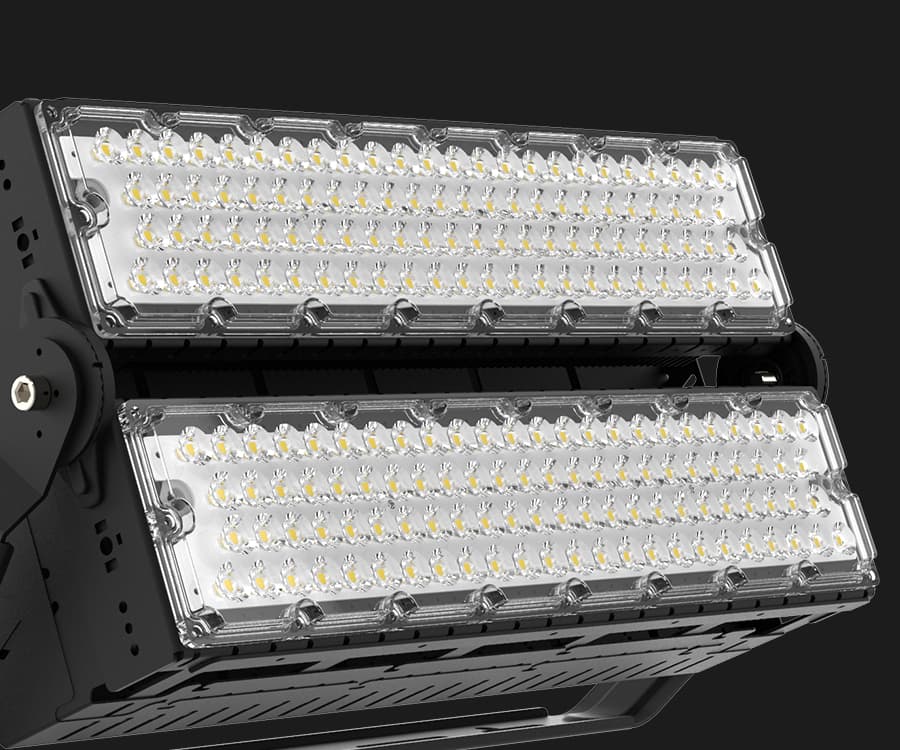

Beam angle
The optical lens is made of PC, and the light transmittance reaches 92%, reducing the loss of light, maximizing the lumen and uniformity of the lighting area and reducing the lighting pollution to nature and human life. Optional 10/20/40/60/90 degree / TypeIV / P50 beam angle.
Carton
400W/480W: 1pc/ 66*45*27cm GW:12.5Kg
