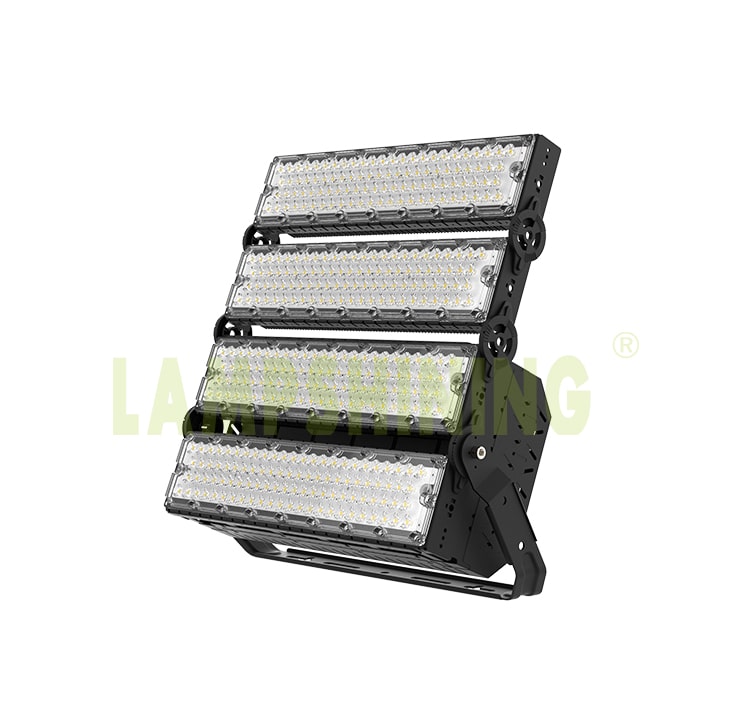

800W 960W Outdoor LED High Mast Lighting, Badminton Court, Baseball Field,Race Track Light

●   Watt: 800W/ 960W

●   Lumens: 128,000/ 148,800/ 140,000/ 168,000

●   Light Source: Lumileds 5050

●   Input Volt: 100-277VAC

●   IP Rating:v IP66 - IK10

●   Size: 650*597*188mm

●   Lamp Weight: 16kg

●   CCT (Color Temp): 3000, 4000, 5000, 6000

●   5 years warranty

●   Beam Angle: 10/20/40/60/90/140*100/135*60(P50)/70*30

Inquire Now Next Product

800W 960W Outdoor LED High Mast Lighting, Badminton Court, Baseball Field,Race Track Light

Name:

Tel:

E-mail:

Country:

CAPTCHA:

Submit the information to obtain product spec sheet,Please make sure that your email address is absolutely correct!

Specification Sheet
  • Data Sheets
  • Beam Angle
  • Options/Accessories
  • Package details

Specifications

Model No.LSHM‐B800W‐LV(XXK)LSHM-B960W-LV(XXK)
Watt
800W960W
Lumen128,000
140,000148,800168,000
Efficiency160Lm/W±3%175Lm/W±3%160Lm/W±3%175Lm/W±3%
Input Volt100-277VAC
Chip BrandLumileds/ Osram 5050
CCT3000K-6500K4000K, 5000K3000K-6500K4000K, 5000K
ModulesNone Rotatable
Weight16kg
Size650*597*188mm
Beam Angle10/ 20/ 40/ 60/ 90 degree/ 140*100/ 135*60 degree(P50)/ 70*30
DriverMeanwell 4*ELG-240-48A / 4*XLG-240-H-A
Wind rating51.0-56.0m/s
IP RatingIP66 & IK10
CRIRa70 (Ra80, Ra90 optional)
DimmableOptional dimmable and non-dimmable
CertificationENEC REACH ETL DLC TUV CE CB SAA RoHS LM79 LM80 TM21 Salt Spray test approved
Life TimeL70/B10 >50,000hours
Warranty5 Years / 7 years extended warranty available


800W 960W Outdoor LED High Pole Lighting, Badminton Court, Baseball Field, Race Track Light

Slim Pro 800W 960w LED High Mast Light, 175Lm/W.  Immediately improve lighting quality and reduce energy costs by up to 75%. Suitable Sport Lighting, Hockey Pitch,rugby field, Fencing Hall Lighting.


slim pro 800w 960w led high mast light

ENEC REACH ETL DLC TUV CE CB SAA RoHS LM79 LM80 TM21 Salt Spray test approved certification icon

Size

650*597*132mm

slim pro 800w 960w led high mast light size


Color

800w 960w slim pro led high mast light color, black and white


Feature

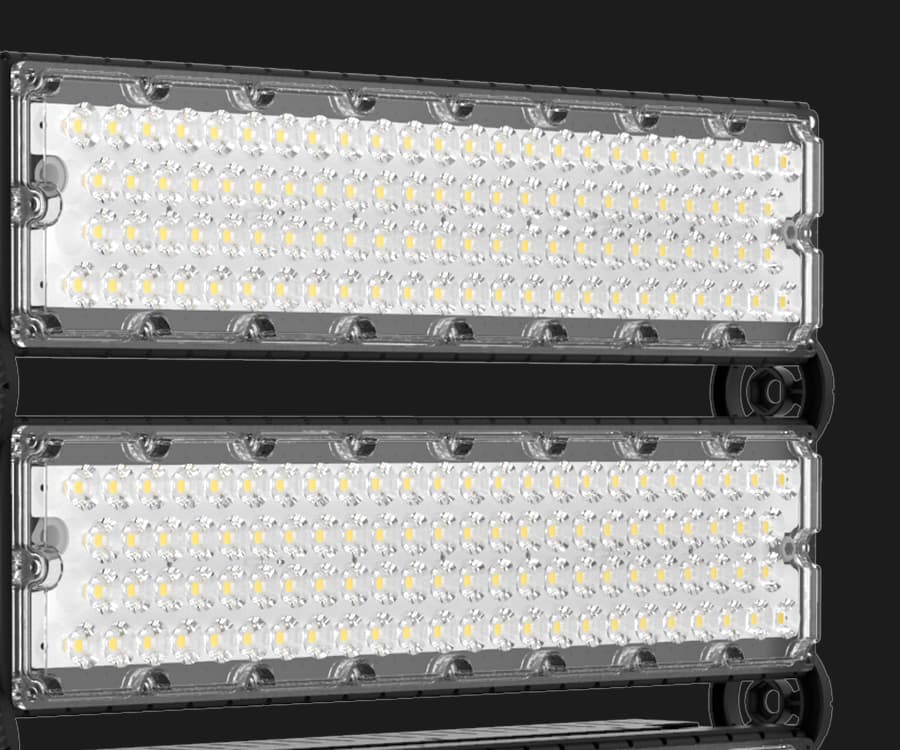

slim pro led high mast light module combination

1. High luminaire efficiency up to 175lm/w;

2. Marine grade aluminum housing;

3. IP66 and IK10 protection rate;

4. 5 years warranty;

5. Folding aluminum fin design which are very light weight;

6. ETL DLC TUV CE CB SAA RoHS LM79 LM80 TM21 IK10 Salt Spray test approved;




Why Choose 800W 960W Outdoor LED High Mast Light?

1.High Efficiency

Uses high quality Lumileds 5050, LED High Mast Light Efficiency up to 175Lm/W. Save more energy consumption.

high efficient high quality led source

higher efficiency

2.Heat dissipation

Folding aluminum fin design which are very light weight. Increase the heat dissipation surface area by air cooling to dissipate heat and expand the contact area with air! It speeds up the spread of heat! Thermal effect is good! Compared with traditional die-cast aluminum and profile aluminum, which is heavier and there are certain safety risks. On the contrary ,the aluminum fin heat sink are more secure.


floding aluminum fin design


3.Die-cast connector

Die-cast connector can realize the conversion of multiple modules to single module.

slim pro led stadium light can realize the conversion of multiple modules to single module


4.Protection class

1.IP66 & Lightning protection & IK10. Waterproof IP66 and lightning protection 10/20KV, IK10 protective design allows Slim PRO LED High MAST LIGHT to withstand harsh environments;

2.Each module of slim pro high mast lights series comes with M20 Waterproof Breathable Pressure Relief Vent Plug;


Waterproof IP66 an lightning protection,ik10

M20 Waterproof Breathable Pressure Relief Vent Plug


5.Module Rotatable

Slim pro series modules can freely rotate up to 270 degrees. It is easier to adjust to the best lighting angle.

800W 960W slim pro led high mast light module rotatable 270 degree


6.Anti Glare Cover(Optional)

Optional anti-glare cover can greatly reduce the negative impact of glare.

slim pro led high mast light with anti glare cover

900W 960W slim pro led high mast light with Anti glare Cover

800W 960W slim pro led high mast light with Anti glare Cover

anit glare 800W 960W Slim Pro LED High Mast Light

7. Higher quality lighting

The lampshining Slim pro series LED high mast light can achieve high-quality lighting, CRI> 80. If there is a higher requirement for lighting, we can customize CRI> 90.

high CRI/TLCI slim plus led high mast light


Photometrics

The optical lens is made of PC, and the light transmittance reaches 92%, reducing the loss of light, maximizing the lumen and uniformity of the lighting area and reducing the lighting pollution to nature and human life. Optional 10/20/40/60/90 degree / TypeIV / P50 beam angle.


slim pro led high mast light baem angleg


Certification Testing


Installation method

1.Wall installation 2.Ground installation 3.Pole installation

installation method


Application

slim pro led high mast light application


Click to contact us for more detailed information and the latest quotation!


contact us

Beam angle

The optical lens is made of PC, and the light transmittance reaches 92%, reducing the loss of light, maximizing the lumen and uniformity of the lighting area and reducing the lighting pollution to nature and human life. Optional 10/20/40/60/90 degree / TypeIV / P50 beam angle.


slim pro led high mast light baem angleg

Accessories

347-480VAC Sosen driver

1-10V Dimmable
10KV or 20KV SPD
Slip fitterSlip fitter
Round Installation plateRound Installation plate
Anti glared visorAnti glared visor
Laser pointerLaser pointer
Remote driver boxRemote driver box


Anti Glare

Optional anti-glare cover can greatly reduce the negative impact of glare.

900W 960W slim pro led high mast light with Anti glare Cover

800W 960W slim pro led high mast light with Anti glare Cover

Carton

800W/960W: 1pc/ 75*66*30cm  GW:20Kg
