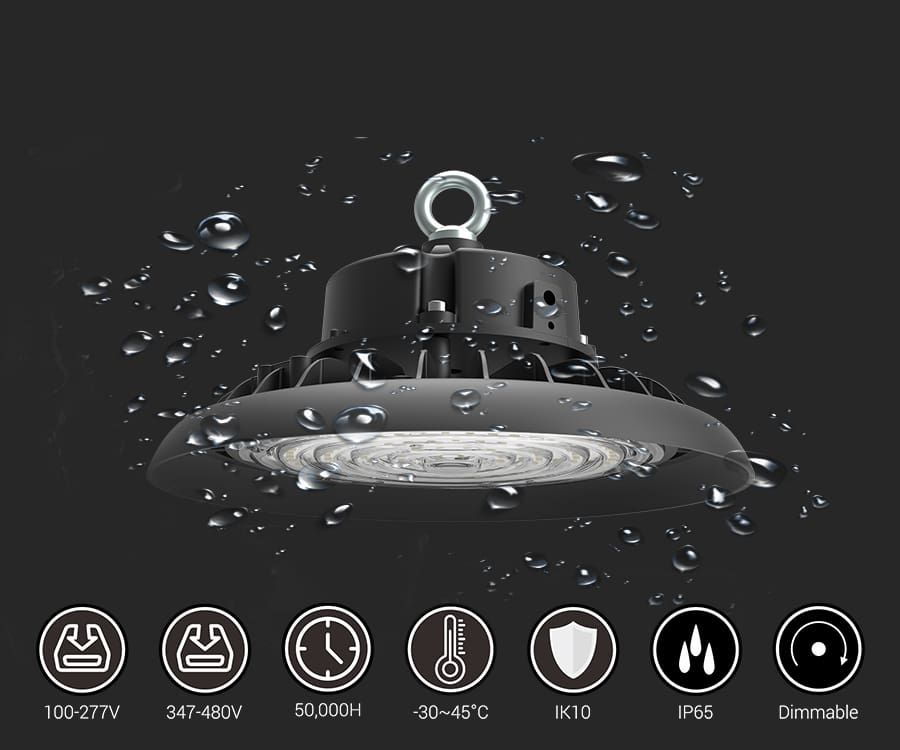

100W Slim UFO LED High Bay Light - High CRI Industrial Commercial Indoor Area Hanging Lighting Fixtures

●   Wattage: 100W

●   Lumens: 16,000

●   Light Source: Osram 2835

●   Input Volts: 100-277VAC

●   IP Rating: IP65 - IK10

●   CCT (Color Temp): 3000, 4000, 5000, 6000K

●   Mounting Height: 6-15meter

●   Size: 258*147mm

●   Beam Angle: 90/ 120 degree

●   5 years warranty

Inquire Now

100W Slim UFO LED High Bay Light - High CRI Industrial Commercial Indoor Area Hanging Lighting Fixtures

Name:

Tel:

E-mail:

Country:

CAPTCHA:

Submit the information to obtain product spec sheet,Please make sure that your email address is absolutely correct!

Specification Sheet
  • Data Sheets
  • Beam Angle
  • Options/Accessories
  • Package details

Specifications

Model

LSUFO‐100WXYLVS(XXK)

Watt1000W
Lumen16,000
Efficiency160Lm/W±3%
Chip BrandOsram 2835
Input Volt100-277Vac
Driver(Non-Dimmable)

Moso Driver G6‐120V260

Sosen Driver SS‐120CNL‐130
Driver(Dimmable)Moso Driver G6‐120M260Sosen Driver SS‐120CNL‐130B
Color Temp3000K-6000K
Size258*147mm
Beam Angle90/ 120 degree Milky Cover
CertificatesETL cETL DLC Premium TUV CB SAA IECEE LM79 LM80


100W Slim UFO LED High Bay Light - High CRI Industrial Commercial Indoor Area Hanging Lighting Fixtures

Slim series UFO LED High Bay Light has passed ETL cETL DLC Premium TUV CB SAA IECEE LM79 LM80 and other certifications. It is used in industrial and commercial indoor lighting. The luminaire has a high efficiency of 16000lm, 160Lm/W, which can meet the needs of indoor ceiling height of 10-20ft. In addition, the feature of instant-on is very good, and there is no need to wait for warm-up.


The slim series LED high bay lights can replace your existing traditional MH, HQI 200-250W, and provide better lighting effects, combined can save 75% of the monthly lighting electricity bill.


Slim series UFO high bay lights support 0-10V dimming, coupled with its unique heat dissipation characteristics, the life span can reach 50,000+ hours.


100W Slim UFO LED High Bay Light - High CRI Industrial Commercial Indoor Area Hanging Lighting Fixtures


Size

258*147mm

100W Slim UFO LED High Bay Light - High CRI Industrial Commercial Indoor Area Hanging Lighting Fixtures

Features

1. High luminaire efficiency up to 160m/w;

2. Mounting Height: 6-15meter;

3. IP65 and IK10 protection rate;

4.5 years warranty;

5. ETL cETL DLC Premium TUV CB SAA IECEE LM79 LM80;


Photometrics

90/120 degree;

100W Slim UFO LED High Bay Light - High CRI Industrial Commercial Indoor Area Hanging Lighting Fixtures

Certification Testing



Installation

Installation method


Application

Suitable for indoor sport field, Exhibition,Warehouses, Toll station, shop, workshop etc.


Intergrated Sensor 150W UFO LED High Bay Light for indoor sport field, Exhibition,Warehouses,Toll station, shop, workshop etc


If you want to know more details about the product, or need to provide lighting design for your venue, please feel free to contact us.


contact us


Beam Angle

90/120 degree;

90,120 degree beam angle


Accessories


(60 degree)Aluminum reflector
60 degree Aluminum reflector
Yoke Bracketyoke bracket ufo led high bay light
PC reflector without end capPC reflector without end cap
PC reflector with end capPC reflector with end capPC reflector with end cap

Tempered Glass(Clear and Frosted)

Tempered Glass(Clear and Frosted)
2 Hooks + 1 Cord (1M)2 Hooks + 1 Cord (1M)
Lens(90/120 degree)Lens


Package Details

100W :

1pc/28*28*19cm

GW:2.2kg

100W Slim UFO LED High Bay Light package details
