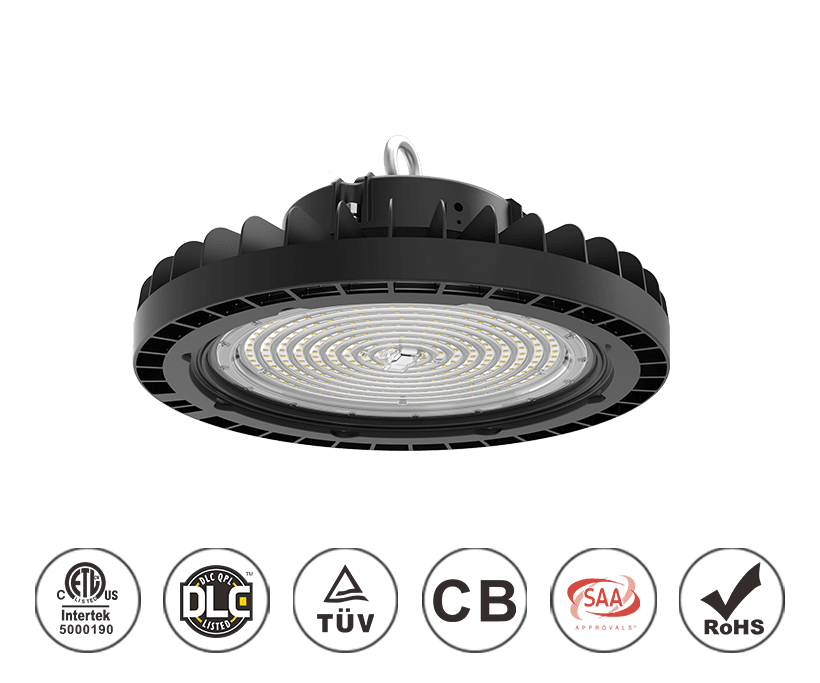

High Power 400W Slim UFO LED High Bay Light, 170Lm/W, 68,000lm Shop,Garage,Factory,Warehouse,Workshop,Area Lighting

●   Wattage: 400W

●   Lumens: 68,000

●   Light Source: Osram 2835

●   Input Volts: 100-227VAC

●   IP Rating: IP65 - IK10

●   CCT (Color Temp): 3000, 4000, 5000, 6000K

●   Mounting Height: 8-20meter

●   Size: 400*202mm

●   Beam Angle: 90/ 120 degree

●   5 years warranty

Inquire Now Next Product

High Power 400W Slim UFO LED High Bay Light, 170Lm/W, 68,000lm Shop,Garage,Factory,Warehouse,Workshop,Area Lighting

Name:

Tel:

E-mail:

Country:

CAPTCHA:

Submit the information to obtain product spec sheet,Please make sure that your email address is absolutely correct!

Specification Sheet
Model

LSUFO‐400WXYLVS(XXK)

Watt400W
Lumen60,000
Efficiency150Lm/W±3%
Chip BrandOsram 2835
Input Volt100-227Vac
DriverSosen Driver SS‐480CA-228BH
Color Temp3000K-6000K
Size400*202mm
Beam Angle90/ 120 degree Milky Cover
CertificatesETL cETL DLC Premium TUV CB SAA IECEE LM79 LM80


Model

LSUFO‐400WXYLVS(XXK)

Watt400W
Lumen68,000
Efficiency170Lm/W±3%
Chip BrandOsram 2835
Input Volt100-227Vac
DriverSosen Driver SS‐480CA‐228BH
Color Temp3000K-6000K
Size400*202mm
Beam Angle90/ 120 degree Milky Cover
CertificatesETL cETL DLC Premium TUV CB SAA IECEE LM79 LM80


Slim UFO LED High Bay Light 400W

Slim UFO LED High Bay Light 400W

Slim UFO LED High Bay Light is a perfect indoor lighting solution for warehouse, workshop and industrial lighting.

400W

150-170Lm/W

3000K-6000K

ETL DLC TUV CB SAA IECEE

LM79 LM80

High Quality Brand

High Quality Brand

Using high-quality lamp beads to reduce light waste, the utilization rate of light is higher, CRI>70, the light efficiency can reach 150-170Lm/W!

Osram 2835

Die-casting Aluminum Radiator

Die-casting Aluminum Radiator

ADC12 aluminum alloy integrated die-casting heat dissipation design, larger heat dissipation area and better heat dissipation effect

Die-casting Aluminum Radiator

IP65 Waterproof & IK10

IP65 Waterproof & IK10

Use high-quality aluminium case, Housing is made of Die Casting Aluminum ADC12 elaborate processing, good heat radiation effect, waterproof grade IP65 and IK10 rating of anticollision.

IP65

IK10

Optional Features

Optional Features

Slim UFO LED High Bay Light can be equipped with different sensors for smart lighting.

Dimmable 1-10v

Dimmable 0-10v

DALI Dimmable

Optional Accessories

Optional Accessories

Slim UFO LED High Bay Light can be equipped with PC Reflector or Aluminum Reflector.

PC Reflector

Aluminum Reflector

Other Watt

Slim UFO LED High Bay Light is available in wattage from 100W to 400W, which is the best choice to replace the existing MH/HID street lights of 200W-1000W.

Beam Angle

Beam Angle

The beam angle can be selected from 60/ 90 120 degree. Professional light distribution angle can better achieve uniform and efficient lighting effect.

60 degree

90 degree

120 degree

Application

Used in factories, warehouses, workshops, stadiums, parking lots, logistics centers, large warehouses, super City lighting, underground garage, exhibition center, gymnasium lighting, high-speed toll station and other regional lighting.

Accessories


(60 degree)Aluminum reflector
60 degree Aluminum reflector
Yoke Bracketyoke bracket ufo led high bay light
PC reflector without end capPC reflector without end cap
PC reflector with end capPC reflector with end capPC reflector with end cap

Tempered Glass(Clear and Frosted)

Tempered Glass(Clear and Frosted)
2 Hooks + 1 Cord (1M)2 Hooks + 1 Cord (1M)
Lens(90/120 degree)Lens


WattSize
400W1pc/ Dia400*H202

400W SLIM UFO LED High Bay Light size
