● Watt: 800W
● Light Source: SMD 5050
● Input Volt: 100-277VAC(Optional with 347-480Vac)
● IP &IK Rating: IP66 & IK10
● CCT (Color Temp): 3000K~6000K
● Beam Angle: (Symmetrical) 10° / 15°/ 20° / 40°
● Beam Angle: (Asymmetrical) P50
● Lifespan: L90B10>100,000hrs
● 5 years warranty
Model | LSHM-800W(XXK)Ultra | |
| Watt | 800W | |
| Chip Brand | SMD 5050 | |
| Lumen | 132,000Lm | 140,000Lm |
| Efficiency | 165lm/w±5% | 175lm/w±5% |
| Driver | Inventronics / Sosen driver | |

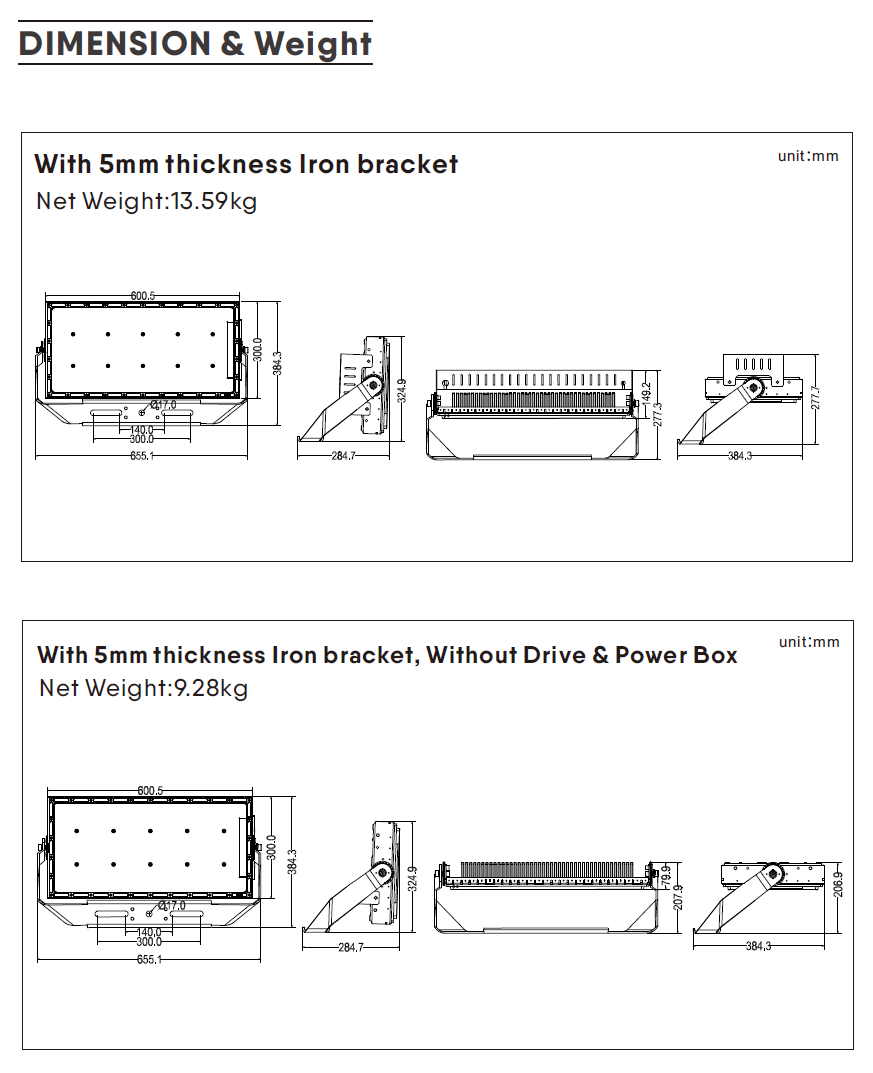

| Gross Weight | 13.59kg | |
| Input Volt | 100-277VAC, 50/60Hz | |
| Power Factor | >0.95 | |
| CRI | Ra>70 ,Optional with Ra>80 or Ra>90 | |
| Meterial | Folding aluminum fin design which are very light weight.5mm thickness turnnion bracket | |
| Bracket Materials | Iron / Optional with Aluminum die casting | |
| Finish | Powder Coating | |
| SPD | 10KV / 20KV Optional | |
| Fixtures Color | Black | |
| CCT | 3000K~6000K | |
| Lifespan | L90B10>100,000hrs | |
| IP Rating | IP66 | |
| IK Rating | IK10 | |
| Control | 0-10V, 1-10V dim control, Motion sensor, DALI, Zigbee,Dali2.0 & DMX | |
| Beam Angle(Symmetrical) | 10°/ 15° / 20° / 40° / 60° | |
| Beam Angle(Asymmetrical) | P50 | |
| Certifications | ETL / ENEC / ENEC+ / EPD / TUV / CE / CB / SAA / RoHS / LM79 / LM80 / IK10 Salt Spray test | |
| Warranty | 5 Years | |
