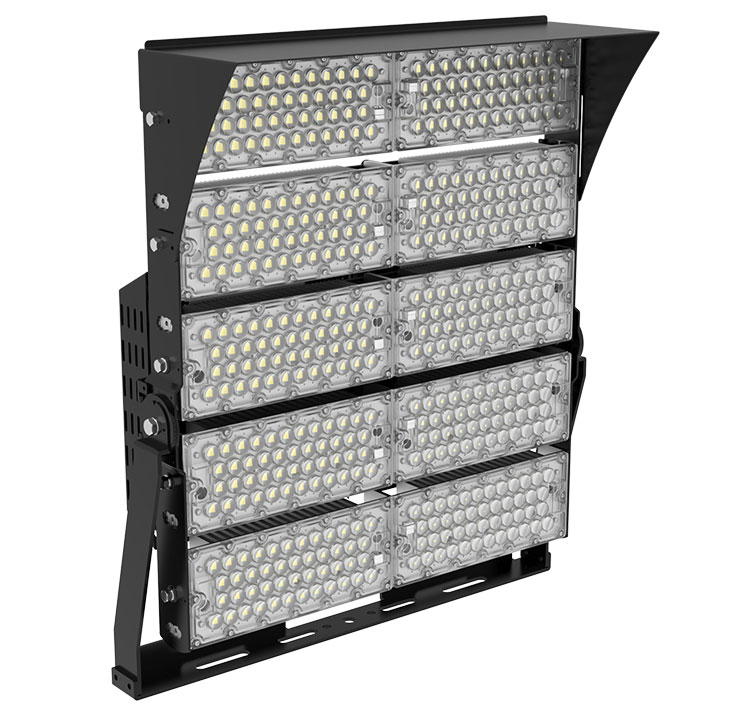

1000W TUV CE Area, Large Square, Airport LED High Mast Light, 160000 Lumens

●   Watt: 1000W

●   Lumens: 160,000

●   Light Source: Lumileds 5050

●   Input Volt: 100-277VAC

●   IP Rating: IP65 - IK08

●   Size: 729*650*132mm

●   Lamp Weight: 21.5kg

●   CCT (Color Temp): 3000,4000,5000,5700k

●   5 years warranty

●   Beam Angle: 10/ 20/ 40/ 60/ 90/ 140*100/ 135*60(P50)/ 30*70

Inquire Now Next Product

1000W TUV CE Area, Large Square, Airport LED High Mast Light, 160000 Lumens

Name:

Tel:

E-mail:

Country:

CAPTCHA:

Submit the information to obtain product spec sheet,Please make sure that your email address is absolutely correct!

Specification Sheet
  • Data Sheets
  • Beam Angle
  • Options/Accessories
  • Package details

Specifications

ModelLSHM-B1000W-LV(XXK)
Watt1000W
Lumen160,000
Efficiency160Lm/W±3%
DriverMeanwell Driver 5*ELG-240-48A
Input Volt100-277VAC
Chip BrandLumileds 5050
Color Temp3000K / 4000K / 5000K / 5700K
Weight

21.5kg

Size729*650*132mm
Beam Angle10 /20/ 40 / 60 / 90/ 140*100 degree
ModulesModule rotatable up & down 15 degree
DimmingDimmable/ Non-dimmable
Wind rating51.0-56.0m/s
Lifespan>50,000 Hours
IP RatingIP65 & IK08
CertficatesENEC, REACH, TUV, CE, SAA, CB, LM79, LM80, LSTMT, LCP, Salt Spray test


1000w LED High Mast Light

1000W area lighting led high mast lamp introduce


This Series LED High Mast Light features adoption of Lumileds 5050 Light source and Power Supply with high quality, energy conservation, high luminance and long service life.And there are multiple certifications of the Europe authoritative TUV, CE, SAA, CB, LM79, LM80, LSTMT, LCP, Salt Spray test. and Salt spray test.It adopts Marine grade aluminum shell for aesthetics and good heat dissipation, with a long service life of 50000h.


The products emits soft and well-distributed light along with brighter effect and great color rendering. With illumination equivalent to 2200 watt metal halide fixtures you'll enjoy an instant-on,flicker-free cold start,and industry-leading 160Lm/W.And it adopts certification power supply with high efficiency along with low heat and high accuracy of constant current.


It also features unique structure, high efficiency and green technology.Widely used in stadiums, golf courses, tennis courts, docks, parking lots, airports and other lighting venues.

ENEC, REACH, TUV, CE, SAA, CB, LM79, LM80, LSTMT, LCP, Salt Spray test certification icon

Size

1000W 1200W Area LED High Mast Light size.jpg

Features

  • IP65 rated LED floodlight

  • Rotatable modules offering maximum customisation

  • Heavy duty stirrup mounting bracket

  • Multiple optics available

  • Can be installed as a floodlight or high bay

  • With illumination equivalent to 2200 watt metal halide fixtures you'll enjoy an instant-on, flicker-free cold start, and industry-leading 160Lm/W.

  • Protractor scale for easier aiming

  • 50,000-hour operating life means years of maintenancefree operation.

  • Unique design extracts heat from the light source, thereby extending component life and ultimately prolonging the useful life of the fixture.

  • Lightweight design provides easy retrofitting of existing HID installations,along with quick mounting on all new installations.


Characteristic

1.Fin cooling design 2.Optional with multiple optical angles 3.>50000 hours of life 4.Module angle adjustable 5.Lightweight design 6.High efficiency up to 160lm/W


1000W TUV CE Area, Large Square, Airport LED High Mast Light, 160000 Lumens


Less weight

1.Weight of folding fin heat sink is 50% ligher than die costing, extrution etc.

2.1070 aluminum, thickness 0.5mm. structure on heat dissipation, the heat dissipation area is larger, and the heat dissipation effect is better, it's with Lighter weight, which is 1/3 of weight of die-casting, proximate matter and cold forging.


1000w sports led high mast flood lights less weight design


Our led high mast uses aluminum fins for heat dissipation, which has good heat dissipation performance and light weight, and it is 50% lighter than the weight of the die-cast high mast. There is a big advantage in installing our led high pole lights for aerial work. Less weight design provides easy refurbishment of existing HID installations as well as quick installation


Withstand wind

Install our 1000w large area led high mast light Can withstand hurricanes of 51.0-56.0m/s.


1000w large area led high mast light Can withstand hurricanes


Adjustable angle

1.Rotatable module

2.Replaceable optical lens

3.Protractor scale for easier aiming

4.Lengthened heavy duty mounting bracket allowing for 360 degree rotation

5.Salt spray resistant, corrosive resistant,processed with dedicated treatments on the heat sink and other 6.components,these fixtures can withstand corrosive and salt intensive environments.


1000W area lighting led high mast lamp adjustable angle description


Waterproof IP65

1.Anti-dust design,able to be with flushable cleaning

2.IP65 (TUV report available)

3.can't be immersed into the water


1000W area lighting waterproof ip65 led high mast lamp

1000w rotatable module led high mast stadium light application

High Power LED high Mast Light.jpg


Photometrics

LED high mast light photometrics


Certification Testing


Installation


Applications

Applied in large sports field lighting, golf and tennis court,racetrack,

badminton, roads, football, basketball, tower lights, etc. Can also be applied in large square, airport, commercial building, construction engineering, farm, amusement parks, parking lots, harbor, industrial buildings, and other special lighting environment.

1000w 1200w LED wharf light application.jpg

Photometrics

LED high mast light photometrics

slim led high mast light project


1000w led stadium high mast lights1000w Large Square airport LED high mast light

Accessories

347-480VAC Sosen driver
1-10V Dimmable
10KV or 20KV SPD
Hot-dip galvanizing bracket

Slip fitter
Slip fitter
Round installation plateRound installation plate
Anti-glared visorAnti-glared visor
Laser pointerLaser pointer


Accessories

1.Anti-glare accessories can avoid the effects of glare when the brightness of the light reaches a relatively large value.

2.Round installation plate enables the luminaire to rotate horizontally.


1000w led high mast light accessories

1000w led high mast light accessories installation

Packing Method Marking

83*76*23cm 1pc/ctn

GW: 24.5Kg


finished lamp packaging diagram1000w 1200w LED high mast light packing.jpg
