Model               : LSHM-120W-LV(XXK)

Wattage            : 120W

IP Rating           : IP65

Input Voltage   : 100-277VAC

Light Source     : Lumileds 5050

Luminous Flux  : 18,600 Lumen (155Lm/W)

Lifespan              : >50,000 hours

CCT                       : 3000K 4000K 5000K 5700K

Equivalent          : 300W HPS / MH

Driver                   : Meanwell ELG-150-48A

Certification       : TUV, CE, SAA, CB, LM79, LM80, LSTMT, LCP,

                                 Salt Spray test

Inquire Now Next Product

120w Outdoor LED Sports High Mast Lighting Fixtures with TUV SAA certifications

Name:

Tel:

E-mail:

Country:

CAPTCHA:

Submit the information to obtain product spec sheet,Please make sure that your email address is absolutely correct!

Specification Sheet
  • Data Sheets
  • Features/Benefits
  • Options/Accessories
  • Package details

Main Feature

  • IP65 rated LED floodlight

  • Rotatable modules offering maximum customisation

  • Heavy duty stirrup mounting bracket

  • Multiple optics available

  • Can be installed as a floodlight or high bay

  • With illumination equivalent to 250 watt metal halide fixtures you'll enjoy an instant-on, flicker-free cold start, and industry-leading 155Lm/W.

  • Protractor scale for easier aiming

  • 50,000-hour operating life means years of maintenancefree operation.

  • Unique design extracts heat from the light source, thereby extending component life and ultimately prolonging the useful life of the fixture.

  • Lightweight design provides easy retrofitting of existing HID installations,along with quick mounting on all new installations.

Specifications

ModelLSHM-100W-LV(XXK)
Wattage120 Watt
Lumen18,600 Lumens(155LM/W)
Input Voltage100-277VAC
Power Frequency50/60 Hz
Light SourceLumileds 5050
Color Temp3000K / 4000K / 5000K / 5700K
Driver

Meanwell ELG-150-48A

Fixture MaterialMarine grade aluminum
DimmingDimmableNon-dimmable
Wind rating51.0-56.0m/s
Module rotatableModule rotatable up & down 15 degree
Lifespan>50,000 Hours
Beam Angle10 /20/ 40 / 60 / 90/ 140*100 degree
IP RatingIP65 (TUV report available)
Dimensions11.7 x 14.25 x 5.2 in (297 x 362 x 132mm)
CertficatesTUV, CE, SAA, CB, LM79, LM80, LSTMT, LCP, Salt Spray test


120w Outdoor LED Sports High Mast Lighting Fixtures with TUV SAA certifications


This Series LED High Mast Light features adoption of Lumileds 5050 Light source and Power Supply with high quality, energy conservation, high luminance and long service life.And there are multiple certifications of the Europe authoritative TUV, CE, SAA, CB, LM79, LM80, LSTMT, LCP, Salt Spray test. and Salt spray test.It adopts Marine grade aluminum shell for aesthetics and good heat dissipation, with a long service life of 50000h. The products emits soft and well-distributed light along with brighter effect and great color rendering. With illumination equivalent to 250 watt metal halide fixtures you'll enjoy an instant-on,flicker-free cold start,and industry-leading 155Lm/W.And it adopts certification power supply with high efficiency along with low heat and high accuracy of constant current. It also features unique structure, high efficiency and green technology.Widely used in stadiums, golf courses, tennis courts, docks, parking lots, airports and other lighting venues.

Europe LED high mast light Authentication icon.jpg


Dimensions

120w led high mast light size

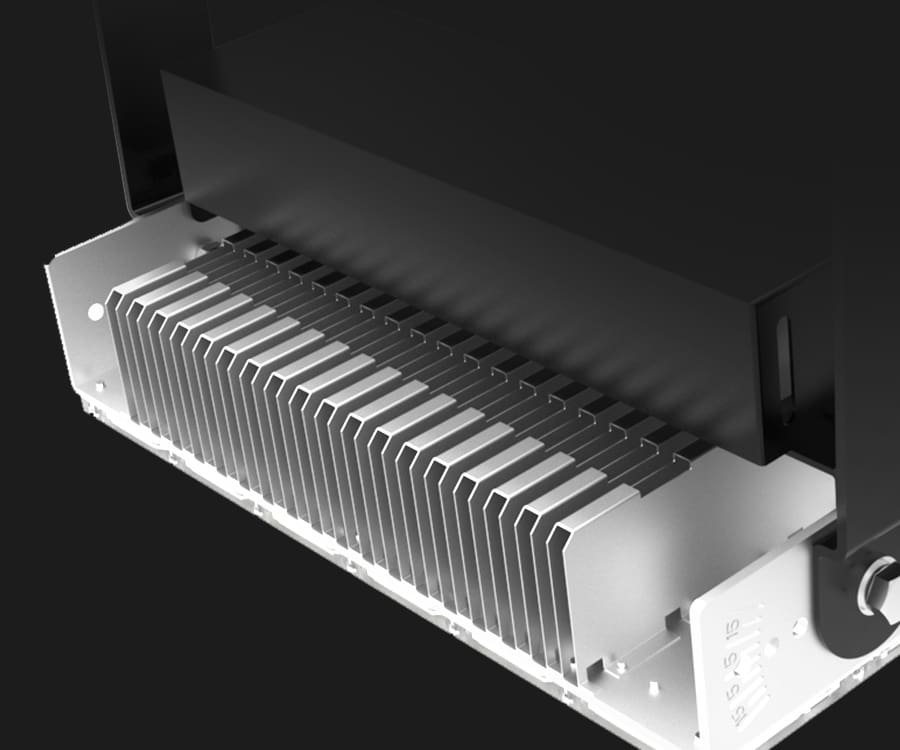

Less weight

1.Weight of folding fin heat sink is 50% ligher than die costing, extrution etc.

2.1070 aluminum, thickness 0.5mm. structure on heat dissipation, the heat dissipation area is larger, and the heat dissipation effect is better, it's with Lighter weight, which is 1/3 of weight of die-casting, proximate matter and cold forging.


120w led flood lights uses 1070 aluminum less weight heat sink material


Our led high mast uses aluminum fins for heat dissipation, which has good heat dissipation performance and light weight, and it is 50% lighter than the weight of the die-cast high mast. There is a big advantage in installing our led high pole lights for aerial work. Less weight design provides easy refurbishment of existing HID installations as well as quick installation.


Withstand wind

Install our Outdoor LED Sports High Mast Lighting Fixtures Can withstand hurricanes of 51.0-56.0m/s.


120w Outdoor LED Sports High Mast Lighting Fixtures can withstand hurricanes


Adjustable angle

Rotatable modules offering maximum customisation


120W led sport field high mast lighting fxtures adjustable angle


Waterproof IP65

1.Anti-dust design,able to be with flushable cleaning

2.IP65 (TUV report available)

3.can't be immersed into the water

120w Outdoor LED Sports High Mast Lighting Fixtures with waterproof ip65


Photometrics

LED high mast light photometrics

LED stadium flood lighting


Applications

Applied in large sports field lighting, golf and tennis court,racetrack,

badminton, roads, football, basketball, tower lights, etc. Can also be applied in large square, airport, commercial building, construction engineering, farm, amusement parks, parking lots, harbor, industrial buildings, and other special lighting environment.

100w 120w LED stadium light application.jpg

Main Feature

  • IP65 rated LED floodlight

  • Rotatable modules offering maximum customisation

  • Heavy duty stirrup mounting bracket

  • Multiple optics available

  • Can be installed as a floodlight or high bay

  • With illumination equivalent to 250 watt metal halide fixtures you'll enjoy an instant-on, flicker-free cold start, and industry-leading 155Lm/W.

  • Protractor scale for easier aiming

  • 50,000-hour operating life means years of maintenancefree operation.

  • Unique design extracts heat from the light source, thereby extending component life and ultimately prolonging the useful life of the fixture.

  • Lightweight design provides easy retrofitting of existing HID installations,along with quick mounting on all new installations.120w LED high mast light

Accessories

LED high mast light Round installation plate.jpgLED high mast light Slip fitter.jpg
Round installation plateSlip fitter

Packing Method Marking

1. Product packaging materials:

Carton: 36.5x17.1x26.8cm

Pearl cotton: 35x15.6x10cm

Flat card: 35x15.6cm


finished lamp packaging diagram

100w 120w LED high mast light finished lamp packaging diagram.png
