● Watt: 800W
● Lumens: 128,000
● Light Source: Lumileds 5050
● Input Volt: 100-277VAC
● IP Rating: IP65 - IK08
● Size: 650*597*132mm
● Lamp Weight: 18kg
● CCT (Color Temp): 3000,4000,5000,5700k
● 5 years warranty
● Beam Angle: 10/ 20/ 40/ 60/ 90/ 140*100/ 135*60(P50)/ 30*70
Specifications
Model | LSHM-B800W-LV(XXK) | |
Watt | 800W | |
Lumen | 128,000 | |
Efficiency | 160Lm/W±3% | |
Driver | Meanwell Driver 4*ELG-240-48A | |
Input Volt | 100-277VAC | |
Chip Brand | Lumileds 5050 | |
Color Temp | 3000K / 4000K / 5000K / 5700K | |
Weight | 18kg | |
Size | 650*597*132mm | |
Beam Angle | 10 /20/ 40 / 60 / 90/ 140*100 degree | |
Modules | Module rotatable up & down 15 degree | |
Dimming | Dimmable/ Non-dimmable | |
Wind rating | 51.0-56.0m/s | |
Lifespan | >50,000 Hours | |
IP Rating | IP65 & IK08 | |
Certficates | ENEC, REACH, TUV, CE, SAA, CB, LM79, LM80, LSTMT, LCP, Salt Spray test |
800W LED High Mast Light
This
Series LED High Mast Light features adoption of Lumileds 5050 Light
source and Power Supply with high quality, energy conservation, high
luminance and long service life.And there are multiple certifications of
the Europe authoritative TUV, CE, SAA, CB, LM79, LM80, LSTMT, LCP, Salt
Spray test. and Salt spray test.It adopts Marine grade aluminum shell
for aesthetics and good heat dissipation, with a long service life of
50000h.
The products emits soft and well-distributed light along with
brighter effect and great color rendering. With illumination equivalent
to 1750 watt metal halide fixtures you'll enjoy an
instant-on,flicker-free cold start,and industry-leading 160Lm/W.And it
adopts certification power supply with high efficiency along with low
heat and high accuracy of constant current.
It also features unique structure, high efficiency and green technology.Widely used in stadiums, golf courses, tennis courts, docks, parking lots, airports and other lighting venues.
Size
Features
IP65 rated LED floodlight
Rotatable modules offering maximum customisation
Heavy duty stirrup mounting bracket
Multiple optics available
Can be installed as a floodlight or high bay
With illumination equivalent to 1750 watt metal halide fixtures you'll enjoy an "instant-on, flicker-free cold start, and industry-leading 160Lm/W.
Protractor scale for easier aiming
50,000-hour operating life means years of maintenancefree operation.
Unique design extracts heat from the light source, thereby extending component life and ultimately prolonging the useful life of the fixture.
Lightweight design provides easy retrofitting of existing HID installations,along with quick mounting on all new installations.
Characteristic
1.Fin cooling design 2.Optional with multiple optical angles 3.>50000 hours of life 4.Module angle adjustable 5.Lightweight design 6.High efficiency up to 160lm/W

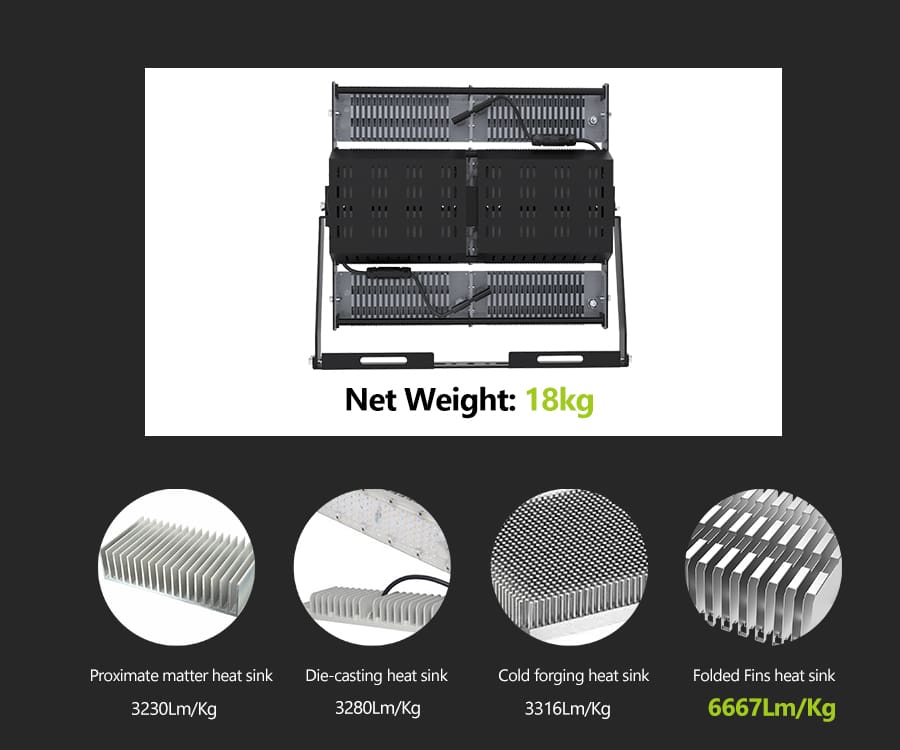

Less weight
1.Weight of folding fin heat sink is 50% ligher than die costing, extrution etc.
2.1070 aluminum, thickness 0.5mm. structure on heat dissipation, the heat dissipation area is larger, and the heat dissipation effect is better, it's with Lighter weight, which is 1/3 of weight of die-casting, proximate matter and cold forging.
Our led high mast uses aluminum fins for heat dissipation, which has good heat dissipation performance and light weight, and it is 50% lighter than the weight of the die-cast high mast. There is a big advantage in installing our led high pole lights for aerial work. Less weight design provides easy refurbishment of existing HID installations as well as quick installation
Withstand wind
Install our 800w led high mast light Can withstand hurricanes of 51.0-56.0m/s.
Adjustable angle
1.Rotatable module
2.Replaceable optical lens
3.Protractor scale for easier aiming
4.Lengthened heavy duty mounting bracket allowing for 360 degree rotation
5.Salt spray resistant, corrosive resistant,processed with dedicated treatments on the heat sink and other 6.components,these fixtures can withstand corrosive and salt intensive environments.
Waterproof IP65
1.Anti-dust design,able to be with flushable cleaning
2.IP65 (TUV report available)
3.can't be immersed into the water
Photometrics
Certification Testing
Installation
Applications
Applied in large sports field lighting, golf and tennis court,racetrack,
badminton, roads, football, basketball, tower lights, etc. Can also be applied in large square, airport, commercial building, construction engineering, farm, amusement parks, parking lots, harbor, industrial buildings, and other special lighting environment.
Photometrics
Accessories
347-480VAC Sosen driver | |
1-10V Dimmable | |
10KV or 20KV SPD | |
Hot-dip galvanizing bracket | |
Slip fitter | ![]() |
Round installation plate | ![]() |
Anti-glared visor | ![]() |
Laser pointer | ![]() |
Accessories
1.Anti-glare accessories can avoid the effects of glare when the brightness of the light reaches a relatively large value.
2.Round installation plate enables the luminaire to rotate horizontally.
Packing Method Marking
75*69*23cm 1pc/ctn
GW: 20Kg
finished lamp packaging diagram
