1440W 160LM/W LED Airport High Mast Lighting, Wharfs Flood Light fixtures

Model               : LSHM-B1440W-LV(XXK)

Wattage            : 1440W

IP Rating           : IP65

Input Voltage   : 100-277VAC

Light Source     : Lumileds 5050

Luminous Flux  : 223,200 Lumen (160Lm/W)

Lifespan              : >50,000 hours

CCT                       : 3000K 4000K 5000K 5700K

Equivalent          : 3000W HPS / MH

Driver                   : Meanwell ELG-240-48A X6

Certification       : TUV, CE, SAA, CB, LM79, LM80, LSTMT, LCP,

                                 Salt Spray test

  • Data Sheets
  • Features/Benefits
  • Options/Accessories
  • Lighing Layout

Main Feature

  • IP65 rated LED floodlight

  • Rotatable modules offering maximum customisation

  • Heavy duty stirrup mounting bracket

  • Multiple optics available

  • Can be installed as a floodlight or high bay

  • With illumination equivalent to 3000 watt metal halide fixtures you'll enjoy an "instant-on, flicker-free"cold start, and industry-leading 160Lm/W.

  • Protractor scale for easier aiming

  • 50,000-hour operating life means years of maintenancefree operation.

  • Unique design extracts heat from the light source, thereby extending component life and ultimately prolonging the useful life of the fixture.

  • Lightweight design provides easy retrofitting of existing HID installations,along with quick mounting on all new installations.

Specifications

ModelLSHM-B1440W-LV(XXK)
Efficency                160 Lm/WWattage1440 WattFixture MaterialMarine grade aluminum
Lumen223,200 LumensInput Voltage100-277VACIP RatingIP65 (TUV report available)
Color Temp3000K / 4000K / 5000K / 5700KPower Frequency50/60 HzModule rotatableModule rotatable up & down 15 degree
Light SourceLumileds 5050DriverELG-240-48A X6Lifespan>50,000 Hours
Beam Angle20 / 40 / 60 / 90/ 140*100   / Milky PC 120 degreeDimmingDimmable / Non-dimmableDimensions25.5 x 33.85 x 5.2 in (649x 860 x 132mm)
Certficates TUV, CE, SAA, CB, LM79, LM80, LSTMT, LCP, Salt Spray test


1440W wharfs airport led high mast light introduce


  This Series LED High Mast Light features adoption of Lumileds 5050 Light source and Power Supply with high quality, energy conservation, high luminance and long service life.And there are multiple certifications of the Europe authoritative TUV, CE, SAA, CB, LM79, LM80, LSTMT, LCP, Salt Spray test. and Salt spray test.It adopts Marine grade aluminum shell for aesthetics and good heat dissipation, with a long service life of 50000h. The products emits soft and well-distributed light along with brighter effect and great color rendering. With illumination equivalent to 3000 watt metal halide fixtures you'll enjoy an "instant-on,flicker-free" cold start,and industry-leading 160Lm/W.And it adopts certification power supply with high efficiency along with low heat and high accuracy of constant current. It also features unique structure, high efficiency and green technology.Widely used in stadiums, golf courses, tennis courts, docks, parking lots, airports and other lighting venues.

Europe LED high mast light Authentication icon.jpg


Dimensions

1440W LED high mast light size.jpg

characteristic

1.Fin cooling design 2.Optional with multiple optical angles 3.>50000 hours of life 4.Module angle adjustable 5.Lightweight design 6.High efficiency up to 160lm/W


1440W 160LM/W LED High Mast Lighting | Large Area Flood lights


Adjustable

1.Rotatable module

2.Replaceable optical lens

3.Protractor scale for easier aiming

4.Lengthened heavy duty mounting bracket allowing for 360 degree rotation

5.Salt spray resistant, corrosive resistant,processed with dedicated treatments on the heat sink and other 6.components,these fixtures can withstand corrosive and salt intensive environments.


1440w module rotatable large area flood high mast lights

Anti-glare accessories (optional)

Anti-glare accessories can avoid the effects of glare when the brightness of the light reaches a relatively large value

anti-glare accessories for 1440w led high mast pole lights1440w led high mast pole lights with anti-glare accessories


Low weight

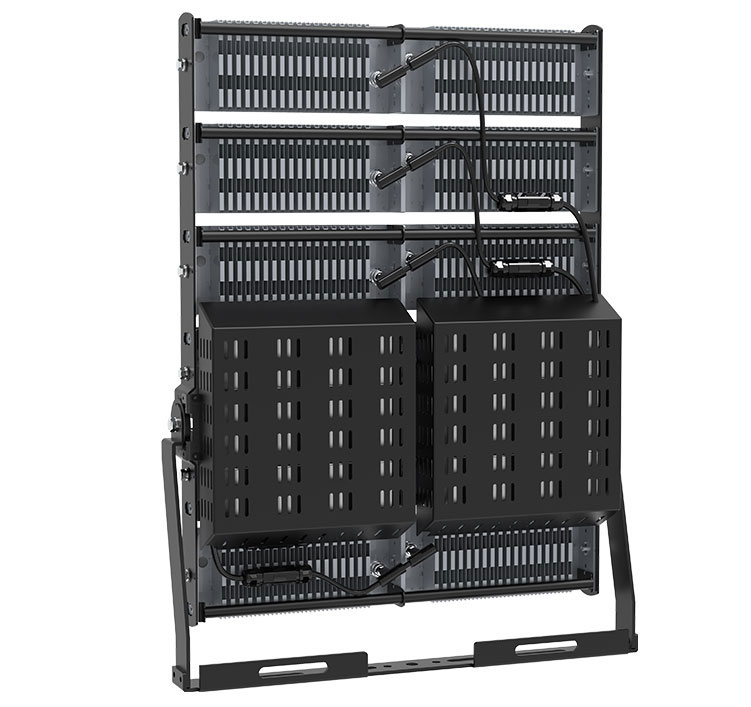

Our led high mast uses aluminum fins for heat dissipation, which has good heat dissipation performance and light weight, and it is 50% lighter than the weight of the die-cast high mast.

There is a big advantage in installing our led high pole lights for aerial work.


low weight 1440w led high mast pole lights


Lightweight design provides easy refurbishment of existing HID installations as well as quick installation


Waterproof IP65

1.Anti-dust design,able to be with flushable cleaning

 2.IP65 (TUV report available)

 3.can't be immersed into the water

1440w large area waterproof ip65 flood high mast lights


Applications

Applied in large sports field lighting, golf and tennis court,racetrack,

badminton, roads, football, basketball, tower lights, etc. Can also be applied in large square, airport, commercial building, construction engineering, farm, amusement parks, parking lots, harbor, industrial buildings, and other special lighting environment.

1440W LED Stadium light application.jpg


Photometrics

LED high mast light photometrics.png

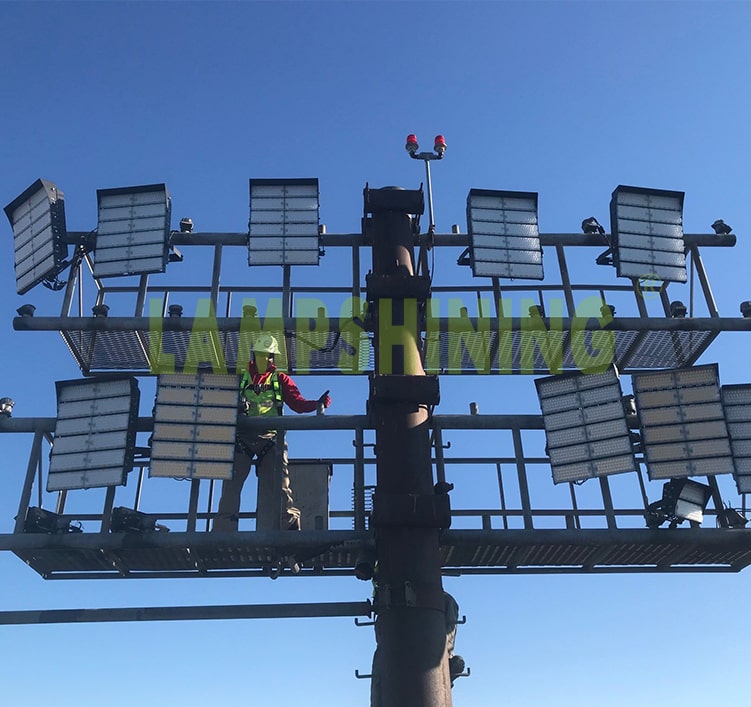

1440w rotatable module led high mast stadium light application

Main Feature

  • IP65 rated LED floodlight

  • Rotatable modules offering maximum customisation

  • Heavy duty stirrup mounting bracket

  • Multiple optics available

  • Can be installed as a floodlight or high bay

  • With illumination equivalent to 3000 watt metal halide fixtures you'll enjoy an "instant-on, flicker-free"cold start, and industry-leading 160Lm/W.

  • Protractor scale for easier aiming

  • 50,000-hour operating life means years of maintenancefree operation.

  • Unique design extracts heat from the light source, thereby extending component life and ultimately prolonging the useful life of the fixture.

  • Lightweight design provides easy retrofitting of existing HID installations,along with quick mounting on all new installations1440W 160LM/W LED High Mast large area Lighting fixtures showhigh power high lumens high efficient 1440W LED flood lighting fixtures

Accessories

Anti-glare accessories and round installation plare.1440w led high mast light accessories

Packing Method Marking

1. Product packaging materials:

Carton: 90.8x69.5x17.2cm           Pearl cotton: 89.3x68x7.0cm           Block pearl cotton:20x7.0x5.0cm            Flat card: 89.3x68cm


finished lamp packaging diagram
