400W-A TUV CE LED High Mast Light,Rotatable Module,160Lm/W,64000 Lumen,IP65,Stadium Light,Sports Lighting,Flood Lighting

Model               : LSHM-400W-LV(XXK)

Wattage            : 400W

IP Rating           : IP65

Input Voltage   : 100-277VAC

Light Source     : Lumileds 5050

Luminous Flux  : 64,000 Lumen (160Lm/W)

Lifespan              : >50,000 hours

CCT                       : 3000K 4000K 5000K 5700K

Equivalent          : 800W HPS / MH

Driver                   : Meanwell ELG-240-48A X2

Certification       : TUV, CE, SAA, CB, LM79, LM80, LSTMT, LCP,

                                 Salt Spray test

Inquire Now Next Product

400W-A TUV CE LED High Mast Light,Rotatable Module,160Lm/W,64000 Lumen,IP65,Stadium Light,Sports Lighting,Flood Lighting

Name:

Tel:

E-mail:

Country:

CAPTCHA:

Submit the information to obtain product spec sheet,Please make sure that your email address is absolutely correct!

Specification Sheet
  • Data Sheets
  • Beam Angle
  • Options/Accessories
  • Package details

Overview


400W LED High Mast Light

400W LED High Mast Lamp LED stadium lighting LED flood light AC100-277V LED high-pole lamp 400W with 64000lm

This Series LED High Mast Light features adoption of Lumileds 5050 Light source and Power Supply with high quality, energy conservation, high luminance and long service life.And there are multiple certifications of the Europe authoritative TUV, CE, SAA, CB, LM79, LM80, LSTMT, LCP, Salt Spray test. and Salt spray test.It adopts Marine grade aluminum shell for aesthetics and good heat dissipation, with a long service life of 50000h. The products emits soft and well-distributed light along with brighter effect and great color rendering. With illumination equivalent to 800 watt metal halide fixtures you'll enjoy an instant-on,flicker-free cold start,and industry-leading 160Lm/W.And it adopts certification power supply with high efficiency along with low heat and high accuracy of constant current. It also features unique structure, high efficiency and green technology.Widely used in stadiums, golf courses, tennis courts, docks, parking lots, airports and other lighting venues.


Europe LED high mast light Authentication icon.jpg


Size

400w 480w-A led high mast light size.jpg


Specifications

ModelLSHM-400W-LV(XXK)
Wattage400 Watt
Lumen64,000 Lumens(160LM/W)
Input Voltage100-277VAC
Power Frequency50/60 Hz
Light SourceLumileds 5050
Color Temp3000K / 4000K / 5000K / 5700K
Driver

ELG-240-48A X2

Fixture MaterialMarine grade aluminum
DimmingDimmableNon-dimmable
Wind rating51.0-56.0m/s
Module rotatableModule rotatable up & down 15 degree
Lifespan>50,000 Hours
Beam Angle10 /20/ 40 / 60 / 90/ 140*100 degree
IP RatingIP65 (TUV report available)
Dimensions23.5 x 14.25 x 5.2 in (597 x 362 x 132mm)
CertficatesTUV, CE, SAA, CB, LM79, LM80, LSTMT, LCP, Salt Spray test


Features

  • IP65 rated LED floodlight

  • Rotatable modules offering maximum customisation

  • Heavy duty stirrup mounting bracket

  • Multiple optics available

  • Can be installed as a floodlight or high bay

  • With illumination equivalent to 800 watt metal halide fixtures you'll enjoy an "instant-on, flicker-free cold start, and industry-leading 160Lm/W.

  • Protractor scale for easier aiming

  • 50,000-hour operating life means years of maintenancefree operation.

  • Unique design extracts heat from the light source, thereby extending component life and ultimately prolonging the useful life of the fixture.

  • Lightweight design provides easy retrofitting of existing HID installations,along with quick mounting on all new installations.


Characteristic

1.Fin cooling design 2.Optional with multiple optical angles 3.>50000 hours of life 4.Module angle adjustable 5.Lightweight design 6.High efficiency up to 160lm/W


400W-A TUV LED High Mast Light,64000Lumens,Flood Luminaire,Outdoor LED Lighting


Less weight

1.Weight of folding fin heat sink is 50% ligher than die costing, extrution etc.

2.1070 aluminum, thickness 0.5mm. structure on heat dissipation, the heat dissipation area is larger, and the heat dissipation effect is better, it's with Lighter weight, which is 1/3 of weight of die-casting, proximate matter and cold forging.


400w sports led flood lights uses 1070 aluminum less weight heat sink material


Our led high mast uses aluminum fins for heat dissipation, which has good heat dissipation performance and light weight, and it is 50% lighter than the weight of the die-cast high mast. There is a big advantage in installing our led high pole lights for aerial work. Less weight design provides easy refurbishment of existing HID installations as well as quick installation.


Withstand wind

Install our High Power 400W TUV LED High Mast Light Can withstand hurricanes of 51.0-56.0m/s.


400W TUV LED High Mast Light can withstand hurricanes


Adjustable angle

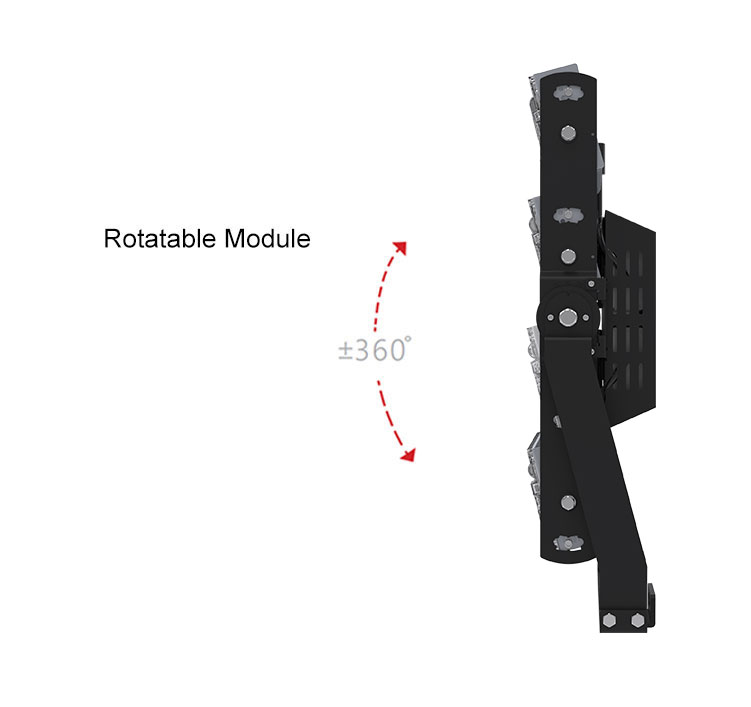

1.Rotatable module

2.Replaceable optical lens

3.Protractor scale for easier aiming

4.Lengthened heavy duty mounting bracket allowing for 360 degree rotation

5.Salt spray resistant, corrosive resistant,processed with dedicated treatments on the heat sink and other 6.components,these fixtures can withstand corrosive and salt intensive environments.


400W stadium lighting LED High Mast Lamp  flood light rotatable module description


Waterproof IP65

1.Anti-dust design,able to be with flushable cleaning

2.IP65 (TUV report available)

3.can't be immersed into the water

400W LED High Mast Lamp LED stadium lighting LED flood light AC100-277V LED high-pole lamp 400W with waterproof ip65.jpg

400w led floodlihgt high mast lighting application case400w led floodlihgt high mast lighting application case


Applications

Applied in large sports field lighting, golf and tennis court,racetrack,

badminton, roads, football, basketball, tower lights, etc. Can also be applied in large square, airport, commercial building, construction engineering, farm, amusement parks, parking lots, harbor, industrial buildings, and other special lighting environment.


install 400W LED high mast light

400w 480w-A LED stadium light application.jpg

Photometrics

LED high mast light photometrics



Accessories

1.Anti-glare accessories can avoid the effects of glare when the brightness of the light reaches a relatively large value.

2.Round installation plate enables the luminaire to rotate horizontally.


400w led high mast light accessories

400w led high mast light accessories installation

Packing Method Marking

68*47*23cm 1pc/ctn

GW: 11.5Kg


finished lamp packaging diagram

400w 480w-A LED high mast light Packing Method.jpg
